5-10 — CAB MOUNTING; FRAME SIDE (#42477) — 154 parça

7 104 1 20 105 72 7 1 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97033-356-2	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-365-0	01	1	0607-	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-897-1	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-364-1	01	1	0607-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-896-0	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-363-0	01	1	0607-		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0302-0512		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-0606		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	10	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	10	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0607-	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606		●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0607-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0302-		●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0607-	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-625-4	01	1	0302-0606	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0607-	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0302-0512	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-0606	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0607-	●	●	●

141 140 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
140	09.003 NUT; BRKT 03.417 M8 FLANGE	8-94279-517-0	04	1	0302-	●	●	●
141	09.003 BOLT; BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0302-	●	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-423-4	01	1	0302-	●	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-422-4	01	1	0302-	●	●	●

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97033-356-2	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-365-0	01	1	0607-	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-897-1	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-364-1	01	1	0607-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-896-0	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-363-0	01	1	0607-		●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0302-0606	●	●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0302-0512		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-0606		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	10	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	10	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0607-	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606		●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0607-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0302-		●	●

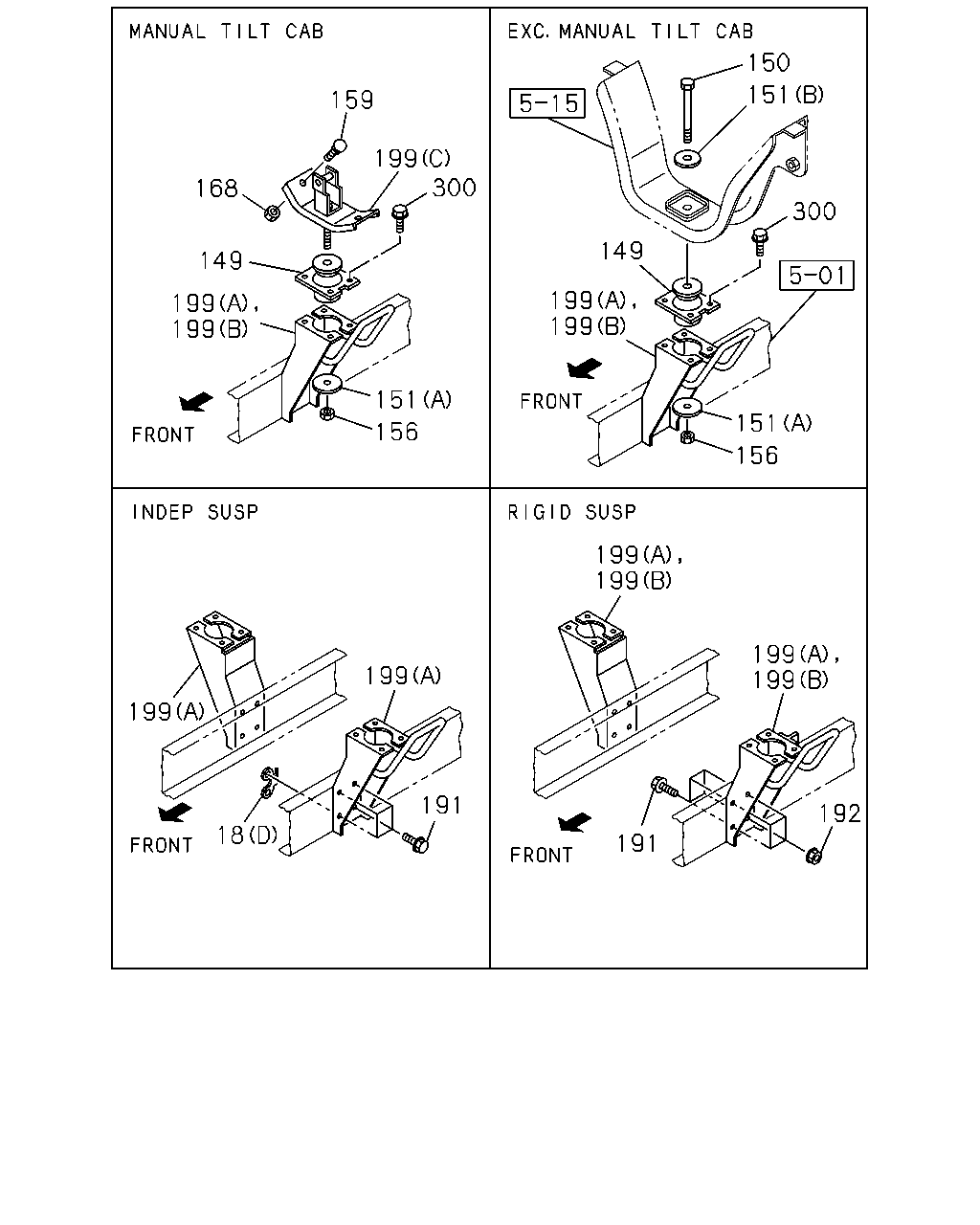

150 151 159 199 300 168 300 149 149 199 199 199 199 151 151 156 156 199 199 199 199 199 199 191 192 18 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-97216-458-1	02	1	0302-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ>	8-97086-442-4	02	1	0302-0606	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ>	8-97095-149-3	02	1	0302-		●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ>	0-28881-690-0	02	1	0302-0512	●	●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ>	0-28851-690-0	02	1	0601-0606	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=16.4 OD=62	8-97034-382-0	02	1	0302-0611	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (A) ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58	8-97034-383-1	02	1	0302-0606	●	●	●
156	07.529 NUT; CAB MTG RR 04.681 M16	9-99111-416-0	02	1	0302-0512	●	●	●
156	07.529 NUT; CAB MTG RR 00.785 M16	0-91111-516-0	02	1	0601-	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0302-	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-0602	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	10	1	0302-0512	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	10	1	0601-0606	●
191	09.003 BOLT; BRKT FIX M12X30 FLANGE	0-28051-230-0	08	1	0607-	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0302-0512		●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0601-		●	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0302-0602		●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-		●	●
199	09.003 BRACKET; CAB RR MTG (A)	8-97187-528-1	01	1	0302-0606	●
199	09.003 BRACKET; CAB RR MTG (A)	8-97388-370-1	01	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG (A)	8-97187-527-1	01	1	0302-0606	●
199	09.003 BRACKET; CAB RR MTG (A)	8-97388-369-1	01	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-97035-310-4	02	1	0302-0606	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C)	8-98032-338-0	02	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97187-526-0	01	1	0302-0606		●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97187-525-0	01	1	0302-0606		●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0302-0512	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●	●

105 104 7 1 20 7 1 20 7 23 18 18 18 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97033-356-2	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-365-0	01	1	0607-	●
1	09.003 BRACKET; CAB MTG	8-97033-350-3	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97331-637-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-897-1	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-364-1	01	1	0607-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-896-0	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-363-0	01	1	0607-		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0302-0512		●	●
7	09.003 BOLT; BRKT,CAB TILT EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-0606		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	10	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	10	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0607-	●	●	●
18	09.003 PLATE; MTG BRKT FIX (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
20	09.003 RUBBER; MTG,CAB BRKT	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606		●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0607-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0302-		●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 05.586 M12 FLANGE	0-91150-112-0	02	1	0302-0602		●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	02	1	0603-		●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-625-4	01	1	0302-0606	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97330-162-2	01	1	0607-	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0302-0512	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-0606	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
