4-50 — FRONT SUSPENSION (#42469) — 412 parça

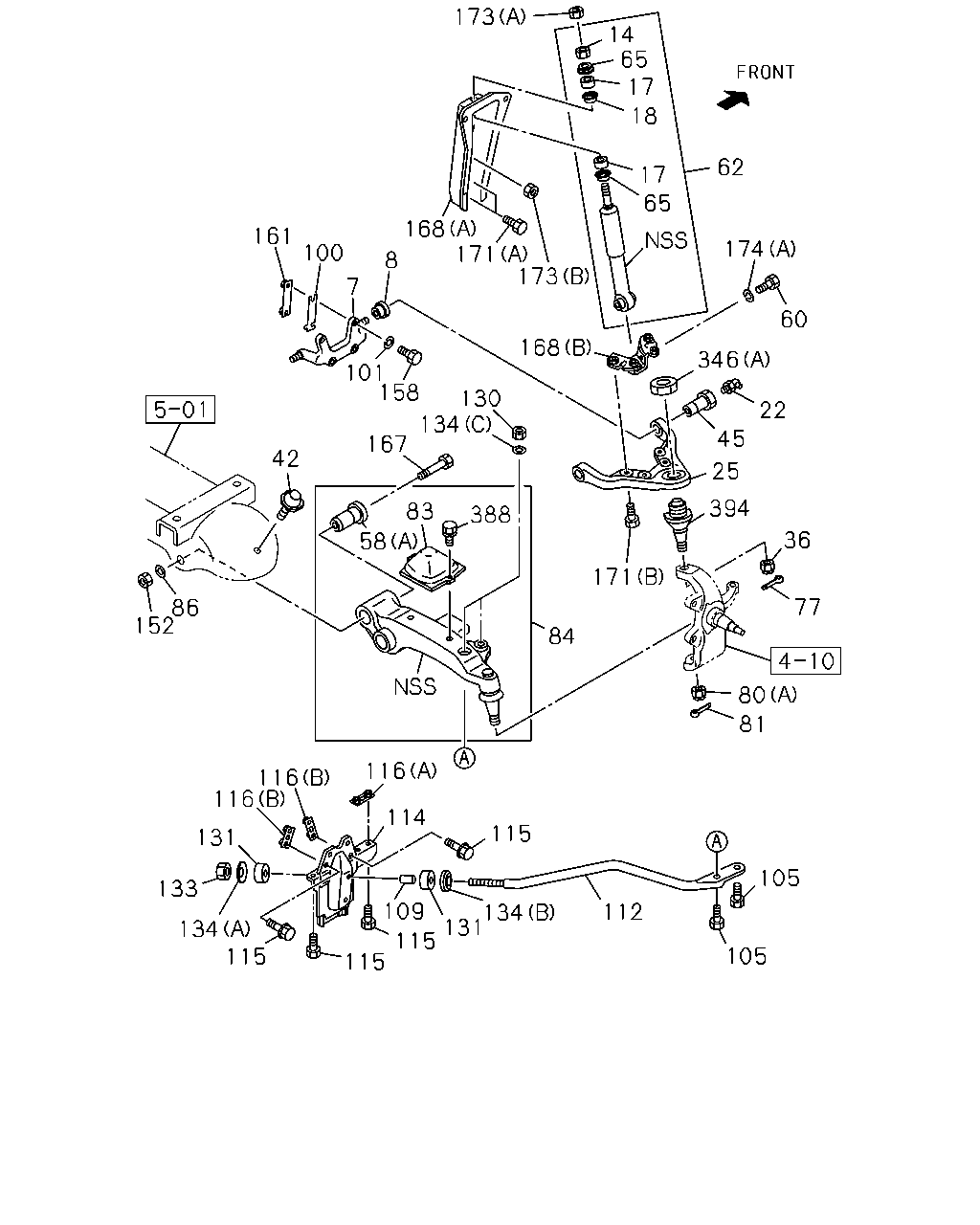

çizim 9640
173 14 65 17 18 62 17 65 168 171 161 174 100 173 8 7 60 168 346 101 158 130 134 22 45 167 42 25 394 83 388 36 58 171 77 86 152 84 80 81 116 116 116 114 115 131 105 133 109 112 134 131 134 115 105 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C
7 06.174 PIN; FULCRUM,UPR LINK 8-94340-084-1 02 1 0302-0606 ●
7 06.174 PIN; FULCRUM,UPR LINK 8-97354-500-0 02 1 0607-0612 ●
7 06.174 PIN; FULCRUM,UPR LINK 8-98021-654-0 02 1 0701- ●
8 06.174 COVER; DUST,FULCRUM PIN,UPR LINK
06.166 		8-94233-208-1 04 1 0302-0606 ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0302-0606 ● ● ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0607- ● ●
17 07.388 BUSHING; RUBBER,S/ABS 8-97370-319-0 02 1 0607- ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0302-0606 ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0607- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 0302-0606 ●
22 06.166 NIPPLE; GREASE,LINK END
05.556 PT1/8 ELBOW 		9-09031-210-0 04 1 0302-0512 ●
22 06.166 NIPPLE; GREASE,LINK END
08.984 PT1/8 ELBOW 		0-90301-610-0 04 1 0601-0606 ●
25 06.168 ARM; UPR CONT 8-97076-005-3 01 1 0302-0606 ●
25 06.168 ARM; UPR CONT 8-97386-816-0 01 1 0607-0612 ●
25 06.168 ARM; UPR CONT 8-98021-653-0 01 1 0701- ●
25 06.168 ARM; UPR CONT 8-97076-004-3 01 1 0302-0606 ●
25 06.168 ARM; UPR CONT 8-97354-494-4 01 1 0607-0612 ●
25 06.168 ARM; UPR CONT 8-98021-652-0 01 1 0701- ●
36 06.174 NUT; UPR LINK END TO UPR LINK
06.861 M18 SLOTTED 		8-97017-761-0 02 1 0302-0606 ●
42 06.176 RUBBER; REBOUND,FRT SUSPENSION 8-97031-392-1 02 1 0302-0606 ●
45 06.164 BUSHING; UPR LINK,FRT 8-97089-934-3 04 1 0302-0606 ●
45 06.164 BUSHING; UPR LINK,FRT 8-97188-369-0 04 1 0607- ●
58 06.170 BUSHING; LWR LINK
(B) 		8-97188-368-1 02 1 0607-0610 ●
58 06.170 BUSHING; LWR LINK
(B) 		8-98009-049-1 02 1 0611- ●
58 06.170 BUSHING; LWR LINK
(A) 		8-94336-509-1 02 1 0302- ●
60 07.347 BOLT; S/ABS TO LWR LINK
04.083 M12X70 		0-10806-270-0 02 1 0302-0512 ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X70 		0-10856-270-0 02 1 0601-0606 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-592-0 02 1 0302-0606 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97369-637-1 02 1 0607- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-602-0 02 1 0302- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-605-0 02 1 0302- ● ●
65 07.347 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0302-0606 ●
65 07.347 WASHER; S/ABS
07.245 ID=10.5 OD=38 		9-51631-062-0 04 1 0302- ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0302-0606 ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 04 1 0607-0607 ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
05.812 OD=3.7 L=30 		0-81124-030-0 04 1 0607- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
08.915 (A) M22 		9-09111-522-0 02 1 0302-0512 ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
06.861 (A) M22 		0-91111-522-0 02 1 0601- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
04.681 (B) M16 		9-99111-516-0 02 1 0511-0512 ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
00.785 (B) M16 		0-91111-516-0 02 1 0601- ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0302-0606 ●
83 06.174 RUBBER; BUMPER,FRT 8-97031-391-1 02 1 0302-0606 ●
84 06.168 ARM; LWR CONT 8-97203-086-2 01 1 0302-0510 ●
84 06.168 ARM; LWR CONT 8-98025-503-0 01 1 0511-0606 ●
84 06.168 ARM; LWR CONT 8-98035-044-0 01 1 0607-0610 ●
84 06.168 ARM; LWR CONT 8-98001-260-0 01 1 0611- ●
84 06.168 ARM; LWR CONT 8-97203-085-2 01 1 0302-0510 ●
84 06.168 ARM; LWR CONT 8-98025-502-0 01 1 0511-0606 ●
84 06.168 ARM; LWR CONT 8-98035-043-0 01 1 0607-0610 ●
84 06.168 ARM; LWR CONT 8-98001-259-0 01 1 0611- ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		9-09164-522-0 02 1 0302-0605 ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		0-91614-522-0 02 1 0606-0606 ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		0-91614-522-0 04 1 0607- ●
100 06.164 SHIM; UPR LINK TO FRAME
T=1.6 		8-94341-343-3 AR 1 0302-0606 ●
100 06.164 SHIM; UPR LINK TO FRAME
T=3.2 		8-94341-344-2 AR 1 0302-0606 ●
100 06.164 SHIM; UPR LINK TO FRAME
T=0.8 		8-97020-095-2 AR 1 0302-0606 ●
101 06.174 WASHER; LK,UPR LINK
05.422 ID=14.2 		9-09150-814-0 08 1 0302-0603 ●
101 06.174 WASHER; LK,UPR LINK
ID=14.2 		0-91510-814-0 08 1 0604-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
EXC. KD PREPARATORY PACK<6HF> M16X60 		8-97076-846-1 02 1 0302-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
EXC. KD PREPARATORY PACK<6HF> M16X70 		8-97215-586-0 02 1 0302-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 08.900 M16X40 		9-92061-640-0 02 1 0302-0512 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> M16X40 		0-20951-640-0 02 1 0601-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 07.428 M16X50 		9-92061-650-0 02 1 0302-0512 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> M16X50 		0-20951-650-0 02 1 0601-0606 ●
109 06.168 TUBE; DIST,STRUT BAR 8-94336-504-0 02 1 0302-0606 ●
112 06.168 BAR; STRUT 8-97031-376-2 01 1 0302-0606 ●
112 06.168 BAR; STRUT 8-97031-375-2 01 1 0302-0606 ●
114 06.168 BRACKET; SUPPORT,STRUT BAR 8-97031-380-3 01 1 0302-0606 ●
114 06.168 BRACKET; SUPPORT,STRUT BAR 8-97105-693-2 01 1 0302-0606 ●
115 06.168 BOLT; SUPPORT BRKT TO BODY
M12X35 		8-97016-102-2 14 1 0302-0606 ●
116 06.168 NUT ASM; BRKT
(A) 		8-97351-391-0 02 1 0302-0606 ●
116 06.168 NUT ASM; BRKT
(B) 		8-97351-392-0 04 1 0302-0606 ●
130 07.172 NUT; STRUT BAR TO LWR LINK
EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE 		8-97147-389-0 04 1 0302-0606 ●
130 07.172 NUT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 0302-0512 ●
130 07.172 NUT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 04 1 0601-0606 ●
131 07.170 RUBBER; CUSHION,STRUT BAR 8-97075-603-0 04 1 0302-0606 ●
133 07.172 NUT; STRUT BAR
05.813 M22 		9-09110-522-0 04 1 0302-0512 ●
133 07.172 NUT; STRUT BAR
M22 		0-91110-522-0 04 1 0601-0606 ●
134 07.172 WASHER; STRUT BAR
KD PREPARATORY PACK<6HF> (C) ID=16.5 		8-97070-925-1 04 1 0302-0606 ●
134 07.172 WASHER; STRUT BAR
(A) OD=66 ID=22 		8-97031-208-0 02 1 0302-0606 ●
134 07.172 WASHER; STRUT BAR
(B) 		8-97035-568-0 02 1 0302-0606 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
05.813 M22 		9-09110-522-0 02 1 0302-0512 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
07.172 M22 		0-91110-522-0 02 1 0601-0606 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
07.172 M22 		0-91110-522-0 04 1 0607- ●
158 06.178 BOLT; UPR LINK TO FRAME
M14X70 		8-97072-665-1 08 1 0302-0606 ●
158 06.178 BOLT; UPR LINK TO FRAME
M16X70 FLANGE 		0-28861-670-0 04 1 0607- ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.168 		8-97351-394-0 04 1 0302-0606 ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.164 M16 FLANGE 		0-91180-216-0 04 1 0607- ●
167 06.178 BOLT; LWR LINK TO FRT C/MBR
M22X135 		8-94374-671-1 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-97031-383-2 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97034-000-1 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-003-1 01 1 0302-0506 ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97367-173-1 01 1 0507- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-002-1 01 1 0302-0506 ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97367-171-1 01 1 0507- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-002-1 01 1 0302-0308 ● ●
171 07.395 BOLT; S/ABS BRKT
(B) M10X35 FLANGE 		0-28091-035-0 08 1 0302-0512 ●
171 07.395 BOLT; S/ABS BRKT
(B) M10X35 FLANGE 		0-28061-035-0 08 1 0601-0606 ●
171 07.395 BOLT; S/ABS BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0302-0512 ●
171 07.395 BOLT; S/ABS BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0606 ●
171 07.395 BOLT; S/ABS BRKT
03.405 (A) M10X30 FLANGE 		0-28681-030-0 08 1 0302-0512 ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
173 07.395 NUT; S/ABS
06.606 (B) M12 		8-94139-015-0 02 1 0302-0606 ●
173 07.395 NUT; S/ABS
07.833 (C) M14 		0-91110-514-0 02 1 0607- ●
173 07.395 NUT; S/ABS
06.822 (A) M10 		9-09111-410-0 02 1 0302-0306 ● ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 08 1 0507-0602 ● ●
173 07.395 NUT; S/ABS
04.085 (B) M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
174 07.347 WASHER; LK,S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0607-0611 ●
174 07.347 WASHER; LK,S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ●
174 07.347 WASHER; LK,S/ABS
00.002 (A) ID=12.2 		9-09150-812-0 02 1 0302-0603 ●
174 07.347 WASHER; LK,S/ABS
(A) ID=12.2 		0-91510-812-0 02 1 0604-0606 ●
174 07.347 WASHER; LK,S/ABS
(C) ID=21 OD=40 		0-91614-620-0 02 1 0607- ●
346 06.174 NUT; LINK END
06.861 (B) M18 SLOTTED 		8-97017-761-0 02 1 0607-0610 ●
346 06.174 NUT; LINK END
(B) M18 SLOTTED 		8-97245-632-0 02 1 0611- ●
346 06.174 NUT; LINK END
(A) M52 		8-97076-036-0 02 1 0302-0612 ●
346 06.174 NUT; LINK END
(A) M52 		8-98021-784-0 02 1 0701- ●
388 06.174 BOLT; BUMP RUBBER
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 0302-0606 ●
394 06.714 END ASM; FRT AXLE
06.174 		8-97107-328-0 02 1 0302-0606 ●
394 06.714 END ASM; FRT AXLE 8-97327-369-5 02 1 0607- ●

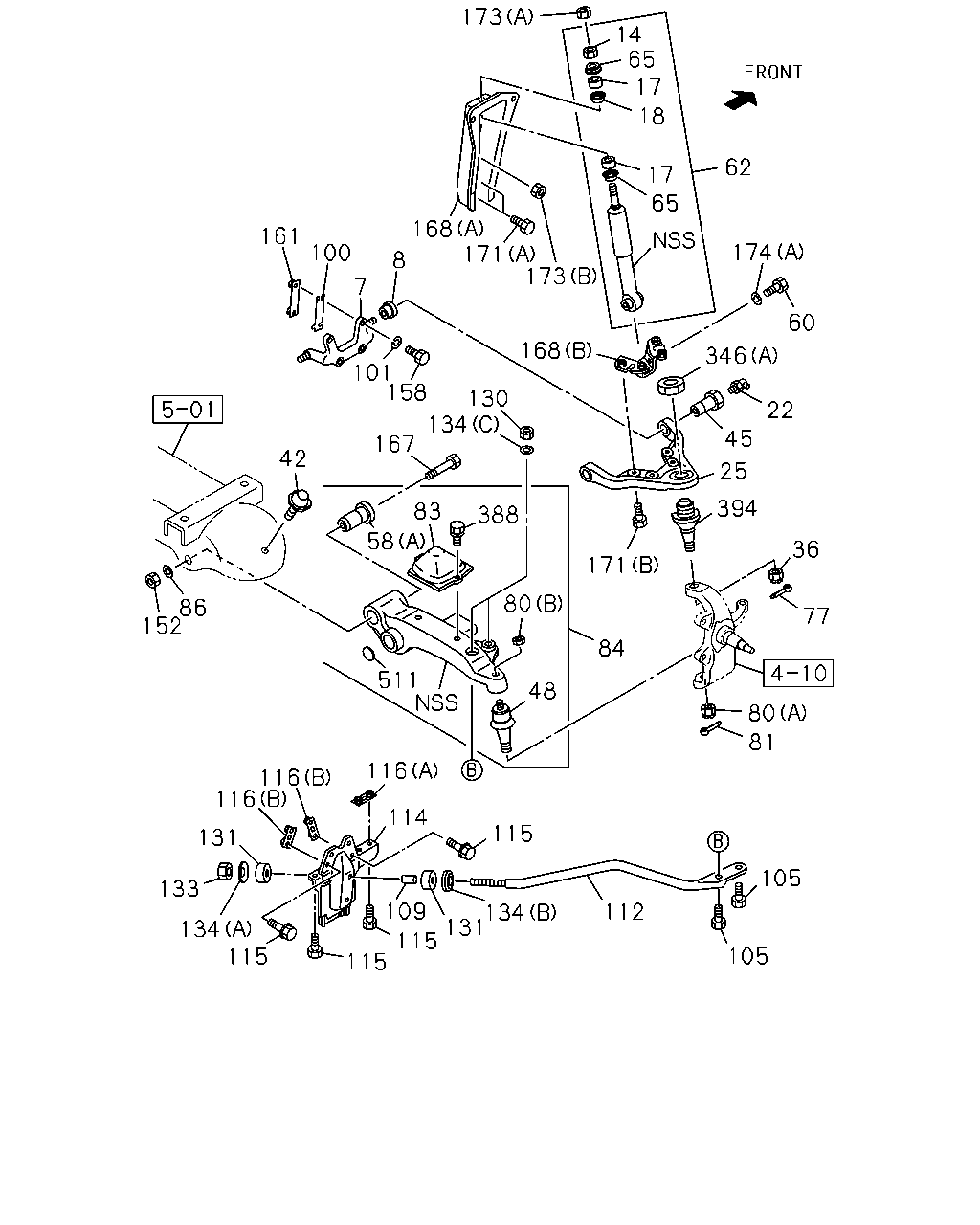

çizim 9641
173 14 65 17 18 62 17 65 168 171 161 174 100 173 8 7 60 168 346 101 158 130 134 22 45 167 42 25 394 83 388 58 36 171 80 86 152 77 84 511 48 80 81 116 116 116 114 115 131 105 133 109 112 134 131 134 115 105 115 115
BalonParca AdiParca NoAdetTipApplied Date A B C
7 06.174 PIN; FULCRUM,UPR LINK 8-94340-084-1 02 1 0302-0606 ●
7 06.174 PIN; FULCRUM,UPR LINK 8-97354-500-0 02 1 0607-0612 ●
7 06.174 PIN; FULCRUM,UPR LINK 8-98021-654-0 02 1 0701- ●
8 06.174 COVER; DUST,FULCRUM PIN,UPR LINK
06.166 		8-94233-208-1 04 1 0302-0606 ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0302-0606 ● ● ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0607- ● ●
17 07.388 BUSHING; RUBBER,S/ABS 8-97370-319-0 02 1 0607- ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0302-0606 ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0607- ● ●
18 07.347 WASHER; CENTERING,S/ABS
TOKICO 		8-94412-791-0 02 1 0302-0606 ●
22 06.166 NIPPLE; GREASE,LINK END
05.556 PT1/8 ELBOW 		9-09031-210-0 04 1 0302-0512 ●
22 06.166 NIPPLE; GREASE,LINK END
08.984 PT1/8 ELBOW 		0-90301-610-0 04 1 0601-0606 ●
25 06.168 ARM; UPR CONT 8-97076-005-3 01 1 0302-0606 ●
25 06.168 ARM; UPR CONT 8-97386-816-0 01 1 0607-0612 ●
25 06.168 ARM; UPR CONT 8-98021-653-0 01 1 0701- ●
25 06.168 ARM; UPR CONT 8-97076-004-3 01 1 0302-0606 ●
25 06.168 ARM; UPR CONT 8-97354-494-4 01 1 0607-0612 ●
25 06.168 ARM; UPR CONT 8-98021-652-0 01 1 0701- ●
36 06.174 NUT; UPR LINK END TO UPR LINK
06.861 M18 SLOTTED 		8-97017-761-0 02 1 0302-0606 ●
42 06.176 RUBBER; REBOUND,FRT SUSPENSION 8-97031-392-1 02 1 0302-0606 ●
45 06.164 BUSHING; UPR LINK,FRT 8-97089-934-3 04 1 0302-0606 ●
45 06.164 BUSHING; UPR LINK,FRT 8-97188-369-0 04 1 0607- ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-97142-452-1 02 1 0511- ●
58 06.170 BUSHING; LWR LINK
(B) 		8-97188-368-1 02 1 0607-0610 ●
58 06.170 BUSHING; LWR LINK
(B) 		8-98009-049-1 02 1 0611- ●
58 06.170 BUSHING; LWR LINK
(A) 		8-94336-509-1 02 1 0302- ●
60 07.347 BOLT; S/ABS TO LWR LINK
04.083 M12X70 		0-10806-270-0 02 1 0302-0512 ●
60 07.347 BOLT; S/ABS TO LWR LINK
M12X70 		0-10856-270-0 02 1 0601-0606 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-592-0 02 1 0302-0606 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97369-637-1 02 1 0607- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-602-0 02 1 0302- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-605-0 02 1 0302- ● ●
65 07.347 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0302-0606 ●
65 07.347 WASHER; S/ABS
07.245 ID=10.5 OD=38 		9-51631-062-0 04 1 0302- ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0302-0606 ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 04 1 0607-0607 ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
05.812 OD=3.7 L=30 		0-81124-030-0 04 1 0607- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
08.915 (A) M22 		9-09111-522-0 02 1 0302-0512 ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
06.861 (A) M22 		0-91111-522-0 02 1 0601- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
04.681 (B) M16 		9-99111-516-0 02 1 0511-0512 ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
00.785 (B) M16 		0-91111-516-0 02 1 0601- ●
81 06.174 PIN; SPLIT,LWR LINK TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0302-0606 ●
83 06.174 RUBBER; BUMPER,FRT 8-97031-391-1 02 1 0302-0606 ●
84 06.168 ARM; LWR CONT 8-97203-086-2 01 1 0302-0510 ●
84 06.168 ARM; LWR CONT 8-98025-503-0 01 1 0511-0606 ●
84 06.168 ARM; LWR CONT 8-98035-044-0 01 1 0607-0610 ●
84 06.168 ARM; LWR CONT 8-98001-260-0 01 1 0611- ●
84 06.168 ARM; LWR CONT 8-97203-085-2 01 1 0302-0510 ●
84 06.168 ARM; LWR CONT 8-98025-502-0 01 1 0511-0606 ●
84 06.168 ARM; LWR CONT 8-98035-043-0 01 1 0607-0610 ●
84 06.168 ARM; LWR CONT 8-98001-259-0 01 1 0611- ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		9-09164-522-0 02 1 0302-0605 ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		0-91614-522-0 02 1 0606-0606 ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		0-91614-522-0 04 1 0607- ●
100 06.164 SHIM; UPR LINK TO FRAME
T=1.6 		8-94341-343-3 AR 1 0302-0606 ●
100 06.164 SHIM; UPR LINK TO FRAME
T=3.2 		8-94341-344-2 AR 1 0302-0606 ●
100 06.164 SHIM; UPR LINK TO FRAME
T=0.8 		8-97020-095-2 AR 1 0302-0606 ●
101 06.174 WASHER; LK,UPR LINK
05.422 ID=14.2 		9-09150-814-0 08 1 0302-0603 ●
101 06.174 WASHER; LK,UPR LINK
ID=14.2 		0-91510-814-0 08 1 0604-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
EXC. KD PREPARATORY PACK<6HF> M16X60 		8-97076-846-1 02 1 0302-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
EXC. KD PREPARATORY PACK<6HF> M16X70 		8-97215-586-0 02 1 0302-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 08.900 M16X40 		9-92061-640-0 02 1 0302-0512 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> M16X40 		0-20951-640-0 02 1 0601-0606 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 07.428 M16X50 		9-92061-650-0 02 1 0302-0512 ●
105 07.172 BOLT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> M16X50 		0-20951-650-0 02 1 0601-0606 ●
109 06.168 TUBE; DIST,STRUT BAR 8-94336-504-0 02 1 0302-0606 ●
112 06.168 BAR; STRUT 8-97031-376-2 01 1 0302-0606 ●
112 06.168 BAR; STRUT 8-97031-375-2 01 1 0302-0606 ●
114 06.168 BRACKET; SUPPORT,STRUT BAR 8-97031-380-3 01 1 0302-0606 ●
114 06.168 BRACKET; SUPPORT,STRUT BAR 8-97105-693-2 01 1 0302-0606 ●
115 06.168 BOLT; SUPPORT BRKT TO BODY
M12X35 		8-97016-102-2 14 1 0302-0606 ●
116 06.168 NUT ASM; BRKT
(A) 		8-97351-391-0 02 1 0302-0606 ●
116 06.168 NUT ASM; BRKT
(B) 		8-97351-392-0 04 1 0302-0606 ●
130 07.172 NUT; STRUT BAR TO LWR LINK
EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE 		8-97147-389-0 04 1 0302-0606 ●
130 07.172 NUT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 08.915 M16 		9-99110-516-0 04 1 0302-0512 ●
130 07.172 NUT; STRUT BAR TO LWR LINK
KD PREPARATORY PACK<6HF> 06.509 M16 		0-91110-516-0 04 1 0601-0606 ●
131 07.170 RUBBER; CUSHION,STRUT BAR 8-97075-603-0 04 1 0302-0606 ●
133 07.172 NUT; STRUT BAR
05.813 M22 		9-09110-522-0 04 1 0302-0512 ●
133 07.172 NUT; STRUT BAR
M22 		0-91110-522-0 04 1 0601-0606 ●
134 07.172 WASHER; STRUT BAR
KD PREPARATORY PACK<6HF> (C) ID=16.5 		8-97070-925-1 04 1 0302-0606 ●
134 07.172 WASHER; STRUT BAR
(A) OD=66 ID=22 		8-97031-208-0 02 1 0302-0606 ●
134 07.172 WASHER; STRUT BAR
(B) 		8-97035-568-0 02 1 0302-0606 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
05.813 M22 		9-09110-522-0 02 1 0302-0512 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
07.172 M22 		0-91110-522-0 02 1 0601-0606 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
07.172 M22 		0-91110-522-0 04 1 0607- ●
158 06.178 BOLT; UPR LINK TO FRAME
M14X70 		8-97072-665-1 08 1 0302-0606 ●
158 06.178 BOLT; UPR LINK TO FRAME
M16X70 FLANGE 		0-28861-670-0 04 1 0607- ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.168 		8-97351-394-0 04 1 0302-0606 ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.164 M16 FLANGE 		0-91180-216-0 04 1 0607- ●
167 06.178 BOLT; LWR LINK TO FRT C/MBR
M22X135 		8-94374-671-1 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-97031-383-2 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97034-000-1 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-003-1 01 1 0302-0506 ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97367-173-1 01 1 0507- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-002-1 01 1 0302-0506 ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97367-171-1 01 1 0507- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-002-1 01 1 0302-0308 ● ●
171 07.395 BOLT; S/ABS BRKT
(B) M10X35 FLANGE 		0-28091-035-0 08 1 0302-0512 ●
171 07.395 BOLT; S/ABS BRKT
(B) M10X35 FLANGE 		0-28061-035-0 08 1 0601-0606 ●
171 07.395 BOLT; S/ABS BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0302-0512 ●
171 07.395 BOLT; S/ABS BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0606 ●
171 07.395 BOLT; S/ABS BRKT
03.405 (A) M10X30 FLANGE 		0-28681-030-0 08 1 0302-0512 ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
173 07.395 NUT; S/ABS
06.606 (B) M12 		8-94139-015-0 02 1 0302-0606 ●
173 07.395 NUT; S/ABS
07.833 (C) M14 		0-91110-514-0 02 1 0607- ●
173 07.395 NUT; S/ABS
06.822 (A) M10 		9-09111-410-0 02 1 0302-0306 ● ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 08 1 0507-0602 ● ●
173 07.395 NUT; S/ABS
04.085 (B) M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
174 07.347 WASHER; LK,S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0607-0611 ●
174 07.347 WASHER; LK,S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ●
174 07.347 WASHER; LK,S/ABS
00.002 (A) ID=12.2 		9-09150-812-0 02 1 0302-0603 ●
174 07.347 WASHER; LK,S/ABS
(A) ID=12.2 		0-91510-812-0 02 1 0604-0606 ●
174 07.347 WASHER; LK,S/ABS
(C) ID=21 OD=40 		0-91614-620-0 02 1 0607- ●
346 06.174 NUT; LINK END
06.861 (B) M18 SLOTTED 		8-97017-761-0 02 1 0607-0610 ●
346 06.174 NUT; LINK END
(B) M18 SLOTTED 		8-97245-632-0 02 1 0611- ●
346 06.174 NUT; LINK END
(A) M52 		8-97076-036-0 02 1 0302-0612 ●
346 06.174 NUT; LINK END
(A) M52 		8-98021-784-0 02 1 0701- ●
388 06.174 BOLT; BUMP RUBBER
08.900 M8X20 W/LK WASHER 		0-50040-820-0 04 1 0302-0606 ●
394 06.714 END ASM; FRT AXLE
06.174 		8-97107-328-0 02 1 0302-0606 ●
394 06.714 END ASM; FRT AXLE 8-97327-369-5 02 1 0607- ●
511 07.347 PLUG 8-98030-361-0 02 1 0511-0606 ●

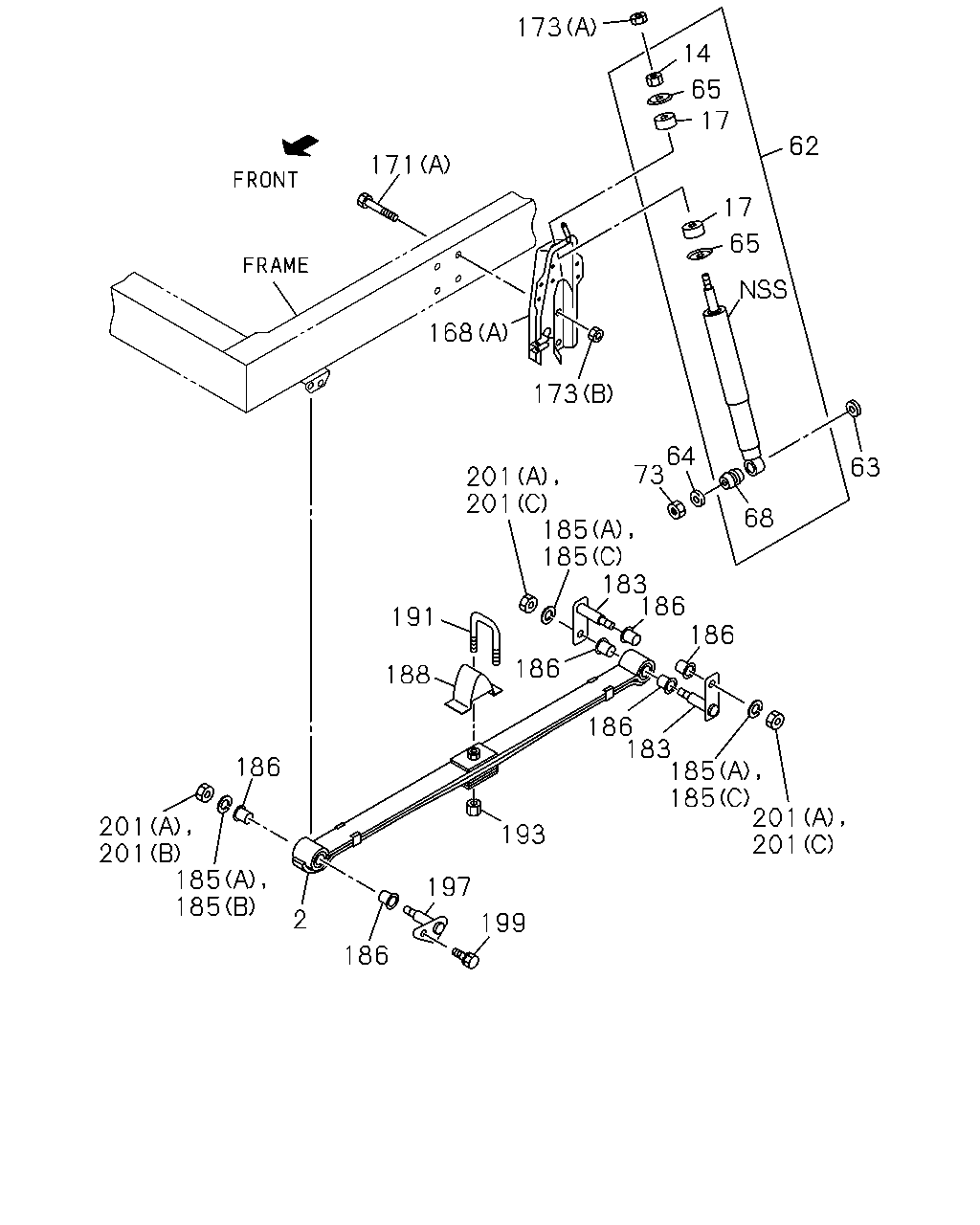

çizim 10792
173 14 65 17 62 171 17 65 168 173 64 73 63 201 201 185 185 183 186 186 68 191 186 188 186 183 185 185 201 201 186 201 201 185 185 193 197 2 199 186
BalonParca AdiParca NoAdetTipApplied Date A B C
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97353-113-0 01 1 0302-0506 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97353-113-0 01 1 0302-0506 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-97353-113-0 01 1 0507-0606 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98042-913-0 01 1 0607- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-97353-112-0 01 1 0302-0506 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 3.5-4.0TON(RPQ) 2-LEAF 		8-97353-112-0 01 1 0302-0506 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-97353-112-0 01 1 0507-0606 ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF 		8-98042-912-0 01 1 0607- ● ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) 2-LEAF 		8-97324-612-0 01 1 0302-0506 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 5.0-5.5TON(RPT) 2-LEAF 		8-97324-611-0 01 1 0302-0506 ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0302-0606 ● ● ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 0607- ● ●
17 07.388 BUSHING; RUBBER,S/ABS 8-97370-319-0 02 1 0607- ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0302-0606 ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0607- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-592-0 02 1 0302-0606 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97369-637-1 02 1 0607- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-602-0 02 1 0302- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-605-0 02 1 0302- ● ●
63 07.347 WASHER; PL,S/ABS,LWR
07.529 ID=17 OD=32 		9-09164-616-0 02 1 0302- ● ●
64 07.347 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 0302- ● ●
65 07.347 WASHER; S/ABS
OD=40 		9-51631-614-0 04 1 0302-0606 ●
65 07.347 WASHER; S/ABS
07.245 ID=10.5 OD=38 		9-51631-062-0 04 1 0302- ● ●
68 07.388 BUSHING; S/ABS 8-97370-319-0 02 1 0607- ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0302- ● ●
73 07.347 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 0302-0512 ● ●
73 07.347 NUT; BRKT,SHOCK
04.439 M12 		0-91111-512-0 02 1 0601- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(B) 		8-97031-383-2 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97034-000-1 02 1 0302-0606 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-003-1 01 1 0302-0506 ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97367-173-1 01 1 0507- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-002-1 01 1 0302-0506 ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97367-171-1 01 1 0507- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
(A) 		8-97316-002-1 01 1 0302-0308 ● ●
171 07.395 BOLT; S/ABS BRKT
(B) M10X35 FLANGE 		0-28091-035-0 08 1 0302-0512 ●
171 07.395 BOLT; S/ABS BRKT
(B) M10X35 FLANGE 		0-28061-035-0 08 1 0601-0606 ●
171 07.395 BOLT; S/ABS BRKT
(A) M12X30 FLANGE 		0-28681-230-0 04 1 0302-0512 ●
171 07.395 BOLT; S/ABS BRKT
(A) M12X30 FLANGE 		0-28651-230-0 04 1 0601-0606 ●
171 07.395 BOLT; S/ABS BRKT
03.405 (A) M10X30 FLANGE 		0-28681-030-0 08 1 0302-0512 ● ●
171 07.395 BOLT; S/ABS BRKT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
173 07.395 NUT; S/ABS
06.606 (B) M12 		8-94139-015-0 02 1 0302-0606 ●
173 07.395 NUT; S/ABS
07.833 (C) M14 		0-91110-514-0 02 1 0607- ●
173 07.395 NUT; S/ABS
06.822 (A) M10 		9-09111-410-0 02 1 0302-0306 ● ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 08 1 0507-0602 ● ●
173 07.395 NUT; S/ABS
04.085 (B) M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
183 07.436 SHACKLE; FRT SUSP 8-94468-235-2 04 1 0302-0606 ● ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 0607- ● ●
185 07.427 WASHER; LK,PIN
(C) ID=16.5 		8-98011-489-0 04 1 0607- ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 06 1 0302-0606 ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5 		8-97070-925-1 02 1 0607-0611 ● ●
185 07.427 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 02 1 0612- ● ●
186 07.105 BUSHING; SHACKLE 8-97081-531-0 12 1 0302- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98009-114-0 02 1 0607- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-3 02 1 0302-0606 ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0607- ● ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-0 04 1 0302-0606 ● ●
191 07.417 U-BOLT; FRT SPR
L=125 		8-97304-076-0 04 1 0607- ● ●
193 07.417 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0302-0610 ● ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 0302- ● ●
199 07.427 BOLT
03.405 M10X25 FLANGE 		0-28681-025-0 02 1 0302-0512 ● ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
201 07.427 NUT; PIN LK
06.509 (C) M16 		0-91110-516-0 04 1 0607- ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.870 (A) M16 		9-99110-416-0 06 1 0302-0512 ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 06 1 0601-0606 ● ●
201 07.427 NUT; PIN LK
KD PREPARATORY PACK<6HF> 06.509 (B) M16 		0-91110-516-0 02 1 0607- ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> 07.529 (A) M16 FLANGE 		8-97147-389-0 06 1 0302-0606 ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> 07.529 (B) M16 FLANGE 		8-97147-389-0 02 1 0607-0610 ● ●
201 07.427 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE 		8-97360-125-0 02 1 0611- ● ●

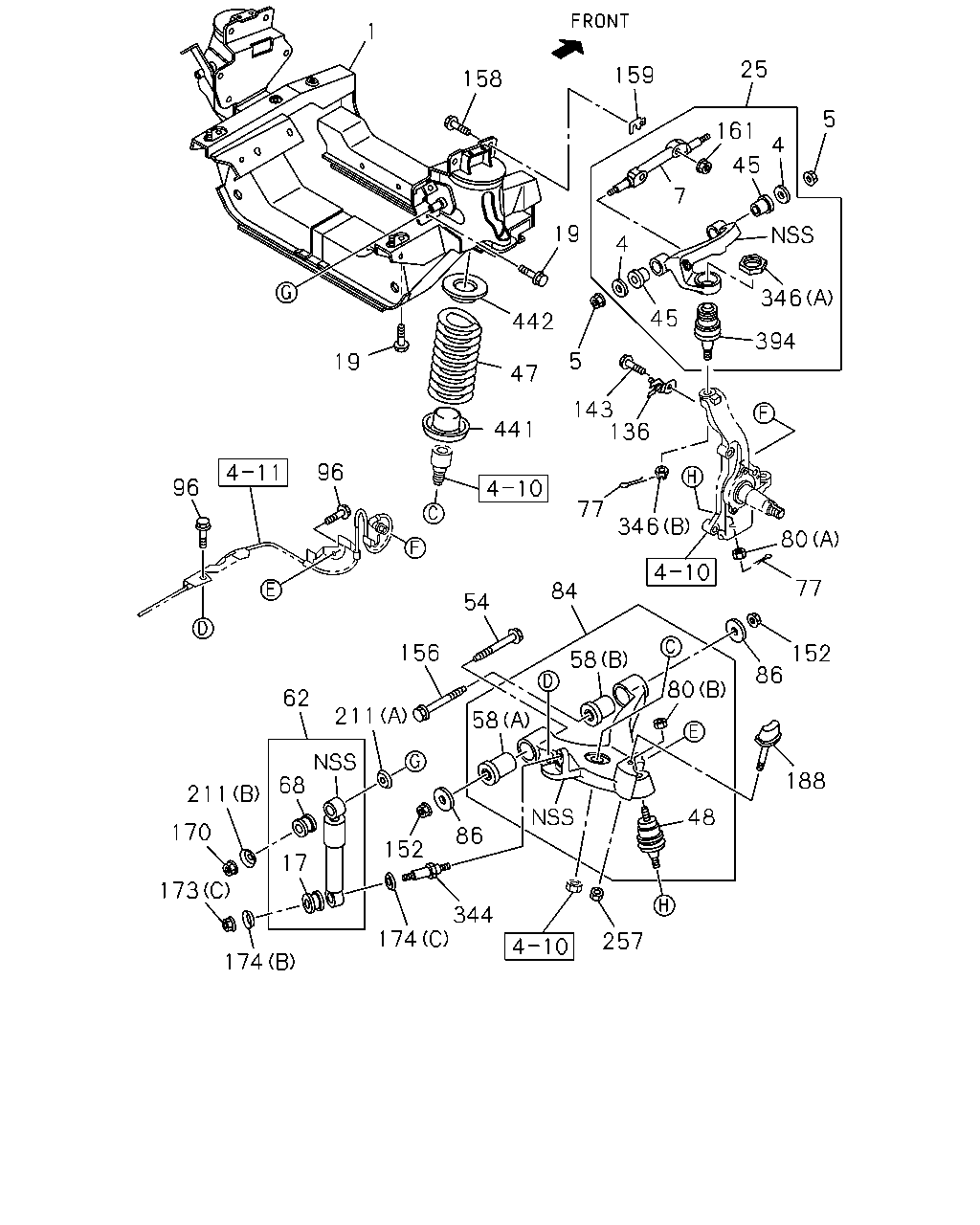

çizim 11221
1 25 159 158 5 161 4 45 7 4 19 346 45 442 394 5 19 47 143 136 441 96 96 77 346 80 77 84 54 156 152 58 86 80 62 211 58 68 188 211 48 170 17 86 152 173 344 174 257 174
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.010 MEMBER; CROSS,FRT SUSP 8-97384-676-2 01 1 0607- ●
4 06.164 WASHER; UPR LINK TO FRAME 8-97188-605-0 04 1 0607-0612 ●
4 06.164 WASHER; UPR LINK TO FRAME 8-98021-786-0 04 1 0701- ●
5 06.164 NUT; UPR LINK TO FRAME
M16 FLANGE 		0-91180-216-0 04 1 0607- ●
7 06.174 PIN; FULCRUM,UPR LINK 8-94340-084-1 02 1 0302-0606 ●
7 06.174 PIN; FULCRUM,UPR LINK 8-97354-500-0 02 1 0607-0612 ●
7 06.174 PIN; FULCRUM,UPR LINK 8-98021-654-0 02 1 0701- ●
17 07.388 BUSHING; RUBBER,S/ABS 8-97370-319-0 02 1 0607- ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0302-0606 ● ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0607- ● ●
19 07.425 BOLT; FRT SUSP TO C/MBR
07.395 M12X30 FLANGE 		0-28651-230-0 12 1 0607-0706 ●
19 07.425 BOLT; FRT SUSP TO C/MBR
06.509 M12X30 FLANGE 		0-28661-230-0 12 1 0707- ●
25 06.168 ARM; UPR CONT 8-97076-005-3 01 1 0302-0606 ●
25 06.168 ARM; UPR CONT 8-97386-816-0 01 1 0607-0612 ●
25 06.168 ARM; UPR CONT 8-98021-653-0 01 1 0701- ●
25 06.168 ARM; UPR CONT 8-97076-004-3 01 1 0302-0606 ●
25 06.168 ARM; UPR CONT 8-97354-494-4 01 1 0607-0612 ●
25 06.168 ARM; UPR CONT 8-98021-652-0 01 1 0701- ●
45 06.164 BUSHING; UPR LINK,FRT 8-97089-934-3 04 1 0302-0606 ●
45 06.164 BUSHING; UPR LINK,FRT 8-97188-369-0 04 1 0607- ●
47 07.412 SPRING; COIL,FRT SUSP 8-97357-109-1 02 1 0607- ●
48 06.174 JOINT ASM; BALL,LWR CONT ARM 8-97142-452-1 02 1 0511- ●
54 06.174 PIN; FULCRUM,LWR LINK 8-97367-092-1 02 1 0607-0610 ●
54 06.174 PIN; FULCRUM,LWR LINK 8-98021-826-0 02 1 0611- ●
58 06.170 BUSHING; LWR LINK
(B) 		8-97188-368-1 02 1 0607-0610 ●
58 06.170 BUSHING; LWR LINK
(B) 		8-98009-049-1 02 1 0611- ●
58 06.170 BUSHING; LWR LINK
(A) 		8-94336-509-1 02 1 0302- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97253-592-0 02 1 0302-0606 ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-97369-637-1 02 1 0607- ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-602-0 02 1 0302- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97253-605-0 02 1 0302- ● ●
68 07.388 BUSHING; S/ABS 8-97370-319-0 02 1 0607- ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 0302- ● ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0302-0606 ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
09.023 OD=3.7 L=30 		9-08114-030-0 04 1 0607-0607 ●
77 06.174 PIN; SPLIT,LINK END TO KNUCKLE
05.812 OD=3.7 L=30 		0-81124-030-0 04 1 0607- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
08.915 (A) M22 		9-09111-522-0 02 1 0302-0512 ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
06.861 (A) M22 		0-91111-522-0 02 1 0601- ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
04.681 (B) M16 		9-99111-516-0 02 1 0511-0512 ●
80 06.174 NUT; LWR LINK END TO KNUCKLE
00.785 (B) M16 		0-91111-516-0 02 1 0601- ●
84 06.168 ARM; LWR CONT 8-97203-086-2 01 1 0302-0510 ●
84 06.168 ARM; LWR CONT 8-98025-503-0 01 1 0511-0606 ●
84 06.168 ARM; LWR CONT 8-98035-044-0 01 1 0607-0610 ●
84 06.168 ARM; LWR CONT 8-98001-260-0 01 1 0611- ●
84 06.168 ARM; LWR CONT 8-97203-085-2 01 1 0302-0510 ●
84 06.168 ARM; LWR CONT 8-98025-502-0 01 1 0511-0606 ●
84 06.168 ARM; LWR CONT 8-98035-043-0 01 1 0607-0610 ●
84 06.168 ARM; LWR CONT 8-98001-259-0 01 1 0611- ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		9-09164-522-0 02 1 0302-0605 ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		0-91614-522-0 02 1 0606-0606 ●
86 06.174 WASHER; PL,LWR LINK
ID=23 		0-91614-522-0 04 1 0607- ●
96 06.174 BOLT; LWR LINK
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 04 1 0607- ●
136 04.686 BRACKET; FLEX HOSE,FRT BRAKE 8-97369-636-1 01 1 0607- ●
136 04.686 BRACKET; FLEX HOSE,FRT BRAKE 8-97369-635-1 01 1 0607- ●
143 04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0607- ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
05.813 M22 		9-09110-522-0 02 1 0302-0512 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
07.172 M22 		0-91110-522-0 02 1 0601-0606 ●
152 06.172 NUT; LWR LINK TO FRT C/MBR
07.172 M22 		0-91110-522-0 04 1 0607- ●
156 06.172 PIN; FULCRUM,FRT SUSPENSION 8-97367-091-1 02 1 0607-0610 ●
156 06.172 PIN; FULCRUM,FRT SUSPENSION 8-98021-825-0 02 1 0611- ●
158 06.178 BOLT; UPR LINK TO FRAME
M14X70 		8-97072-665-1 08 1 0302-0606 ●
158 06.178 BOLT; UPR LINK TO FRAME
M16X70 FLANGE 		0-28861-670-0 04 1 0607- ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=1.2 		8-97367-184-0 AR 1 0607-0610 ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=1.2 		8-98029-250-0 AR 1 0611- ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=2.3 		8-97367-185-0 AR 1 0607-0610 ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=2.3 		8-98029-251-0 AR 1 0611- ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=4.5 		8-97367-186-0 AR 1 0607-0610 ●
159 06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO
T=4.5 		8-98029-252-0 AR 1 0611- ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.168 		8-97351-394-0 04 1 0302-0606 ●
161 06.178 NUT ASM; UPR LINK TO FRAME
06.164 M16 FLANGE 		0-91180-216-0 04 1 0607- ●
170 07.347 BOLT; S/ABS
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 0607-0610 ●
170 07.347 BOLT; S/ABS
02.343 M10X20 FLANGE 		0-28651-020-0 02 1 0611- ●
173 07.395 NUT; S/ABS
06.606 (B) M12 		8-94139-015-0 02 1 0302-0606 ●
173 07.395 NUT; S/ABS
07.833 (C) M14 		0-91110-514-0 02 1 0607- ●
173 07.395 NUT; S/ABS
06.822 (A) M10 		9-09111-410-0 02 1 0302-0306 ● ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ●
173 07.395 NUT; S/ABS
08.917 (B) M10 FLANGE 		0-91150-210-0 08 1 0507-0602 ● ●
173 07.395 NUT; S/ABS
04.085 (B) M10 FLANGE 		0-91180-210-0 08 1 0603- ● ●
174 07.347 WASHER; LK,S/ABS
(B) ID=15.0 		9-51679-012-0 02 1 0607-0611 ●
174 07.347 WASHER; LK,S/ABS
(B) ID=15 		8-97360-056-0 02 1 0612- ●
174 07.347 WASHER; LK,S/ABS
00.002 (A) ID=12.2 		9-09150-812-0 02 1 0302-0603 ●
174 07.347 WASHER; LK,S/ABS
(A) ID=12.2 		0-91510-812-0 02 1 0604-0606 ●
174 07.347 WASHER; LK,S/ABS
(C) ID=21 OD=40 		0-91614-620-0 02 1 0607- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98009-114-0 02 1 0607- ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-3 02 1 0302-0606 ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 0607- ● ●
211 07.347 WASHER; BRKT,SHOCK
(A) ID=20.0 		9-51679-013-0 02 1 0607-0611 ●
211 07.347 WASHER; BRKT,SHOCK
(A) ID=20.0 		8-97360-057-0 02 1 0612- ●
211 07.347 WASHER; BRKT,SHOCK
(B) ID=10.5 		9-51679-603-0 02 1 0607-0611 ●
211 07.347 WASHER; BRKT,SHOCK
(B) ID=10.5 		8-97360-058-0 02 1 0612- ●
257 07.346 NUT; CUSHION RUBBER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0607- ●
344 07.347 PIN; FRT S/ABS 8-97145-460-0 02 1 0607- ●
346 06.174 NUT; LINK END
06.861 (B) M18 SLOTTED 		8-97017-761-0 02 1 0607-0610 ●
346 06.174 NUT; LINK END
(B) M18 SLOTTED 		8-97245-632-0 02 1 0611- ●
346 06.174 NUT; LINK END
(A) M52 		8-97076-036-0 02 1 0302-0612 ●
346 06.174 NUT; LINK END
(A) M52 		8-98021-784-0 02 1 0701- ●
394 06.714 END ASM; FRT AXLE
06.174 		8-97107-328-0 02 1 0302-0606 ●
394 06.714 END ASM; FRT AXLE 8-97327-369-5 02 1 0607- ●
441 07.420 SEAT; COIL SPR 8-97354-580-2 02 1 0607- ●
442 07.420 INSULATOR; COIL SPR 8-97354-550-1 02 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
