6-80 — BACK PANEL (#42468) — 12 parça

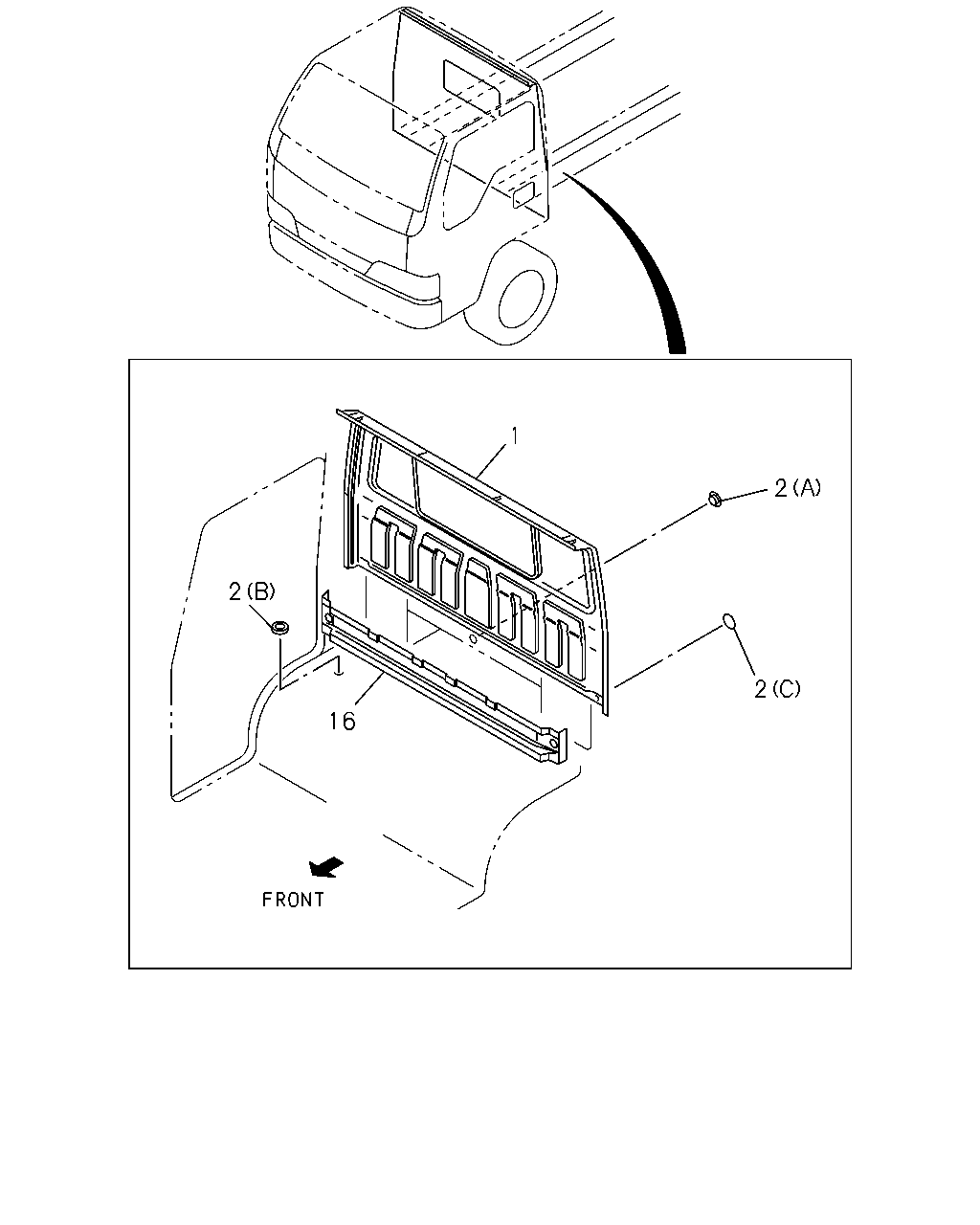

çizim 56808
1 2 2 2 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; BACK OUTER
4HE1 ENG<RLY> KD CAB BREAKDOWN<RZV> CHARGE AIR COOLER<6PL> THA 		8-97921-222-0 01 1 0309- ●
1 PANEL; BACK OUTER
4HE1 ENG<RLY> KD CAB BREAKDOWN<RZV> THA 		8-97921-222-0 01 1 0309- ●
1 PANEL; BACK OUTER
4HG1 ENG<RJH> KD CAB BREAKDOWN<RZV> THA 		8-97916-408-0 01 1 0309- ● ●
1 PANEL; BACK OUTER
EXC. KD CAB BREAKDOWN<RZV> THA 		8-97859-127-0 01 1 0309- ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK THA 		1-76798-019-0 04 1 0309- ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(C) OD=36 T=0.05 BLACK THA 		5-76777-035-0 02 1 0309- ● ● ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=16.2 		8-94492-493-0 02 1 0309- ● ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG<RJH> KD CAB BREAKDOWN<RZV> THA 		8-97916-527-1 01 1 0309- ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG<RLY> KD CAB BREAKDOWN<RZV> CHARGE AIR COOLER<6PL> THA 		8-97921-439-0 01 1 0309- ●
16 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG<RLY> KD CAB BREAKDOWN<RZV> THA 		8-97921-439-0 01 1 0309- ●
16 REINFORCEMENT; BACK OUTER PNL
4HG1 ENG<RJH> EXC. KD CAB BREAKDOWN<RZV> THA 		8-97851-501-6 01 1 0309- ● ●
16 REINFORCEMENT; BACK OUTER PNL
4HE1 ENG<RLY> EXC. KD CAB BREAKDOWN<RZV> THA 		8-97890-837-1 01 1 0309- ● ●
