Isuzu WW
▶
TRUCKS
▶
NPR
▶
50971 - NPR/NQR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶
6-76 — FLOOR EQUIPMENT AND SEALING
(#42466) — 26 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
◀
[676A] (NO.2) (2 parça)

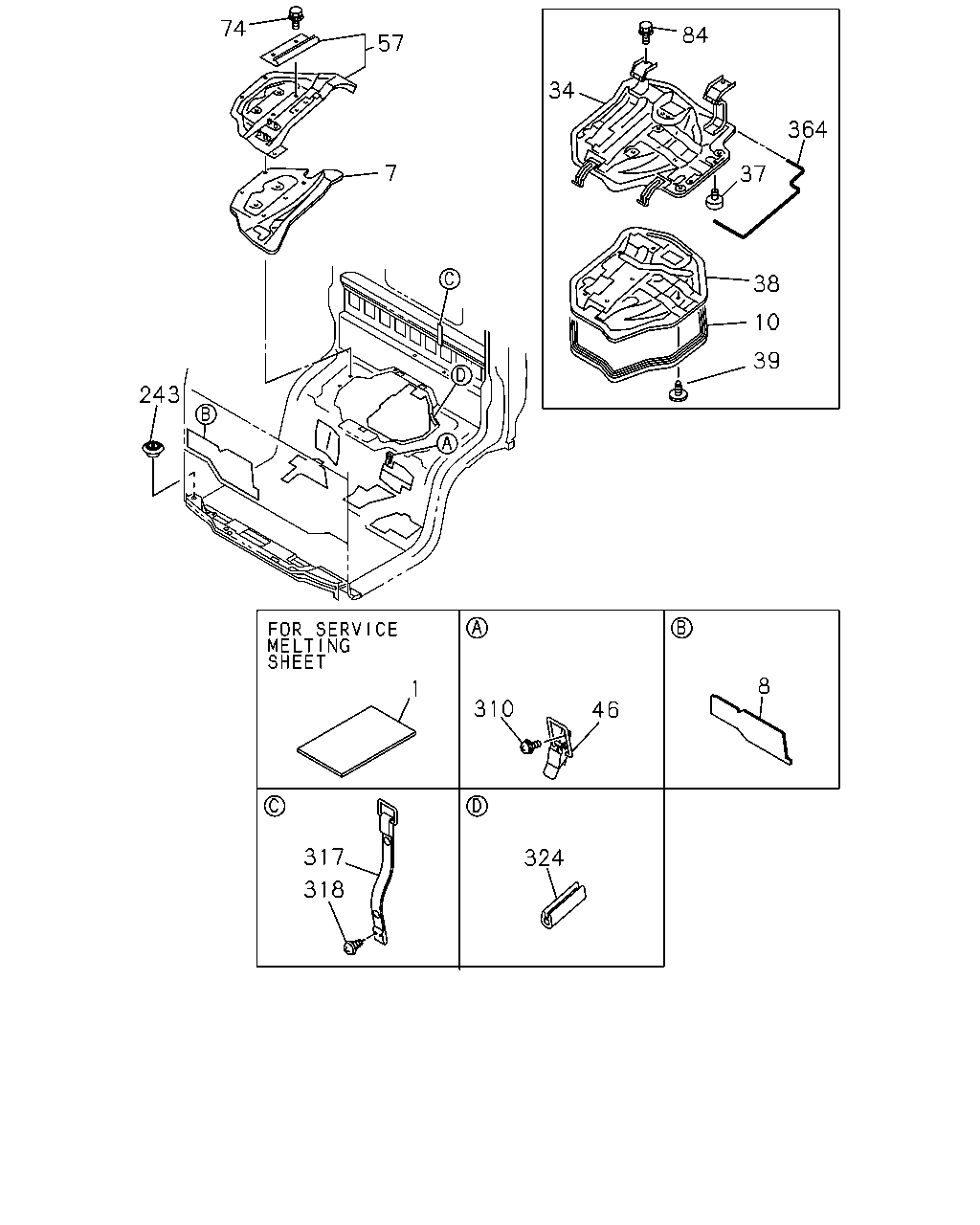

[676A] (NO.1) (24 parça)
▶
371
248
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
248
SEAL; EXT,FRT & RR
OD=36 T=0.05 BLACK THA
5-76777-035-0
04
1
0309-
●
●
●
371
GROMMET; LOCATION HOLE
14.5X14.5 BLACK THA
8-94279-714-0
02
1
0309-
●
●
●
74
84
57
34
364
7
37
38
10
39
243
8
1
310
46
317
324
318
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
0309-
●
●
●
7
INSULATOR; SUPPORT COVER
8-97853-629-2
01
1
0309-
●
●
●
8
MAT; SILENCER,FRT PANEL
8-97853-606-1
01
1
0309-0506
●
●
●
8
MAT; SILENCER,FRT PANEL
8-97581-661-3
01
1
0507-
●
●
●
8
MAT; SILENCER,FRT PANEL
8-97853-605-2
01
1
0309-0506
●
●
●
8
MAT; SILENCER,FRT PANEL
8-97581-660-3
01
1
0507-
●
●
●
10
SEAL; ENG COVER
8-97581-109-1
01
1
0309-
●
●
●
34
COVER ASM; ENG,CAB FLOOR
THA
8-97920-596-0
01
1
0309-
●
●
●
37
RUBBER; BUFFER,ENG COVER
OD=30 T=10
5-74917-001-2
02
1
0309-
●
●
●
38
INSULATOR; ENG COVER
8-97898-101-0
01
1
0309-
●
●
●
39
CLIP; INSULATOR,COVER
OD=30
8-94279-952-0
05
1
0309-
●
●
●
39
CLIP; INSULATOR,COVER
OD=30
8-94279-952-0
08
1
0309-
●
●
●
46
HOOK ASM; ENG COVER
8-97853-632-2
02
1
0309-
●
●
●
57
COVER ASM; SUPPORT,CAB FLOOR
THA
8-97916-295-0
01
1
0309-
●
●
●
74
BOLT; SUPPORT COVER TO FLOOR
M8X20 FLANGE
0-28680-820-0
05
1
0309-
●
●
●
74
BOLT; SUPPORT COVER TO FLOOR
M8X25 FLANGE
0-28680-825-0
01
1
0309-
●
●
●
84
BOLT; ENG COVER HINGE
M8X20 FLANGE
0-28680-820-0
04
1
0309-
●
●
●
243
GROMMET; STOPPER,CHECK HOLE LID
OD=12.1
8-97898-423-0
01
1
0309-
●
●
●
310
SCREW; ENG COVER HOOK
M6X16 W/LK&PL WASHER THA
8-97922-695-0
04
1
0404-
●
●
●
310
SCREW; ENG COVER HOOK
M6X20 W/LK&PL WASHER
8-94279-403-0
04
1
0309-
●
●
●
317
BAND; ENGINE COVER
L=535 BLACK
8-97867-201-1
01
1
0309-
●
●
●
318
SCREW; BAND
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0309-
●
●
●
324
FINISHER; FLOOR PANEL
L=140
8-97892-742-0
01
1
0309-
●
●
●
364
FINISHER; ENG COVER SIDE
L=1000
8-97892-743-0
01
1
0309-
●
●
●
