6-47 — MUD GUARD AND INSULATOR (#42460) — 90 parça

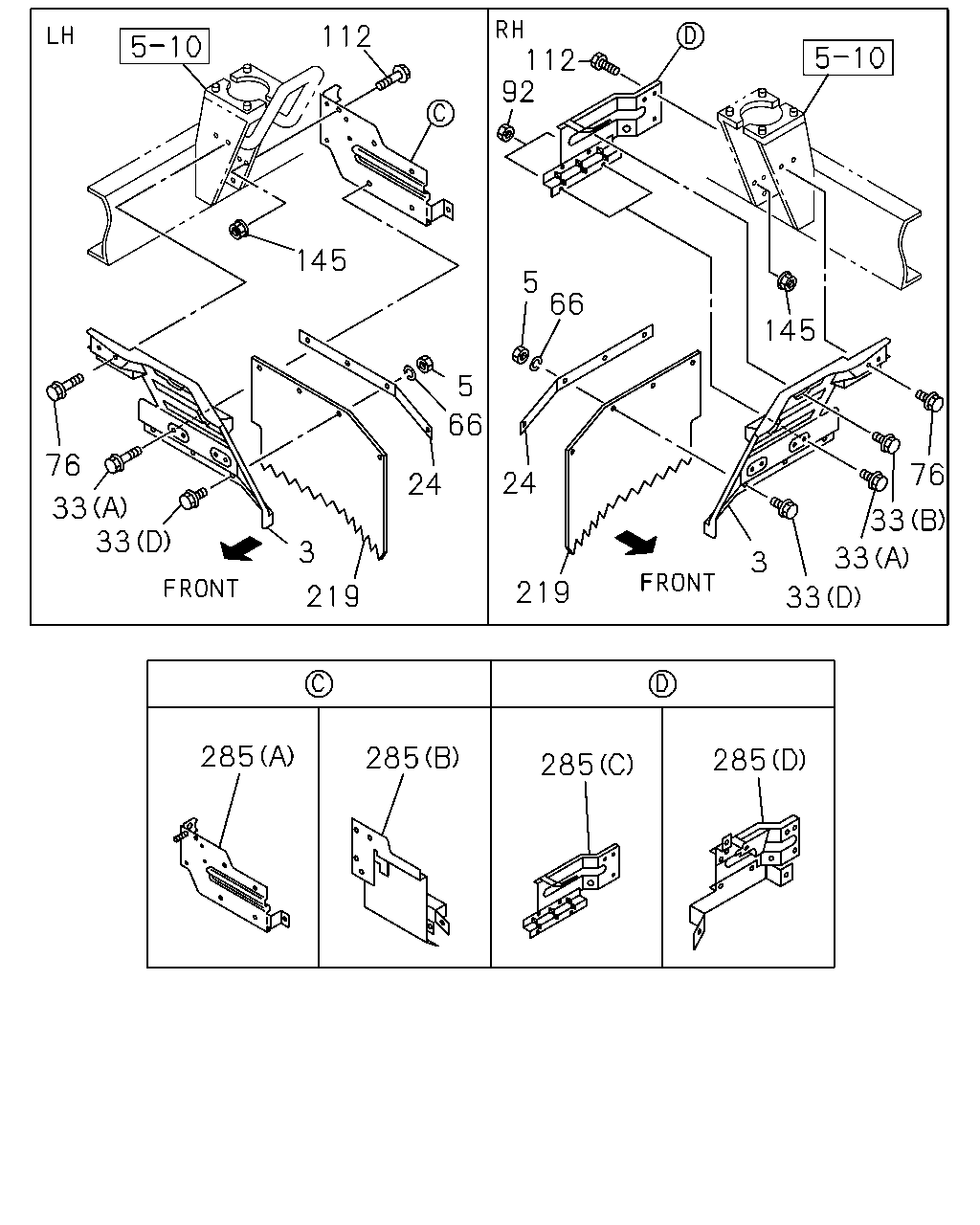

112 92 112 145 5 66 145 5 66 76 76 24 24 33 33 33 3 33 3 219 219 33 285 285 285 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97912-560-0	01	1	0309-	●	●
3	GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97912-559-0	01	1	0309-	●	●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> THA	8-97912-558-0	01	1	0309-0407	●	●
3	GUARD; MUD,RR THA	8-97912-558-0	01	1	0309-0407			●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> THA	8-97912-558-0	01	1	0408-	●	●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> THA	8-97912-557-0	01	1	0309-0407	●	●
3	GUARD; MUD,RR THA	8-97912-557-0	01	1	0309-0407			●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> THA	8-97912-557-0	01	1	0408-	●	●
5	NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	06	1	0309-	●	●
5	NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	08	1	0309-0407	●	●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0309-0407			●
5	NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	08	1	0408-	●	●
24	PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97914-748-1	02	1	0309-	●	●
24	PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-499-1	02	1	0309-0407	●	●
24	PLATE; MUD COVER THA	8-97916-499-1	02	1	0309-0407			●
24	PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-499-1	02	1	0408-	●	●
33	BOLT; MUD COVER M6X25 FLANGE	0-28680-625-0	04	1	0404-	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0309-	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0309-0407	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0309-	●	●	●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0309-	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0309-0407	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0309-0407			●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> M6X16 FLANGE	0-28080-616-0	08	1	0408-	●	●
66	WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	06	1	0309-	●	●
66	WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	08	1	0309-0407	●	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0309-0407			●
66	WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	08	1	0408-	●	●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	0309-	●	●	●
92	NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	05	1	0309-	●	●
92	NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	02	1	0309-0407	●	●
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	0309-0407			●
92	NUT; MUD COVER 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> M8 FLANGE	0-91150-108-0	02	1	0408-	●	●
112	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	06	1	0309-	●	●
112	BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	05	1	0309-0407	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0309-0407			●
112	BOLT; BRKT 4HE1 ENG<RLY> ENGINE POWER N-SPEC<7QV> M8X25 FLANGE	0-28680-825-0	05	1	0408-	●	●
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0309-	●	●	●
219	FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97913-999-2	02	1	0309-	●	●
219	FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-762-0	02	1	0309-0407	●	●
219	FLAP; MUD GUARD THA	8-97916-762-0	02	1	0309-0407			●
219	FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-762-0	02	1	0408-	●	●
285	BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97092-037-2	01	1	0309-	●	●	●
285	BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (C)	8-97035-778-4	01	1	0309-	●	●	●
285	BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97180-529-0	01	1	0309-	●	●
285	BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D)	8-97147-235-0	01	1	0309-	●	●

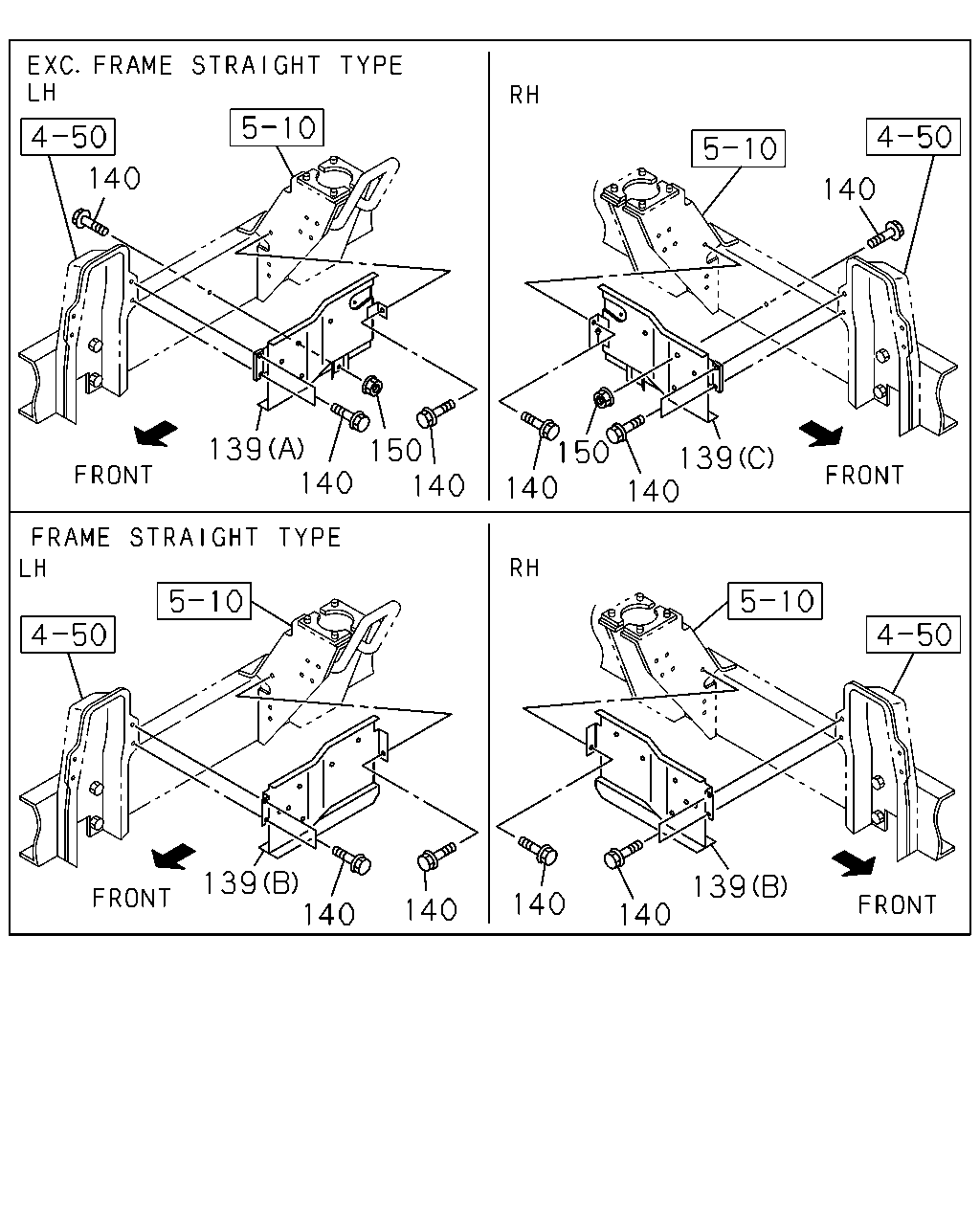

140 140 139 140 150 140 150 140 139 140 139 140 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0309-	●
139	PANEL; SIDE (B)	8-97171-996-0	01	1	0309-		●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0309-	●
139	PANEL; SIDE (B)	8-97188-736-0	01	1	0309-		●
139	PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0309-	●
139	PANEL; SIDE (A)	8-97092-020-1	01	1	0309-			●
139	PANEL; SIDE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0309-	●		●
140	BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0309-	●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	02	1	0309-			●
140	BOLT; SIDE PANEL M8X25 FLANGE	0-28680-825-0	06	1	0309-	●	●	●
150	NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0309-	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	0309-			●

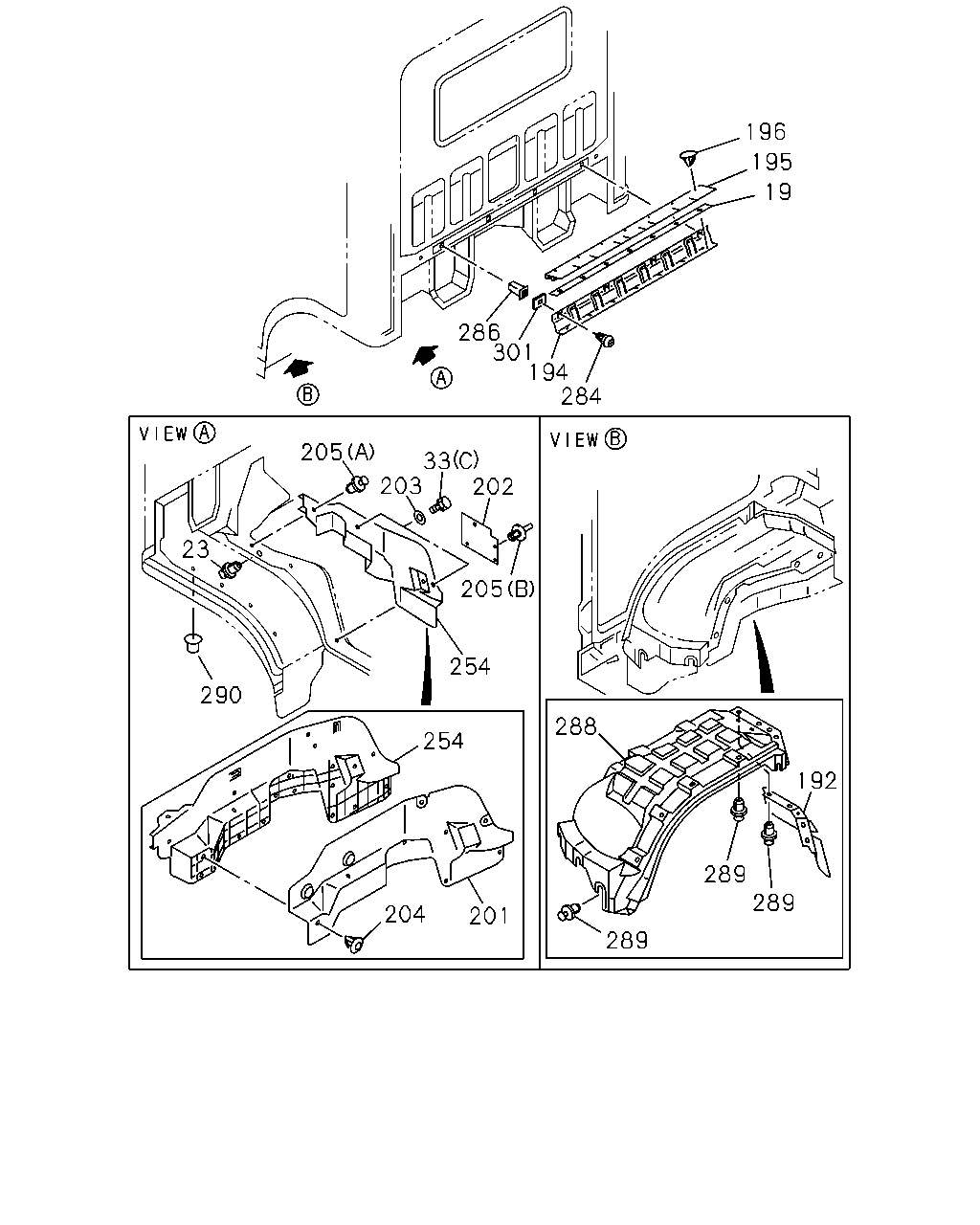

196 195 19 286 301 194 284 205 33 203 202 23 205 254 290 288 254 192 289 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SHEET; HEAT PROTECTOR,CAB BACK 4HE1 ENG<RLY>	8-97856-016-0	01	1	0309-	●	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	10	1	0309-	●	●	●
33	BOLT; MUD COVER M6X25 FLANGE	0-28680-625-0	04	1	0404-	●	●	●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0309-	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0309-0407	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0309-	●	●	●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0309-	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0309-0407	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0309-0407			●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> M6X16 FLANGE	0-28080-616-0	08	1	0408-	●	●
192	SEAL; MUD COVER	8-97857-297-4	02	1	0309-	●	●	●
194	BRACKET; HEAT PROTECTOR 4HE1 ENG<RLY>	8-97853-797-1	01	1	0309-	●	●
195	PROTECTOR; HEAT 4HE1 ENG<RLY>	8-97856-386-1	01	1	0309-	●	●
196	CLIP; HEAT PROTECTOR 4HE1 ENG<RLY>	8-94244-922-0	07	1	0309-	●	●
201	INSULATOR; VALANCE 4HG1 ENG<RJH>	8-97853-630-3	01	1	0309-	●		●
201	INSULATOR; VALANCE	8-97853-631-3	01	1	0309-	●	●	●
201	INSULATOR; VALANCE 4HE1 ENG<RLY>	8-97892-184-1	01	1	0309-	●	●
202	RUBBER; MUD,VALANCE PANEL 4HE1 ENG<RLY>	8-97892-185-0	01	1	0309-	●	●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0309-	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0309-	●	●	●
205	FASTENER; MUD COVER (A) D5.8 SCREW & GROMMET NYLON THA	8-94242-150-0	02	1	0309-	●	●	●
205	FASTENER; MUD COVER 4HE1 ENG<RLY> (B)	5-09989-002-0	04	1	0309-	●	●
254	COVER; MUD,VALANCE 4HG1 ENG<RJH>	8-97853-358-3	01	1	0309-	●		●
254	COVER; MUD,VALANCE	8-97853-359-3	01	1	0309-	●	●	●
254	COVER; MUD,VALANCE 4HE1 ENG<RLY>	8-97892-183-0	01	1	0309-	●	●
284	SCREW; HEAT PROTECTOR 4HE1 ENG<RLY> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0309-	●	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0309-	●	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	01	1	0309-	●	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0309-	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0309-	●	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0309-	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0309-	●	●	●
