◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#42458) — 50 parça
çizim 12028
162 162 54
BalonParca AdiParca NoAdetTipApplied Date A B C
54 BOX; FRT DOOR
THA 		8-97914-946-0 02 1 0309-0403 ● ● ●
162 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-1 02 1 0309- ● ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97892-157-0 02 1 0309- ● ● ●

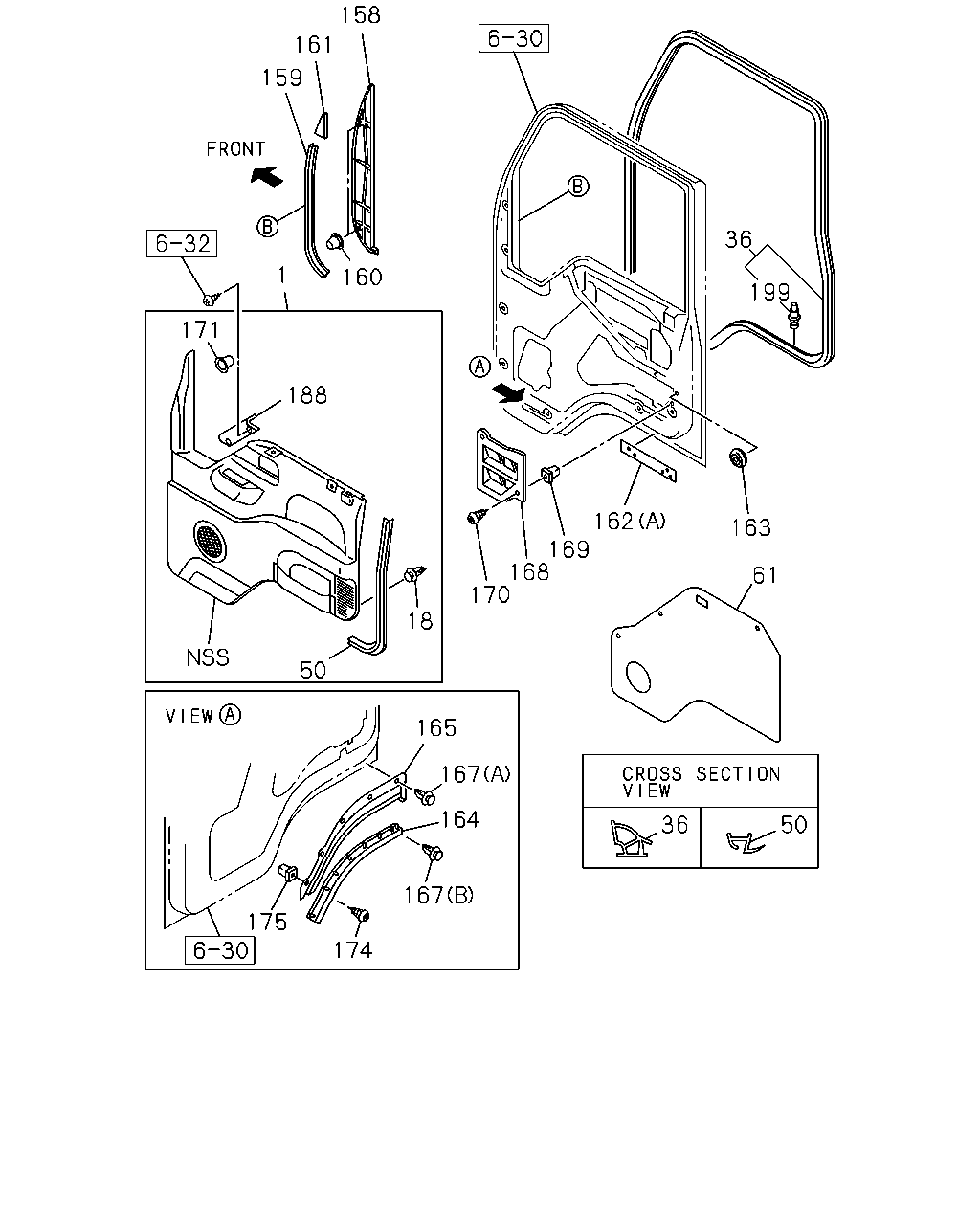

çizim 55943
158 161 159 36 1 160 199 171 188 162 169 168 170 163 61 18 50 165 167 164 36 50 167 174 175
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-722-6 01 1 0309- ● ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-721-6 01 1 0309- ● ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-943-0 01 1 0309- ● ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-942-0 01 1 0309- ● ● ●
18 CLIP; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> D7.9X8.9 BLACK THA 		8-97914-992-0 24 1 0309- ● ● ●
18 CLIP; DOOR PAD
AUTO DOOR LOCK<AU4> OD=7.9 BLACK THA 		8-94279-974-1 24 1 0309- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
THA 		8-97919-610-0 01 1 0309- ● ● ●
36 SEAL; DOOR,MAIN,CAB SIDE
THA 		8-97919-609-0 01 1 0309- ● ● ●
50 FINISHER; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-993-0 02 1 0309- ● ● ●
50 FINISHER; DOOR PAD
AUTO DOOR LOCK<AU4> DARK GRAY THA 		8-97868-180-0 02 1 0309- ● ● ●
61 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-308-1 02 1 0309- ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> 		8-97852-328-3 02 1 0309- ● ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 0309- ● ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> 		8-97852-307-1 02 1 0309- ● ● ●
158 GARNISH; DOOR 8-97852-129-2 01 1 0309- ● ● ●
158 GARNISH; DOOR 8-97852-128-2 01 1 0309- ● ● ●
159 FINISHER; GARNISH 8-97852-257-4 02 1 0309- ● ● ●
160 CLIP; GARNISH 8-97852-058-0 04 1 0309- ● ● ●
161 FASTENER; GARNISH 8-97134-313-0 01 1 0309- ● ● ●
161 FASTENER; GARNISH 8-97134-312-0 01 1 0309- ● ● ●
162 PROTECTOR; DOOR
PROTECTOR-BODY SIDE MOLDING<B84> (B) 		8-97856-390-1 02 1 0309- ● ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> (A) 		8-97892-157-0 02 1 0309- ● ● ●
163 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 0309- ● ● ●
164 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 0309- ● ● ●
164 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 0309- ● ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-079-0 01 1 0309- ● ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-078-0 01 1 0309- ● ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-081-0 01 1 0309- ● ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-080-0 01 1 0309- ● ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0309- ● ● ●
167 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 0309- ● ● ●
168 VALVE; DOOR OUTLET 8-97855-413-0 01 1 0309- ● ● ●
168 VALVE; DOOR OUTLET 8-97855-412-0 01 1 0309- ● ● ●
169 GROMMET; SCREW,VALVE
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 04 1 0309- ● ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 0309- ● ● ●
171 RETAINER; DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-991-0 02 1 0309- ● ● ●
171 RETAINER; DOOR PAD
AUTO DOOR LOCK<AU4> THA 		5-09709-049-0 02 1 0309- ● ● ●
174 SCREW; LINER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 0309- ● ● ●
175 GROMMET; SCREW,LINER
D=8.5X8.5 L=7.5 THA 		8-94279-078-0 04 1 0309- ● ● ●
188 CASE; DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-989-0 01 1 0309- ● ● ●
188 CASE; DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97914-990-0 01 1 0309- ● ● ●
188 CASE; DOOR
AUTO DOOR LOCK<AU4> DARK GRAY THA 		8-97852-668-3 01 1 0309- ● ● ●
188 CASE; DOOR
AUTO DOOR LOCK<AU4> DARK GRAY THA 		8-97852-667-3 01 1 0309- ● ● ●
199 CLIP; SEAL
NATURAL 		8-97852-455-0 07 1 0309- ● ● ●
199 CLIP; SEAL
PINK 		8-97852-456-0 07 1 0309- ● ● ●
199 CLIP; SEAL
THA 		8-97915-373-0 22 1 0309- ● ● ●
199 CLIP; SEAL
THA 		8-97915-372-0 22 1 0309- ● ● ●
