Isuzu WW
▶
TRUCKS
▶
NPR
▶
50971 - NPR/NQR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-32 - FRONT DOOR LOCK AND HANDLE
▶
6-32 — FRONT DOOR LOCK AND HANDLE
(#42457) — 33 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
◀

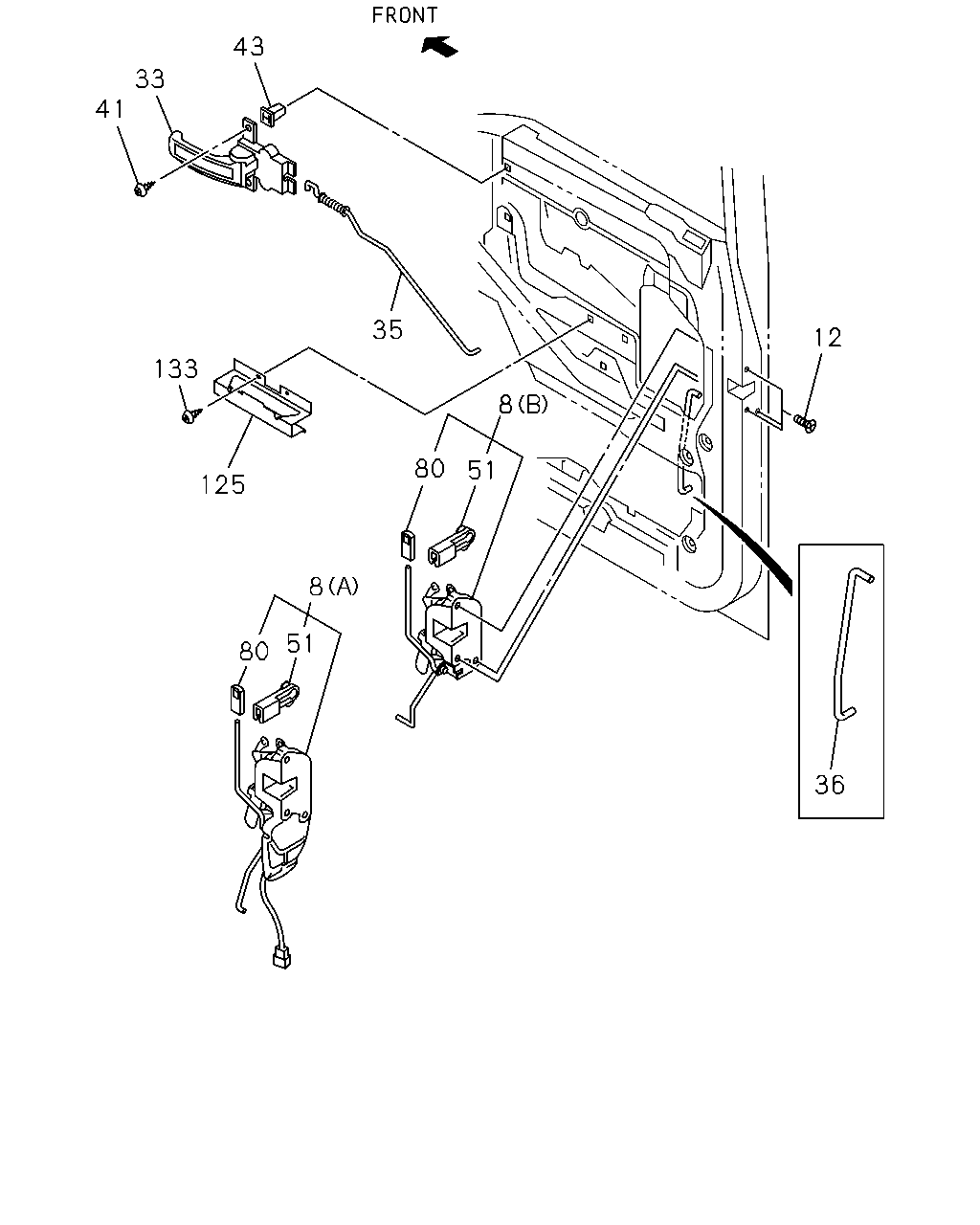

[632A] (NO.1) (23 parça)
[632A] (NO.2) (10 parça)
▶
43
33
41
35
12
133
8
80
51
125
8
51
80
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY
8-97892-100-1
01
1
0309-
●
●
●
8
LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY
8-97892-099-1
01
1
0309-
●
●
●
8
LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) THA
8-97915-056-1
01
1
0309-
●
●
●
8
LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) THA
8-97914-950-1
01
1
0309-
●
●
●
12
SCREW; DOOR LK
M6X20
1-09981-494-0
06
1
0309-
●
●
●
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY
8-97866-602-1
01
1
0309-
●
●
●
33
LEVER ASM; INSIDE,FRT DOOR
DARK GRAY
8-97866-601-1
01
1
0309-
●
●
●
35
LINK; DOOR LOCK,INSIDE
THA
8-97915-060-0
01
1
0309-
●
●
●
35
LINK; DOOR LOCK,INSIDE
THA
8-97915-059-0
01
1
0309-
●
●
●
36
LINK; DOOR LOCK,OUTSIDE
THA
8-97919-160-0
01
1
0309-
●
●
●
36
LINK; DOOR LOCK,OUTSIDE
THA
8-97919-159-0
01
1
0309-
●
●
●
41
SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER
0-74310-516-0
04
1
0309-
●
●
●
43
GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.5X8.5 L=7.5 THA
8-94279-078-0
04
1
0309-
●
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> THA
8-97918-979-0
01
1
0309-
●
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
EXC. AUTO DOOR LOCK<AU4> THA
8-97918-980-0
01
1
0309-
●
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> THA
8-97859-069-0
01
1
0309-
●
●
●
51
SNAP; FRT DOOR LOCK CONT ROD
AUTO DOOR LOCK<AU4> THA
8-97852-643-0
01
1
0309-
●
●
●
56
ESCUTCHEON; LOCK KNOB
THA
8-97914-946-0
01
1
0404-
●
●
●
80
KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY THA
8-97098-574-0
01
1
0309-
●
●
●
80
KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK GRAY THA
8-97098-574-0
01
1
0309-
●
●
●
80
KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> THA
8-97917-361-0
02
1
0309-
●
●
●
125
BRACKET; DOOR PULL
THA
8-97914-947-0
02
1
0309-
●
●
●
133
SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER
0-74310-516-0
06
1
0309-
●
●
●
14
18
131
102
131
89
139
1
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HANDLE; OUTSIDE,FRT DOOR
8-97867-722-1
01
1
0309-
●
●
●
1
HANDLE; OUTSIDE,FRT DOOR
8-97867-721-1
01
1
0309-
●
●
●
14
STRIKER; FRT DOOR
THA
8-97915-061-0
02
1
0309-
●
●
●
18
SCREW; DOOR STRIKER
M8X23 W/LK WASHER
8-97221-701-0
04
1
0309-
●
●
●
56
ESCUTCHEON; LOCK KNOB
THA
8-97914-946-0
01
1
0404-
●
●
●
89
BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER
8-94279-200-0
04
1
0309-
●
●
●
102
GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.5X8.5 L=7.5 THA
8-94279-078-0
06
1
0309-
●
●
●
131
SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER
0-74110-512-0
06
1
0309-
●
●
●
139
HOLDER; ROD,DOOR HANDLE
8-97852-652-1
01
1
0309-
●
●
●
139
HOLDER; ROD,DOOR HANDLE
8-97852-651-1
01
1
0309-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
