6-31 — FRONT DOOR GLASS AND REGULATOR (#42456) — 46 parça

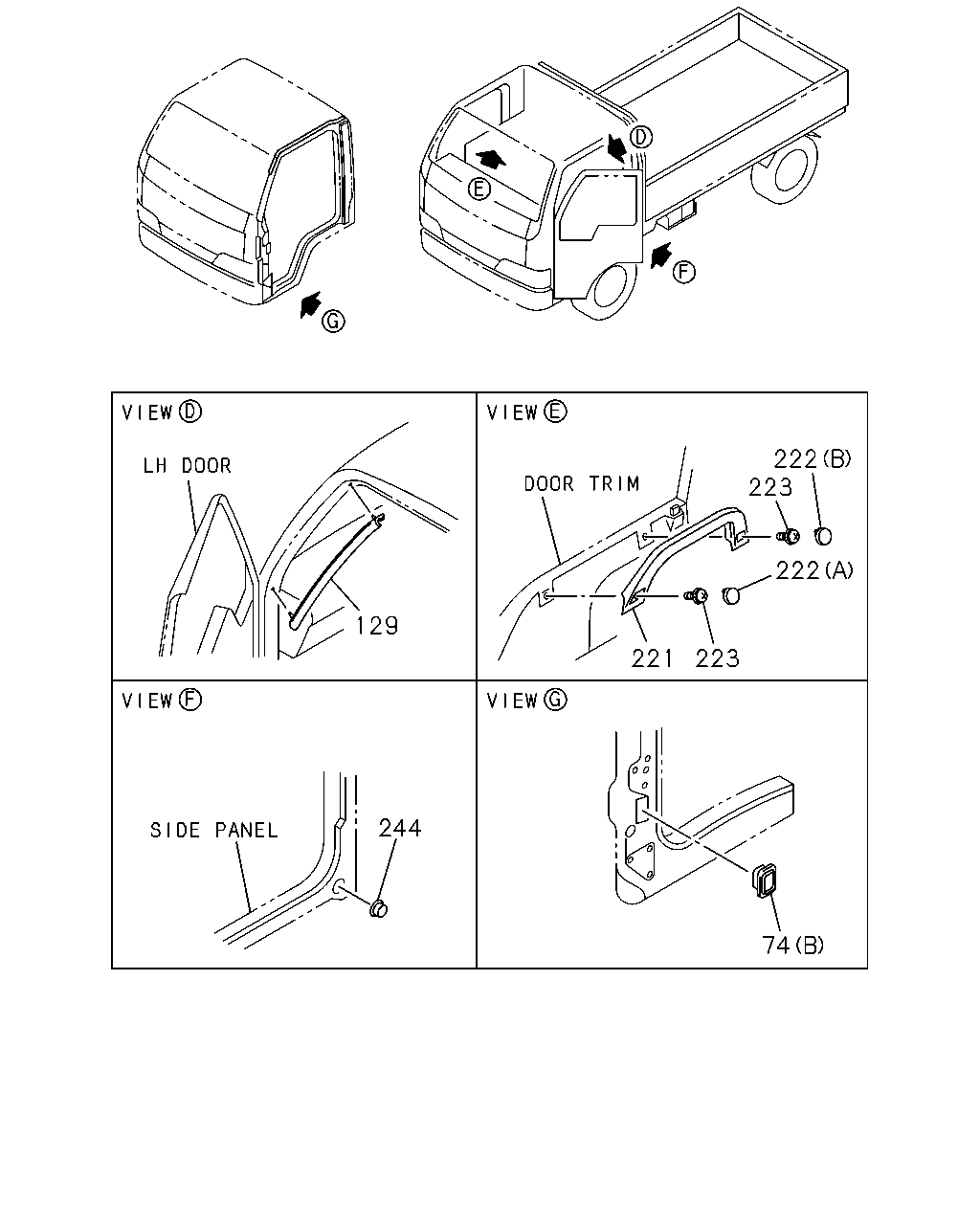

çizim 55185
222 223 222 129 221 223 244 74
BalonParca AdiParca NoAdetTipApplied Date A B C
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (A) OD=48 T=9.1 		8-94279-053-0 02 1 0309- ● ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (B) 		8-94279-736-0 02 1 0309- ● ● ●
129 SEAL; DOOR,SUB UPR 8-97852-147-3 01 1 0309- ● ● ●
129 SEAL; DOOR,SUB UPR 8-97852-146-3 01 1 0309- ● ● ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97917-399-1 01 1 0309- ● ● ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97917-398-1 01 1 0309- ● ● ●
222 CAP; GUARD BAR
(A) FRONT THA 		8-97917-400-0 02 1 0309- ● ● ●
222 CAP; GUARD BAR
(B) REAR THA 		8-97917-401-0 02 1 0309- ● ● ●
223 SCREW; GUARD BAR
M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0309- ● ● ●
244 STOPPER; DOOR 8-97890-484-0 02 1 0309- ● ● ●

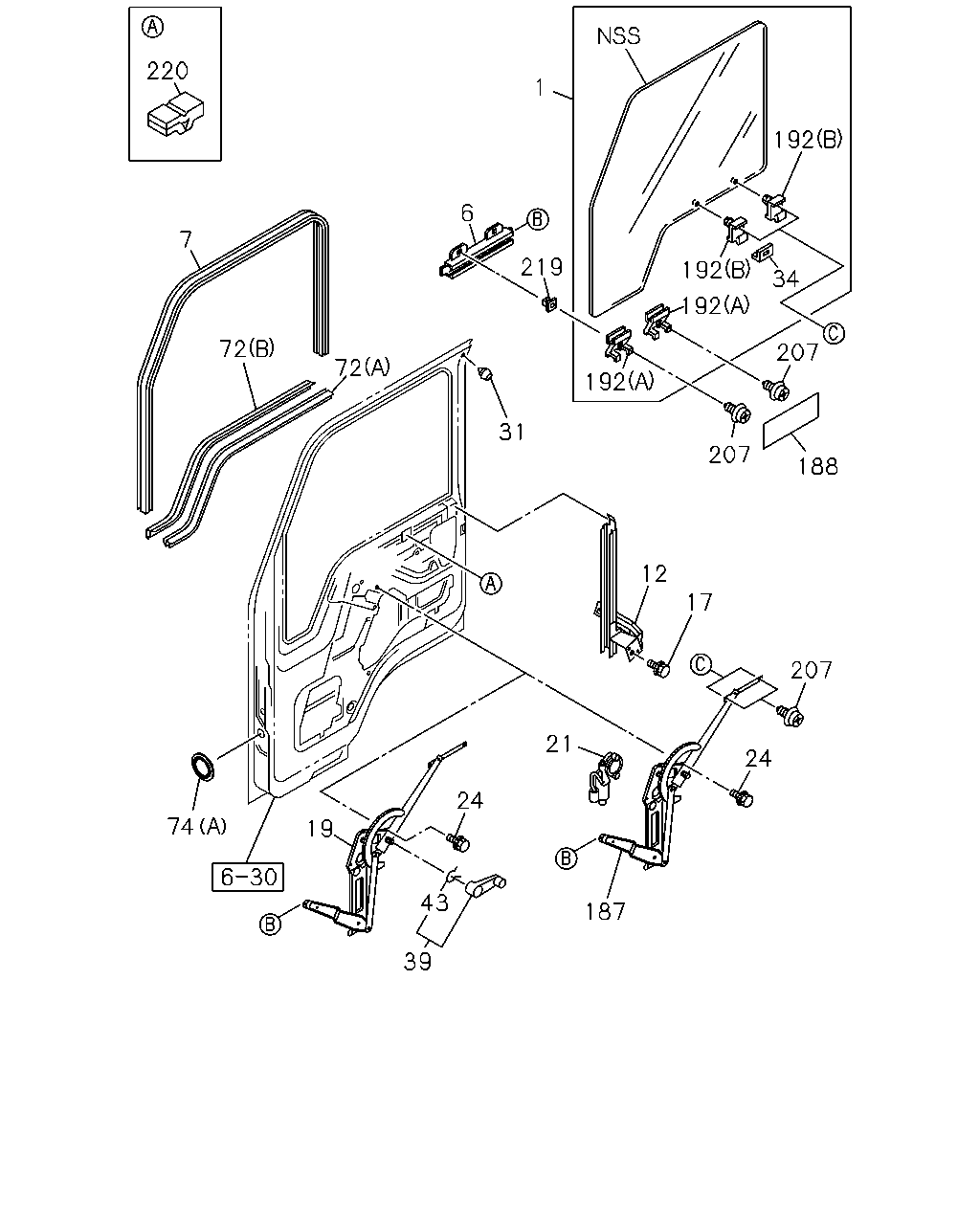

çizim 55360
220 1 192 6 7 219 192 34 192 207 72 72 192 31 207 188 12 17 207 21 24 24 74 19 43 187 39
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR
THA 		8-97917-144-0 01 1 0309- ● ● ●
1 GLASS; FRT DOOR
THA 		8-97917-134-0 01 1 0309- ● ● ●
6 CHANNEL; DOOR GLASS
W/ROLLER&PROTECTOR 		8-97898-425-1 02 1 0309- ● ● ●
7 GLASS RUN; FRT DOOR
4HG1 ENG<RJH> 		8-97852-143-4 01 1 0309- ● ●
7 GLASS RUN; FRT DOOR
4HE1 ENG<RLY> POWER WINDOW FRT DOOR<A32> 		8-97852-143-4 01 1 0309- ● ●
7 GLASS RUN; FRT DOOR
4HG1 ENG<RJH> 		8-97852-142-4 01 1 0309- ● ●
7 GLASS RUN; FRT DOOR
4HE1 ENG<RLY> POWER WINDOW FRT DOOR<A32> 		8-97852-142-4 01 1 0309- ● ●
7 GLASS RUN; FRT DOOR
4HE1 ENG<RLY> EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-496-1 01 1 0309- ● ●
7 GLASS RUN; FRT DOOR
4HE1 ENG<RLY> EXC. POWER WINDOW FRT DOOR<A32> 		8-97859-495-1 01 1 0309- ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-112-5 01 1 0309- ● ● ●
12 CHANNEL; GLASS RUN,FRT 8-97852-111-5 01 1 0309- ● ● ●
17 SCREW; RR CHANNEL
M6X16 W/LK&PL WASHER 		8-97582-826-0 04 1 0309- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-116-7 01 1 0309- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-115-7 01 1 0309- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-480-0 01 1 0309- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT DOOR<A32> 		8-97898-479-0 01 1 0309- ● ● ●
24 SCREW; WINDOW REG
M6X8 W/LK&PL WASHER 		8-94279-401-0 10 1 0309- ● ● ●
31 STOPPER; RUBBER,DOOR INNER 8-97852-022-1 02 1 0309- ● ● ●
34 STOPPER; WINDOW REG 8-97852-012-0 02 1 0309- ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97915-729-0 02 1 0309- ● ● ●
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> THA 		8-97915-807-0 02 1 0309- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-118-5 01 1 0309- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-293-5 01 1 0309- ● ● ●
72 SEAL; WAIST,FRT DOOR
(A) INNER 		8-97852-117-5 01 1 0309- ● ● ●
72 SEAL; WAIST,FRT DOOR
(B) OUTER 		8-97855-292-5 01 1 0309- ● ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (A) OD=48 T=9.1 		8-94279-053-0 02 1 0309- ● ● ●
74 GROMMET; DOOR OUTER WAIST
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,ANTENNA<U73>,RADIO AM/FM STEREO 2 SPEAKERS<6GZ>,RADIO AM/FM W/CASSETTE 2 SPEAKERS<6VL> (B) 		8-94279-736-0 02 1 0309- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-114-2 01 1 0309- ● ● ●
187 REGULATOR ASM; DOOR
POWER WINDOW FRT DOOR<A32> 		8-97868-113-2 01 1 0309- ● ● ●
188 PROTECTOR; DOOR SEAL 8-97994-698-0 02 1 0309- ● ● ●
192 HOLDER; DOOR GLASS
(A) 		8-97852-076-1 04 1 0309- ● ● ●
192 HOLDER; DOOR GLASS
(B) 		8-97852-077-1 04 1 0309- ● ● ●
207 SCREW; DOOR GLASS
REAR M6X16 TAPPING W/PL WASHER 		1-09981-452-0 04 1 0309- ● ● ●
207 SCREW; DOOR GLASS
FRONT M6X14.5 W/PL WASHER TAPPING 		8-94279-014-0 04 1 0309- ● ● ●
219 GROMMET; SCREW,CHANNEL,REG 8-94326-756-0 04 1 0309- ● ● ●
220 SEAL; LINK ROD 8-97852-321-0 02 1 0309- ● ● ●
