Isuzu WW
▶
TRUCKS
▶
NPR
▶
50971 - NPR/NQR(THAILAND)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶

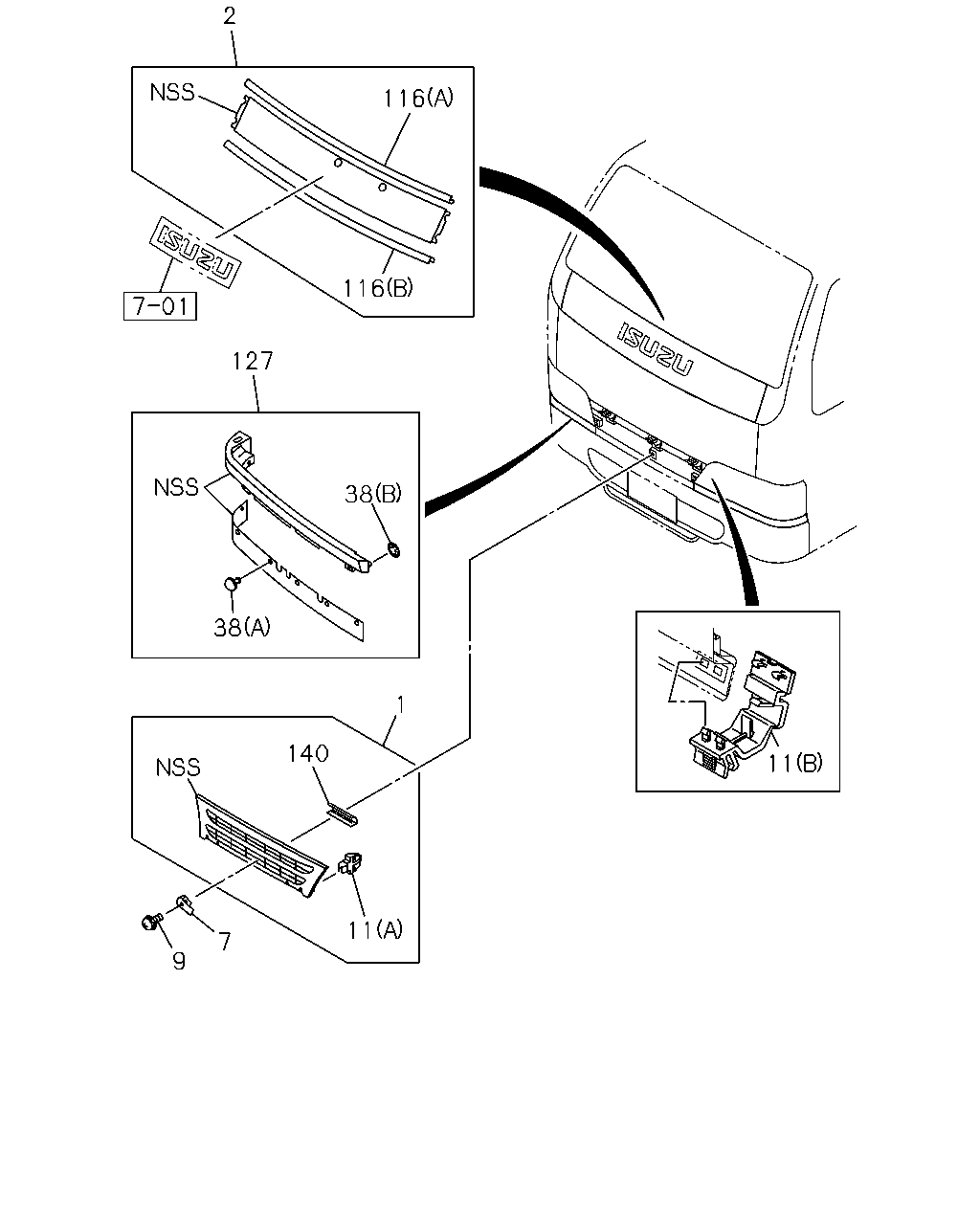

6-03 — RADIATOR GRILLE
(#42451) — 18 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
2
116
116
127
38
38
1
140
11
11
7
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
GRILLE; RAD
8-97922-366-1
01
1
0309-
●
●
●
2
GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL
8-97868-328-3
01
1
0309-
●
●
●
2
GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL
8-97859-464-3
01
1
0309-
●
●
●
7
NUT; SPIRE,RAD GRILLE
8-97805-829-0
01
1
0309-0505
●
●
●
7
NUT; SPIRE,RAD GRILLE
8-98014-760-0
01
1
0506-
●
●
●
9
SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING
8-94321-767-1
01
1
0309-
●
●
●
11
CLIP; RAD GRILLE
(B) WHITE
8-97102-415-0
04
1
0309-
●
●
●
11
CLIP; RAD GRILLE
(A) THA
8-97922-354-0
02
1
0309-
●
●
●
38
CLIP; GRILLE
(B) THA
8-97915-182-0
01
1
0309-
●
●
●
38
CLIP; GRILLE
(A) THA
8-97915-181-0
01
1
0309-
●
●
●
75
WASHER; PL,RAD GRILLE
ID=10.5 OD=18
9-09160-510-0
02
1
0407-
●
●
●
116
MOLDING; ORNAMENT GRILLE
(B)
8-97853-098-4
01
1
0309-
●
●
●
116
MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)
8-97853-096-2
01
1
0309-
●
●
●
127
GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE<729> WHITE THA
8-97898-387-1
01
1
0309-
●
●
●
127
GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE<729> WHITE THA
8-97898-366-1
01
1
0309-
●
●
●
127
GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE<890> THA
8-97915-054-0
01
1
0309-
●
●
●
127
GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE<890> THA
8-97915-055-0
01
1
0309-
●
●
●
140
SEAL; RAD GRILLE
BODY COLOR MARINE BLUE<890> THA
8-97915-179-0
01
1
0309-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
