◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶

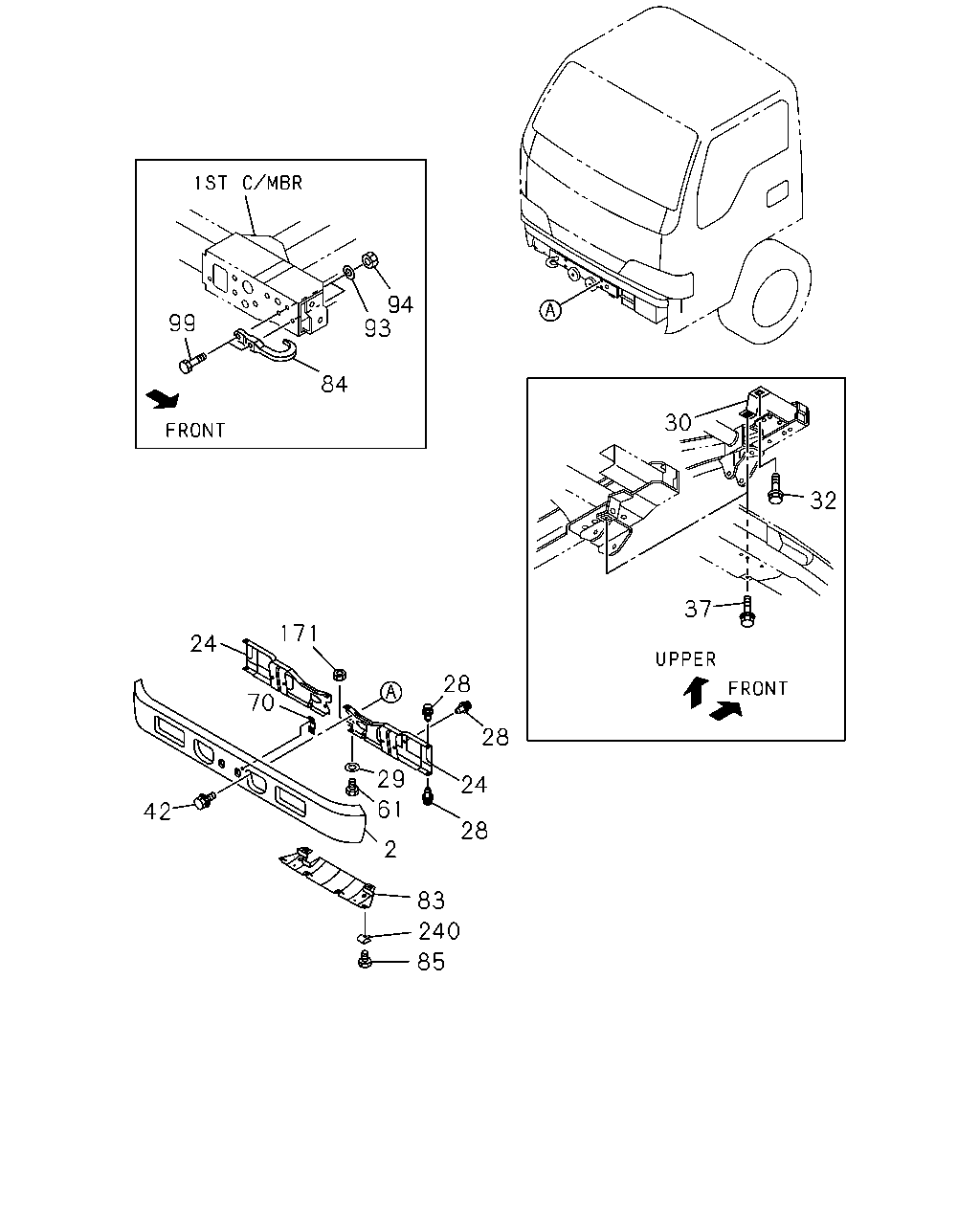

6-01 — FRONT BUMPER (#42450) — 24 parça

94 93 99 84 30 32 37 171 24 28 70 28 29 24 61 42 28 2 83 240 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BUMPER; FRT,CENTER DARK GRAY	8-97999-013-0	01	1	0309-	●	●	●
24	BAR; FRT BUMPER	8-97039-797-5	01	1	0309-	●	●	●
24	BAR; FRT BUMPER	8-97039-796-5	01	1	0309-	●	●	●
28	FASTENER; BACK BAR D5.8 SCREW & GROMMET NYLON THA	8-94242-150-0	08	1	0309-	●	●	●
29	WASHER; FRT BUMPER ID=8.5	8-94167-476-0	02	1	0309-	●	●	●
30	BRACKET; FRT BUMPER EXC. FRAME STRAIGHT TYPE<7KJ>	8-97093-639-3	02	1	0309-	●
30	BRACKET; FRT BUMPER	8-97093-639-3	02	1	0309-		●
32	BOLT; BRKT,BUMPER EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0309-	●
32	BOLT; BRKT,BUMPER M8X25 FLANGE	0-28680-825-0	02	1	0309-		●
37	BOLT; BRKT TO BUMPER LWR M8X22 W/LK&PL WASHER	8-94279-148-1	02	1	0309-	●	●	●
42	BOLT; BUMPER M10X35 W/LK&PL WASHER	8-97101-865-0	04	1	0309-	●	●	●
61	BOLT; BACK BAR M8X18 W/LK WASHER	0-50040-818-0	02	1	0309-	●	●	●
70	BRACKET; LICENSE PLATE,FRT	8-94151-164-1	02	1	0309-	●	●	●
83	GUIDE; AIR,FRT BUMPER	8-97076-719-2	01	1	0309-	●	●	●
84	HOOK FRAME STRAIGHT TYPE<7KJ> THA	8-97918-519-0	01	1	0309-	●
84	HOOK THA	8-97918-519-0	01	1	0309-			●
84	HOOK EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97918-518-0	01	1	0309-	●
84	HOOK THA	8-97918-518-0	01	1	0309-		●
85	BOLT; AIR GUIDE,FRT BUMPER M6X22 W/PL WASHER THA	8-97012-072-0	04	1	0309-	●	●	●
93	WASHER; LK,HOOK ID=14.2	9-09150-814-0	02	1	0309-	●	●	●
94	NUT; HOOK M14	9-99110-514-0	02	1	0309-	●	●	●
99	BOLT; HOOK M14X50	0-10806-450-0	02	1	0309-	●	●	●
171	NUT; BACK BAR M8 FLANGE	1-09464-018-1	02	1	0309-	●	●	●
240	NUT; AIR GUIDE,FRT BUMPER M6 SPIRE NUT	8-97210-973-1	04	1	0309-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
