Isuzu WW
▶
TRUCKS
▶
NPR
▶
50971 - NPR/NQR(THAILAND)
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

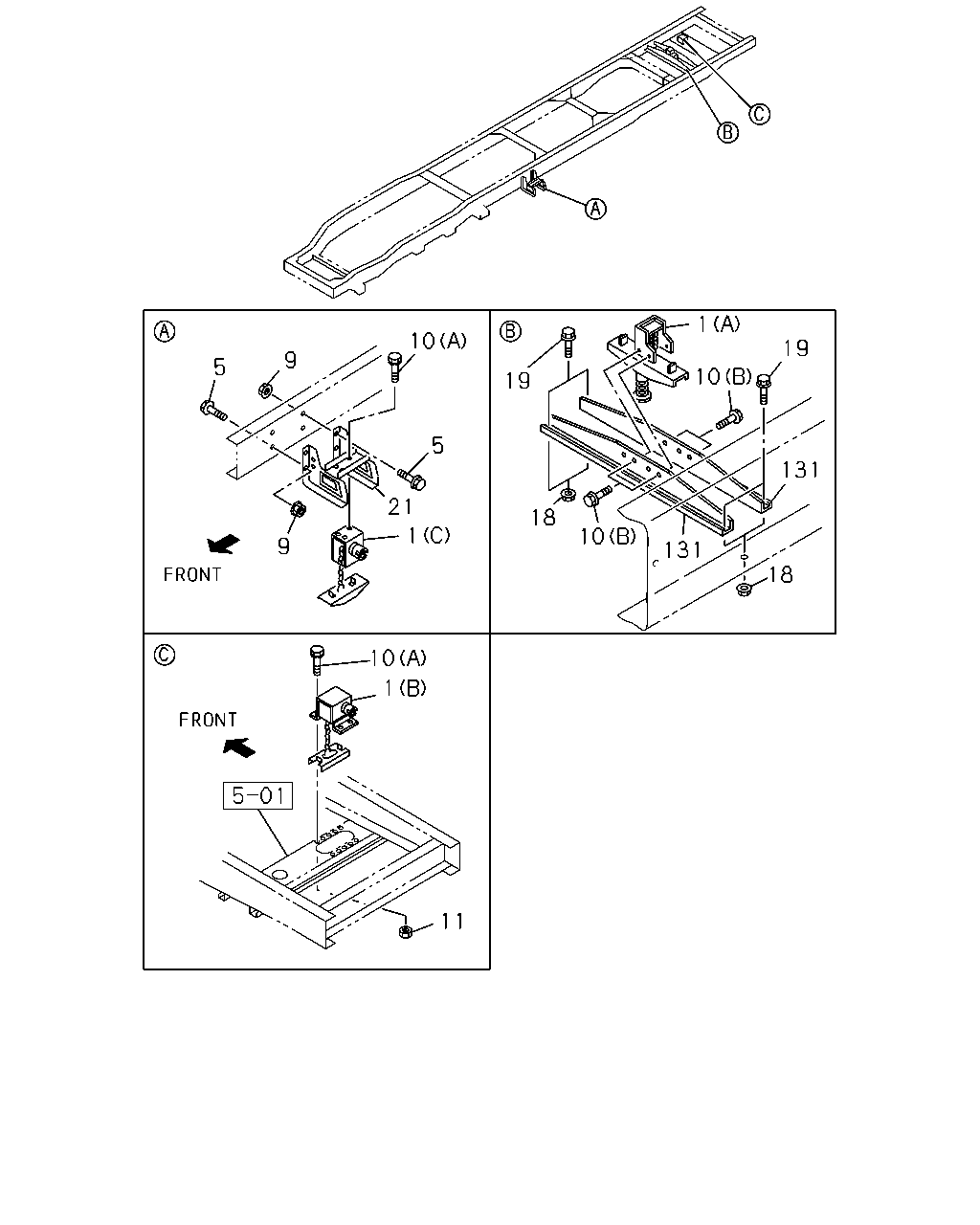

5-30 — SPARE TIRE CARRIER AND COVER
(#42449) — 16 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
1
10
19
9
5
10
19
5
131
21
18
1
10
9
131
18
10
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
HANGER ASM; TIRE FT
FRAME STRAIGHT TYPE<7KJ> (A) REAR
1-53630-188-3
01
1
0309-
●
1
HANGER ASM; TIRE FT
EXC. FRAME STRAIGHT TYPE<7KJ> (B) REAR
8-97182-115-1
01
1
0309-
●
1
HANGER ASM; TIRE FT
(B) REAR
8-97182-115-1
01
1
0309-
●
1
HANGER ASM; TIRE FT
(C) FRONT
8-97010-955-1
01
1
0309-
●
5
BOLT; BRKT TO FRAME
M10X30 FLANGE
0-28681-030-0
04
1
0309-
●
9
NUT; BRKT TO FRAME
M10 FLANGE
0-91150-110-0
04
1
0309-
●
10
BOLT; TIRE HANGER
FRAME STRAIGHT TYPE<7KJ> (B) M10X25 FLANGE
0-28681-025-0
04
1
0309-
●
10
BOLT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE
0-28680-820-0
04
1
0309-
●
10
BOLT; TIRE HANGER
(A) M8X20 FLANGE
0-28680-820-0
04
1
0309-
●
10
BOLT; TIRE HANGER
(A) M8X20 FLANGE
0-28680-820-0
03
1
0309-
●
11
NUT; TIRE HANGER
EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE
0-91150-108-0
04
1
0309-
●
11
NUT; TIRE HANGER
M8 FLANGE
0-91150-108-0
04
1
0309-
●
18
NUT; MEMBER
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE
0-91150-110-0
04
1
0309-
●
19
BOLT; C/MBR
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE
0-28681-030-0
04
1
0309-
●
21
BRACKET; SPARE TIRE HANGER
8-97188-263-1
01
1
0309-
●
131
CROSSMEMBER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
8-97167-802-0
02
1
0309-
●
