5-10 — CAB MOUNTING; FRAME SIDE (#42446) — 54 parça

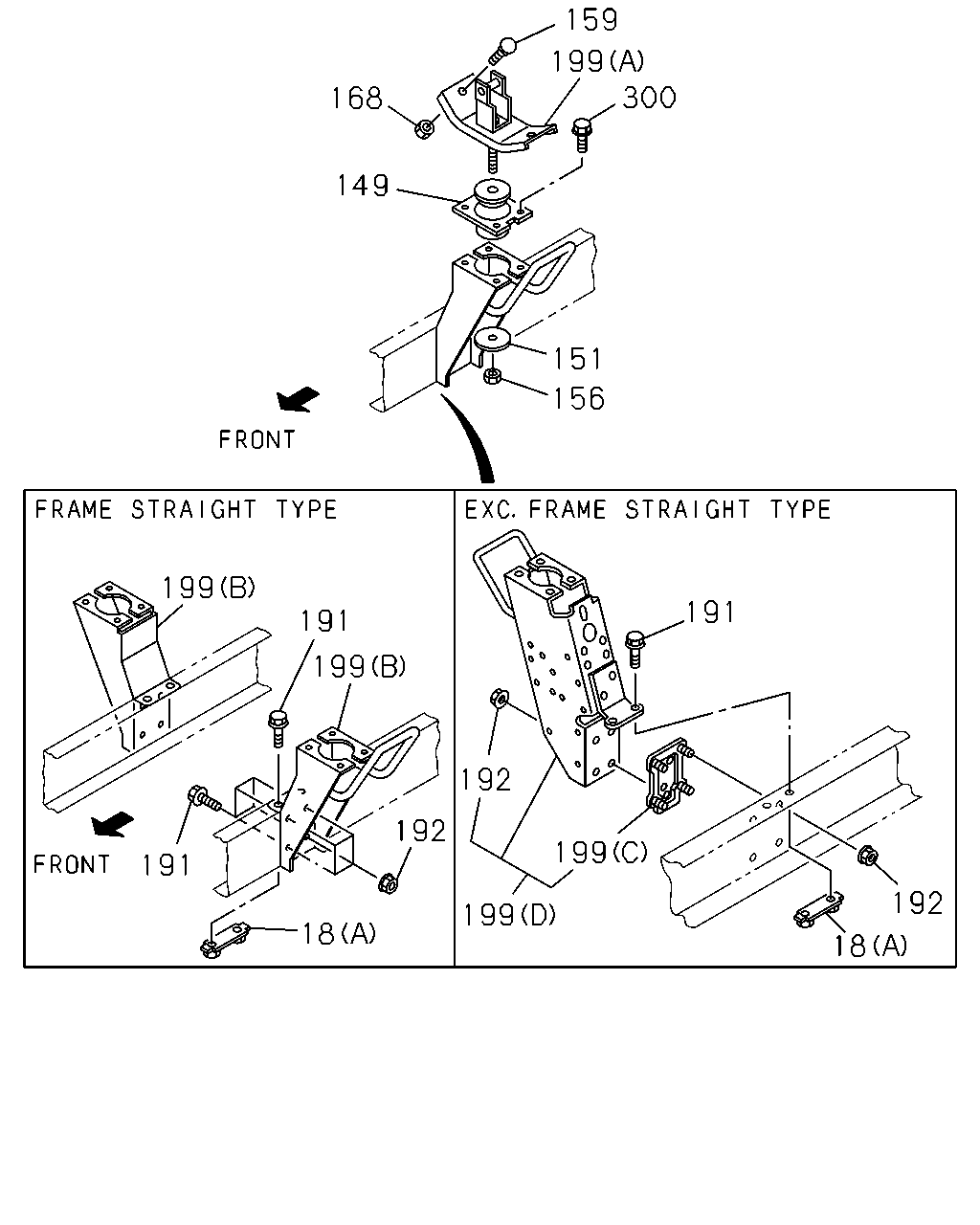

çizim 58113
159 199 300 168 149 151 156 199 191 191 199 192 192 199 191 192 199 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C
18 PLATE; MTG BRKT FIX
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97130-348-1 01 1 0309- ●
18 PLATE; MTG BRKT FIX
(D) 		8-97130-348-1 01 1 0309- ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 01 1 0309- ● ● ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 0309- ● ● ●
18 PLATE; MTG BRKT FIX
(B) 		8-97034-140-2 01 1 0309- ● ● ●
18 PLATE; MTG BRKT FIX
(C) 		8-97076-469-2 01 1 0309- ● ● ●
149 RUBBER; MTG,CAB,UPR RR
THA 		8-97916-740-0 02 1 0309- ● ● ●
151 WASHER; CAB MTG,RR UPR
ID=16.4 OD=62 		8-97034-382-0 02 1 0309- ● ● ●
156 NUT; CAB MTG RR
M16 		9-99111-416-0 02 1 0309- ● ● ●
159 RUBBER; CUSHION,CAB MTG 8-97113-340-0 04 1 0309- ● ● ●
168 NUT; CUSHION RUBBER,BODY MTG
M8 FLANGE 		0-91150-108-0 04 1 0309- ● ● ●
191 BOLT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28681-240-0 08 1 0309- ●
191 BOLT; BRKT FIX
M12X40 FLANGE 		0-28681-240-0 08 1 0309- ●
191 BOLT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> M12X40 FLANGE 		0-28681-240-0 04 1 0309- ●
191 BOLT; BRKT FIX
M12X40 FLANGE 		0-28681-240-0 04 1 0309- ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 0404- ● ● ●
192 NUT; BRKT FIX
FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-112-0 08 1 0309-0403 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 0309-0403 ●
192 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-112-0 12 1 0309-0403 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 12 1 0309-0403 ●
192 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-112-0 04 1 0404- ●
192 NUT; BRKT FIX
EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-112-0 04 1 0404- ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 04 1 0404- ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 04 1 0404- ●
199 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-97917-244-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA 		8-97917-244-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
(C) THA 		8-97917-244-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
(C) THA 		8-97917-244-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-97910-255-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
(D) THA 		8-97910-255-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA 		8-97910-254-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
(D) THA 		8-97910-254-1 01 1 0309- ●
199 BRACKET; CAB RR MTG
(A) 		8-97035-310-4 02 1 0309- ● ● ●
199 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (B) THA 		8-97920-937-2 01 1 0309- ● ●
199 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B) THA 		8-97326-507-0 01 1 0309- ● ●
199 BRACKET; CAB RR MTG
FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B) THA 		8-97326-510-0 01 1 0309- ● ●
199 BRACKET; CAB RR MTG
4HE1 ENG<RLY> TIRE SIZE 8.25-16<7QP> (B) THA 		8-97920-936-1 01 1 0309- ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28681-020-0 08 1 0309- ● ● ●
çizim 58247
7 1 7 20 1 20 104 7 23 105 18 18 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; CAB MTG 8-97101-359-0 01 1 0309- ● ● ●
1 BRACKET; CAB MTG 8-97101-358-1 01 1 0309- ● ● ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		0-28681-240-0 08 1 0309- ● ● ●
18 PLATE; MTG BRKT FIX
FRAME STRAIGHT TYPE<7KJ> (D) 		8-97130-348-1 01 1 0309- ●
18 PLATE; MTG BRKT FIX
(D) 		8-97130-348-1 01 1 0309- ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 01 1 0309- ● ● ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-139-2 02 1 0309- ● ● ●
18 PLATE; MTG BRKT FIX
(B) 		8-97034-140-2 01 1 0309- ● ● ●
18 PLATE; MTG BRKT FIX
(C) 		8-97076-469-2 01 1 0309- ● ● ●
20 RUBBER; MTG,CAB BRKT 8-97095-148-1 02 1 0309- ● ● ●
23 NUT; MTG BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-112-0 02 1 0404- ●
23 NUT; MTG BRKT
M12 FLANGE 		0-91150-112-0 02 1 0404- ●
23 NUT; MTG BRKT
EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE 		0-91150-112-0 02 1 0309-0407 ●
23 NUT; MTG BRKT
M12 FLANGE 		0-91150-112-0 02 1 0309-0407 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-97033-624-3 01 1 0309- ● ● ●
105 BOLT; BRKT TO CAB FRAME
M16X35 FLANGE 		0-28881-635-0 01 1 0309- ● ● ●
