◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#42444) — 54 parça

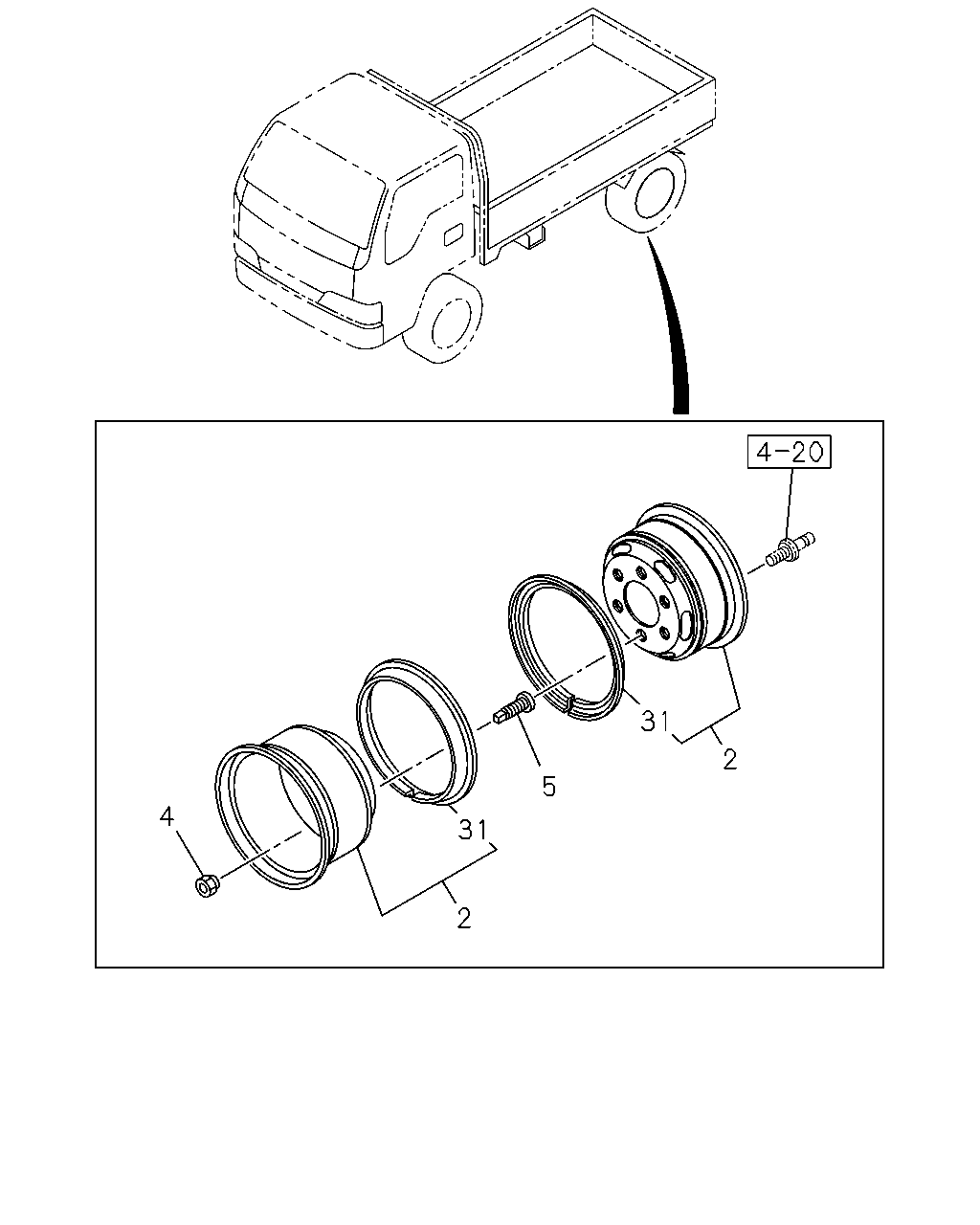

çizim 14195
31 2 5 4 31 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 01 1 0309- ●
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 01 1 0309- ●
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 06 1 0309- ●
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 06 1 0309- ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR,SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 07 1 0309- ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 01 1 0408- ●
2 WHEEL; DISC
6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 01 1 0408- ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 01 1 0408- ●
2 WHEEL; DISC
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR,SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA 		8-97915-587-0 07 1 0309- ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 06 1 0408- ●
2 WHEEL; DISC
6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 06 1 0408- ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 06 1 0408- ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD THA 		1-42334-023-0 06 1 0309- ● ● ●
4 NUT; WHEEL,RR AXLE
M30 THA 		1-42333-023-0 06 1 0309- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD THA 		1-42336-005-0 06 1 0309- ● ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD THA 		1-42335-005-0 06 1 0309- ● ● ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 01 1 0309- ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 01 1 0309- ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 06 1 0309- ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 06 1 0309- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR,SPARE 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 07 1 0309- ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 01 1 0408- ●
31 RING; SIDE,DISC WHEEL
16X6.00GS STAMP, BLACK THA 		8-94412-585-0 01 1 0408- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 01 1 0408- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> THA 		8-97915-588-0 07 1 0309- ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 06 1 0408- ●
31 RING; SIDE,DISC WHEEL
16X6.00GS STAMP, BLACK THA 		8-94412-585-0 06 1 0408- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 06 1 0408- ●

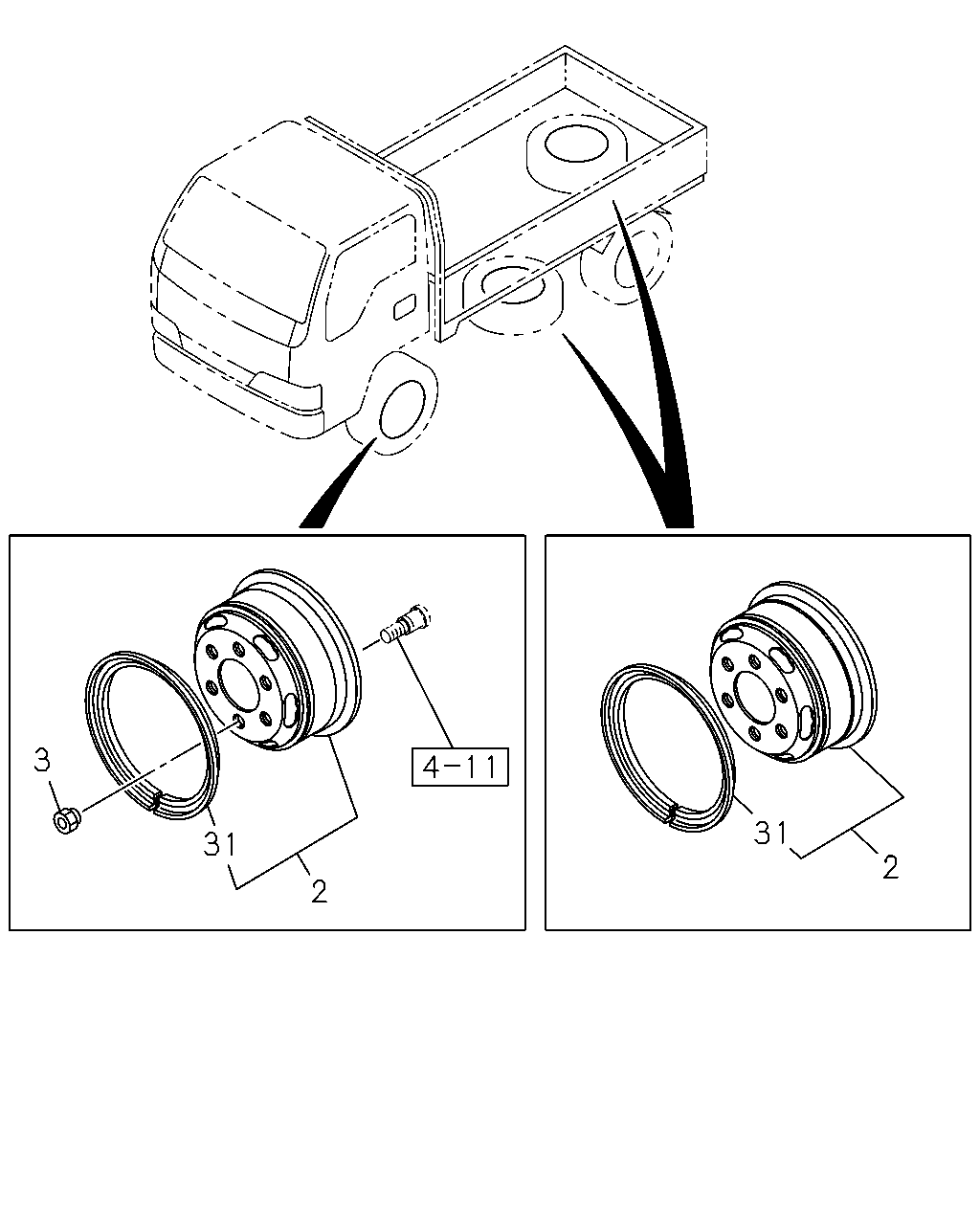

çizim 56423
3 31 31 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 01 1 0309- ●
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 01 1 0309- ●
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 06 1 0309- ●
2 WHEEL; DISC
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-97915-604-0 06 1 0309- ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR,SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 07 1 0309- ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 01 1 0408- ●
2 WHEEL; DISC
6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 01 1 0408- ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 01 1 0408- ●
2 WHEEL; DISC
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR,SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE THA 		8-97915-587-0 07 1 0309- ● ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 06 1 0408- ●
2 WHEEL; DISC
6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 06 1 0408- ●
2 WHEEL; DISC
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 6.0GSX16 OFFSET=127 BLACK 6-HOLE THA 		8-94438-670-4 06 1 0408- ●
3 NUT; WHEEL,FRT AXLE
M20 LH THREAD 		8-94427-549-1 06 1 0309- ● ● ●
3 NUT; WHEEL,FRT AXLE
M20 RH THREAD 		8-94427-548-1 06 1 0309- ● ● ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 01 1 0309- ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> SPARE 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 01 1 0309- ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 06 1 0309- ●
31 RING; SIDE,DISC WHEEL
F/TIRE 7.5-16-14 R/TIRE 7.5-16-14 FOR THAI<AZH> TIRE & DISC BREAK DOWN FOR KD<6MF> FRONT,REAR 16X6.00GS STAMP, BLACK THA 		8-97916-942-0 06 1 0309- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> FRONT,REAR,SPARE 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 07 1 0309- ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 01 1 0408- ●
31 RING; SIDE,DISC WHEEL
16X6.00GS STAMP, BLACK THA 		8-94412-585-0 01 1 0408- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 01 1 0408- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> TIRE & DISC BREAK DOWN FOR KD<6MF> THA 		8-97915-588-0 07 1 0309- ● ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 06 1 0408- ●
31 RING; SIDE,DISC WHEEL
16X6.00GS STAMP, BLACK THA 		8-94412-585-0 06 1 0408- ●
31 RING; SIDE,DISC WHEEL
FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP> 16X6.00GS STAMP, BLACK THA 		8-94412-585-0 06 1 0408- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
