◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50971 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#42440) — 40 parça
çizim 12697
227 225 225
BalonParca AdiParca NoAdetTipApplied Date A B C
225 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) THA 		8-97914-827-0 02 1 0309-0403 ●
225 RUBBER; CUSHION,RR SPR
TIRE SIZE 8.25-16<7QP> (B) THA 		8-97914-827-0 02 1 0309-0403 ●
225 RUBBER; CUSHION,RR SPR
FRAME STRAIGHT TYPE<7KJ> THA 		8-97914-827-0 02 1 0404- ●
225 RUBBER; CUSHION,RR SPR
THA 		8-97914-827-0 02 1 0404- ●
225 RUBBER; CUSHION,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA 		8-97916-766-0 02 1 0309- ●
225 RUBBER; CUSHION,RR SPR
(A) THA 		8-97916-766-0 02 1 0309- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-112-0 02 1 0404- ● ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-112-0 02 1 0309-0407 ● ● ●

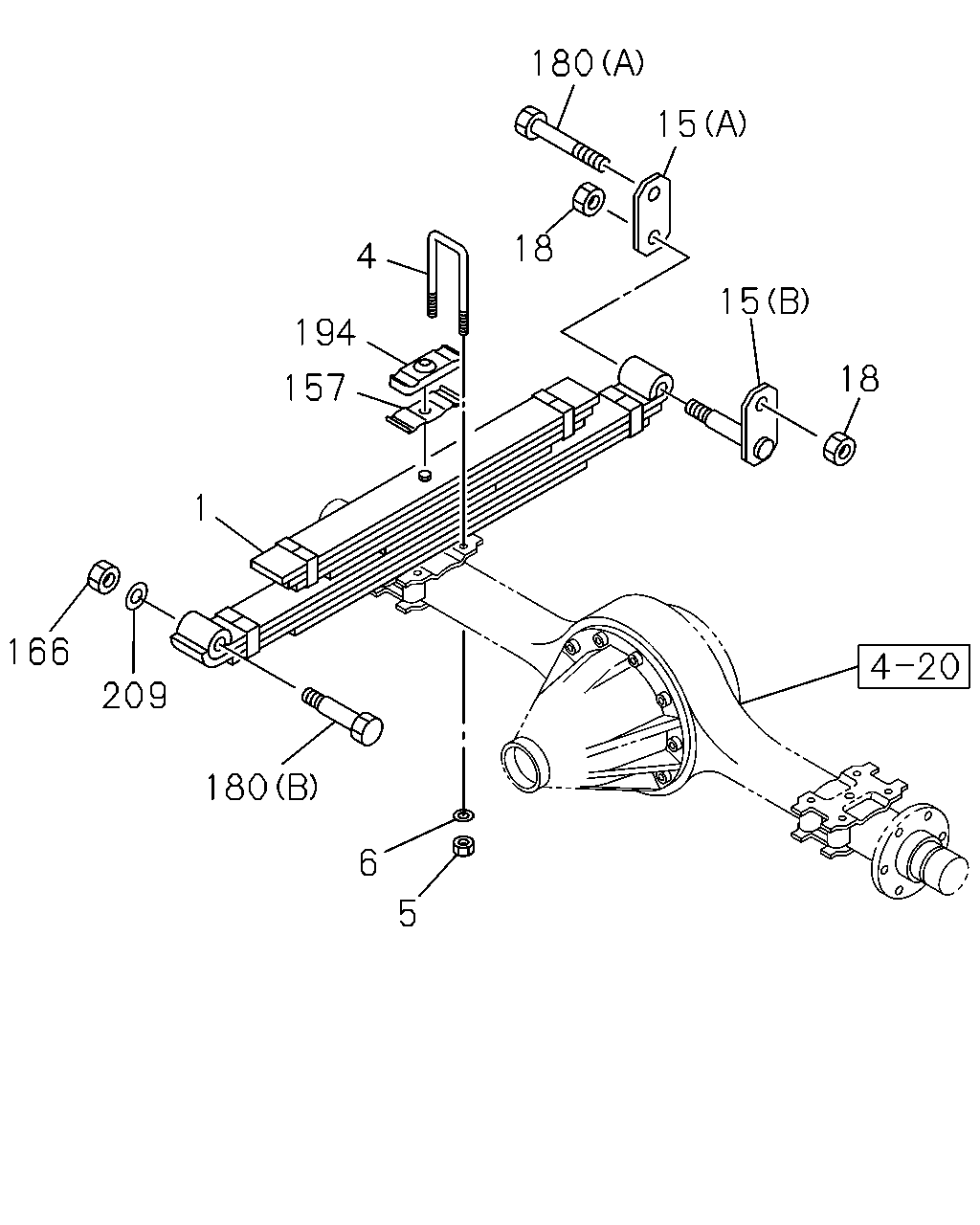

çizim 54494
180 15 18 4 15 194 18 157 1 166 209 180 6 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF THA 		8-97910-229-0 02 1 0309- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 16-LEAF THA 		8-97910-229-0 02 1 0309- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 12-LEAF THA 		8-97917-421-1 02 1 0309- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 12-LEAF THA 		8-97917-421-1 02 1 0309- ●
4 U-BOLT; RR SPR
FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> L=345 THA 		1-51371-195-2 04 1 0309- ●
4 U-BOLT; RR SPR
EXC. TIRE SIZE 8.25-16<7QP> L=345 THA 		1-51371-195-2 04 1 0309- ●
4 U-BOLT; RR SPR
G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> L=325 THA 		8-97916-752-0 04 1 0309- ●
4 U-BOLT; RR SPR
L=325 THA 		8-97916-752-0 04 1 0309- ●
4 U-BOLT; RR SPR
G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360 THA 		8-97914-753-0 04 1 0309- ●
4 U-BOLT; RR SPR
TIRE SIZE 8.25-16<7QP> L=360 THA 		8-97914-753-0 04 1 0309- ●
5 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 0309- ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 0309- ●
5 NUT; U-BOLT,RR SPR
G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> M16 		8-94107-767-0 08 1 0309- ●
5 NUT; U-BOLT,RR SPR
M16 		8-94107-767-0 08 1 0309- ●
6 WASHER; PL,U-BOLT
G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-94137-482-1 08 1 0309- ●
6 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0309- ●
15 SHACKLE; RR SPR
(A) THA 		8-97916-534-0 02 1 0309- ● ● ●
15 SHACKLE; RR SPR
(B) W/PIN THA 		8-97916-652-0 02 1 0309- ● ● ●
18 NUT; SHACKLE PIN
M16 FLANGE 		8-97147-389-0 04 1 0309- ● ● ●
157 CLAMP; UPR,RR SPR
G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0309-0403 ●
157 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 0309-0403 ●
157 CLAMP; UPR,RR SPR
FLOOR REMOTE SHIFT<M11> G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5 		8-94118-509-1 02 1 0404- ●
157 CLAMP; UPR,RR SPR
EXC. FLOOR REMOTE SHIFT<M11> L=140 T=4.5 		8-94118-509-1 02 1 0404- ●
157 CLAMP; UPR,RR SPR
L=140 T=4.5 		8-94118-509-1 02 1 0404- ●
166 NUT; GREASE NIPPLE
M18 		9-99110-518-0 02 1 0309- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) L=122 THA 		8-97916-533-0 02 1 0309- ● ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) L=130 THA 		8-97916-757-0 02 1 0309- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0309- ● ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0309- ● ● ●
194 PAD; CONTACT
FRAME STRAIGHT TYPE<7KJ> 		1-51372-059-0 02 1 0309- ●
194 PAD; CONTACT 1-51372-059-0 02 1 0309- ●
209 WASHER; PL
ID=19 		8-97073-435-1 02 1 0309- ● ● ●
