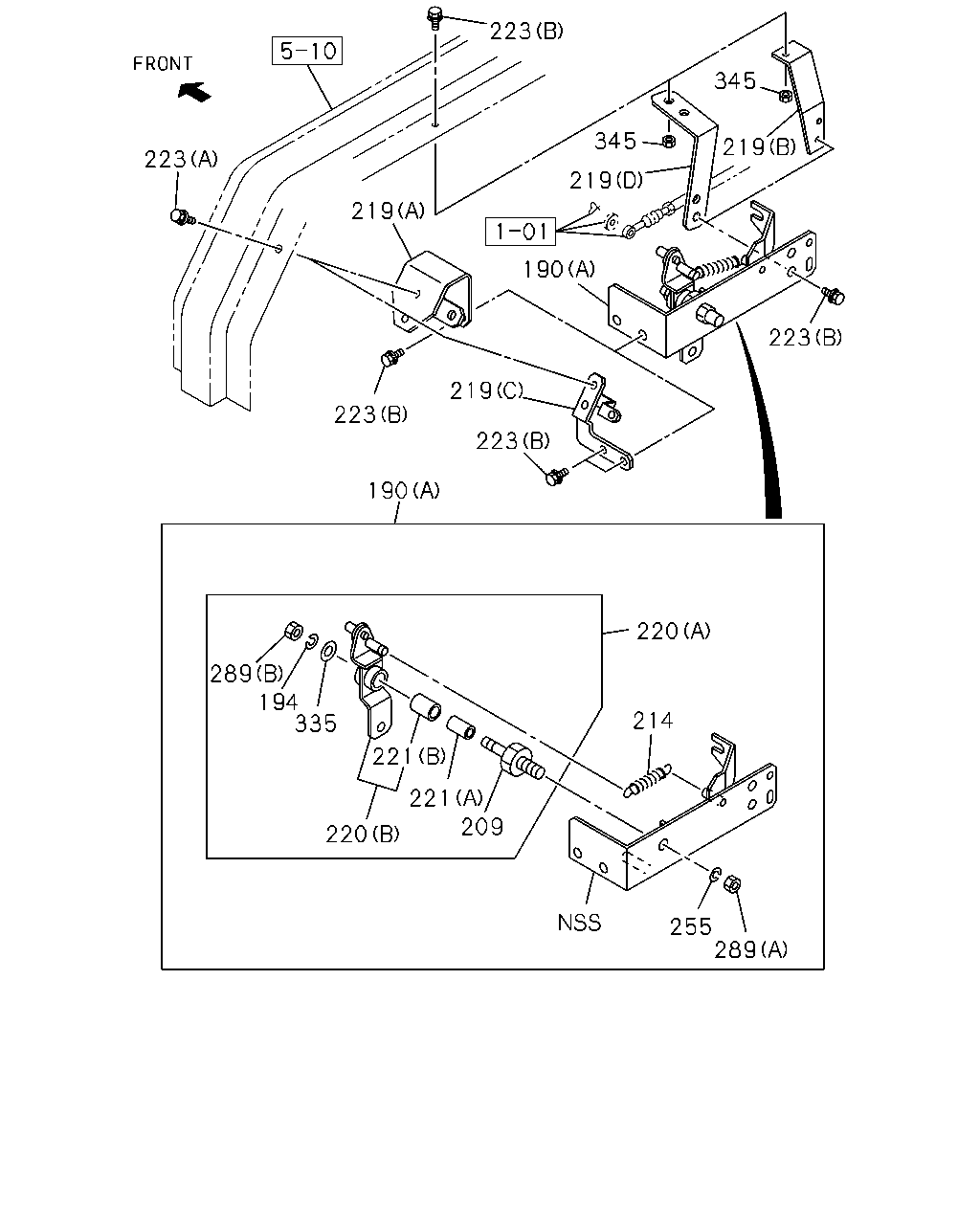

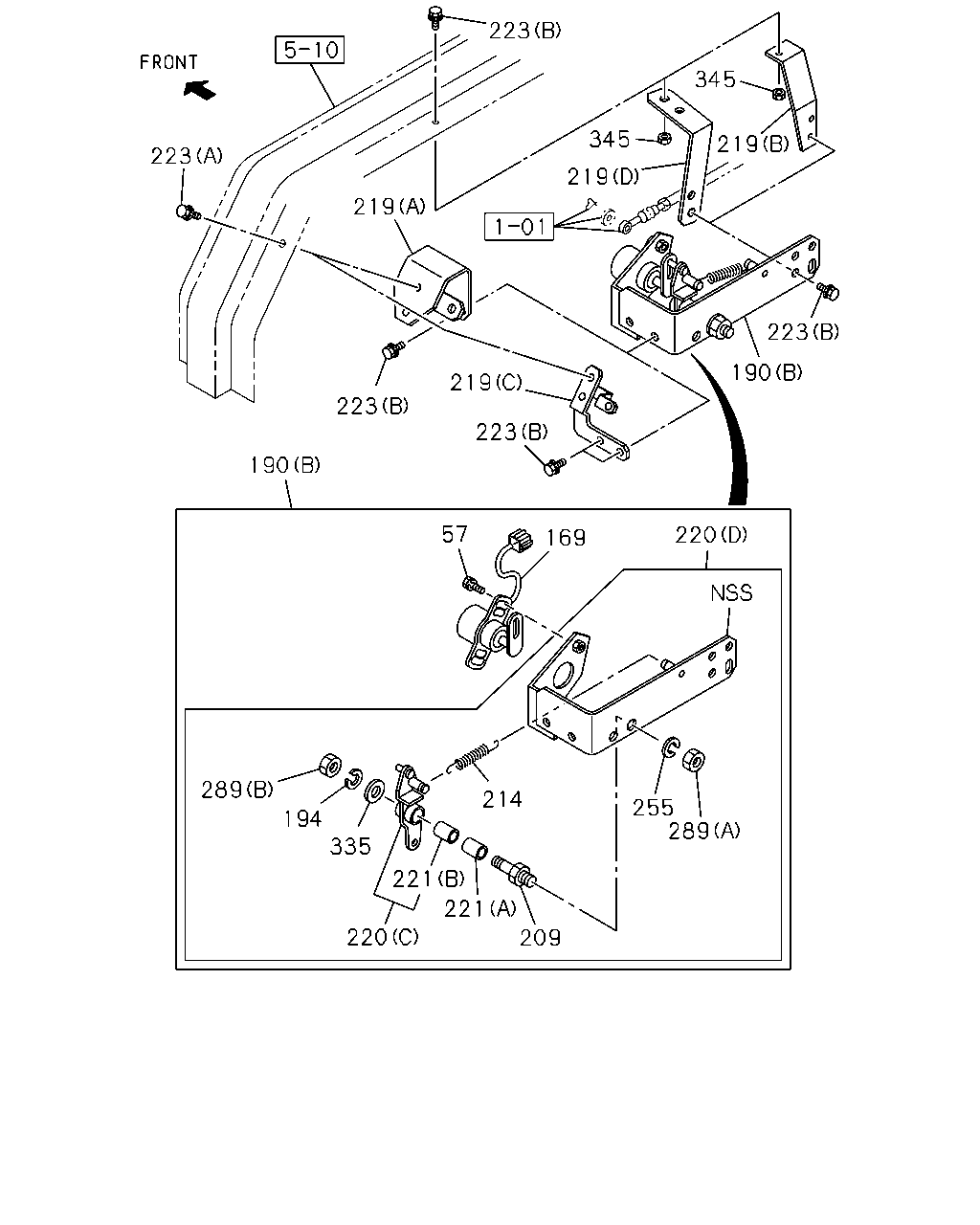

0-35A — ENGINE CONTROL VALVE AND LEVER (#4244) — 92 parça

52 45 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) ID=13 L=20	9-09525-235-0	02	1	9610-9904	●	●
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	02	1	9905-			●
45	CLIP; FUEL CUT CABLE ID=11 L=20	9-09525-035-0	02	1	9905-				●
51	BOLT; CLIP,FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9904	●	●
51	BOLT; CLIP,FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-			●
51	BOLT; CLIP,FUEL CUT CABLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-				●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) L=3199	1-73907-318-8	01	1	9610-9708	●	●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) EXC. CAB UP +50MM<W60> L=3199	1-73907-318-8	01	1	9709-9904	●	●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> L=3334	1-73907-534-0	01	1	9905-			●
52	CABLE; FUEL CUT L=3334	1-73907-534-0	01	1	9905-				●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) CAB UP +50MM<W60> L=3259	1-71907-454-0	01	1	9709-9904		●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> L=3199	1-73907-528-0	01	1	9905-			●

223 345 345 219 223 219 219 223 190 219 223 223 190 57 220 169 289 214 255 289 194 335 221 221 220 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
57	BOLT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9610-0002	●
57	BOLT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0003-	●
169	SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-81534-010-0	01	1	9610-0002	●
169	SENSOR PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5)	1-81534-010-0	01	1	0003-	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-470-0	01	1	9610-9701	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-504-0	01	1	9702-0004	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (B)	1-23335-504-0	01	1	0005-	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (B)	1-23335-547-0	01	1	0005-	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23335-503-0	01	1	0003-	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	9610-	●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ>	1-14336-002-1	01	1	9610-	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	9610-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	9610-9910	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	9911-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	9610-9910	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (B)	1-23335-460-2	01	1	9911-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C)	1-23335-511-0	01	1	9911-0004	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C)	1-23335-545-0	01	1	0005-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D)	1-23335-541-0	01	1	9911-0004	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D)	1-23335-546-0	01	1	0005-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23311-347-1	01	1	9610-9701	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23311-357-0	01	1	9702-0002	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (C)	1-23311-357-0	01	1	0003-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-471-0	01	1	9610-9701	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-505-0	01	1	9702-0002	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (D)	1-23335-505-0	01	1	0003-0004	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (D)	1-23335-505-0	01	1	0005-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (D)	1-23335-551-0	01	1	0005-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23311-359-0	01	1	0003-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B)	1-23311-360-0	01	1	0003-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	9610-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	9610-	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	07	1	9610-0004	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	04	1	0005-0008	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0009-	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	03	1	0005-0008	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	9610-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	9610-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	9610-	●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	9610-	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	9610-	●

223 345 345 219 223 219 219 190 223 219 223 223 190 220 289 194 335 214 221 221 209 220 255 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-470-0	01	1	9610-9701	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-504-0	01	1	9702-0004	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (B)	1-23335-504-0	01	1	0005-	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (B)	1-23335-547-0	01	1	0005-	●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23335-503-0	01	1	0003-	●
194	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2	9-09150-508-0	01	1	9610-	●
209	SHAFT; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ>	1-14336-002-1	01	1	9610-	●
214	SPRING; ENG CONT RETURN PTO CONTROL OPERATION CAB BACK<TBZ>	8-94481-840-1	01	1	9610-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-23335-459-0	01	1	9610-9910	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	9911-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-23335-460-2	01	1	9610-9910	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (B)	1-23335-460-2	01	1	9911-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C)	1-23335-511-0	01	1	9911-0004	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C)	1-23335-545-0	01	1	0005-	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D)	1-23335-541-0	01	1	9911-0004	●
219	BRACKET; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D)	1-23335-546-0	01	1	0005-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23311-347-1	01	1	9610-9701	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (C)	1-23311-357-0	01	1	9702-0002	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (C)	1-23311-357-0	01	1	0003-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-471-0	01	1	9610-9701	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> (D)	1-23335-505-0	01	1	9702-0002	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (D)	1-23335-505-0	01	1	0003-0004	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (D)	1-23335-505-0	01	1	0005-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (D)	1-23335-551-0	01	1	0005-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-23311-359-0	01	1	0003-	●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B)	1-23311-360-0	01	1	0003-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A)	1-09330-057-0	01	1	9610-	●
221	BUSHING; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B)	1-09330-058-0	01	1	9610-	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	07	1	9610-0004	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	04	1	0005-0008	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X20 FLANGE	0-28680-820-0	05	1	0009-	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	03	1	0005-0008	●
223	BOLT; BRKT FIX PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
255	WASHER; LK,LEVER PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2	9-09150-510-0	01	1	9610-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10	9-09110-410-0	01	1	9610-	●
289	NUT; LEVER PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8	9-09111-408-0	01	1	9610-	●
335	WASHER; PL LEVER PTO CONTROL OPERATION CAB BACK<TBZ>	5-09503-135-0	01	1	9610-	●
345	NUT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE	0-91150-108-0	01	1	9610-	●
