Sayfa 0-51 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-51 - OIL PUMP AND OIL STRAINER ▶

0-51 — OIL PUMP AND OIL STRAINER (#42438) — 53 parça

1 76 80 1 45 5 78 2 121 29 19 38 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.652 PUMP ASM; OIL	8-97033-175-4	01	1	0211-0407	●	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0408-0501	●	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0502-	●	●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0211-0501	●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0502-	●	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0211-0501	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0502-	●	●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0211-0501	●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0502-	●	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0501	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0502-0512	●	●	●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0211-0501	●	●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0502-	●	●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0211-0501	●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0502-	●	●	●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0211-0501	●	●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0502-	●	●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0211-0501	●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0502-	●	●	●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	0211-0501		●
76	01.519 PIPE ASM; OIL	8-97160-706-0	01	1	0502-		●	●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	0211-0501		●
78	01.531 BOLT; EYE JOINT,OIL PIPE M8X23 FLANGE	8-94454-199-0	01	1	0502-		●	●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	0211-0501		●
80	01.531 BOLT; OIL PIPE FIX 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	0502-0909		●	●
80	01.531 BOLT; OIL PIPE FIX 01.153 M8X22 W/LK WASHER	0-50540-822-0	01	1	0910-		●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	0211-0501	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	0502-	●	●	●
121	01.639 VALVE; RELIEF,OIL PUMP (B)	8-97311-976-1	01	1	0211-	●

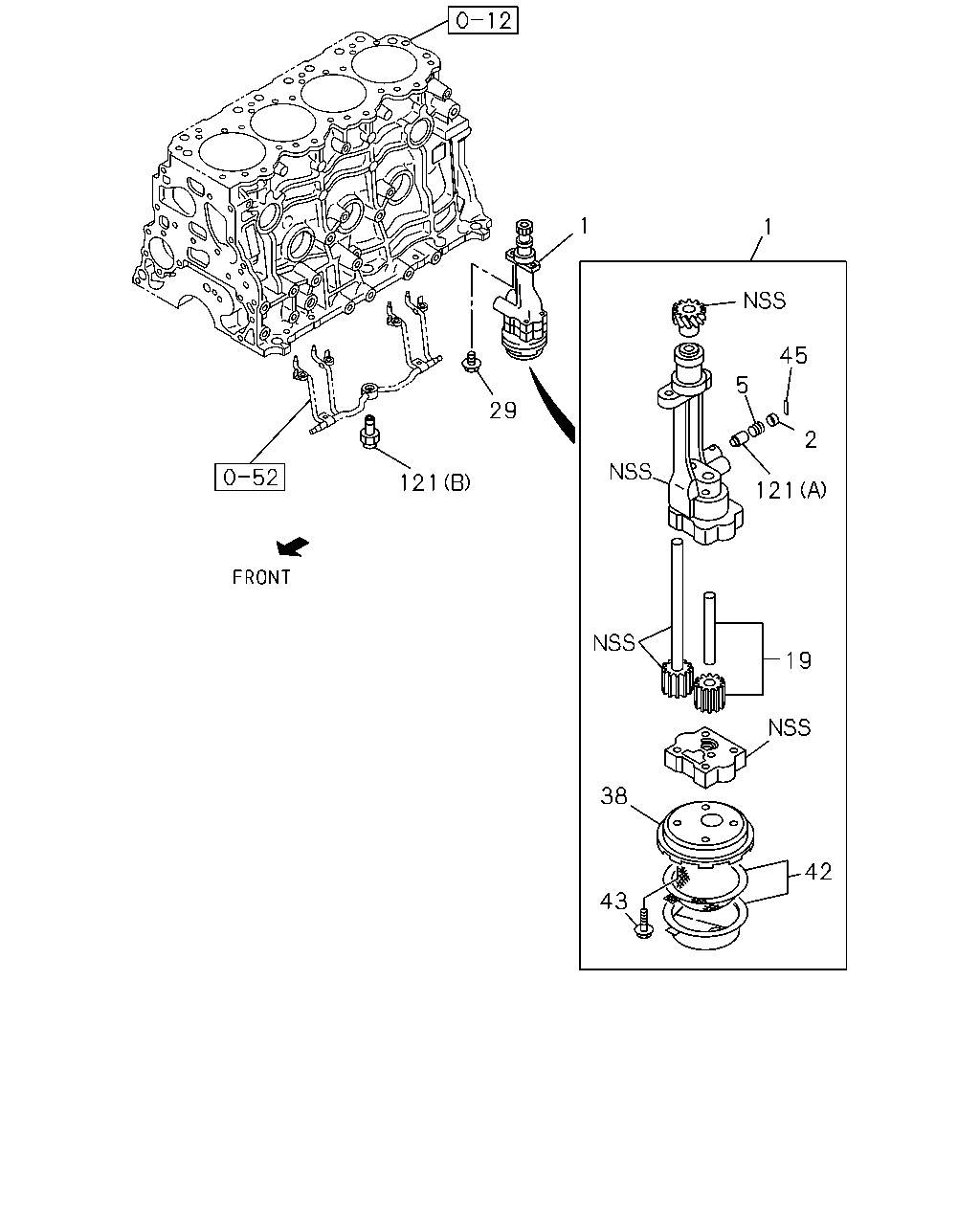

1 1 45 5 29 2 121 121 19 38 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.652 PUMP ASM; OIL	8-97033-175-4	01	1	0211-0407	●	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0408-0501	●	●
1	01.652 PUMP ASM; OIL	8-97385-984-0	01	1	0502-	●	●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0211-0501	●	●
2	01.609 SEAT; SPR	5-13165-004-0	01	1	0502-	●	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0211-0501	●	●
5	01.609 SPRING; COIL	8-97036-834-0	01	1	0502-	●	●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0211-0501	●	●
19	01.639 GEAR SET; OIL PUMP	8-94384-778-1	01	1	0502-	●	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0211-0501	●	●
29	01.652 BOLT; OIL PUMP 01.531 M8X25 FLANGE	0-28080-825-0	02	1	0502-0512	●	●	●
29	01.652 BOLT; OIL PUMP 03.275 M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0211-0501	●	●
38	01.657 CASE; OIL STRAINER	8-97036-832-0	01	1	0502-	●	●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0211-0501	●	●
42	01.656 STRAINER; OIL,OIL PUMP	8-97038-379-0	01	1	0502-	●	●	●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0211-0501	●	●
43	01.656 BOLT; CASE 04.866 M8X30 FLANGE	0-28010-830-0	04	1	0502-	●	●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0211-0501	●	●
45	01.609 PIN; SPLIT,RELIEF VLV 06.022 L=30	9-08104-030-0	01	1	0502-	●	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	0211-0501	●	●
121	01.639 VALVE; RELIEF,OIL PUMP 01.837 (A)	8-94235-567-1	01	1	0502-	●	●	●
121	01.639 VALVE; RELIEF,OIL PUMP (B)	8-97311-976-1	01	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
