Sayfa 0-41 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶

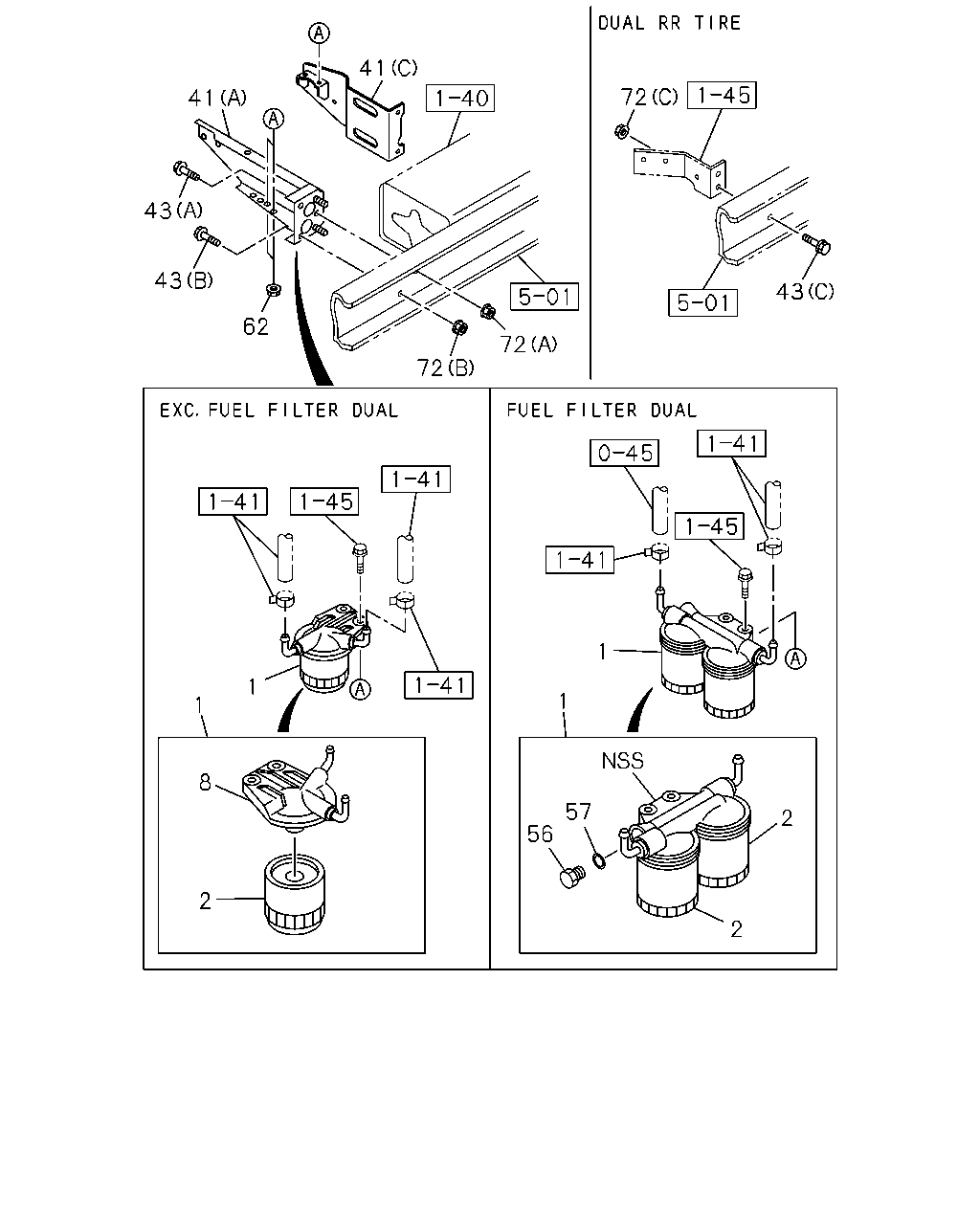

0-41 — FUEL FILTER AND BRACKET (#42435) — 127 parça

35 2 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014<VZE>	8-98270-184-0	01	1	1405-1405	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98270-184-0	01	1	1406-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	0211-0501		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	0502-1404	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.836	8-94144-613-0	02	1	1405-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	0211-0501		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	0502-0505	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97916-993-2	01	1	0506-1404	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97916-993-2	01	1	1405-	●	●	●
35	03.890 FILTER ASM; SUB FUEL VIN MODEL YEAR 2014<VZE>	8-98269-584-0	01	1	1405-1405	●
35	03.890 FILTER ASM; SUB FUEL VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98269-584-0	01	1	1406-	●

1 1 57 56 2 2 2 8 1 1 62 43 43 41 41 72 72 72 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	0211-0501		●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	0502-1404	●	●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97070-864-0	01	1	1405-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	0211-0501		●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	0502-0505	●	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-98006-454-0	01	1	0506-1404	●	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98006-454-0	01	1	1405-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014<VZE>	8-98270-184-0	01	1	1405-1405	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98270-184-0	01	1	1406-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	0211-0501		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	0502-1404	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.836	8-94144-613-0	02	1	1405-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	0211-0501		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	0502-0505	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97916-993-2	01	1	0506-1404	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97916-993-2	01	1	1405-	●	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97363-518-0	01	1	0211-0501		●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97363-518-0	01	1	0502-0505	●	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97917-558-0	01	1	0506-1404	●	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97917-558-0	01	1	1405-	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) VIN MODEL YEAR 2014<VZE> (C)	8-98259-879-1	01	1	1405-1405	●	●	●
41	03.890 BRACKET; FUEL FILTER VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (C)	8-98259-879-1	01	1	1406-	●	●
41	03.890 BRACKET; FUEL FILTER DBL CAB(NH*W) (B)	8-97103-345-1	01	1	0211-		●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) (A)	8-97090-294-3	01	1	0211-0501		●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) (A)	8-97090-294-4	01	1	0502-0503	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) (A)	8-98017-562-0	01	1	0504-1404	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98017-562-0	01	1	1405-1405	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A)	8-98017-562-0	01	1	1406-	●	●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	0211-0501		●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●	●	●
43	03.890 BOLT; BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	0601-1404	●	●	●
43	03.890 BOLT; BRKT EXC. VIN MODEL YEAR 2014<VZE> 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	1405-1405	●	●	●
43	03.890 BOLT; BRKT EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	1406-	●	●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	0211-0501		●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●	●	●
43	03.890 BOLT; BRKT (B) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	0211-0501		●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	0502-0512	●	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL<S6B>	5-13226-001-0	01	1	0211-0501		●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL<S6B>	5-13226-001-0	01	1	0502-1404	●	●	●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	5-13226-001-0	01	1	1405-	●	●
57	03.890 GASKET; PLUG FUEL FILTER DUAL<S6B> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0211-0501		●
57	03.890 GASKET; PLUG FUEL FILTER DUAL<S6B> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0502-1404	●	●	●
57	03.890 GASKET; PLUG FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	1405-	●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501		●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●
62	03.895 NUT; FUEL FILTER 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-1404	●	●	●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE> 04.085 M10 FLANGE	0-91180-210-0	02	1	1405-1405	●	●	●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 04.085 M10 FLANGE	0-91180-210-0	02	1	1406-	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●	●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-1404	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1405-1405	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1406-	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501		●	●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0211-0501		●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0502-0602	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91180-208-0	02	1	0603-	●	●	●

43 41 43 72 72 41 1 1 8 2 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	0211-0501		●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	0502-1404	●	●	●
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97070-864-0	01	1	1405-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	0211-0501		●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	0502-0505	●	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-98006-454-0	01	1	0506-1404	●	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98006-454-0	01	1	1405-	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014<VZE>	8-98270-184-0	01	1	1405-1405	●
2	03.890 ELEMENT KIT; FUEL FILTER VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-98270-184-0	01	1	1406-	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	0211-0501		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	0502-1404	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.836	8-94144-613-0	02	1	1405-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	0211-0501		●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	0502-0505	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97916-993-2	01	1	0506-1404	●	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97916-993-2	01	1	1405-	●	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97363-518-0	01	1	0211-0501		●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97363-518-0	01	1	0502-0505	●	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97917-558-0	01	1	0506-1404	●	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>,VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF>	8-97917-558-0	01	1	1405-	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) VIN MODEL YEAR 2014<VZE> (C)	8-98259-879-1	01	1	1405-1405	●	●	●
41	03.890 BRACKET; FUEL FILTER VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (C)	8-98259-879-1	01	1	1406-	●	●
41	03.890 BRACKET; FUEL FILTER DBL CAB(NH*W) (B)	8-97103-345-1	01	1	0211-		●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) (A)	8-97090-294-3	01	1	0211-0501		●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) (A)	8-97090-294-4	01	1	0502-0503	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) (A)	8-98017-562-0	01	1	0504-1404	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98017-562-0	01	1	1405-1405	●	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (A)	8-98017-562-0	01	1	1406-	●	●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	0211-0501		●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	0502-0512	●	●	●
43	03.890 BOLT; BRKT 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	0601-1404	●	●	●
43	03.890 BOLT; BRKT EXC. VIN MODEL YEAR 2014<VZE> 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	1405-1405	●	●	●
43	03.890 BOLT; BRKT EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.275 (A) M8X25 FLANGE	0-28050-825-0	01	1	1406-	●	●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	0211-0501		●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	0502-0512	●	●	●
43	03.890 BOLT; BRKT (B) M10X30 FLANGE	0-28051-030-0	02	1	0601-	●	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	0211-0501		●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	0502-0512	●	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 03.275 (C) M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	0211-0501		●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602	●	●	●
62	03.895 NUT; FUEL FILTER 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-1404	●	●	●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE> 04.085 M10 FLANGE	0-91180-210-0	02	1	1405-1405	●	●	●
62	03.895 NUT; FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 04.085 M10 FLANGE	0-91180-210-0	02	1	1406-	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●	●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-1404	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1405-1405	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1406-	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0211-0501		●	●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0211-0501		●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	0502-0602	●	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91180-208-0	02	1	0603-	●	●	●
