0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#42422) — 103 parça

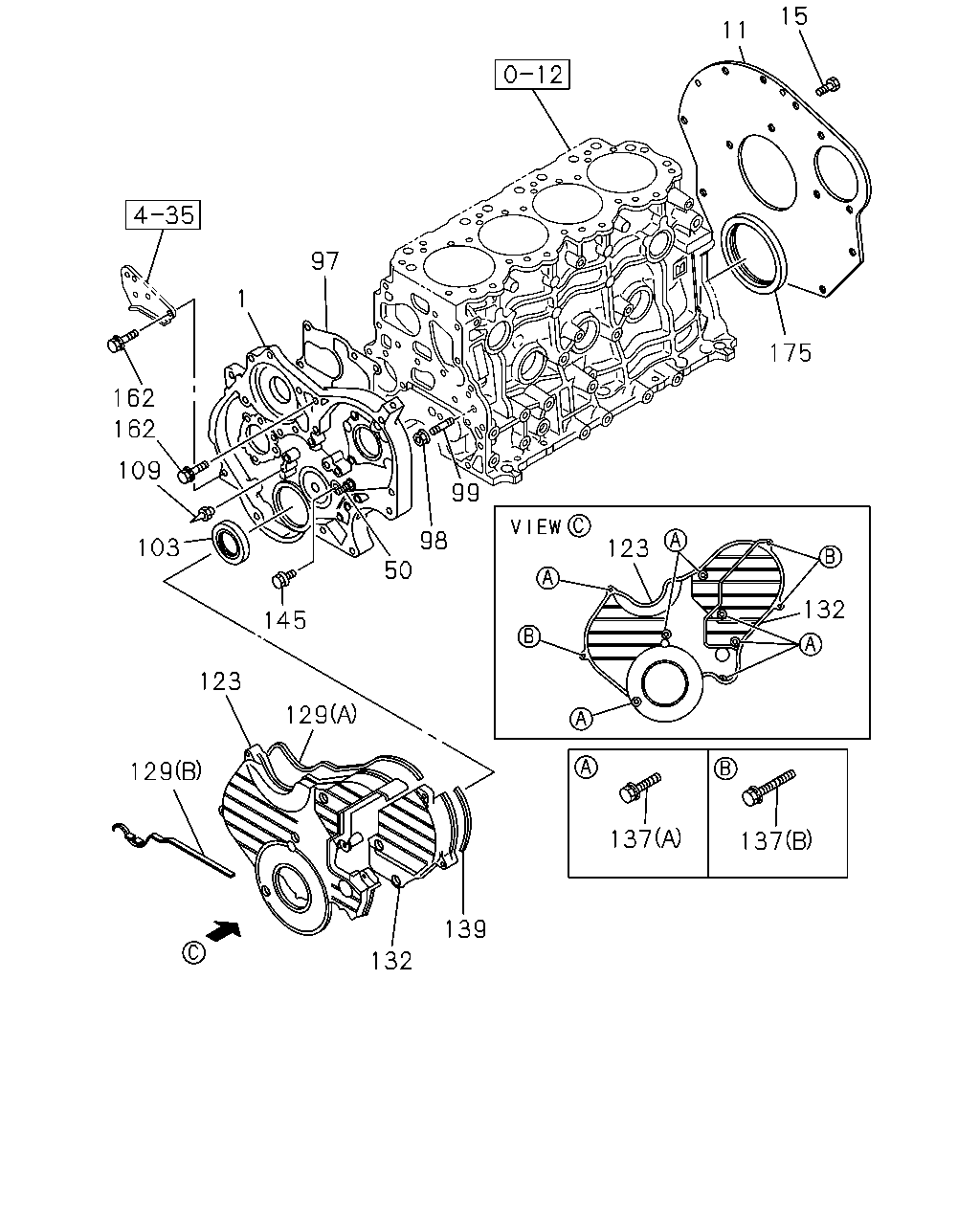

15 11 97 1 175 99 162 162 109 98 50 103 123 132 145 123 129 129 137 137 139 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR INDONESIA EQUIPMENT(S4S)	8-97562-251-0	01	1	0303-	●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51>	8-97219-001-4	01	1	0211-0501	●
1	00.206 CASE; TIMING GEAR	8-97219-001-4	01	1	0502-		●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>	8-97129-982-3	01	1	0211-0302	●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>,INDONESIA EQUIPMENT(S4S)	8-97129-982-3	01	1	0303-0501	●
1	00.206 CASE; TIMING GEAR EXC. INDONESIA EQUIPMENT(S4S)	8-97129-982-3	01	1	0502-	●
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0211-			●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0211-0501	●		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0502-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0211-0501	●		●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0502-	●	●	●
50	00.206 STUD M8X42.5 L=69	8-97148-539-0	01	1	0211-			●
97	00.206 GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-429-1	01	1	0211-			●
98	00.206 NUT; STUD,INJ PUMP 03.340 M8	8-94224-829-0	02	1	0211-0805			●
98	00.206 NUT; STUD,INJ PUMP 03.330 M8	8-98039-986-0	02	1	0806-			●
99	00.206 STUD; INJ PUMP 00.004 M8X28 L=44	9-04020-828-0	02	1	0211-0604			●
99	00.206 STUD; INJ PUMP 03.275 M8X28 L=44	0-40210-828-0	02	1	0605-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0502-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	0211-			●
109	00.219 POINTER; TIMING M5X7.5	8-94133-500-0	01	1	0211-			●
123	00.206 COVER; TIMING,LWR	8-97038-105-1	01	1	0211-			●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (B) L=366	8-94464-696-0	01	1	0211-			●
129	00.207 GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). (A) L=560	8-97318-925-0	01	1	0211-			●
132	00.206 COVER; TIMING,UPR	8-97038-103-1	01	1	0211-			●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	0211-0512			●
137	00.206 BOLT; FRT PLATE (A) M6X35 W/LK&PL WASHER	0-50640-635-0	07	1	0601-			●
137	00.206 BOLT; FRT PLATE (B) M6X50 W/LK WASHER	8-94152-616-1	03	1	0211-			●
139	00.207 GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). L=215	8-97318-924-0	01	1	0211-			●
145	00.206 BOLT; TENSIONER GUIDE M8X20	8-94152-617-1	01	1	0211-			●
162	00.206 BOLT; FRT PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	03	1	0211-0909			●
162	00.206 BOLT; FRT PLATE 03.704 M8X45 W/LK WASHER	0-50540-845-0	03	1	0910-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0502-	●	●	●

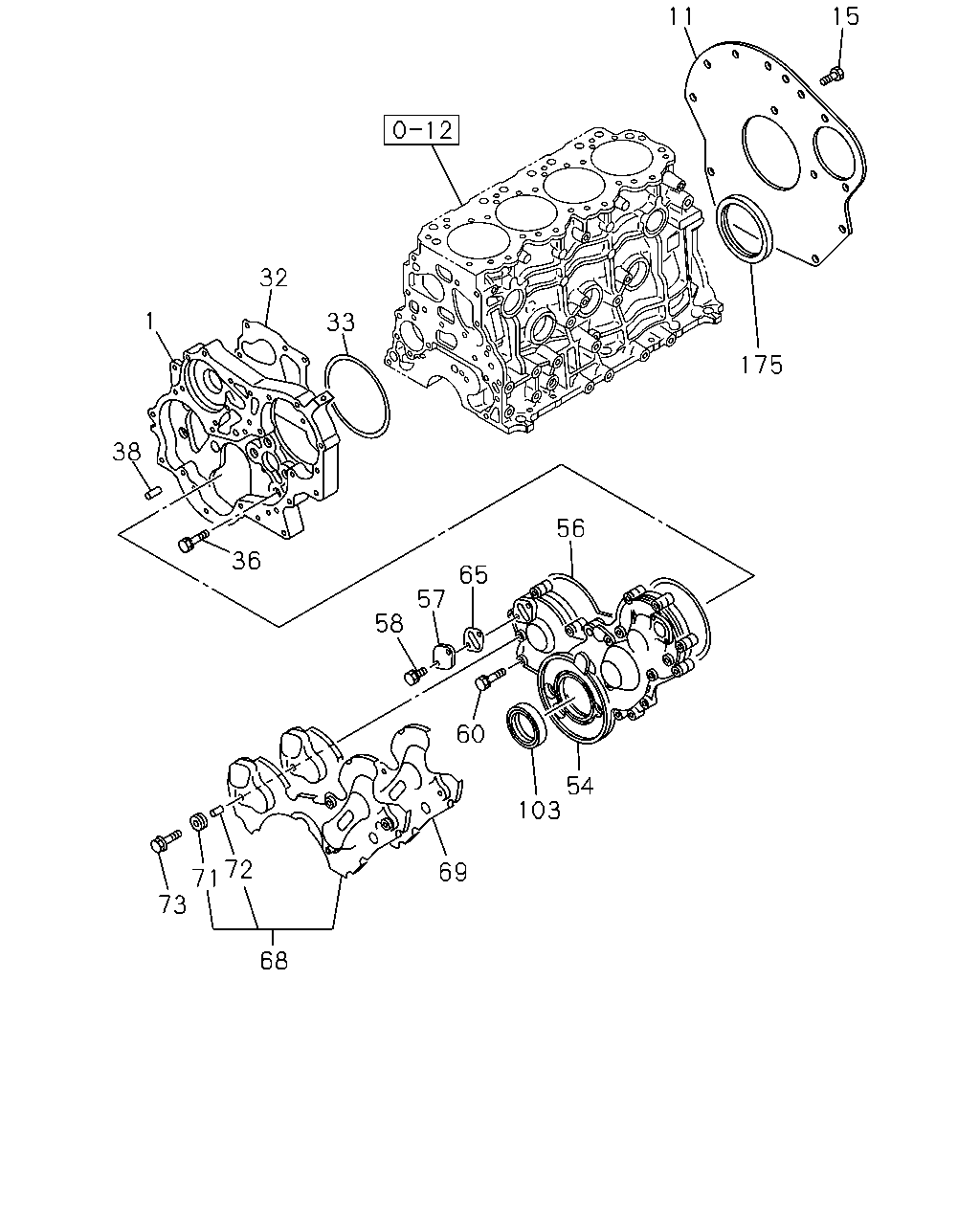

15 11 32 1 33 175 38 56 36 65 57 58 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.206 CASE; TIMING GEAR INDONESIA EQUIPMENT(S4S)	8-97562-251-0	01	1	0303-	●
1	00.206 CASE; TIMING GEAR TURBOCHARGER<K51>	8-97219-001-4	01	1	0211-0501	●
1	00.206 CASE; TIMING GEAR	8-97219-001-4	01	1	0502-		●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>	8-97129-982-3	01	1	0211-0302	●
1	00.206 CASE; TIMING GEAR EXC. TURBOCHARGER<K51>,INDONESIA EQUIPMENT(S4S)	8-97129-982-3	01	1	0303-0501	●
1	00.206 CASE; TIMING GEAR EXC. INDONESIA EQUIPMENT(S4S)	8-97129-982-3	01	1	0502-	●
1	00.206 CASE; TIMING GEAR	8-97141-532-2	01	1	0211-			●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0211-0501	●		●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0502-	●	●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0211-0501	●		●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0502-	●	●	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-0	01	1	0211-0501	●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0502-	●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-98269-758-0	01	1	1401-		●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	0211-0501	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	0502-1312	●	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	1401-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-94109-707-0	01	1	1401-		●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0211-0501	●
36	00.206 BOLT; GEAR CASE 08.900 M8X20 W/LK WASHER	0-50040-820-0	06	1	0502-0909	●	●
36	00.206 BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-	●	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0211-0501	●
36	00.206 BOLT; GEAR CASE POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0503	●	●
36	00.206 BOLT; GEAR CASE 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0909	●	●
36	00.206 BOLT; GEAR CASE 03.704 M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-	●	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0211-0501	●
36	00.206 BOLT; GEAR CASE EXC. POWER STEERING<N40> 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0502-0503	●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0211-0501	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-	●	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0211-0501	●
54	00.206 COVER; GEAR CASE	8-97231-214-1	01	1	0502-	●	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0211-0501	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0502-	●	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	0211-0501	●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	0502-	●	●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	0211-0403	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0404-0501	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0502-0512	●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0601-	●	●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	0211-0501	●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	0502-0512	●	●
60	00.206 BOLT; COVER TO CASE M8X30 FLANGE	0-28050-830-0	08	1	0601-	●	●
60	00.206 BOLT; COVER TO CASE 01.840 M8X70 W/LK WASHER	0-50040-870-0	06	1	0211-0501	●
60	00.206 BOLT; COVER TO CASE 01.840 M8X70 W/LK WASHER	0-50040-870-0	06	1	0502-0512	●	●
60	00.206 BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-	●	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0211-0501	●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0502-0512	●	●
60	00.206 BOLT; COVER TO CASE M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-	●	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	0211-0501	●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	0502-	●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-1	02	1	0211-0501	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	02	1	0502-	●	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	0211-0501	●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	0502-	●	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	0211-0501	●
69	00.206 SEAL; RUBBER,COVER TO COVER	8-94155-722-3	01	1	0502-	●	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0211-0501	●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	04	1	0502-	●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0211-0501	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	0502-	●	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	0211-0403	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0404-0501	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0502-0512	●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	04	1	0601-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0211-0501	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0502-	●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-560-1	01	1	0211-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0211-0501	●		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0502-	●	●	●
