Sayfa 0-14 - Isuzu EPC

0-14 — CAMSHAFT AND VALVE (#42420) — 207 parça

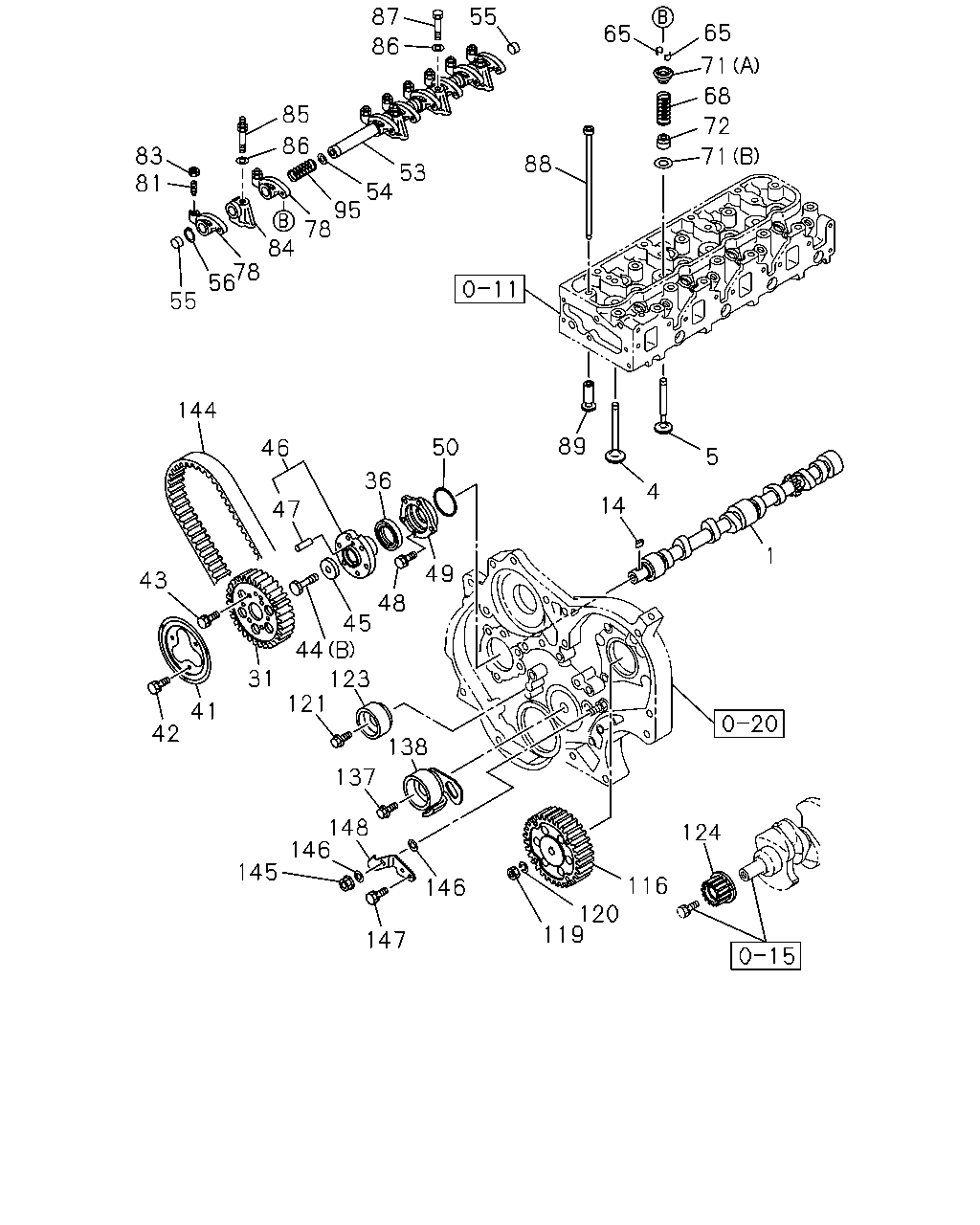

87 55 65 65 86 71 68 85 72 86 83 81 71 88 53 54 95 78 84 78 56 55 144 89 50 46 5 36 4 14 47 1 49 43 48 45 44 31 123 121 41 42 138 137 148 146 124 145 116 146 120 119 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.519 CAMSHAFT CHINA CHONGQING EQUIPMENT<R5B> OIL COOLER<KC4>	8-98007-689-0	01	1	0508-	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0211-0501	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0502-0507	●	●	●
1	00.519 CAMSHAFT EXC. CHINA CHONGQING EQUIPMENT<R5B>	8-97287-657-1	01	1	0508-	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0508-		●	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	0211-0501	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0502-			●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	0211-0501	●
4	00.296 VALVE; INL	8-94133-275-2	04	1	0502-	●
4	00.296 VALVE; INL	8-97131-729-2	04	1	0211-		●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0502-1405			●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-			●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	0502-	●
5	00.297 VALVE; EXH	8-97118-767-1	04	1	0211-		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0211-0501	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0502-	●	●	●
31	00.736 SPROCKET; CM/SHF Z=44	8-97147-983-0	01	1	0211-		●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=56 T=6.5	8-97352-745-0	01	1	0211-		●
41	00.662 FLANGE; CAM PULLEY	8-94157-492-0	01	1	0211-0706		●
41	00.662 FLANGE; CAM PULLEY	8-98078-911-0	01	1	0707-		●
42	00.662 BOLT; FLANGE CAM 04.785 M8X18 W/LK WASHER	0-50040-818-0	03	1	0211-0909		●
42	00.662 BOLT; FLANGE CAM 09.171 M8X18 W/LK WASHER	0-50540-818-0	03	1	0910-		●
43	00.662 BOLT; PULLEY 04.686 M6X16 W/LK WASHER	0-50040-616-0	03	1	0211-0512		●
43	00.662 BOLT; PULLEY M6X16 W/LK WASHER	0-50540-616-0	03	1	0601-		●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0502-0512	●		●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0211-0501	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0502-0507	●	●	●
44	00.738 BOLT EXC. CHINA CHONGQING EQUIPMENT<R5B> 00.533 (B) M12X47	8-94433-407-0	01	1	0508-0910	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0508-0910		●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0911-	●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0211-0501	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0502-	●	●	●
46	00.736 CENTER ASM; TIMING PULLEY	8-97118-491-1	01	1	0211-		●
47	00.662 PIN; STRAIGHT,CENTER 08.939 OD=4 L=12	9-08160-412-0	01	1	0211-		●
48	00.724 BOLT; RET 01.540 M8X35 W/LK WASHER	0-50040-835-0	05	1	0211-0512		●
48	00.724 BOLT; RET M8X35 W/LK WASHER	0-50540-835-0	05	1	0601-		●
49	00.724 RETAINER; OIL SEAL,CM/SHF	8-94133-516-2	01	1	0211-		●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97080-893-0	01	1	0211-		●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0211-0501	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0502-	●	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0211-0501	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0502-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0211-0501	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0502-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0211-0501	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0502-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0211-0501	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0502-	●	●	●
68	00.303 SPRING; VLV INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-98276-958-0	08	1	1507-			●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0211-0501	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0502-1506	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1507-	●	●
68	00.303 SPRING; VLV EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> H=48 NATURAL	8-94433-247-0	08	1	1507-			●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0502-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0502-	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0211-0501	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0502-	●	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0211-0501	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0502-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0211-0501	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0502-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0211-0501	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0502-0512	●	●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0601-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0211-0501	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0502-	●	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0211-0501	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0502-	●	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0211-0501	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0502-	●	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0211-0501	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0502-	●	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0211-0501	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0502-	●	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0211-0501	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0502-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0211-0501	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0502-	●	●	●
116	00.659 PULLEY; TIMING,INJ PUMP Z=44 B=37.7	8-97043-289-0	01	1	0211-		●
119	00.662 NUT; PULLEY 03.340 M14	8-94226-565-0	01	1	0211-		●
120	00.662 WASHER; LK,PULLEY,INJ PUMP 03.340	8-94226-554-0	01	1	0211-		●
121	00.724 BOLT; IDLE PULLEY M12X57 FLANGE	8-94433-408-1	01	1	0211-		●
123	00.724 PULLEY; IDLE,TIMING	8-94382-215-1	01	1	0211-		●
124	00.659 PULLEY; TIMING,CR/SHF Z=22	8-94133-501-3	01	1	0211-		●
137	00.724 BOLT; TENSIONER M12X57 FLANGE	8-94433-408-1	01	1	0211-		●
138	00.724 TENSIONER; TIMING BELT	8-94382-214-1	01	1	0211-		●
144	00.724 BELT; TIMING BLUE	8-94380-679-0	01	1	0211-		●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0602		●
145	00.724 NUT; FLANGE 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-		●
146	00.724 WASHER; PL,TENSION LEVER 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0211-0605		●
146	00.724 WASHER; PL,TENSION LEVER 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-		●
147	00.724 BOLT; TENSION LEVER 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0211-0512		●
147	00.724 BOLT; TENSION LEVER 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-		●
148	00.724 LEVER; TENSION,TIMING BELT	8-97146-370-0	01	1	0211-		●

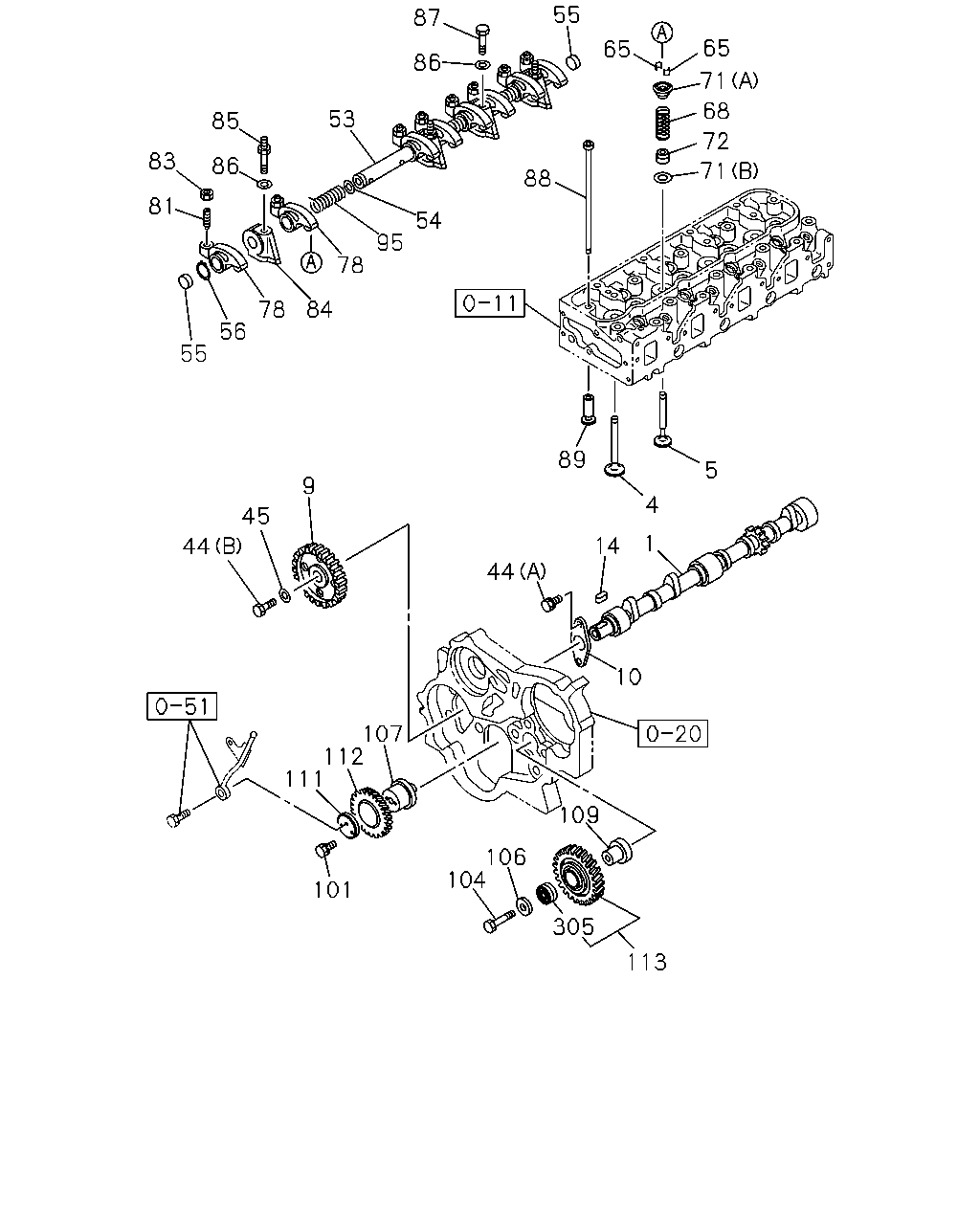

55 87 65 65 86 71 68 53 85 72 83 86 71 88 81 54 95 78 84 78 56 55 89 5 9 4 45 1 14 44 44 10 107 112 111 109 106 104 101 305 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.519 CAMSHAFT CHINA CHONGQING EQUIPMENT<R5B> OIL COOLER<KC4>	8-98007-689-0	01	1	0508-	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0211-0501	●	●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0502-0507	●	●	●
1	00.519 CAMSHAFT EXC. CHINA CHONGQING EQUIPMENT<R5B>	8-97287-657-1	01	1	0508-	●
1	00.519 CAMSHAFT	8-97287-657-1	01	1	0508-		●	●
4	00.296 VALVE; INL TURBOCHARGER<K51>	8-94464-921-0	04	1	0211-0501	●
4	00.296 VALVE; INL	8-94464-921-2	04	1	0502-			●
4	00.296 VALVE; INL EXC. TURBOCHARGER<K51>	8-94133-275-1	04	1	0211-0501	●
4	00.296 VALVE; INL	8-94133-275-2	04	1	0502-	●
4	00.296 VALVE; INL	8-97131-729-2	04	1	0211-		●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-94433-245-0	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-94433-245-1	04	1	0502-1405			●
5	00.297 VALVE; EXH	8-98277-383-0	04	1	1406-			●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-94247-875-1	04	1	0211-0501	●
5	00.297 VALVE; EXH	8-94247-875-2	04	1	0502-	●
5	00.297 VALVE; EXH	8-97118-767-1	04	1	0211-		●
9	00.736 GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-			●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0211-0501	●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0502-0911	●		●
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0912-	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0211-0501	●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	0502-	●		●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0211-0501	●	●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	0502-	●	●	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0501	●
44	00.738 BOLT 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0502-0512	●		●
44	00.738 BOLT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0211-0501	●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0502-0507	●	●	●
44	00.738 BOLT EXC. CHINA CHONGQING EQUIPMENT<R5B> 00.533 (B) M12X47	8-94433-407-0	01	1	0508-0910	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0508-0910		●	●
44	00.738 BOLT 00.533 (B) M12X47	8-94433-407-0	01	1	0911-	●	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0211-0501	●	●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0502-	●	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0211-0501	●	●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0502-	●	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0211-0501	●	●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0502-	●	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0211-0501	●	●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0502-	●	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0211-0501	●	●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0502-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0211-0501	●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	0502-	●	●	●
68	00.303 SPRING; VLV INJ PUMP Q SET SPECIAL +5%Q<T1A>	8-98276-958-0	08	1	1507-			●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0211-0501	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	0502-1506	●	●	●
68	00.303 SPRING; VLV H=48 NATURAL	8-94433-247-0	08	1	1507-	●	●
68	00.303 SPRING; VLV EXC. INJ PUMP Q SET SPECIAL +5%Q<T1A> H=48 NATURAL	8-94433-247-0	08	1	1507-			●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0502-	●	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0211-0501	●	●
71	00.309 SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0502-	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0211-0501	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0502-	●	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0211-0501	●	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	0502-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0211-0501	●	●
81	00.429 SCREW; ADJ,ROCKER ARM M8 L=30	8-94152-283-1	08	1	0502-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0211-0501	●	●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	0502-0512	●	●	●
83	00.787 NUT; ADJ SCREW,LK 00.777 M8	0-91111-508-0	08	1	0601-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0211-0501	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0502-	●	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0211-0501	●	●
85	00.349 BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0502-	●	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0211-0501	●	●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0502-	●	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0211-0501	●	●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0502-	●	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0211-0501	●	●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	0502-	●	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0211-0501	●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	0502-	●	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0211-0501	●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0502-	●	●	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0211-0501	●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	0502-	●		●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	0211-0501	●
104	00.724 BOLT; SHAFT IDLE	8-94109-706-1	01	1	0502-	●		●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0211-0501	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	0502-	●		●
107	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51>	8-97920-007-0	01	1	0211-0501	●
107	00.724 SHAFT; IDLE GEAR	8-97920-007-0	01	1	0502-			●
107	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94139-758-1	01	1	0211-0501	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	0502-	●
109	00.724 SHAFT; IDLE GEAR TURBOCHARGER<K51>	8-97218-780-0	01	1	0211-0501	●
109	00.724 SHAFT; IDLE GEAR	8-97218-780-0	01	1	0502-			●
109	00.724 SHAFT; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94109-913-1	01	1	0211-0501	●
109	00.724 SHAFT; IDLE GEAR	8-94109-913-1	01	1	0502-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0211-0501	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0502-	●		●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-97912-650-0	01	1	0911-	●		●
112	00.724 GEAR; IDLE TURBOCHARGER<K51> Z=31	8-97229-601-0	01	1	0211-0501	●
112	00.724 GEAR; IDLE Z=31	8-97229-601-0	01	1	0502-			●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=31	8-97164-773-0	01	1	0211-0501	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	0502-	●
113	00.724 GEAR; IDLE TURBOCHARGER<K51> Z=37	8-97229-602-0	01	1	0211-0501	●
113	00.724 GEAR; IDLE Z=37	8-97229-602-0	01	1	0502-0908			●
113	00.724 GEAR; IDLE Z=37	8-98140-217-0	01	1	0909-			●
113	00.724 GEAR; IDLE EXC. TURBOCHARGER<K51> Z=37	8-94139-761-0	01	1	0211-0501	●
113	00.724 GEAR; IDLE Z=37	8-94139-761-0	01	1	0502-	●
305	00.724 BEARING; IDLE GEAR TURBOCHARGER<K51>	8-97218-947-1	01	1	0211-0501	●
305	00.724 BEARING; IDLE GEAR	8-97218-947-1	01	1	0502-0908			●
305	00.724 BEARING; IDLE GEAR	8-98140-110-0	01	1	0909-			●
305	00.724 BEARING; IDLE GEAR EXC. TURBOCHARGER<K51>	8-94110-271-0	01	1	0211-0501	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	0502-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
