◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#42419) — 37 parça

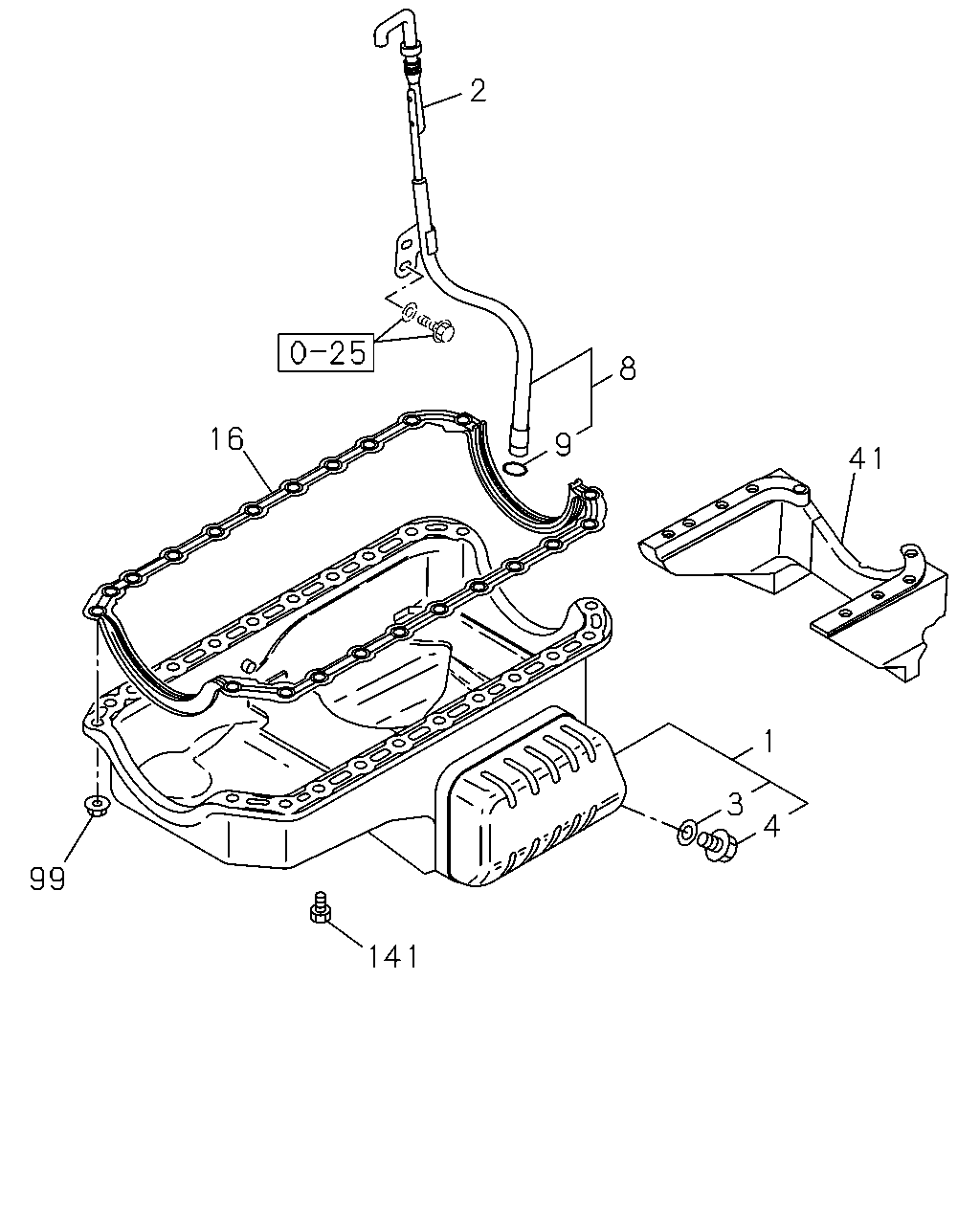

çizim 49858
2 8 16 9 41 1 3 4 99 141
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.426 PAN ASM; OIL
TURBOCHARGER<K51> 		8-97223-955-0 01 1 0211-0312 ●
1 01.426 PAN ASM; OIL
EXC. TURBOCHARGER<K51> 		8-97083-322-3 01 1 0211-0312 ●
1 01.426 PAN ASM; OIL 8-97083-322-3 01 1 0211-0312 ●
1 01.426 PAN ASM; OIL 8-97083-322-3 01 1 0401-0411 ● ●
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 0412-0501 ● ●
1 01.426 PAN ASM; OIL 8-98000-123-0 01 1 0502- ● ● ●
2 01.516 GAUGE; OIL LEVEL
TURBOCHARGER<K51> 		8-97231-295-0 01 1 0211-0501 ●
2 01.516 GAUGE; OIL LEVEL 8-97092-924-0 01 1 0502- ● ●
2 01.516 GAUGE; OIL LEVEL
EXC. TURBOCHARGER<K51> 		8-97092-924-0 01 1 0211-0501 ●
2 01.516 GAUGE; OIL LEVEL 8-97092-924-0 01 1 0211-0501 ●
2 01.516 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0502- ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0211-0501 ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0502- ● ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0211-0501 ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0502- ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
TURBOCHARGER<K51> 		8-97221-497-0 01 1 0211-0501 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 0502- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. TURBOCHARGER<K51> 		8-97044-886-0 01 1 0211-0501 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 0211-0501 ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97044-886-0 01 1 0502- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ID=11 		5-09623-002-0 02 1 0211-0501 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0502- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51>. ID=11 		5-09623-002-0 01 1 0211-0501 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0211-0501 ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 0502- ● ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0211-0501 ● ●
16 01.429 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0502- ● ● ●
41 00.137 RUBBER; SPACE
TURBOCHARGER<K51> 		8-97095-936-0 01 1 0211-0501 ●
41 00.137 RUBBER; SPACE
EURO2 SPECIFICATION(NT2) 		8-97095-936-0 01 1 0211-0501 ●
41 00.137 RUBBER; SPACE
EURO2 SPECIFICATION(NT2) 		8-97095-936-0 01 1 0502-1203 ●
41 00.137 RUBBER; SPACE 8-97095-936-0 01 1 0502-1203 ●
41 00.137 RUBBER; SPACE
EURO2 SPECIFICATION(NT2) 		8-97095-936-0 01 1 1204- ●
41 00.137 RUBBER; SPACE
EXC. INDONESIA EQUIPMENT(S4S) 		8-97095-936-0 01 1 1204- ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0211-0501 ● ●
99 01.453 NUT; BRKT TO OIL PAN FIX
06.164 M8 FLANGE 		5-09440-010-0 10 1 0502- ● ● ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0211-0501 ● ●
141 01.428 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0502- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
