0-12 — CYLINDER BLOCK (#42418) — 234 parça

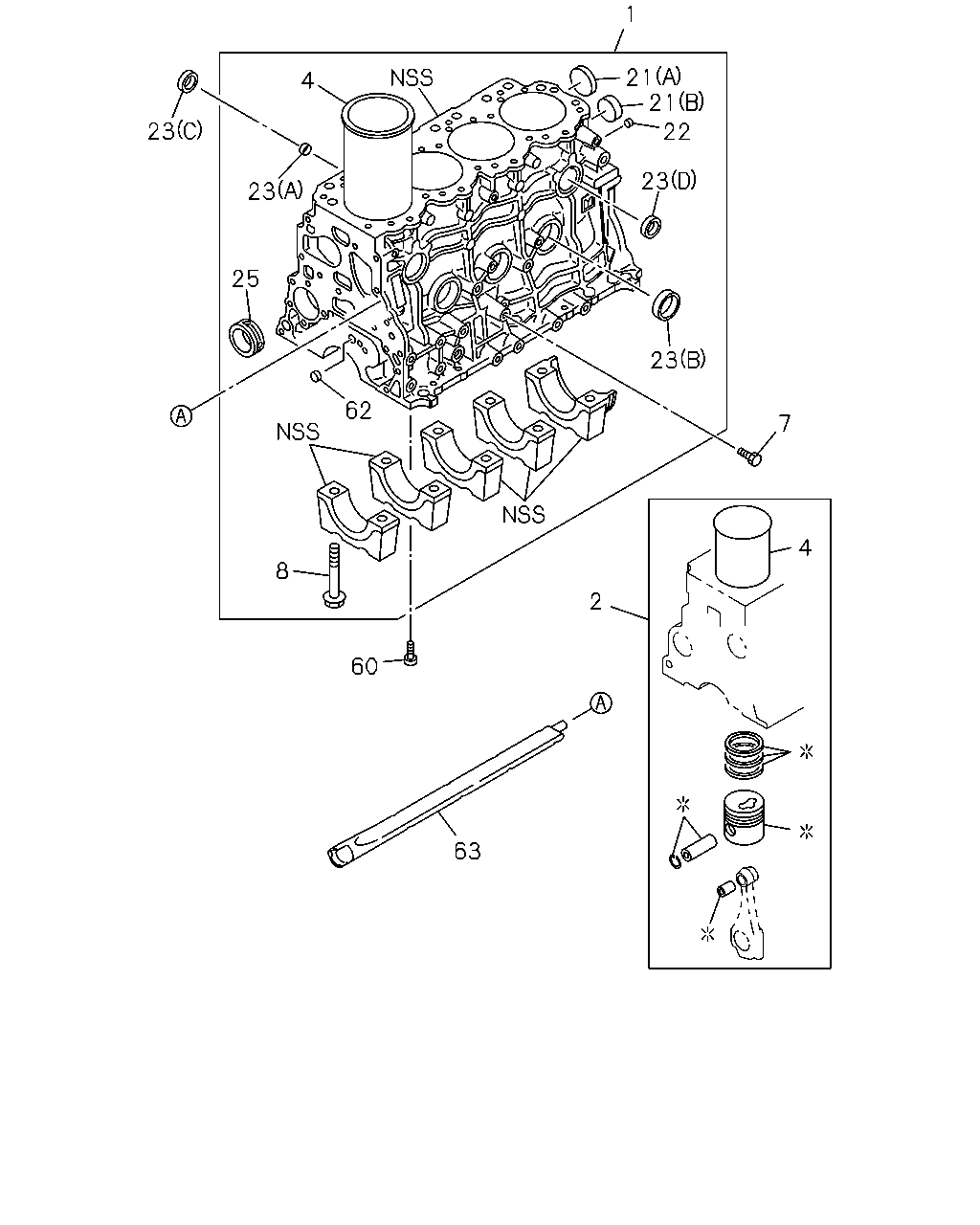

çizim 49780
1 21 21 4 23 22 23 23 25 23 62 7 4 8 2 60 63
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-98002-851-0 01 1 0911- ● ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=1 		5-87813-193-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87813-193-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=2 		5-87813-194-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87813-194-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=3 		5-87813-195-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87813-195-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
TURBOCHARGER<K51> GRADE=4 		5-87813-196-0 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87813-196-2 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=1 		5-87813-181-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-181-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=2 		5-87813-182-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-182-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=3 		5-87813-183-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-183-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
EXC. TURBOCHARGER<K51> 00.094 GRADE=4 		5-87813-184-1 04 1 0211-0501 ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-184-3 04 1 0502- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=1 		5-87813-209-0 04 1 0211-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=1 		5-87815-229-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=2 		5-87813-210-0 04 1 0211-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=2 		5-87815-230-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=3 		5-87813-211-0 04 1 0211-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=3 		5-87815-231-0 04 1 0706- ●
2 00.030 LINER SET; ENG CYL
00.094 GRADE=4 		5-87813-212-0 04 1 0211-0705 ●
2 00.030 LINER SET; ENG CYL
GRADE=4 		5-87815-232-0 04 1 0706- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-683-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-684-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-685-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-686-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-687-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-688-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-689-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0211-0501 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-690-0 04 1 0502- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX 		8-97176-699-0 04 1 0211- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX 		8-97176-700-0 04 1 0211- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX 		8-97176-701-0 04 1 0211- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX 		8-97176-702-0 04 1 0211- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX 		8-97176-703-0 04 1 0211- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX 		8-97176-704-0 04 1 0211- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX 		8-97176-705-0 04 1 0211- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX 		8-97176-706-0 04 1 0211- ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411-0501 ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0502- ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0211-0410 ● ●
7 00.034 PLUG; WATER DRAIN
PT1/4 		9-09664-001-0 01 1 0411- ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0411-0501 ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0502- ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0211-0410 ● ●
8 00.056 BOLT; BRG CAP
M14X89 FLANGE 		8-94432-642-0 10 1 0411- ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0411-0501 ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0502- ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0411-0501 ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0502- ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0211-0410 ● ●
21 00.034 CUP; SEALING,RR
(A) OD=38 		5-11219-017-0 01 1 0411- ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0211-0410 ● ●
21 00.034 CUP; SEALING,RR
(B) OD=36 		5-11219-018-0 01 1 0411- ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0411-0501 ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0502- ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0211-0410 ● ●
22 00.034 CUP; SEALING,DUCT HOLE
00.253 OD=12.3 		5-09600-013-0 01 1 0411- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0411-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 02 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0502- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
EXC. TURBOCHARGER<K51> (C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 03 1 0211-0501 ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(C) OD=36 		5-11219-018-0 02 1 0502- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0211-0410 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.253 (A) OD=18 		5-11219-008-0 03 1 0411- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0211-0410 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(D) OD=32 		5-11219-015-0 02 1 0411- ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0211-0410 ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0411- ●
25 00.539 METAL; CM/SHF
CENTER AND REAR 		8-97378-147-0 02 1 0411-0501 ●
25 00.539 METAL; CM/SHF
CENTER AND REAR 		8-97378-147-0 02 1 0502- ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0411-0501 ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0502- ● ●
25 00.539 METAL; CM/SHF
CENTER AND REAR 		8-94427-201-2 02 1 0211-0411 ● ●
25 00.539 METAL; CM/SHF
CENTER AND REAR 		8-97378-147-0 02 1 0412- ●
25 00.539 METAL; CM/SHF
FRONT 		8-94427-206-2 01 1 0211-0411 ● ●
25 00.539 METAL; CM/SHF
FRONT 		8-97378-148-0 01 1 0412- ●
60 01.531 BOLT; OIL JET
EXC. TURBOCHARGER<K51> 04.105 M16X12 		9-99202-316-0 01 1 0211-0501 ●
60 01.531 BOLT; OIL JET
04.105 M16X12 		9-99202-316-0 01 1 0502-0606 ●
60 01.531 BOLT; OIL JET
M16X12 		0-92002-416-0 01 1 0607- ●
62 00.034 CUP; SEALING,C/BL FRT
OD=14 		5-11219-011-0 01 1 0211- ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 0211-0501 ●
63 01.153 DUCT; WATER,C/BL 8-94419-436-2 01 1 0502- ● ●
63 01.153 DUCT; WATER,C/BL 8-94456-794-3 01 1 0211- ●

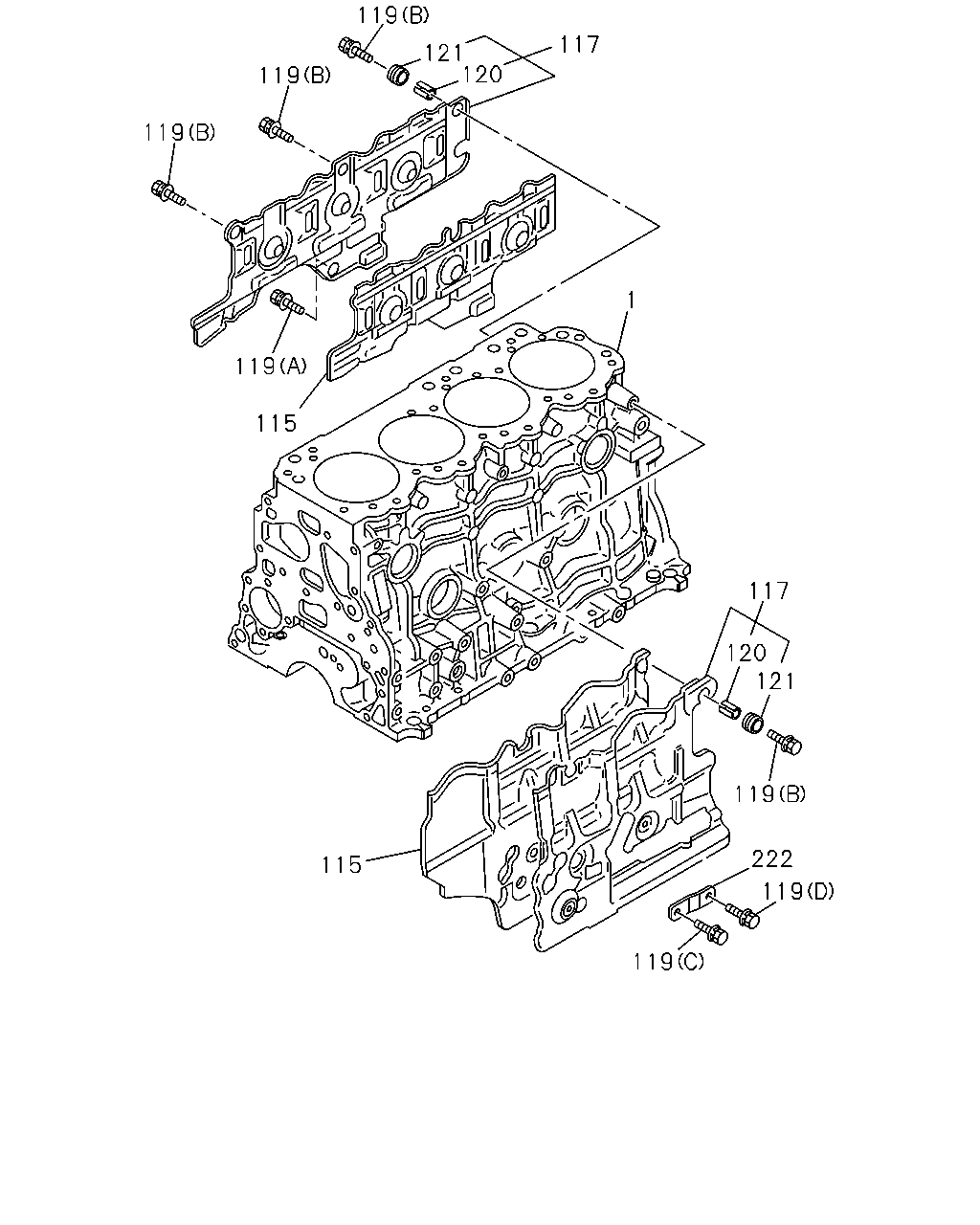

çizim 49903
119 117 121 120 119 119 1 119 115 117 120 121 119 222 115 119 119
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-98002-851-0 01 1 0911- ● ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211- ●
115 00.034 RUBBER; SPACE
TURBOCHARGER<K51> 		8-97204-194-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-194-0 01 1 0502-1304 ●
115 00.034 RUBBER; SPACE
TURBOCHARGER<K51> 		8-97204-193-0 01 1 0211-0501 ●
115 00.034 RUBBER; SPACE 8-97204-193-0 01 1 0502-1304 ●
115 00.034 RUBBER; SPACE
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97141-688-2 01 1 0211-0406 ●
115 00.034 RUBBER; SPACE
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97379-896-1 01 1 0407- ●
115 00.034 RUBBER; SPACE
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97264-913-2 01 1 0211- ●
117 00.030 COVER ASM; C/BL
TURBOCHARGER<K51> 		8-97020-126-0 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97020-126-0 01 1 0502-1304 ●
117 00.030 COVER ASM; C/BL
TURBOCHARGER<K51> 		8-97204-191-1 01 1 0211-0501 ●
117 00.030 COVER ASM; C/BL 8-97204-191-1 01 1 0502-1304 ●
117 00.030 COVER ASM; C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97141-686-1 01 1 0211-0405 ●
117 00.030 COVER ASM; C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97383-819-0 01 1 0406- ●
117 00.030 COVER ASM; C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97141-685-2 01 1 0211-0408 ●
117 00.030 COVER ASM; C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97388-300-0 01 1 0409- ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> 00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0502-0512 ●
119 00.034 BOLT; COVER FIX
00.206 (C) M8X10 FLANGE 		0-28080-810-0 01 1 0502-0512 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 03.407 (C) M8X10 FLANGE 		0-28050-810-0 01 1 0601-1304 ●
119 00.034 BOLT; COVER FIX
03.407 (C) M8X10 FLANGE 		0-28050-810-0 01 1 0601-1304 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 03.407 (C) M8X10 FLANGE 		0-28050-810-0 01 1 1305- ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> 11.377 (D) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 11.377 (D) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 11.377 (D) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0502-0512 ●
119 00.034 BOLT; COVER FIX
11.377 (D) M10X20 W/LK WASHER 		0-50041-020-0 01 1 0502-0512 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (D) M10X20 W/LK WASHER 		0-50541-020-0 01 1 0601-1304 ●
119 00.034 BOLT; COVER FIX
(D) M10X20 W/LK WASHER 		0-50541-020-0 01 1 0601-1304 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (D) M10X20 W/LK WASHER 		0-50541-020-0 01 1 1305- ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> (A) M10X28 		8-94329-952-1 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (A) M10X28 		8-94329-952-1 01 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (A) M10X28 		8-94329-952-1 01 1 0502-1304 ●
119 00.034 BOLT; COVER FIX
(A) M10X28 		8-94329-952-1 01 1 0502-1304 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (A) M10X28 		8-94329-952-1 01 1 1305- ●
119 00.034 BOLT; COVER FIX
TURBOCHARGER<K51> (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0211-0501 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0502-1304 ●
119 00.034 BOLT; COVER FIX
(B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 0502-1304 ●
119 00.034 BOLT; COVER FIX
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 05 1 1305- ●
120 00.034 BUSHING; MTG RUBBER
TURBOCHARGER<K51> OD=13 T=9.5 		8-94140-427-1 03 1 0211-0501 ●
120 00.034 BUSHING; MTG RUBBER
OD=13 T=9.5 		8-94140-427-1 03 1 0502-0502 ●
120 00.034 BUSHING; MTG RUBBER
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> OD=13 T=9.5 		8-94140-427-1 06 1 0503-1304 ●
120 00.034 BUSHING; MTG RUBBER
OD=13 T=9.5 		8-94140-427-1 06 1 0503-1304 ●
120 00.034 BUSHING; MTG RUBBER
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> OD=13 T=9.5 		8-94140-427-1 06 1 1305- ●
120 00.034 BUSHING; MTG RUBBER
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> OD=13 T=9.5 		8-94140-427-1 06 1 0211-0502 ●
121 00.034 RUBBER; MTG,COVER
TURBOCHARGER<K51> OD=22 		8-94140-428-1 03 1 0211-0501 ●
121 00.034 RUBBER; MTG,COVER
OD=22 		8-94140-428-1 03 1 0502-0502 ●
121 00.034 RUBBER; MTG,COVER
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> OD=22 		8-94140-428-1 06 1 0503-1304 ●
121 00.034 RUBBER; MTG,COVER
OD=22 		8-94140-428-1 06 1 0503-1304 ●
121 00.034 RUBBER; MTG,COVER
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> OD=22 		8-94140-428-1 06 1 1305- ●
121 00.034 RUBBER; MTG,COVER
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> OD=22 		8-94140-428-1 06 1 0211-0502 ●
222 00.340 BRACKET; COVER,C/BL
TURBOCHARGER<K51> 		8-94460-512-0 01 1 0211-0410 ●
222 00.340 BRACKET; COVER,C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94460-512-0 01 1 0211-0410 ●
222 00.340 BRACKET; COVER,C/BL
TURBOCHARGER<K51> 		8-97209-129-0 01 1 0411-0501 ●
222 00.340 BRACKET; COVER,C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97209-129-0 01 1 0411-0501 ●
222 00.340 BRACKET; COVER,C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97209-129-0 01 1 0502-1304 ●
222 00.340 BRACKET; COVER,C/BL 8-97209-129-0 01 1 0502-1304 ●
222 00.340 BRACKET; COVER,C/BL
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-97209-129-0 01 1 1305- ●

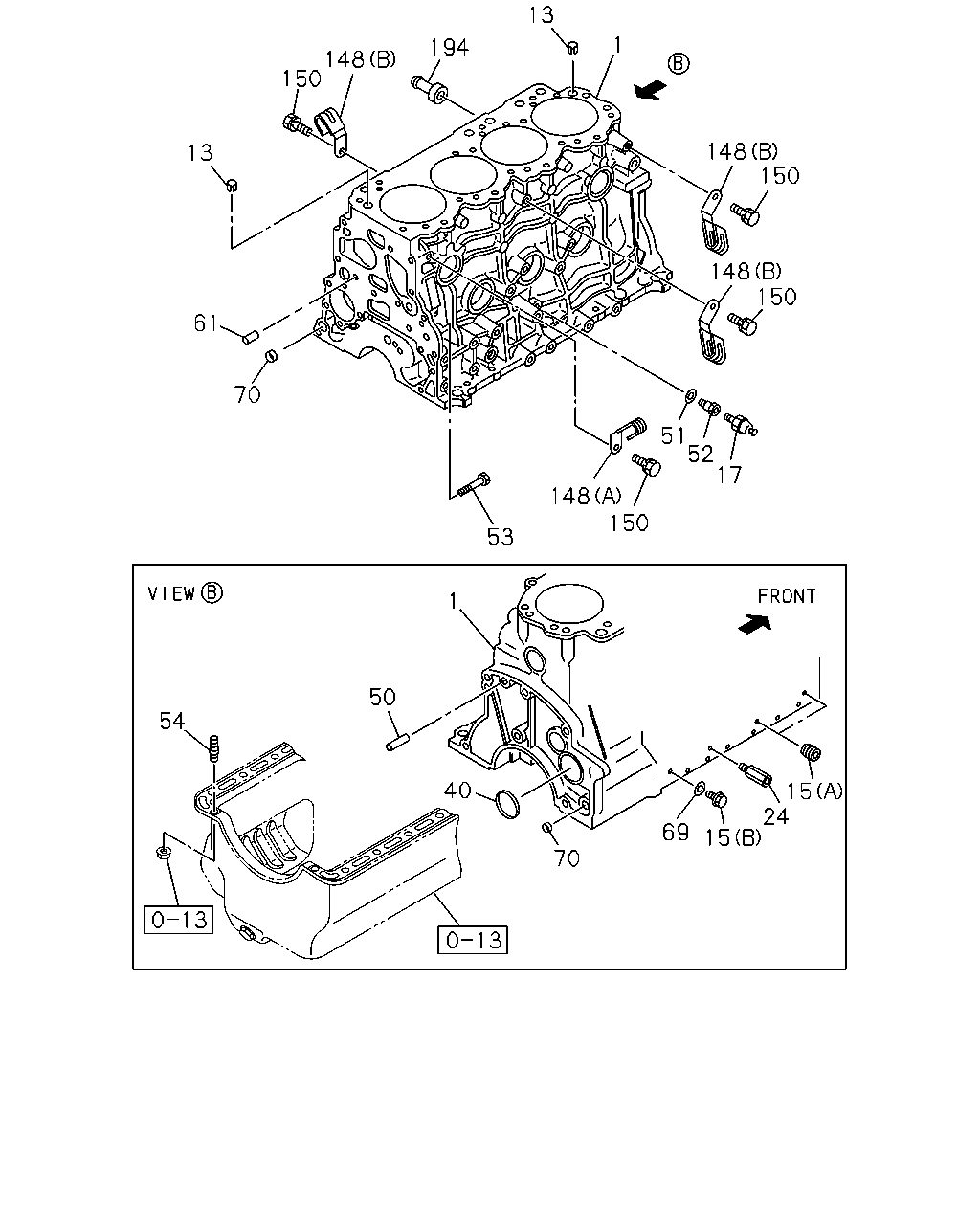

çizim 50441
13 1 194 148 150 148 150 13 148 150 61 70 51 52 17 148 150 53 1 50 54 40 15 24 15 69 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0211-0501 ●
1 00.033 BLOCK ASM; CYL 8-97352-707-2 01 1 0502- ● ●
1 00.033 BLOCK ASM; CYL 8-98002-851-0 01 1 0911- ● ●
1 00.033 BLOCK ASM; CYL 8-97314-579-2 01 1 0211- ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0211-0501 ● ●
13 00.293 DOWEL; C/BL TO HD
OD=14 		8-94453-344-0 02 1 0502- ● ● ●
15 01.531 PLUG; OIL GALLERY
EXC. TURBOCHARGER<K51> 03.001 (B) M14X14 		8-94152-613-0 01 1 0211-0501 ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 0211-0501 ●
15 01.531 PLUG; OIL GALLERY
03.001 (B) M14X14 		8-94152-613-0 01 1 0502- ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 0211-0501 ● ●
15 01.531 PLUG; OIL GALLERY
(A) PT1/8 		1-09605-050-0 02 1 0502- ● ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0211-0501 ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97072-947-0 01 1 0502- ● ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 0211-0501 ● ●
24 01.531 NIPPLE; OIL FEED,VAC PUMP 8-94443-670-1 01 1 0502- ● ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 0211-0501 ● ●
40 00.034 CUP; SEALING,C/BL RR
00.253 OD=56 		8-94250-514-1 01 1 0502- ● ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0211-0501 ● ●
50 00.685 PIN; STRAIGHT,RR PLATE
08.939 OD=10 L=32 		9-08161-032-0 01 1 0502- ● ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 0211-0501 ● ●
51 01.803 GASKET; OIL PRESS WARNING SW,C/B
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94336-292-0 01 1 0502- ● ● ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
TURBOCHARGER<K51> 		8-94167-750-2 01 1 0211-0501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94167-750-2 01 1 0211-0501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94167-750-2 01 1 0502-0709 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 0502-0709 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-98089-872-0 01 1 0710-1501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-98089-872-0 01 1 0710-1501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94167-750-2 01 1 1502- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-750-2 01 1 1502- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
EXC. TURBOCHARGER<K51> 		8-94167-749-2 01 1 0211-0501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94167-749-2 01 1 0211-0501 ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B 8-94167-749-2 01 1 0502- ●
52 01.803 NIPPLE; OIL PRESS WARNING SW,C/B
LOW EMISSION VEHICLE PACKAGE<7VP> 		8-94167-749-2 01 1 0502- ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0211-0501 ● ●
53 00.862 BOLT; REAMER
00.683 M10X52 		9-09806-020-0 01 1 0502- ● ● ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 0211-0501 ● ●
54 01.428 STUD; OIL PAN TO BLOCK 8-94133-974-2 10 1 0502- ● ● ●
61 00.206 PIN; STRAIGHT
TURBOCHARGER<K51> 04.510 OD=10 L=20 		8-97135-423-0 01 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0502- ● ●
61 00.206 PIN; STRAIGHT
EXC. TURBOCHARGER<K51> 04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 02 1 0211-0501 ●
61 00.206 PIN; STRAIGHT
04.510 OD=10 L=20 		8-97135-423-0 01 1 0502- ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211-0501 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0211-0501 ●
69 01.531 GASKET; PLUG,OIL GALLERY,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0502- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0211-0501 ● ●
70 00.034 CUP; SEALING,FRT & RR
00.253 OD=16 		5-11129-006-0 02 1 0502- ● ● ●
148 02.313 CLIP; HARNESS
03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 0908-1304 ● ●
148 02.313 CLIP; HARNESS
03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 02 1 1305- ●
148 02.313 CLIP; HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0211-0501 ● ●
148 02.313 CLIP; HARNESS
00.446 (B) ID=12 B=14 ID=8.5 		5-09700-350-0 03 1 0502-0801 ● ● ●
148 02.313 CLIP; HARNESS
03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802-0907 ● ● ●
148 02.313 CLIP; HARNESS
03.671 (B) ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0908- ●
148 02.313 CLIP; HARNESS
04.930 (A) L=91 ID=8.5 		8-94329-956-0 01 1 0211-0501 ● ●
148 02.313 CLIP; HARNESS
04.930 (A) L=91 ID=8.5 		8-94329-956-0 01 1 0502-1304 ● ● ●
148 02.313 CLIP; HARNESS
04.930 (A) L=91 ID=8.5 		8-94329-956-0 01 1 1305- ● ●
150 02.313 BOLT; CLIP
TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
150 02.313 BOLT; CLIP
HEATER & DEFROSTER(C41) EURO2 SPECIFICATION(NT2) POWER STEERING<N40> 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0211-0501 ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512 ●
150 02.313 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-1304 ●
150 02.313 BOLT; CLIP
EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0211-0501 ●
150 02.313 BOLT; CLIP
LOW EMISSION VEHICLE PACKAGE<7VP> 08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0211-0501 ●
150 02.313 BOLT; CLIP
08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0502-0512 ●
150 02.313 BOLT; CLIP
LOW EMISSION VEHICLE PACKAGE<7VP> 08.900 M8X12 FLANGE 		0-28080-812-0 03 1 0502-0512 ●
150 02.313 BOLT; CLIP
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
150 02.313 BOLT; CLIP
LOW EMISSION VEHICLE PACKAGE<7VP> 02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
194 00.439 PIPE; OIL DRAIN,C/BL
TURBOCHARGER<K51> 		8-97137-781-0 01 1 0211-0501 ●
194 00.439 PIPE; OIL DRAIN,C/BL 8-97137-781-0 01 1 0502- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
