◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50942 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#42417) — 82 parça

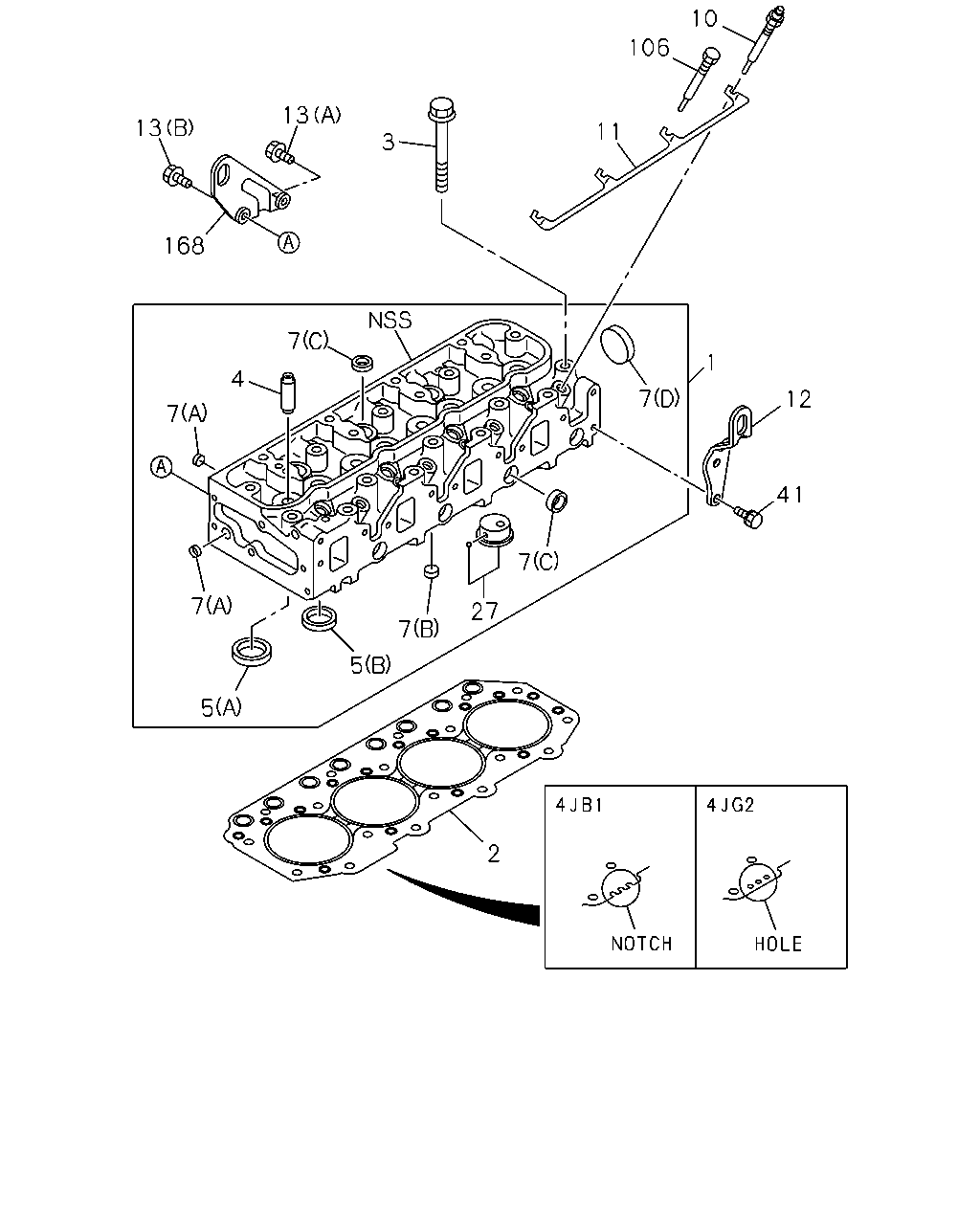

çizim 53830
10 106 13 13 11 3 168 7 1 4 12 7 7 41 7 7 27 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.269 HEAD ASM; CYL
CHINA CHONGQING EQUIPMENT<R5B> OIL COOLER<KC4> 		8-98007-665-0 01 1 0508- ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0211-0211 ●
1 00.269 HEAD ASM; CYL
EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0212-0307 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97120-178-3 01 1 0308-0501 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> 		8-97120-178-3 01 1 0502-0507 ●
1 00.269 HEAD ASM; CYL
OIL COOLER<KC4> EXC. CHINA CHONGQING EQUIPMENT<R5B> 		8-97120-178-4 01 1 0508- ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-3 01 1 0211-0211 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97109-642-3 01 1 0308-0501 ●
1 00.269 HEAD ASM; CYL
EXC. OIL COOLER<KC4> 		8-97109-642-4 01 1 0502- ●
1 00.269 HEAD ASM; CYL
TURBOCHARGER<K51> 		8-97204-376-5 01 1 0211-0501 ●
1 00.269 HEAD ASM; CYL 8-97204-376-6 01 1 0502- ●
1 00.269 HEAD ASM; CYL 8-97120-278-6 01 1 0211-0306 ●
1 00.269 HEAD ASM; CYL 8-97368-320-2 01 1 0307- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-94332-326-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-NOTCH 		8-97350-318-0 01 1 0502- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-94332-327-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-NOTCH 		8-97350-319-0 01 1 0502- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-94332-328-0 01 1 0211-0212 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0301-0501 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-NOTCH 		8-97350-320-0 01 1 0502- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 0211- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 0211- ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0211-0501 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0502- ● ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0211-0501 ● ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0502- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 0211-0501 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=41.2 		8-97231-228-0 04 1 0502- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0211-0501 ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0502- ● ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0211-0404 ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405- ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 07 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 01 1 0212-0307 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 07 1 0308-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
EXC. OIL COOLER<KC4> (B) OD=22 		8-97209-609-0 07 1 0502- ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0211-0211 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0212-0307 ● ●
7 00.253 CUP; SEALING,CYL HEAD
TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 06 1 0308-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) OD=22 		8-97209-609-0 06 1 0308-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0308-0501 ●
7 00.253 CUP; SEALING,CYL HEAD
OIL COOLER<KC4> (B) OD=22 		8-97209-609-0 06 1 0502- ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=22 		8-97209-609-0 06 1 0502- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0502- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=16 		5-11129-006-0 03 1 0502- ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0211-0501 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0502-0503 ● ● ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504- ● ● ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) BOSCH 		8-94133-759-8 04 1 0211-0501 ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S),GLOW SYSTEM DELETE<7RK> BOSCH 		8-94133-759-9 04 1 0502- ●
10 02.270 PLUG; GLOW
BOSCH 		8-94133-759-9 04 1 0502- ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S) NGK 		8-94175-158-1 04 1 0211-0501 ●
10 02.270 PLUG; GLOW
EXC. INDONESIA EQUIPMENT(S4S),GLOW SYSTEM DELETE<7RK> NGK 		8-94175-158-2 04 1 0502- ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-2 04 1 0502- ●
10 02.270 PLUG; GLOW
NGK 		8-97043-744-3 04 1 0211- ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. INDONESIA EQUIPMENT(S4S) 		8-97146-517-0 01 1 0211-0501 ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. INDONESIA EQUIPMENT(S4S),GLOW SYSTEM DELETE<7RK> 		8-97146-517-0 01 1 0502- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0502- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 0211- ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0211-0501 ● ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0502- ● ● ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0211-0501 ● ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0502-0512 ● ● ●
13 00.004 BOLT; HANGER
09.171 (B) M10X25 FLANGE 		0-28051-025-0 01 1 0601- ● ● ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0211-0501 ● ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0502-0512 ● ● ●
13 00.004 BOLT; HANGER
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601- ● ● ●
27 00.253 PLUG; HOT 8-97120-280-1 04 1 0211- ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0211-0410 ● ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0501 ● ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ● ● ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●
106 00.293 PLUG; GLOW PLUG HOLE
INDONESIA EQUIPMENT(S4S) EXC. HIGH ALTITUDE COMPENSATOR(EE2), TURBOCHARGER<K51>,TACHOMETER<U16> 		5-11119-007-1 04 1 0211-0303 ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 0211-0501 ● ●
168 00.004 HANGER; ENG,FRT 8-94379-714-1 01 1 0502- ● ● ●
