0-10 — CYLINDER HEAD COVER (#42416) — 53 parça

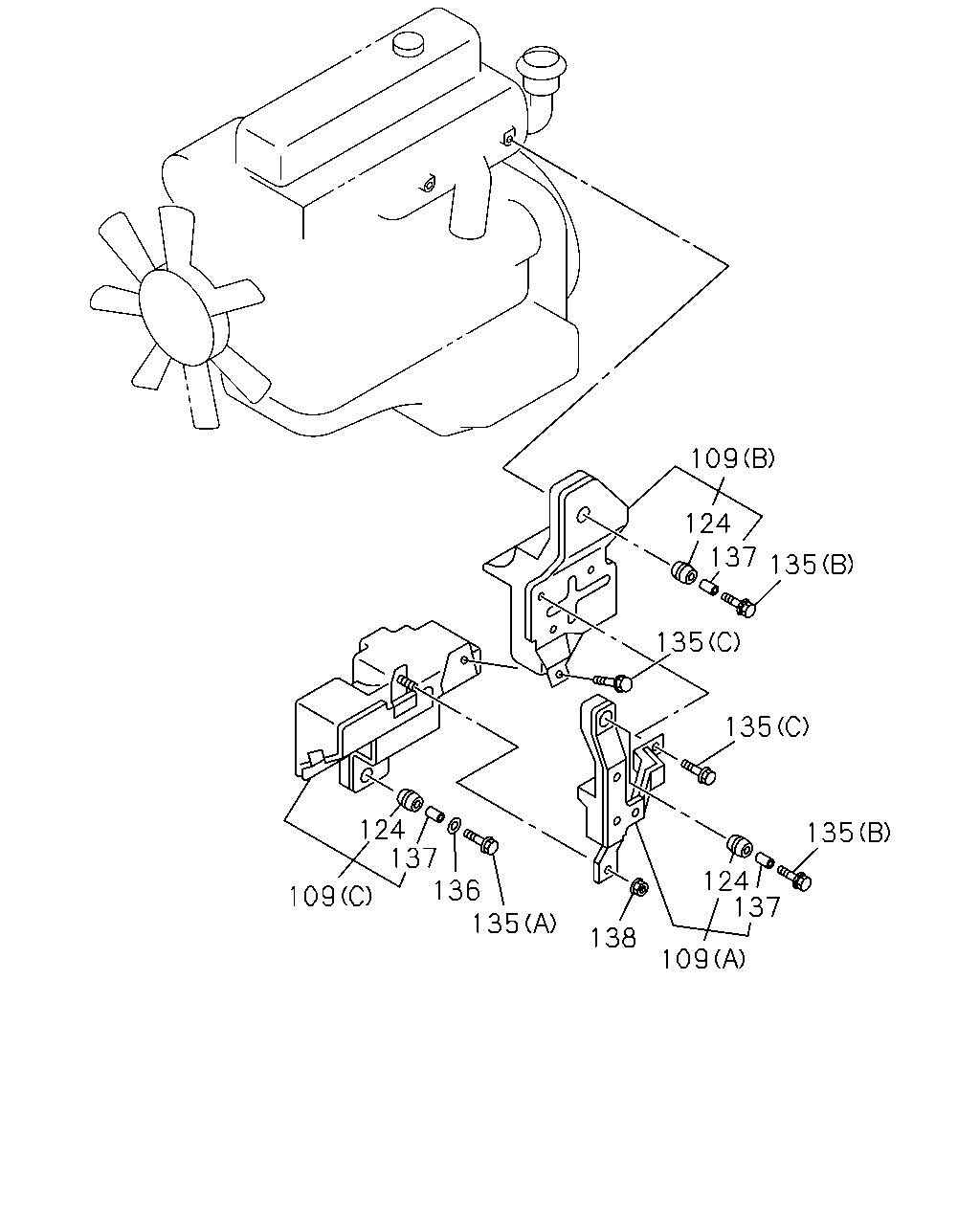

109 124 137 135 135 135 124 137 136 135 135 124 137 109 138 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
109	00.386 COVER; ENG TURBOCHARGER<K51> (A)	8-97223-628-2	01	1	0211-0501	●
109	00.386 COVER; ENG (A)	8-97223-628-2	01	1	0502-1201		●
109	00.386 COVER; ENG INDONESIA EQUIPMENT(S4S) (A)	8-97223-628-2	01	1	1202-		●
109	00.386 COVER; ENG TURBOCHARGER<K51> (B)	8-97223-629-1	01	1	0211-0501	●
109	00.386 COVER; ENG (B)	8-97223-629-1	01	1	0502-1201		●
109	00.386 COVER; ENG INDONESIA EQUIPMENT(S4S) (B)	8-97223-629-1	01	1	1202-		●
109	00.386 COVER; ENG TURBOCHARGER<K51> (C)	8-97223-630-1	01	1	0211-0501	●
109	00.386 COVER; ENG (C)	8-97223-630-1	01	1	0502-1201		●
109	00.386 COVER; ENG INDONESIA EQUIPMENT(S4S) (C)	8-97223-630-1	01	1	1202-		●
124	00.413 RUBBER; MTG,COVER TURBOCHARGER<K51> OD=21.8	8-97325-051-0	03	1	0211-0501	●
124	00.413 RUBBER; MTG,COVER OD=21.8	8-97325-051-0	03	1	0502-1201		●
124	00.413 RUBBER; MTG,COVER INDONESIA EQUIPMENT(S4S) OD=21.8	8-97325-051-0	03	1	1202-		●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0211-0501	●
135	00.413 BOLT; COVER,ENG 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0502-0512		●
135	00.413 BOLT; COVER,ENG 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	0601-1201		●
135	00.413 BOLT; COVER,ENG INDONESIA EQUIPMENT(S4S) 03.407 (C) M8X10 FLANGE	0-28050-810-0	02	1	1202-		●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	0211-0501	●
135	00.413 BOLT; COVER,ENG 09.008 (A) M10X20 FLANGE	0-28081-020-0	01	1	0502-0512		●
135	00.413 BOLT; COVER,ENG 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	0601-1201		●
135	00.413 BOLT; COVER,ENG INDONESIA EQUIPMENT(S4S) 00.029 (A) M10X20 FLANGE	0-28051-020-0	01	1	1202-		●
135	00.413 BOLT; COVER,ENG TURBOCHARGER<K51> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0211-0501	●
135	00.413 BOLT; COVER,ENG 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	0502-1201		●
135	00.413 BOLT; COVER,ENG INDONESIA EQUIPMENT(S4S) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	1202-		●
136	00.413 WASHER; PL,ENG COVER TURBOCHARGER<K51> 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0211-0501	●
136	00.413 WASHER; PL,ENG COVER 04.085 ID=10.5 OD=22	9-09164-610-0	01	1	0502-0605		●
136	00.413 WASHER; PL,ENG COVER 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0606-1201		●
136	00.413 WASHER; PL,ENG COVER INDONESIA EQUIPMENT(S4S) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1202-		●
137	00.413 BUSHING; MTG RUBBER,COVER TURBOCHARGER<K51> 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0211-0501	●
137	00.413 BUSHING; MTG RUBBER,COVER 00.034 OD=13 T=9.5	8-94140-427-1	03	1	0502-1201		●
137	00.413 BUSHING; MTG RUBBER,COVER INDONESIA EQUIPMENT(S4S) 00.034 OD=13 T=9.5	8-94140-427-1	03	1	1202-		●
138	00.413 NUT; COVER,ENG TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501	●
138	00.413 NUT; COVER,ENG 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
138	00.413 NUT; COVER,ENG 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-1201		●
138	00.413 NUT; COVER,ENG INDONESIA EQUIPMENT(S4S) 01.062 M8 FLANGE	0-91180-108-0	01	1	1202-		●

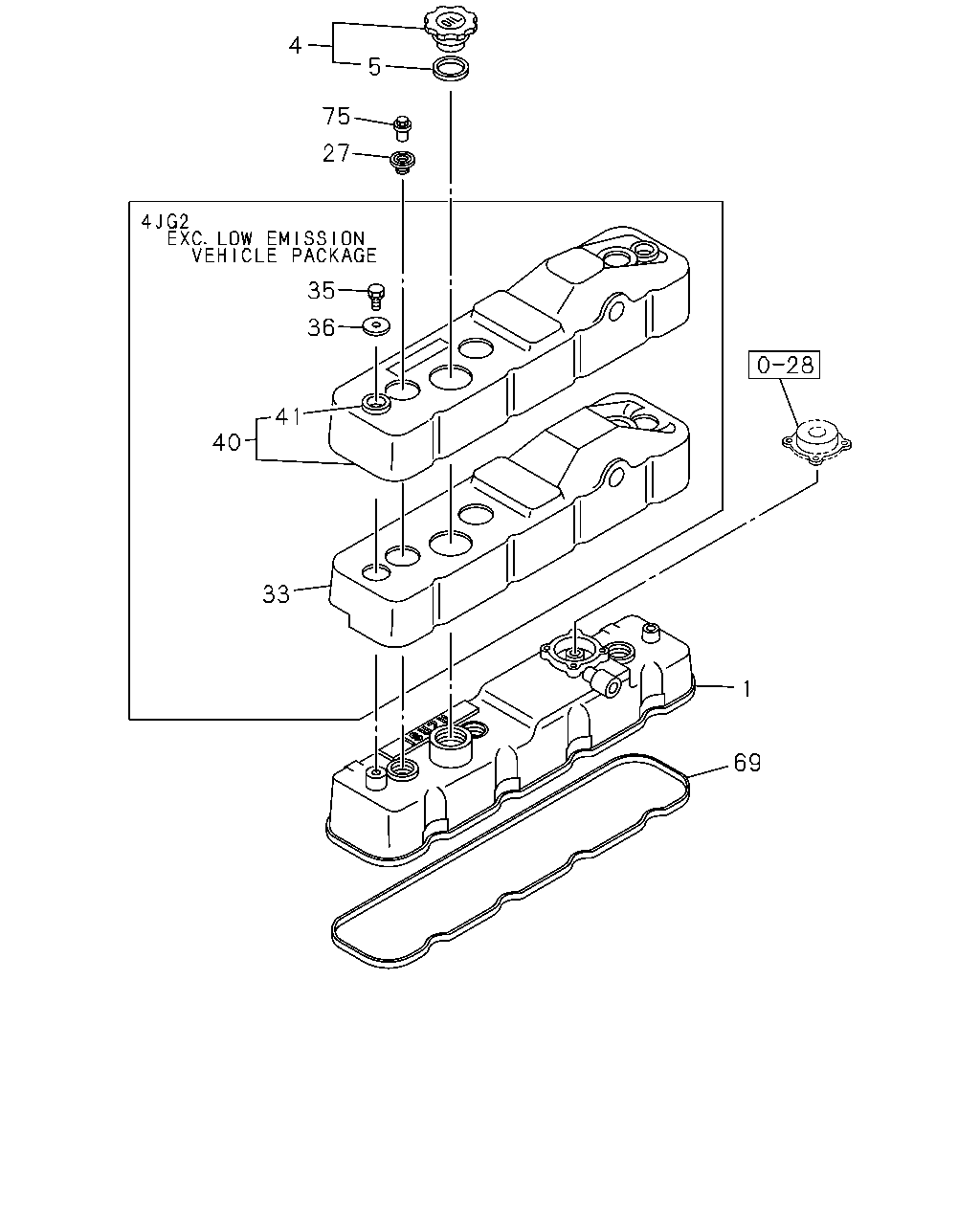

4 5 75 27 35 36 41 40 33 1 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0211-0501	●		●
1	00.386 COVER; CYL HD	8-94476-696-1	01	1	0502-	●	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0211-0501	●		●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0502-	●	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	02	1	0211-0501	●		●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0502-	●	●	●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0211-0501	●		●
27	00.423 GASKET; HD COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=19.5	8-97263-801-1	03	1	0502-	●	●	●
33	00.386 RUBBER; SPACE,CYL HD COVER EXC. LOW EMISSION VEHICLE PACKAGE<7VP>	8-97147-921-0	01	1	0211-			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0211-0512			●
35	00.293 BOLT; NOISE SHIELD COVER EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
36	00.413 WASHER; PL,NOISE SHIELD COVER EXC. LOW EMISSION VEHICLE PACKAGE<7VP> 03.690 ID=8.5 OD=30 T=2.6	9-09651-112-0	02	1	0211-			●
40	00.386 COVER EXC. LOW EMISSION VEHICLE PACKAGE<7VP>	8-94133-732-2	01	1	0211-			●
41	00.413 GROMMET; HD COVER,OUTER EXC. LOW EMISSION VEHICLE PACKAGE<7VP>	8-94256-959-0	02	1	0211-			●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97161-131-0	01	1	0211-0301	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-0	01	1	0302-0501	●		●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97349-416-1	01	1	0502-	●	●	●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0211-0501	●		●
75	00.413 NUT; CAP,HD COVER M8 OD=19	8-94158-108-0	03	1	0502-	●	●	●
