9-33 — REAR BODY; GATE AND SIDE GUARD (#42413) — 321 parça

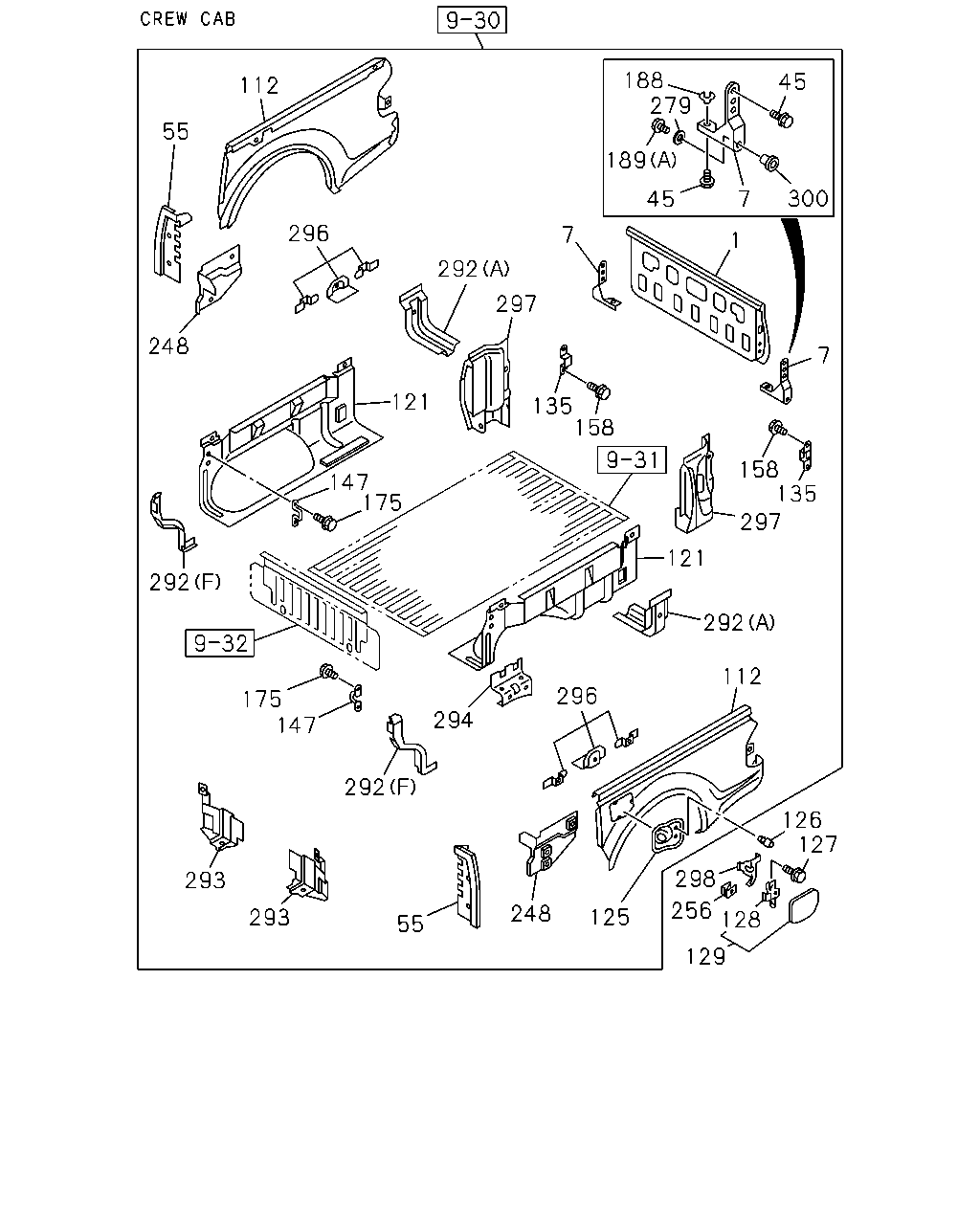

çizim 11495
188 279 45 112 55 189 300 45 7 296 7 1 292 297 248 7 121 135 158 158 135 147 175 297 121 292 292 112 296 175 147 294 292 126 127 298 293 256 248 125 293 128 55 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97331-429-1 01 1 0211- ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-656-4 01 1 0211- ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97360-600-0 01 1 0211- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97360-600-0 01 1 0211- ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97360-602-0 01 1 0211- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97360-602-0 01 1 0211- ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 M8X16.5 		1-09104-027-1 06 1 0211- ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.269 M8X16.5 		1-09104-027-1 06 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-629-6 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-320-6 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-628-5 01 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-319-5 01 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93293-139-2 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93293-138-2 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-541-0 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-542-0 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-532-0 01 1 0211-0211 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97360-570-0 01 1 0212- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-531-0 01 1 0211-0211 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97360-569-0 01 1 0212- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) WO/HOLE 		8-97236-617-6 01 1 0211- ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) WO/HOLE 		8-97236-313-6 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-844-8 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-843-9 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-635-4 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-324-4 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93290-853-3 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93290-854-3 01 1 0211- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93367-328-3 01 1 0211- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-755-2 02 1 0211-0305 ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-755-2 02 1 0211-0305 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. BODY SIDE MOLDING(B84) 		8-97236-755-2 01 1 0212-0305 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-755-2 01 1 0306- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-755-2 01 1 0306- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97166-112-0 02 1 0211- ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97166-112-0 02 1 0211- ●
127 17.507 BOLT; FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) 08.155 M6X16 		8-94479-534-0 02 1 0211- ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97250-209-5 01 1 0211- ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97250-209-5 01 1 0211- ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93358-263-3 01 1 0211- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-860-5 01 1 0211- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97234-860-5 01 1 0211- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93297-269-2 01 1 0211- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-401-4 01 1 0211- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-400-4 01 1 0211- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97249-565-3 01 1 0211- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97249-564-3 01 1 0211- ●
147 17.505 HOOK ASM; ROPE,FRT
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97264-487-0 04 1 0211- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 M8X22 		8-94388-328-1 04 1 0211- ●
175 17.505 BOLT; SET,RR GATE HOOK
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 M8X16.5 		1-09104-027-1 08 1 0211- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97329-277-1 AR 1 0211- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97329-277-1 AR 1 0211- ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 (B) M8X22 		8-94388-328-1 02 1 0211-0301 ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-582-3 01 1 0211- ● ●
248 17.442 PATCH; CARGO RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-584-3 01 1 0211- ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97251-180-1 01 1 0211- ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97251-180-1 01 1 0211- ●
279 17.505 SPACER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97357-403-0 02 1 0211- ● ● ● ●
279 17.505 SPACER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97357-403-0 02 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97236-383-5 02 1 0211- ● ● ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97236-371-8 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97236-368-8 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (C) 		8-97236-680-4 02 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (D) 		8-97236-370-5 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (E) 		8-97236-382-3 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (D) 		8-97236-367-5 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (E) 		8-97308-978-2 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (F) 		8-93291-076-3 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (F) 		8-93291-077-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-593-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-594-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97260-383-2 01 1 0211- ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-440-0 01 1 0211-0211 ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-439-0 01 1 0211-0211 ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97251-646-2 01 1 0211- ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97260-383-2 01 1 0211- ●
294 17.445 PANEL; OUTER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-420-3 01 1 0211- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-420-3 01 1 0211- ●
296 17.442 BRACKET; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97305-529-1 02 1 0211- ● ● ● ●
296 17.442 BRACKET; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97305-529-1 02 1 0211- ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-478-3 01 1 0211- ● ● ● ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-476-3 01 1 0211- ● ● ● ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-477-2 01 1 0211- ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-475-2 01 1 0211- ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97250-212-3 01 1 0211- ● ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97250-212-3 01 1 0211- ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93358-261-1 01 1 0211- ● ●
300 17.204 COLLAR; GATE HINGE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97324-512-3 02 1 0211- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97324-512-3 02 1 0211- ●

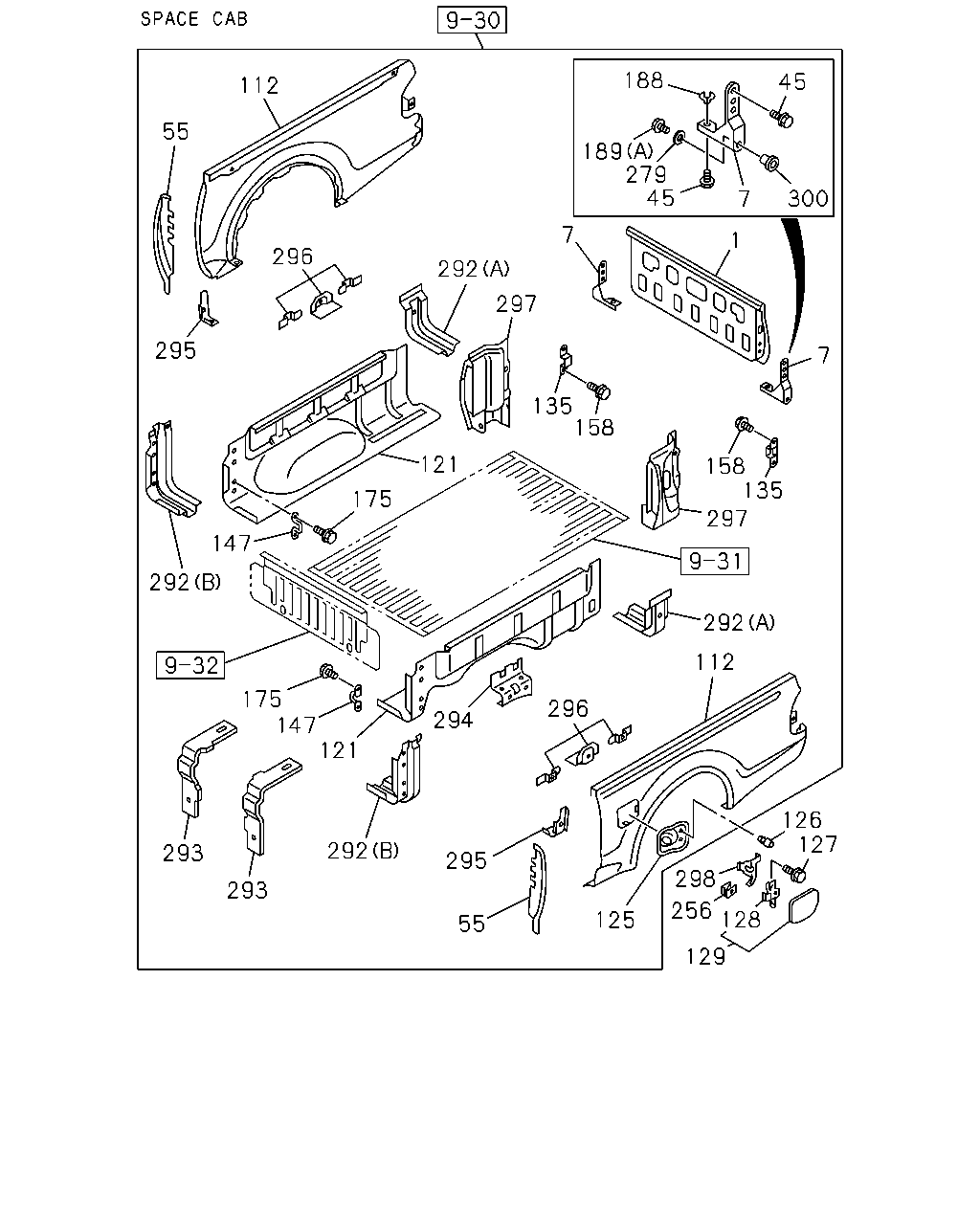

çizim 12198
188 45 112 55 189 279 45 300 7 7 1 296 292 297 295 7 135 158 121 158 135 297 175 147 292 292 112 175 147 121 294 296 126 127 292 293 295 298 293 256 128 125 55 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97331-429-1 01 1 0211- ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-656-4 01 1 0211- ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97360-600-0 01 1 0211- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97360-600-0 01 1 0211- ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97360-602-0 01 1 0211- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97360-602-0 01 1 0211- ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 M8X16.5 		1-09104-027-1 06 1 0211- ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.269 M8X16.5 		1-09104-027-1 06 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-629-6 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-320-6 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-628-5 01 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-319-5 01 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93293-139-2 01 1 0211- ● ●

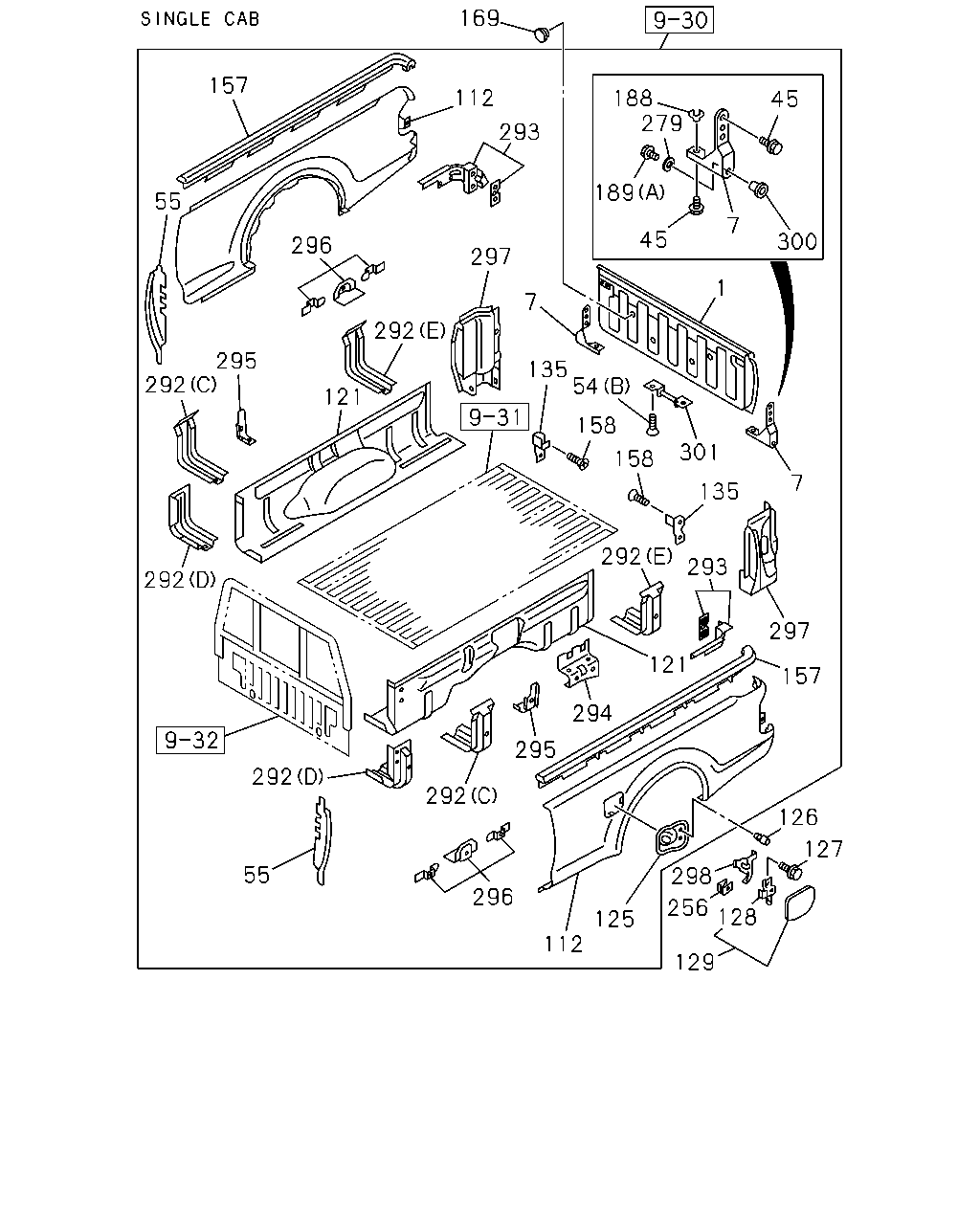

55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93293-138-2 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-541-0 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-542-0 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-532-0 01 1 0211-0211 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97360-570-0 01 1 0212- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-531-0 01 1 0211-0211 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97360-569-0 01 1 0212- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) WO/HOLE 		8-97236-617-6 01 1 0211- ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) WO/HOLE 		8-97236-313-6 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-844-8 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-843-9 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-635-4 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-324-4 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93290-853-3 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93290-854-3 01 1 0211- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93367-328-3 01 1 0211- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-755-2 02 1 0211-0305 ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-755-2 02 1 0211-0305 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. BODY SIDE MOLDING(B84) 		8-97236-755-2 01 1 0212-0305 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-755-2 01 1 0306- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-755-2 01 1 0306- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97166-112-0 02 1 0211- ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97166-112-0 02 1 0211- ●
127 17.507 BOLT; FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) 08.155 M6X16 		8-94479-534-0 02 1 0211- ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97250-209-5 01 1 0211- ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97250-209-5 01 1 0211- ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93358-263-3 01 1 0211- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-860-5 01 1 0211- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97234-860-5 01 1 0211- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93297-269-2 01 1 0211- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-401-4 01 1 0211- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-400-4 01 1 0211- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97249-565-3 01 1 0211- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97249-564-3 01 1 0211- ●
147 17.505 HOOK ASM; ROPE,FRT
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97264-487-0 04 1 0211- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 M8X22 		8-94388-328-1 04 1 0211- ●
175 17.505 BOLT; SET,RR GATE HOOK
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 M8X16.5 		1-09104-027-1 08 1 0211- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97329-277-1 AR 1 0211- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97329-277-1 AR 1 0211- ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 (B) M8X22 		8-94388-328-1 02 1 0211-0301 ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97251-180-1 01 1 0211- ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97251-180-1 01 1 0211- ●
279 17.505 SPACER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97357-403-0 02 1 0211- ● ● ● ●
279 17.505 SPACER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97357-403-0 02 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97236-383-5 02 1 0211- ● ● ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97236-371-8 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97236-368-8 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (C) 		8-97236-680-4 02 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (D) 		8-97236-370-5 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (E) 		8-97236-382-3 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (D) 		8-97236-367-5 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (E) 		8-97308-978-2 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (F) 		8-93291-076-3 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (F) 		8-93291-077-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-593-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-594-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97260-383-2 01 1 0211- ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-440-0 01 1 0211-0211 ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-439-0 01 1 0211-0211 ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97251-646-2 01 1 0211- ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97260-383-2 01 1 0211- ●
294 17.445 PANEL; OUTER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-420-3 01 1 0211- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-420-3 01 1 0211- ●
295 17.505 BRACKET; FILLER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-732-3 02 1 0211- ● ●
295 17.505 BRACKET; FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-732-3 02 1 0211- ●
296 17.442 BRACKET; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97305-529-1 02 1 0211- ● ● ● ●
296 17.442 BRACKET; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97305-529-1 02 1 0211- ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-478-3 01 1 0211- ● ● ● ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-476-3 01 1 0211- ● ● ● ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-477-2 01 1 0211- ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-475-2 01 1 0211- ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97250-212-3 01 1 0211- ● ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97250-212-3 01 1 0211- ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93358-261-1 01 1 0211- ● ●
300 17.204 COLLAR; GATE HINGE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97324-512-3 02 1 0211- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97324-512-3 02 1 0211- ●

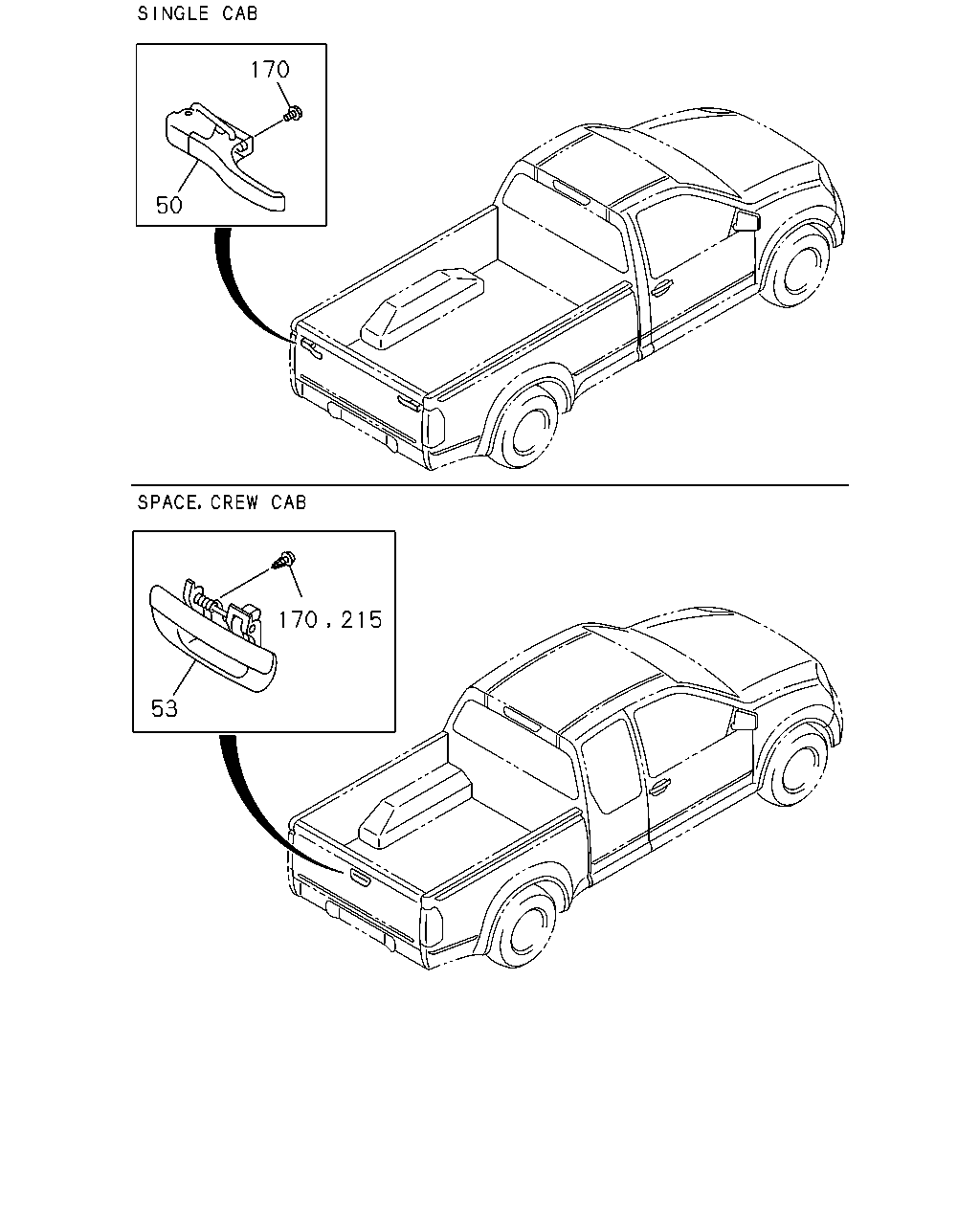

çizim 12199
170 50 170 53 215
BalonParca AdiParca NoAdetTipApplied Date A B C D E
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97309-012-3 02 1 0211- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> 		8-97235-385-2 01 1 0211- ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> EXC. OUTSIDE HANDLE BRIGHT<7WM>, LOCK END GATE<8CW> 		8-97235-385-2 01 1 0211- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> LOCK END GATE<8CW> 		8-97307-400-2 01 1 0211- ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
TAIL GATE CENTER PULL TYPE PLAIN<S1P> OUTSIDE HANDLE BRIGHT<7WM> EXC. LOCK END GATE<8CW> 		8-97235-386-3 01 1 0211- ● ● ●
170 17.635 BOLT; TAIL GATE LOCK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 0211- ●
170 17.635 BOLT; TAIL GATE LOCK
TAIL GATE CENTER PULL TYPE PLAIN<S1P> LOCK END GATE<8CW> 02.500 M6X16 FLANGE 		8-97255-751-0 01 1 0211- ● ● ●
215 17.455 BOLT; HANDLE TO GUARD FRAME
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) M6X14 FLANGE 		8-97247-698-0 02 1 0211- ● ● ● ●

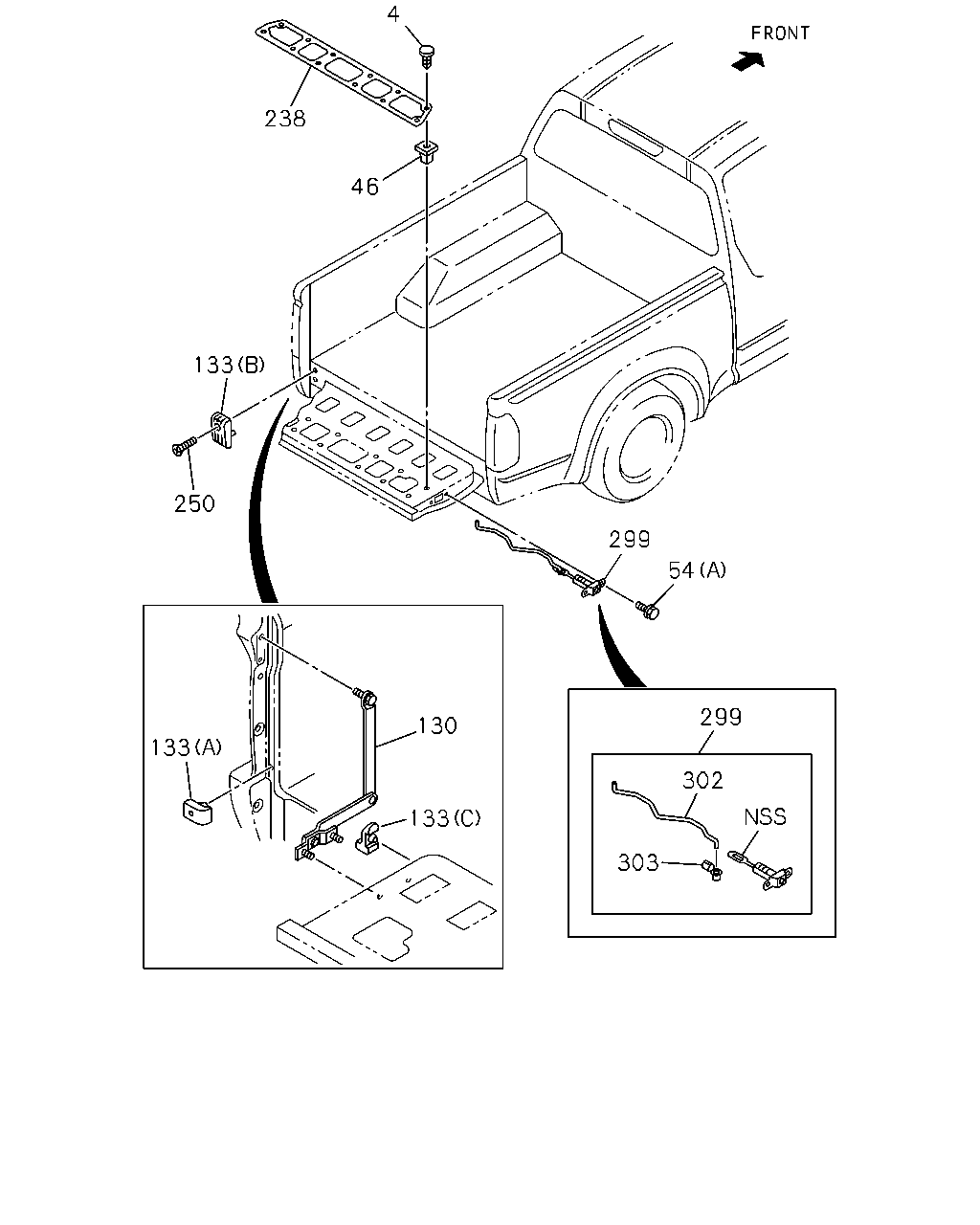

çizim 48421
4 238 46 133 250 299 54 299 130 133 302 133 303
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 17.185 SCREW; PANEL,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) M4X10 		8-97043-528-0 12 1 0211- ● ● ● ●
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.708 M4 		5-09470-002-0 12 1 0211- ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) M8X20 		8-94446-355-1 04 1 0211- ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 (B) M8X22 		8-94388-328-1 02 1 0211- ●
130 17.225 LINK ASM; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) 		8-97234-905-4 02 1 0211- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) (C) 		8-97302-184-1 02 1 0211- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) (A) 		8-97302-185-2 02 1 0211- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. REAR STEP BUMPER CHROME(VB3) (B) 		8-97234-914-2 02 1 0211- ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97234-914-2 02 1 0211- ●
238 17.185 COVER; RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-909-1 01 1 0211- ● ● ● ●
250 17.505 BOLT; STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 M8X22 		8-94388-328-1 02 1 0302- ●
250 17.505 BOLT; STOPPER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. REAR STEP BUMPER CHROME(VB3) 08.077 M6X18 		8-97071-681-0 02 1 0211- ● ● ● ●
250 17.505 BOLT; STOPPER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.077 M6X18 		8-97071-681-0 02 1 0211- ●
299 17.204 LATCH; END GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-914-3 01 1 0211- ● ● ● ●
299 17.204 LATCH; END GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-913-3 01 1 0211- ● ● ● ●
302 17.204 LINK; LATCH,END GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-999-0 01 1 0211- ● ● ● ●
302 17.204 LINK; LATCH,END GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-998-0 01 1 0211- ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97350-001-0 01 1 0211- ● ● ● ●
303 17.204 SNAP; LATCH,END GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97350-000-0 01 1 0211- ● ● ● ●

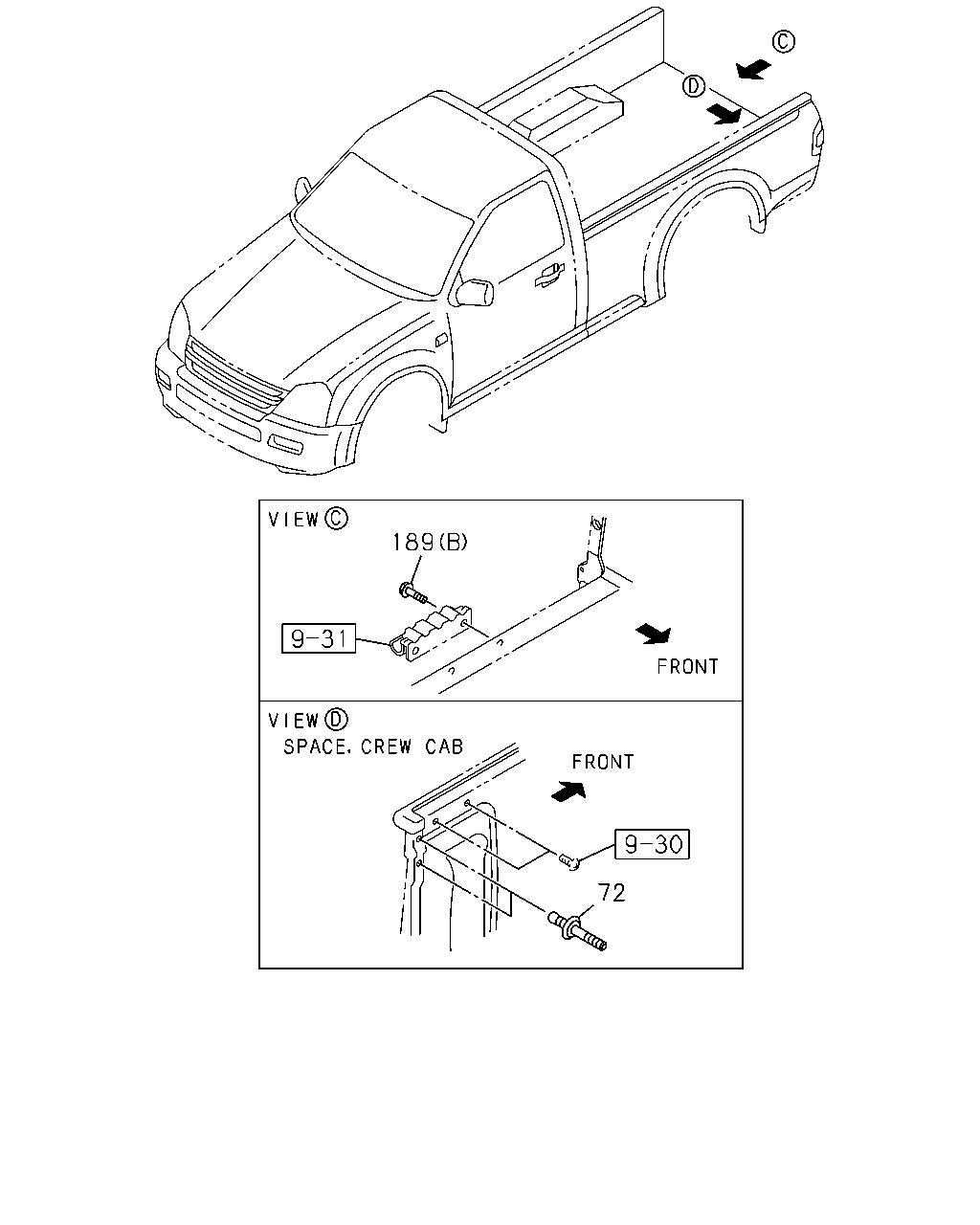

çizim 50475
189 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E
72 17.490 PIN; HINGE,CENTER POST
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97319-308-0 04 1 0211- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 (B) M8X22 		8-94388-328-1 02 1 0211-0301 ●

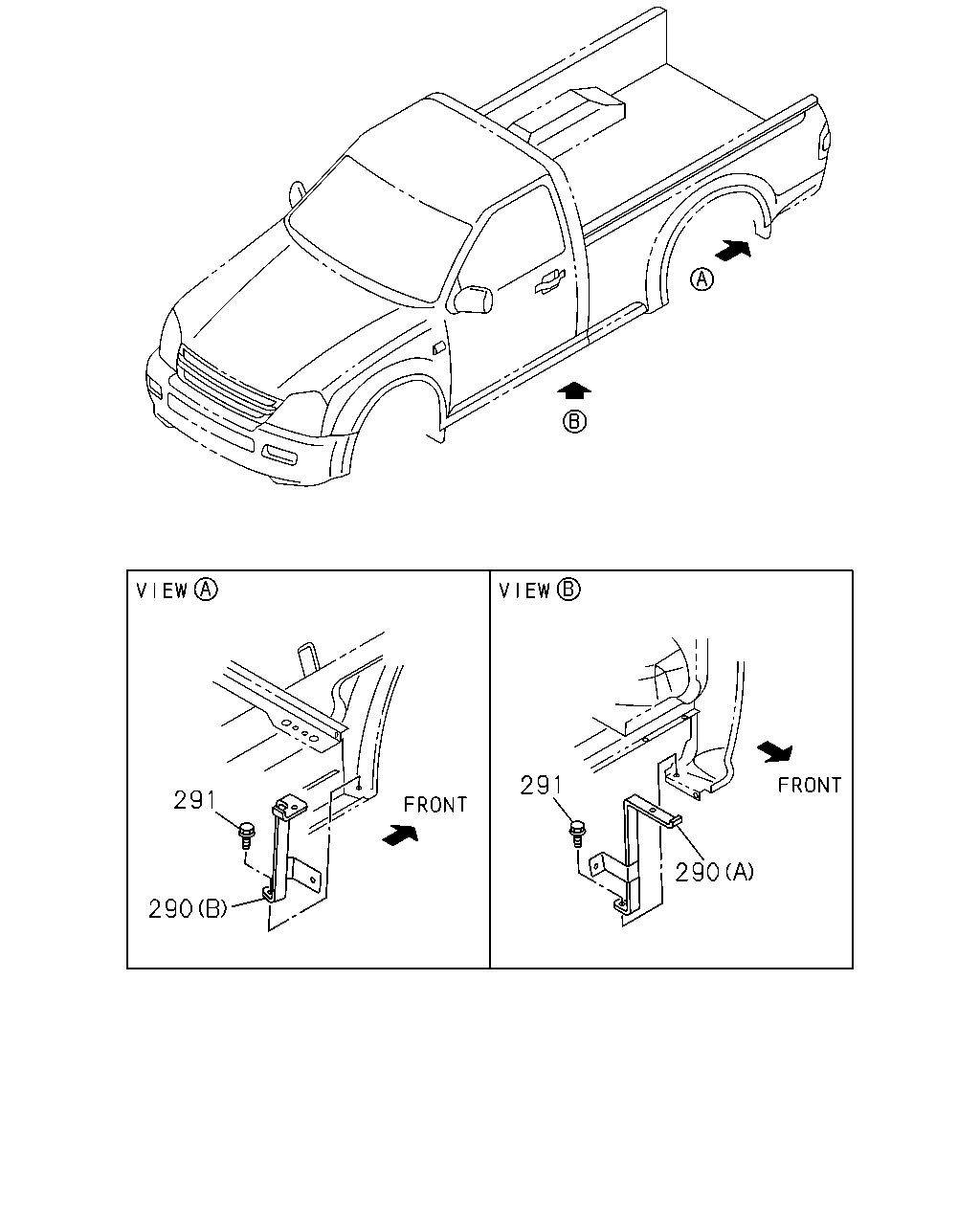

çizim 50544
291 291 290 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E
290 17.400 BRACE; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) (B) 		8-97357-449-0 01 1 0211- ● ● ● ● ●
290 17.400 BRACE; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) (B) 		8-97357-450-0 01 1 0211- ● ● ● ● ●
290 17.400 BRACE; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97357-445-0 01 1 0211- ● ●
290 17.400 BRACE; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97357-445-0 01 1 0211- ●
290 17.400 BRACE; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97357-446-0 01 1 0211- ● ●
290 17.400 BRACE; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97357-446-0 01 1 0211- ●
291 17.400 BOLT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211- ● ● ● ●
291 17.400 BOLT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211- ● ●
291 17.400 BOLT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211- ●
291 17.400 BOLT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211- ●
çizim 50545
169 157 112 188 279 45 293 55 189 7 45 300 296 297 1 7 292 295 292 135 54 121 158 301 158 7 135 292 293 292 297 121 157 294 295 292 292 126 127 55 298 296 256 128 125 112 129
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97331-429-1 01 1 0211- ● ● ● ●
1 17.185 GATE ASM; RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-656-4 01 1 0211- ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97360-600-0 01 1 0211- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97360-600-0 01 1 0211- ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97360-602-0 01 1 0211- ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97360-602-0 01 1 0211- ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 M8X16.5 		1-09104-027-1 06 1 0211- ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.269 M8X16.5 		1-09104-027-1 06 1 0211- ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) M8X20 		8-94446-355-1 04 1 0211- ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 (B) M8X22 		8-94388-328-1 02 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-629-6 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-320-6 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-628-5 01 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-319-5 01 1 0211- ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93293-139-2 01 1 0211- ● ●
55 17.505 PANEL; RR CORNER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93293-138-2 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-541-0 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-542-0 01 1 0211- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-532-0 01 1 0211-0211 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97360-570-0 01 1 0212- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97356-531-0 01 1 0211-0211 ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) WO/HOLE 		8-97360-569-0 01 1 0212- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) WO/HOLE 		8-97236-617-6 01 1 0211- ●
112 17.455 PANEL; SIDE GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) WO/HOLE 		8-97236-313-6 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-844-8 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-843-9 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-635-4 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-324-4 01 1 0211- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93290-853-3 01 1 0211- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93290-854-3 01 1 0211- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93367-328-3 01 1 0211- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-755-2 02 1 0211-0305 ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-755-2 02 1 0211-0305 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. BODY SIDE MOLDING(B84) 		8-97236-755-2 01 1 0212-0305 ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-755-2 01 1 0306- ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-755-2 01 1 0306- ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97166-112-0 02 1 0211- ● ● ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97166-112-0 02 1 0211- ●
127 17.507 BOLT; FUEL FILLER LID
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) 08.155 M6X16 		8-94479-534-0 02 1 0211- ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97250-209-5 01 1 0211- ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97250-209-5 01 1 0211- ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93358-263-3 01 1 0211- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97234-860-5 01 1 0211- ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97234-860-5 01 1 0211- ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93297-269-2 01 1 0211- ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-401-4 01 1 0211- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97235-400-4 01 1 0211- ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97249-565-3 01 1 0211- ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97249-564-3 01 1 0211- ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-440-2 01 1 0211- ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-438-2 01 1 0211- ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.664 M8X20 FLANGE 		0-28680-820-0 04 1 0211- ● ● ● ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 M8X22 		8-94388-328-1 04 1 0211- ●
169 17.185 GROMMET; TAIL GATE INNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97166-110-0 04 1 0211- ●
188 17.208 PLATE; HINGE UPR,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97329-277-1 AR 1 0211- ● ● ● ●
188 17.208 PLATE; HINGE UPR,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97329-277-1 AR 1 0211- ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ● ● ● ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.840 (A) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0211- ●
189 17.208 BOLT; HINGE,RR GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 04.104 (B) M8X22 		8-94388-328-1 02 1 0211-0301 ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97251-180-1 01 1 0211- ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97251-180-1 01 1 0211- ●
279 17.505 SPACER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97357-403-0 02 1 0211- ● ● ● ●
279 17.505 SPACER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97357-403-0 02 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97236-383-5 02 1 0211- ● ● ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97236-371-8 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97236-368-8 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (C) 		8-97236-680-4 02 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (D) 		8-97236-370-5 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (E) 		8-97236-382-3 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (D) 		8-97236-367-5 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (E) 		8-97308-978-2 01 1 0211- ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (F) 		8-93291-076-3 01 1 0211- ● ●
292 17.442 EXTENSION; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (F) 		8-93291-077-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-593-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93332-594-3 01 1 0211- ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97260-383-2 01 1 0211- ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-440-0 01 1 0211-0211 ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-439-0 01 1 0211-0211 ● ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97251-646-2 01 1 0211- ●
293 17.442 REINFORCEMENT; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97260-383-2 01 1 0211- ●
294 17.445 PANEL; OUTER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-420-3 01 1 0211- ● ● ● ●
294 17.445 PANEL; OUTER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-420-3 01 1 0211- ●
295 17.505 BRACKET; FILLER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-732-3 02 1 0211- ● ●
295 17.505 BRACKET; FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-732-3 02 1 0211- ●
296 17.442 BRACKET; RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97305-529-1 02 1 0211- ● ● ● ●
296 17.442 BRACKET; RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97305-529-1 02 1 0211- ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-478-3 01 1 0211- ● ● ● ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97236-476-3 01 1 0211- ● ● ● ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-477-2 01 1 0211- ●
297 17.445 PANEL; CORNER,RR BODY
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97236-475-2 01 1 0211- ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97250-212-3 01 1 0211- ● ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97250-212-3 01 1 0211- ●
298 17.505 HOOK; FUEL FILLER DOOR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-93358-261-1 01 1 0211- ● ●
300 17.204 COLLAR; GATE HINGE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97324-512-3 02 1 0211- ● ● ● ●
300 17.204 COLLAR; GATE HINGE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97324-512-3 02 1 0211- ●
301 17.204 SUPPORT; TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97289-536-0 01 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
