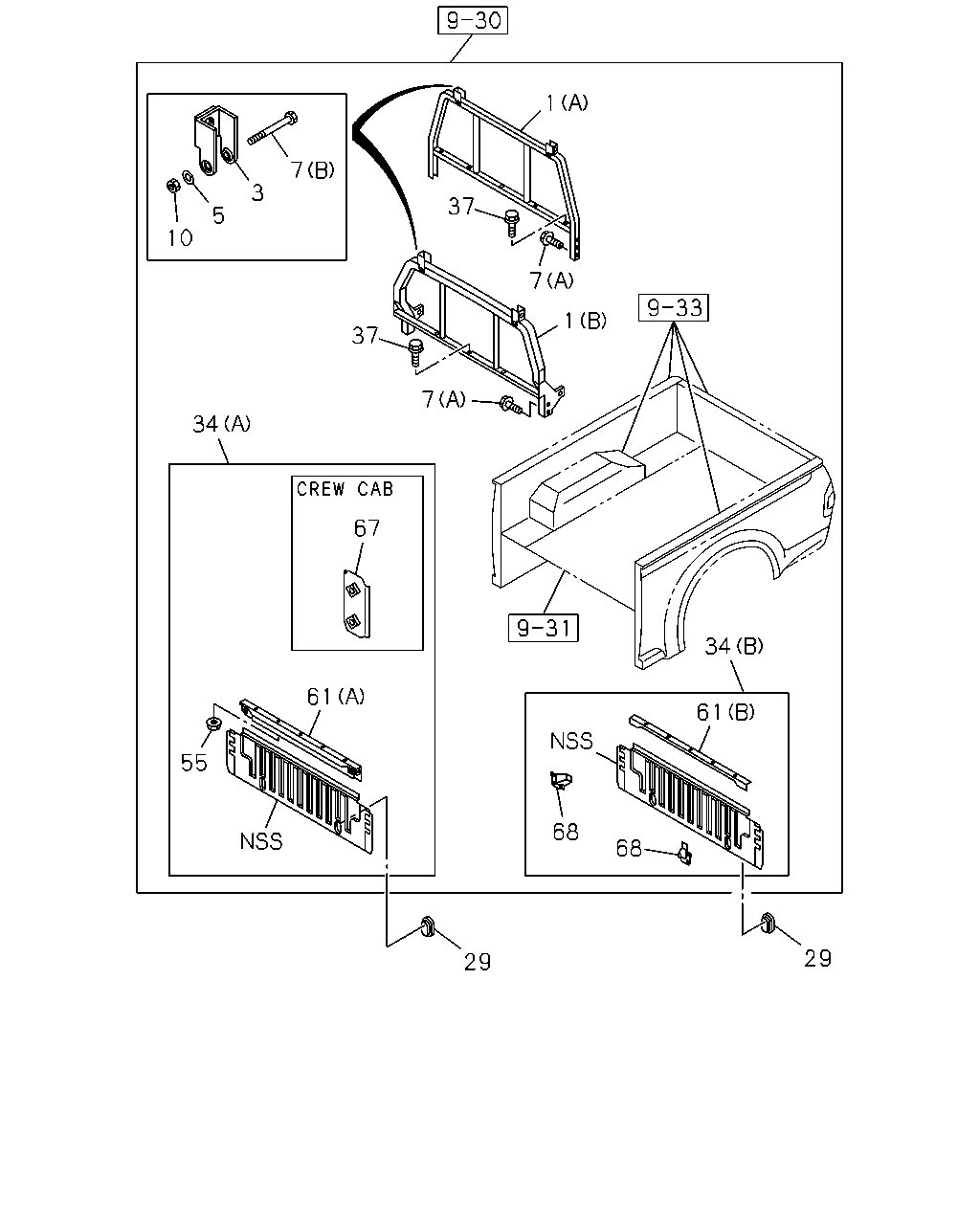

9-32 — REAR BODY; GUARD FRAME (#42412) — 44 parça

1 7 3 37 5 10 7 1 37 7 34 67 34 61 61 55 68 68 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	17.455 FRAME; GUARD,RR BODY GUARD FRAME-LOW TYPE<7PL> (B)	8-97310-075-2	01	1	0211-	●	●	●	●
1	17.455 FRAME; GUARD,RR BODY GUARD FRAME-LOW TYPE<7PL> (A)	8-97236-678-5	01	1	0211-					●
3	17.447 STOPPER; GUARD FRAME,RR BODY GUARD FRAME-LOW TYPE<7PL>	8-97352-624-0	02	1	0211-	●	●	●	●	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER GUARD FRAME-LOW TYPE<7PL>	8-94481-019-0	02	1	0211-	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD GUARD FRAME-LOW TYPE<7PL> (B) M6X45	8-94481-022-0	02	1	0211-	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0211-	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0211-					●
10	17.447 NUT; GUARD FRAME STOPPER GUARD FRAME-LOW TYPE<7PL> M6 FLANGE	8-94481-428-0	02	1	0211-	●	●	●	●	●
29	17.455 COVER; GUARD FRAME RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S)	8-97918-416-0	02	1	0211-	●	●	●	●	●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> (A)	8-97327-406-0	01	1	0211-	●		●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. GUARD FRAME-LOW TYPE<7PL> (A)	8-97236-255-2	01	1	0211-	●		●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97236-254-3	01	1	0211-					●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> (A)	8-97327-407-0	01	1	0211-		●		●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. GUARD FRAME-LOW TYPE<7PL> (A)	8-93358-340-2	01	1	0211-		●		●
37	17.455 BOLT; GUARD FRAME RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.428 M6X12 FLANGE	0-28080-612-0	07	1	0211-	●	●	●	●
37	17.455 BOLT; GUARD FRAME RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.428 M6X12 FLANGE	0-28080-612-0	07	1	0211-					●
55	17.070 NUT; MEMBER RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> 16.545 M6	9-09114-086-0	05	1	0211-	●	●	●	●
61	17.447 BAR ASM RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> (A)	8-97326-371-0	01	1	0211-	●	●	●	●
61	17.447 BAR ASM RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. GUARD FRAME-LOW TYPE<7PL> (A)	8-97236-715-0	01	1	0211-	●	●	●	●
61	17.447 BAR ASM RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97252-308-1	01	1	0211-					●
67	17.455 PLATE; RR BODY FRONT RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-93326-173-1	02	1	0211-		●		●
68	17.455 EXTENSION; FRONT,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97287-178-1	01	1	0211-					●
68	17.455 EXTENSION; FRONT,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97287-179-1	01	1	0211-					●

7 3 5 10 1 37 34 7 67 61 55 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	17.455 FRAME; GUARD,RR BODY GUARD FRAME-LOW TYPE<7PL> (B)	8-97310-075-2	01	1	0211-	●	●	●	●
1	17.455 FRAME; GUARD,RR BODY GUARD FRAME-LOW TYPE<7PL> (A)	8-97236-678-5	01	1	0211-					●
3	17.447 STOPPER; GUARD FRAME,RR BODY GUARD FRAME-LOW TYPE<7PL>	8-97352-624-0	02	1	0211-	●	●	●	●	●
5	17.447 WASHER; PL,GUARD FRAME STOPPER GUARD FRAME-LOW TYPE<7PL>	8-94481-019-0	02	1	0211-	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD GUARD FRAME-LOW TYPE<7PL> (B) M6X45	8-94481-022-0	02	1	0211-	●	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0211-	●	●	●	●
7	17.447 BOLT; GUARD FRAME STOPPER,RR BOD RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.269 (A) M8X16.5	1-09104-027-1	06	1	0211-					●
10	17.447 NUT; GUARD FRAME STOPPER GUARD FRAME-LOW TYPE<7PL> M6 FLANGE	8-94481-428-0	02	1	0211-	●	●	●	●	●
29	17.455 COVER; GUARD FRAME RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S)	8-97918-416-0	02	1	0211-	●	●	●	●	●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> (A)	8-97327-406-0	01	1	0211-	●		●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. GUARD FRAME-LOW TYPE<7PL> (A)	8-97236-255-2	01	1	0211-	●		●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97236-254-3	01	1	0211-					●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> (A)	8-97327-407-0	01	1	0211-		●		●
34	17.455 PANEL; FRT,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. GUARD FRAME-LOW TYPE<7PL> (A)	8-93358-340-2	01	1	0211-		●		●
37	17.455 BOLT; GUARD FRAME RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.428 M6X12 FLANGE	0-28080-612-0	07	1	0211-	●	●	●	●
37	17.455 BOLT; GUARD FRAME RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.428 M6X12 FLANGE	0-28080-612-0	07	1	0211-					●
55	17.070 NUT; MEMBER RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> 16.545 M6	9-09114-086-0	05	1	0211-	●	●	●	●
61	17.447 BAR ASM RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) GUARD FRAME-LOW TYPE<7PL> (A)	8-97326-371-0	01	1	0211-	●	●	●	●
61	17.447 BAR ASM RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. GUARD FRAME-LOW TYPE<7PL> (A)	8-97236-715-0	01	1	0211-	●	●	●	●
61	17.447 BAR ASM RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)	8-97252-308-1	01	1	0211-					●
67	17.455 PLATE; RR BODY FRONT RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-93326-173-1	02	1	0211-		●		●
