9-31 — REAR BODY; FLOOR AND FENDER (#42411) — 25 parça

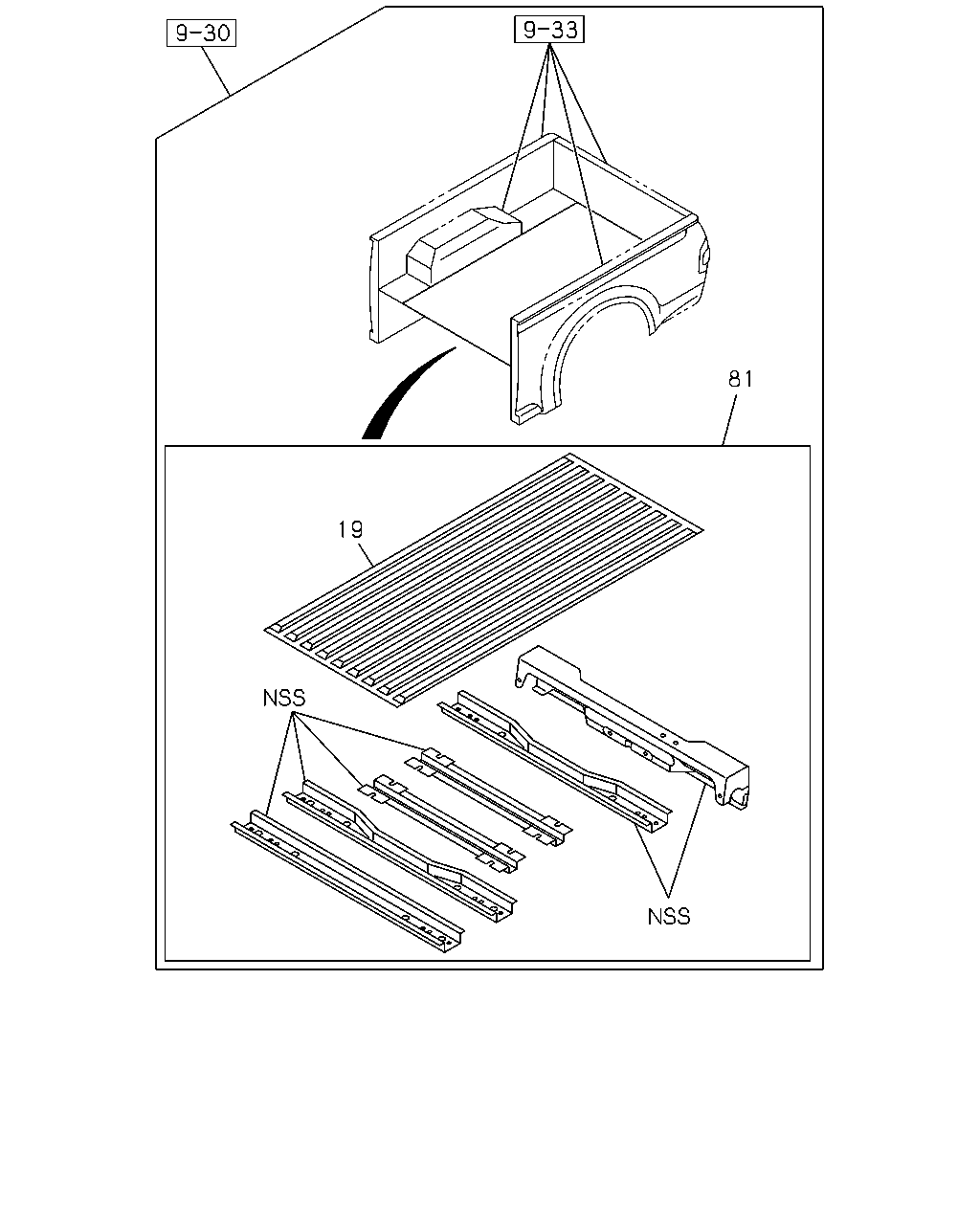

çizim 9970

81 19

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	19	17.208 BOLSTER; RR END,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-97234-839-3	01	1	0211-	●	●
	19	17.208 BOLSTER; RR END,RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97236-641-3	01	1	0211-			●
	19	17.208 BOLSTER; RR END,RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-93290-830-3	01	1	0211-				●	●
	81	17.400 FLOOR ASM; RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-97236-640-4	01	1	0211-	●	●
	81	17.400 FLOOR ASM; RR BODY RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97236-639-4	01	1	0211-			●
	81	17.400 FLOOR ASM; RR BODY RR BODY DOUBLE WALL CTR PULL HANDLE (S7R)	8-93333-729-6	01	1	0211-				●	●

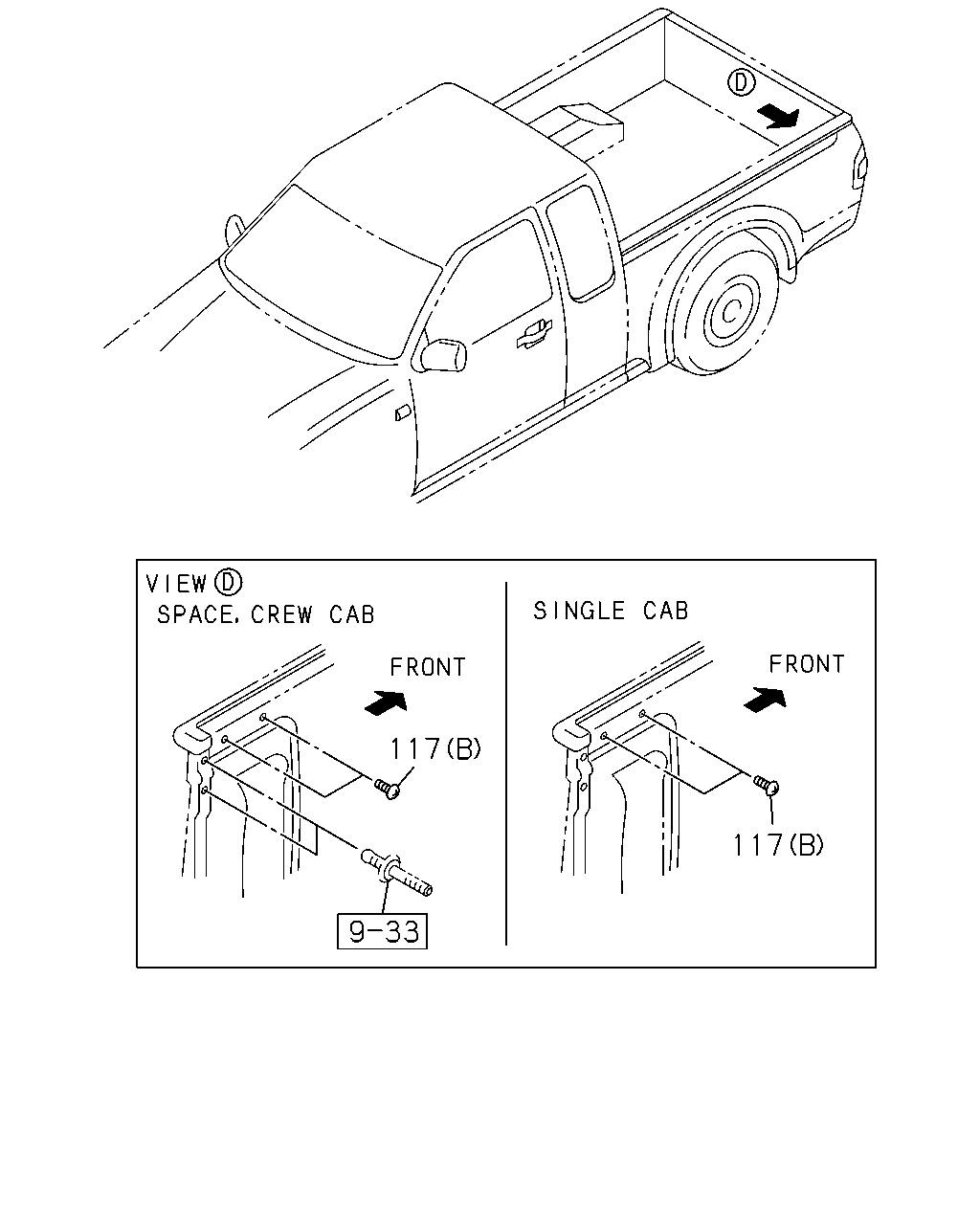

çizim 9971

117 117

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-	●	●		●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0211-	●	●		●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-	●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-	●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-			●

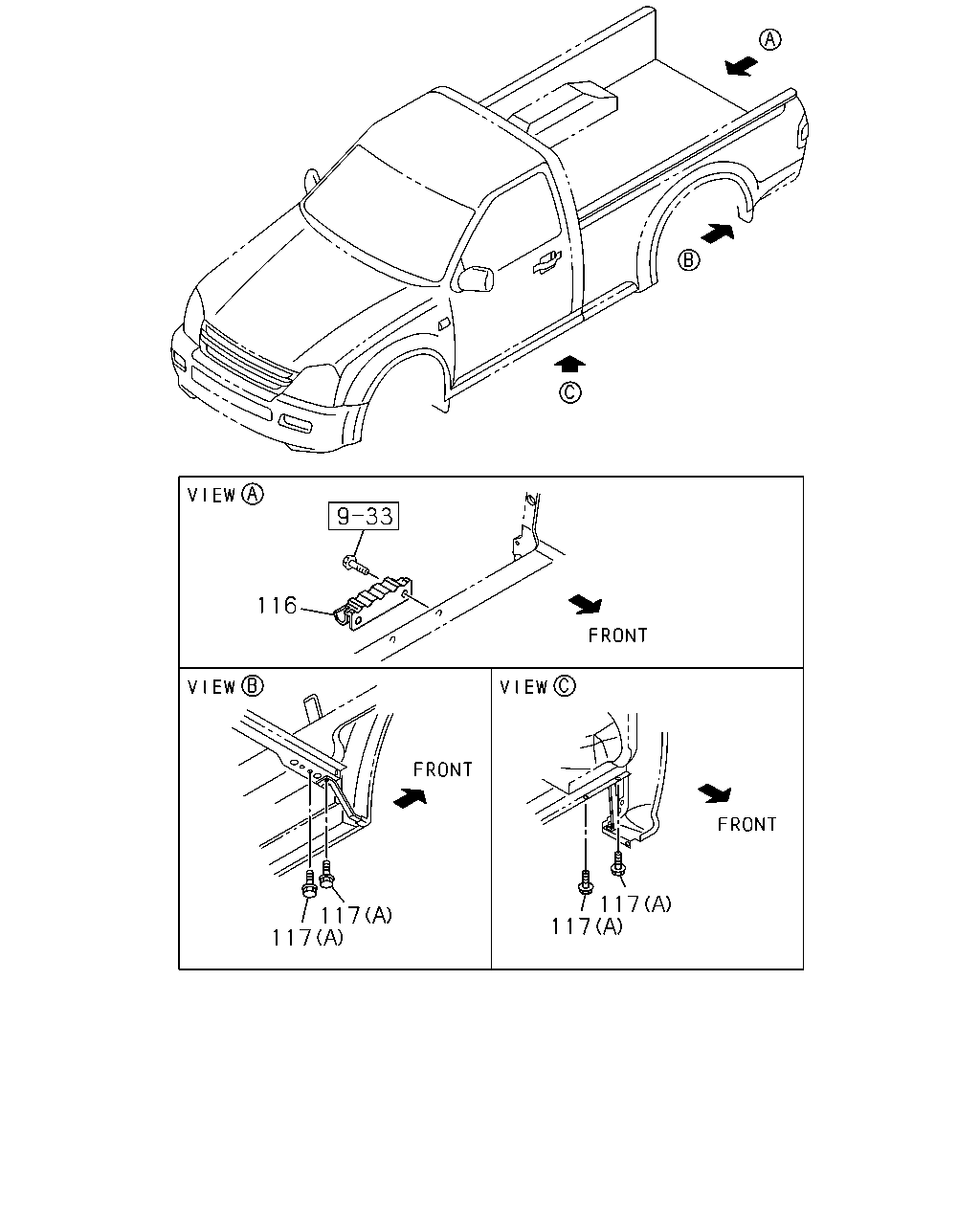

çizim 12196

116 117 117 117 117

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	116	17.400 SUPPORT; RR BODY,SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S)	8-97289-528-0	01	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-	●	●		●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0211-	●	●		●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 01.269 (B) M8X16.5	1-09104-027-1	04	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-	●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-	●	●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-			●
	117	17.400 BOLT; SILL RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-			●
