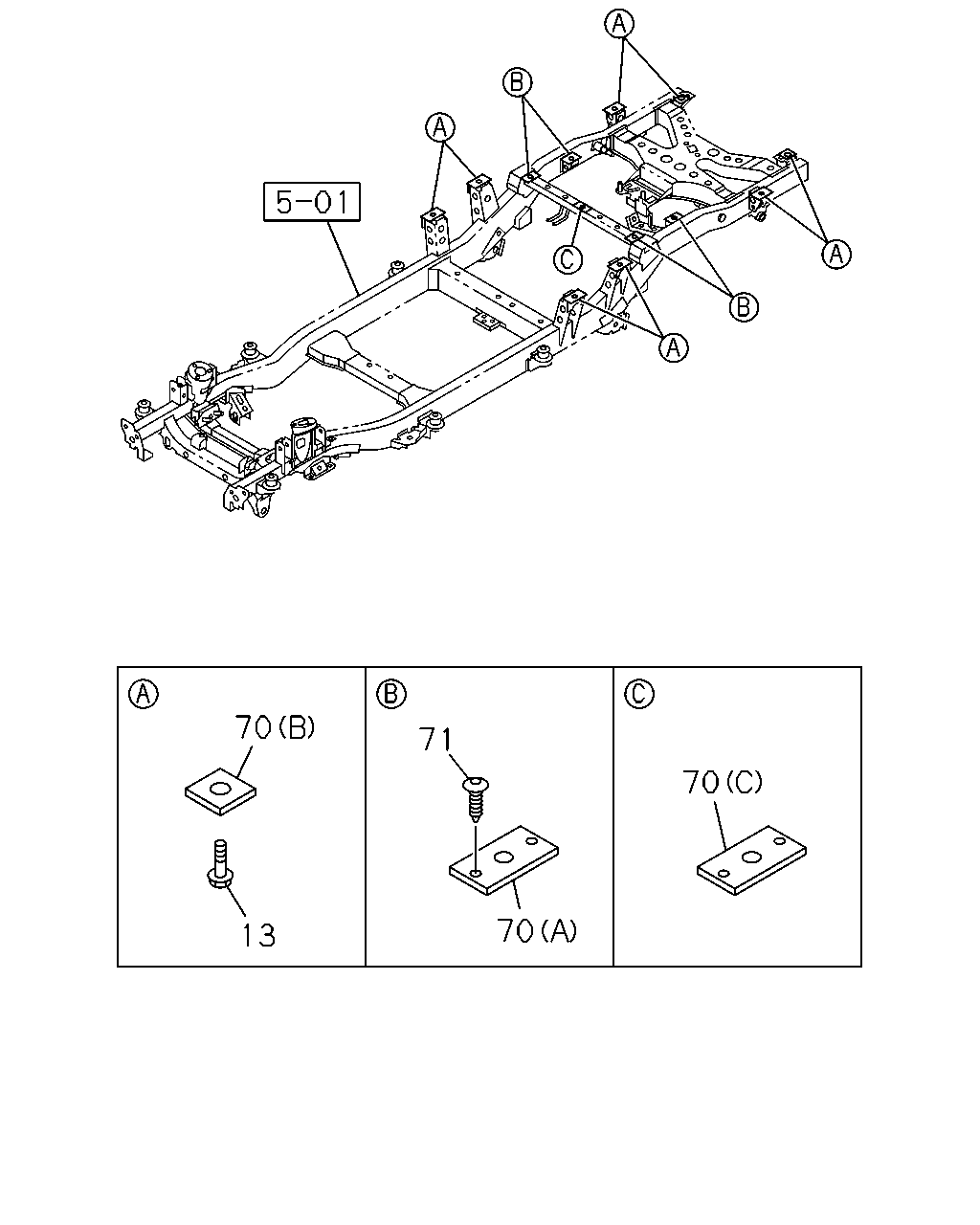

9-30 — REAR BODY ASM AND MOUNTING
(#42410) — 39 parça
Tümü
A - TFB5CF
B - TFS5CF
C - TFB5S
D - TFB5WF
E - TFS5W
◀
[930A] NO.2 (16 parça)
[930A] NO.1 (23 parça)
▶
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) EXC. OVER FENDER<6GH>
8-97359-925-0
01
1
0211-
●
●
1
17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),OVER FENDER<6GH>
8-97359-927-0
01
1
0211-
●
●
1
17.090 BODY ASM; REAR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. BODY SIDE MOLDING(B84),OVER FENDER<6GH>
8-97359-924-0
01
1
0211-
●
●
1
17.090 BODY ASM; REAR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),OVER FENDER<6GH> EXC. BODY SIDE MOLDING(B84)
8-97359-923-0
01
1
0211-
●
●
1
17.090 BODY ASM; REAR
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. OVER FENDER<6GH>
8-97359-917-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
SINGLE CAB LONG(TF**SF) BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),O VER FENDER<6GH>
8-97359-918-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. BODY SIDE MOLDING(B84),OVER FENDER<6GH>
8-97350-024-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
SINGLE CAB LONG(TF**SF) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),OVER FENDER<6GH> EXC. BODY SIDE MOLDING(B84)
8-97359-916-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) EXC. OVER FENDER<6GH>
8-97359-937-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R) EXC. OVER FENDER<6GH>
8-97359-937-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),OVER FENDER<6GH>
8-97359-938-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
4X4 CREW CAB LONG(TFS*WF) BODY SIDE MOLDING(B84),RR BODY DOUBLE WALL CTR PULL HANDLE(S7R),OVER F ENDER<6GH>
8-97359-938-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. BODY SIDE MOLDING(B84),OVER FENDER<6GH>
8-97359-936-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
4X4 CREW CAB LONG(TFS*WF) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) EXC. BODY SIDE MOLDING(B84),OVER FENDER<6GH>
8-97359-936-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),OVER FENDER<6GH> EXC. BODY SIDE MOLDING(B84)
8-97359-940-0
01
1
0211-
●
1
17.090 BODY ASM; REAR
4X4 CREW CAB LONG(TFS*WF) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),OVER FENDER<6GH> EXC. BODY SIDE MOLDING(B84)
8-97359-940-0
01
1
0211-
●
70
71
70
70
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
13
09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) M12X50 FLANGE
8-97310-611-2
06
1
0211-
●
●
13
09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) M12X50 FLANGE
8-97310-611-2
08
1
0211-
●
13
09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) FRONT M12X50 FLANGE
8-97310-611-2
04
1
0211-
●
●
13
09.008 BOLT; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) REAR M12X50 FLANGE
8-97354-201-0
02
1
0211-
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) (A)
8-97354-682-0
02
1
0211-0303
●
●
●
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) (A)
8-97367-344-0
02
1
0304-
●
●
●
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C)
8-97235-199-0
01
1
0211-0303
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C)
8-97367-343-0
01
1
0304-
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 09.007 (B)
8-94331-738-1
06
1
0211-0303
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B)
8-97367-342-0
06
1
0304-
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 09.007 (B)
8-94331-738-1
08
1
0211-0303
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B)
8-97367-342-0
08
1
0304-
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 09.023 (B) REAR
8-94222-090-2
02
1
0211-0303
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) REAR
8-97367-341-0
02
1
0304-
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 09.007 (B) FRONT
8-94331-738-1
04
1
0211-0303
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) FRONT
8-97367-342-0
04
1
0304-
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C)
8-97235-199-0
03
1
0211-0303
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (C)
8-97235-199-0
03
1
0211-0303
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C)
8-97367-343-0
03
1
0304-
●
●
70
08.214 CUSHION; RR BODY MTG
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (C)
8-97367-343-0
03
1
0304-
●
71
08.214 CLIP; CUSHION
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 03.023 ID=6 OD=16 L=18
8-94178-705-0
06
1
0211-
●
●
71
08.214 CLIP; CUSHION
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 03.023 ID=6 OD=16 L=18
8-94178-705-0
06
1
0211-
●
71
08.214 CLIP; CUSHION
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 03.023 ID=6 OD=16 L=18
8-94178-705-0
04
1
0211-
●
●
