Sayfa 9-01 - Isuzu EPC

405 421 284 195 422

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
195	08.820 BRACKET; JACK (C)	8-97249-694-5	01	1	0211-	●	●	●	●
195	08.820 BRACKET; JACK (A)	8-97249-692-2	01	1	0211-					●	●
195	08.820 BRACKET; JACK (B)	8-97249-698-2	01	1	0211-							●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	03	1	0211-	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0211-							●	●
405	08.821 GUIDE; COUNTER	8-97328-053-0	01	1	0211-	●	●	●	●
421	08.820 COVER; JACK DARK GRAY	8-97392-412-1	01	1	0211-	●	●	●	●
422	08.820 RETAINER; JACK DARK GRAY	8-97392-413-1	01	1	0211-	●	●	●	●

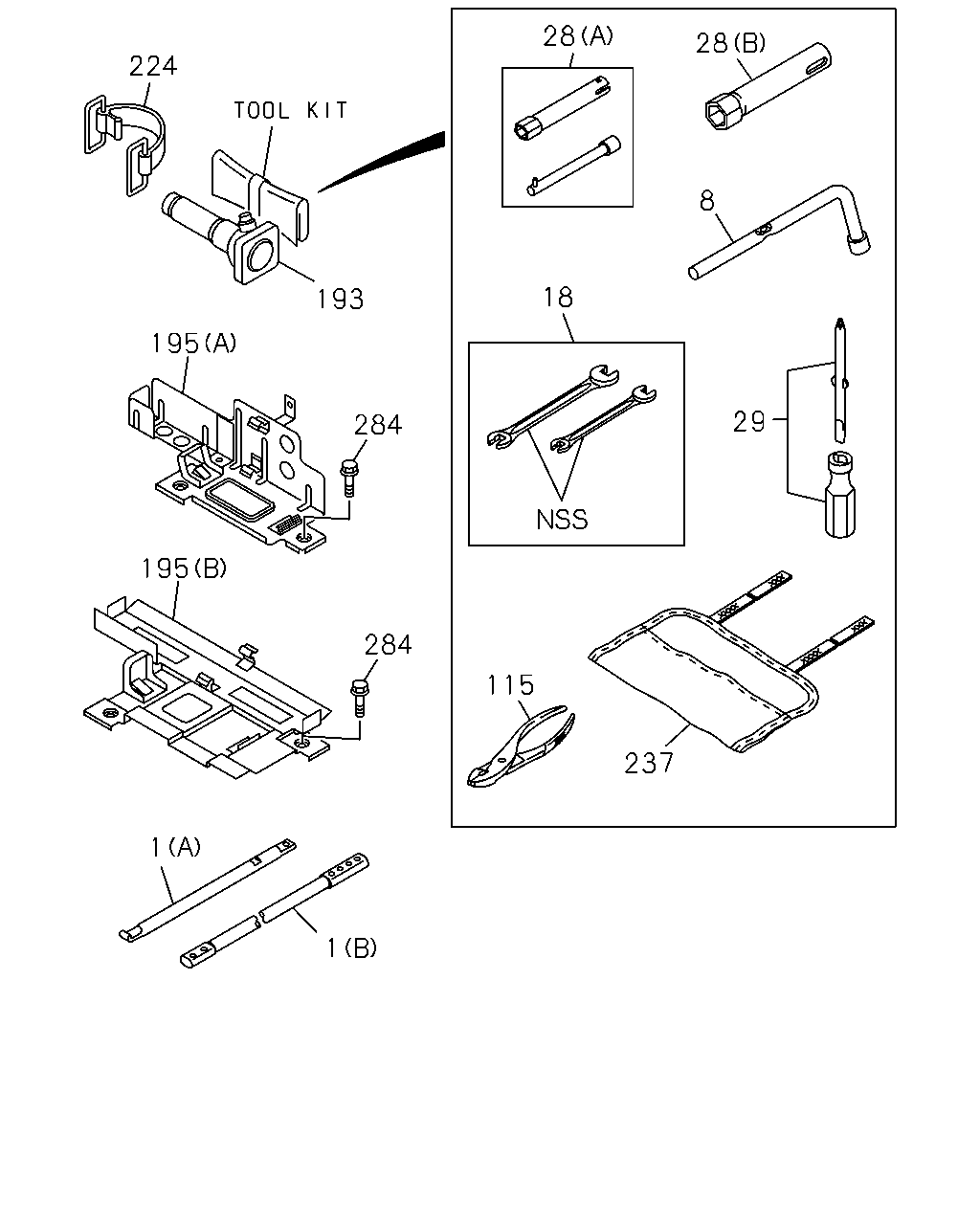

28 28 224 8 18 193 195 29 284 195 284 115 237 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97215-330-0	01	1	0211-	●	●	●	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-97215-332-0	03	1	0211-	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL	8-97217-790-0	01	1	0211-	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT	8-97248-884-0	01	1	0211-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG 6VE1 ENG(RJQ) (A)	8-97248-867-0	01	1	0211-	●	●	●		●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-97248-865-0	01	1	0211-					●		●
29	08.821 DRIVER; SCREW	8-97248-870-0	01	1	0211-	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-97248-869-0	01	1	0211-	●	●	●	●	●	●	●	●
193	08.820 JACK ASM 4JH1-TC ENG(RDM)	8-97217-789-1	01	1	0211-	●	●
193	08.820 JACK ASM C24SE ENG(LG1),4JH1-TC ENG(RDM)	8-97217-789-1	01	1	0211-					●
193	08.820 JACK ASM C24SE ENG(LG1)	8-97217-789-1	01	1	0211-							●
193	08.820 JACK ASM 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	0211-							●
193	08.820 JACK ASM 6VE1 ENG(RJQ)	8-97217-788-1	01	1	0211-	●	●			●		●
193	08.820 JACK ASM 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	0211-							●
193	08.820 JACK ASM	8-97217-788-1	01	1	0211-			●	●		●		●
195	08.820 BRACKET; JACK (C)	8-97249-694-5	01	1	0211-	●	●	●	●
195	08.820 BRACKET; JACK (A)	8-97249-692-2	01	1	0211-					●	●
195	08.820 BRACKET; JACK (B)	8-97249-698-2	01	1	0211-							●	●
224	08.821 BAND; RUBBER,JACK	8-97248-864-0	01	1	0211-	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97248-885-1	01	1	0211-	●	●	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	03	1	0211-	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX 16.550 M6X16 W/PL WASHER	1-09981-438-0	02	1	0211-							●	●

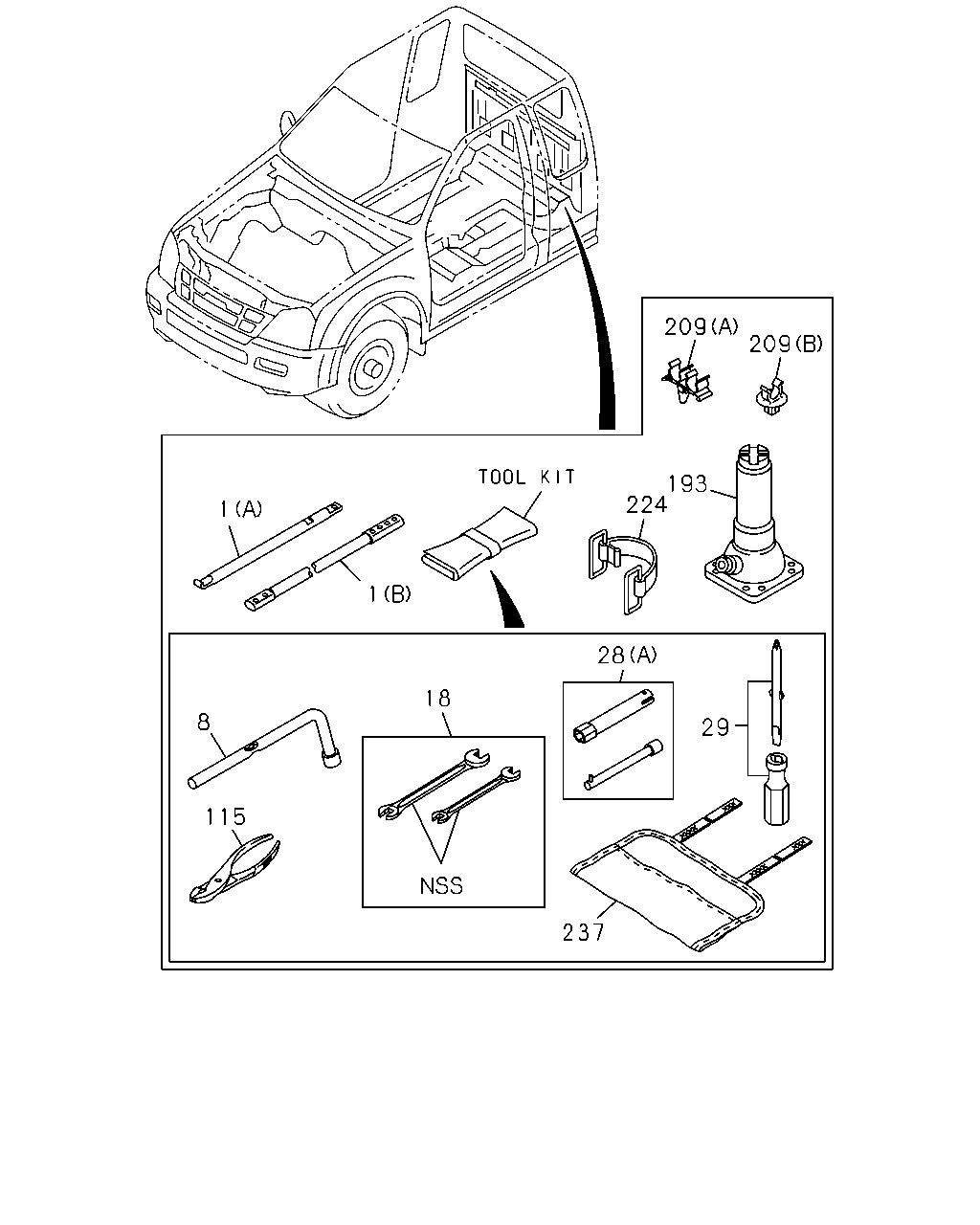

209 209 193 224 1 1 28 18 8 29 115 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97215-330-0	01	1	0211-	●	●	●	●	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B)	8-97215-332-0	03	1	0211-	●	●	●	●	●	●	●	●
8	08.821 WRENCH; WHEEL	8-97217-790-0	01	1	0211-	●	●	●	●	●	●	●	●
18	08.821 WRENCH KIT	8-97248-884-0	01	1	0211-	●	●	●	●	●	●	●	●
28	08.821 WRENCH; SPARK PLUG 6VE1 ENG(RJQ) (A)	8-97248-867-0	01	1	0211-	●	●	●		●	●	●	●
28	08.821 WRENCH; SPARK PLUG C24SE ENG(LG1) (B)	8-97248-865-0	01	1	0211-					●		●
29	08.821 DRIVER; SCREW	8-97248-870-0	01	1	0211-	●	●	●	●	●	●	●	●
115	08.821 PLIER	8-97248-869-0	01	1	0211-	●	●	●	●	●	●	●	●
193	08.820 JACK ASM 4JH1-TC ENG(RDM)	8-97217-789-1	01	1	0211-	●	●
193	08.820 JACK ASM C24SE ENG(LG1),4JH1-TC ENG(RDM)	8-97217-789-1	01	1	0211-					●
193	08.820 JACK ASM C24SE ENG(LG1)	8-97217-789-1	01	1	0211-							●
193	08.820 JACK ASM 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC)	8-97217-789-1	01	1	0211-							●
193	08.820 JACK ASM 6VE1 ENG(RJQ)	8-97217-788-1	01	1	0211-	●	●			●		●
193	08.820 JACK ASM 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC)	8-97217-788-1	01	1	0211-							●
193	08.820 JACK ASM	8-97217-788-1	01	1	0211-			●	●		●		●
209	08.820 CLIP; JACK HANDLE (A)	8-97264-777-0	04	1	0211-	●	●	●	●
209	08.820 CLIP; JACK HANDLE (B)	8-97264-782-0	02	1	0211-	●	●	●	●
224	08.821 BAND; RUBBER,JACK	8-97248-864-0	01	1	0211-	●	●	●	●	●	●	●	●
237	08.821 BAG; TOOL	8-97248-885-1	01	1	0211-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
