8-74 — EVAPORATOR (#42405) — 23 parça

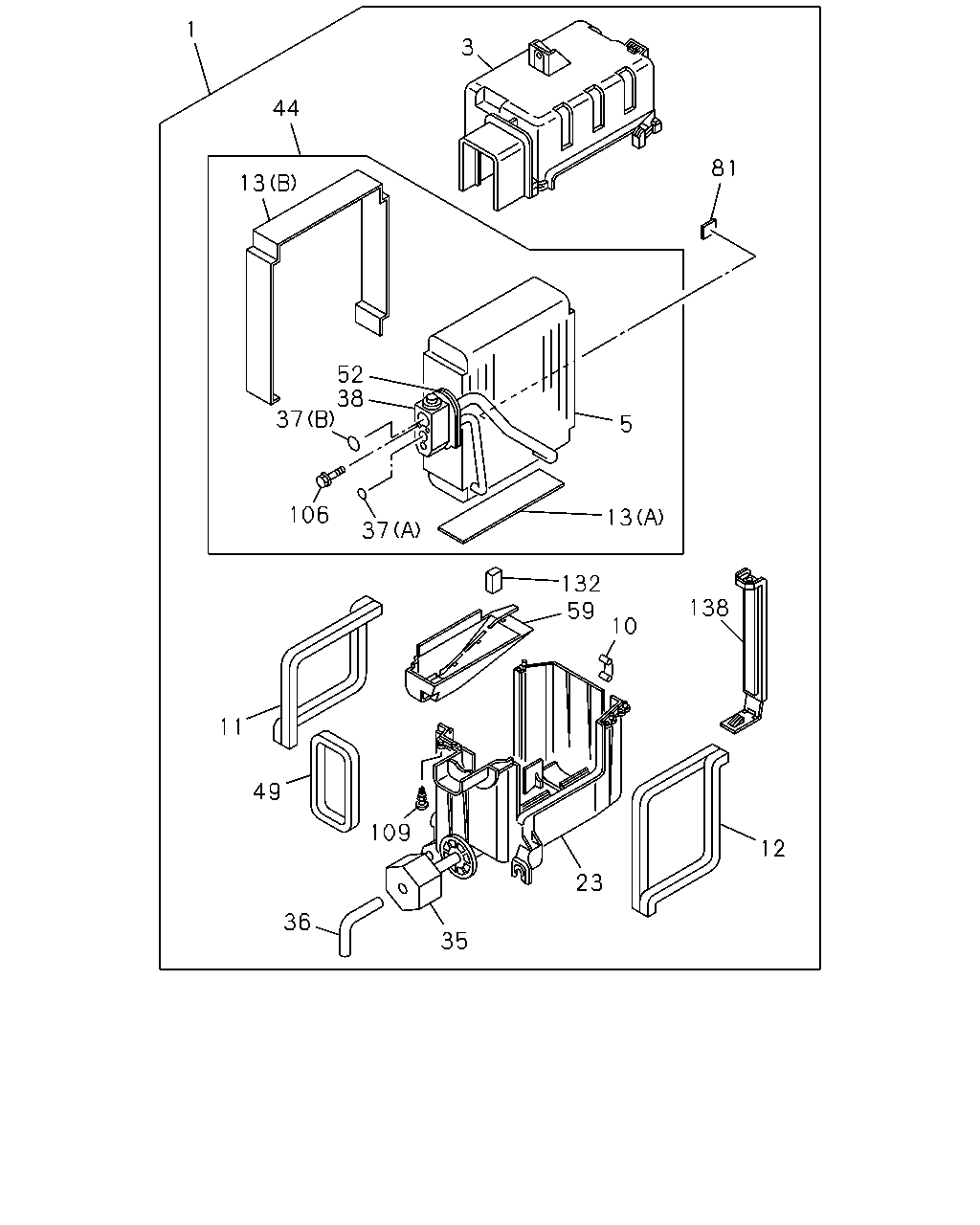

çizim 49544
1 3 44 81 13 52 38 37 5 106 13 37 132 59 138 10 11 49 109 12 23 36 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.210 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60) 		8-97248-945-3 01 1 0211- ● ● ● ● ● ● ● ●
3 09.211 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-144-0 01 1 0211- ● ● ● ● ● ● ● ●
5 09.210 EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-148-0 01 1 0211- ● ● ● ● ● ● ● ●
10 09.211 CLIP; EVAP CASE
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-166-0 01 1 0211- ● ● ● ● ● ● ● ●
11 09.211 LINING; EVAP A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-159-0 01 1 0211- ● ● ● ● ● ● ● ●
12 09.211 LINING; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-160-0 01 1 0211- ● ● ● ● ● ● ● ●
13 09.211 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97321-150-0 01 1 0211- ● ● ● ● ● ● ● ●
13 09.211 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-151-0 01 1 0211- ● ● ● ● ● ● ● ●
23 09.211 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-145-0 01 1 0211- ● ● ● ● ● ● ● ●
35 09.211 GROMMET; EVAP,LOW
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-157-0 01 1 0211- ● ● ● ● ● ● ● ●
36 09.211 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97353-008-0 01 1 0211- ● ● ● ● ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97321-154-0 01 1 0211- ● ● ● ● ● ● ● ●
37 09.214 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-155-0 01 1 0211- ● ● ● ● ● ● ● ●
38 09.213 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-97353-010-0 01 1 0211- ● ● ● ● ● ● ● ●
44 09.210 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97353-009-0 01 1 0211- ● ● ● ● ● ● ● ●
49 09.211 GROMMET; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-158-1 01 1 0211- ● ● ● ● ● ● ● ●
52 09.242 GROMMET; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-152-0 01 1 0211- ● ● ● ● ● ● ● ●
59 09.211 LINING; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-146-0 01 1 0211- ● ● ● ● ● ● ● ●
81 09.211 CLIP; THERMOSTAT A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-161-0 01 1 0211- ● ● ● ● ● ● ● ●
106 09.214 BOLT; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-153-0 02 1 0211- ● ● ● ● ● ● ● ●
109 09.211 BOLT; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-165-0 05 1 0211- ● ● ● ● ● ● ● ●
132 09.210 AMPLIFIER; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-325-0 01 1 0211- ● ● ● ● ● ● ● ●
138 09.211 COVER; CASE
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-156-0 01 1 0211- ● ● ● ● ● ● ● ●
