8-65 — CONTROL LEVER; HEATER AND AIR CON (#42402) — 14 parça

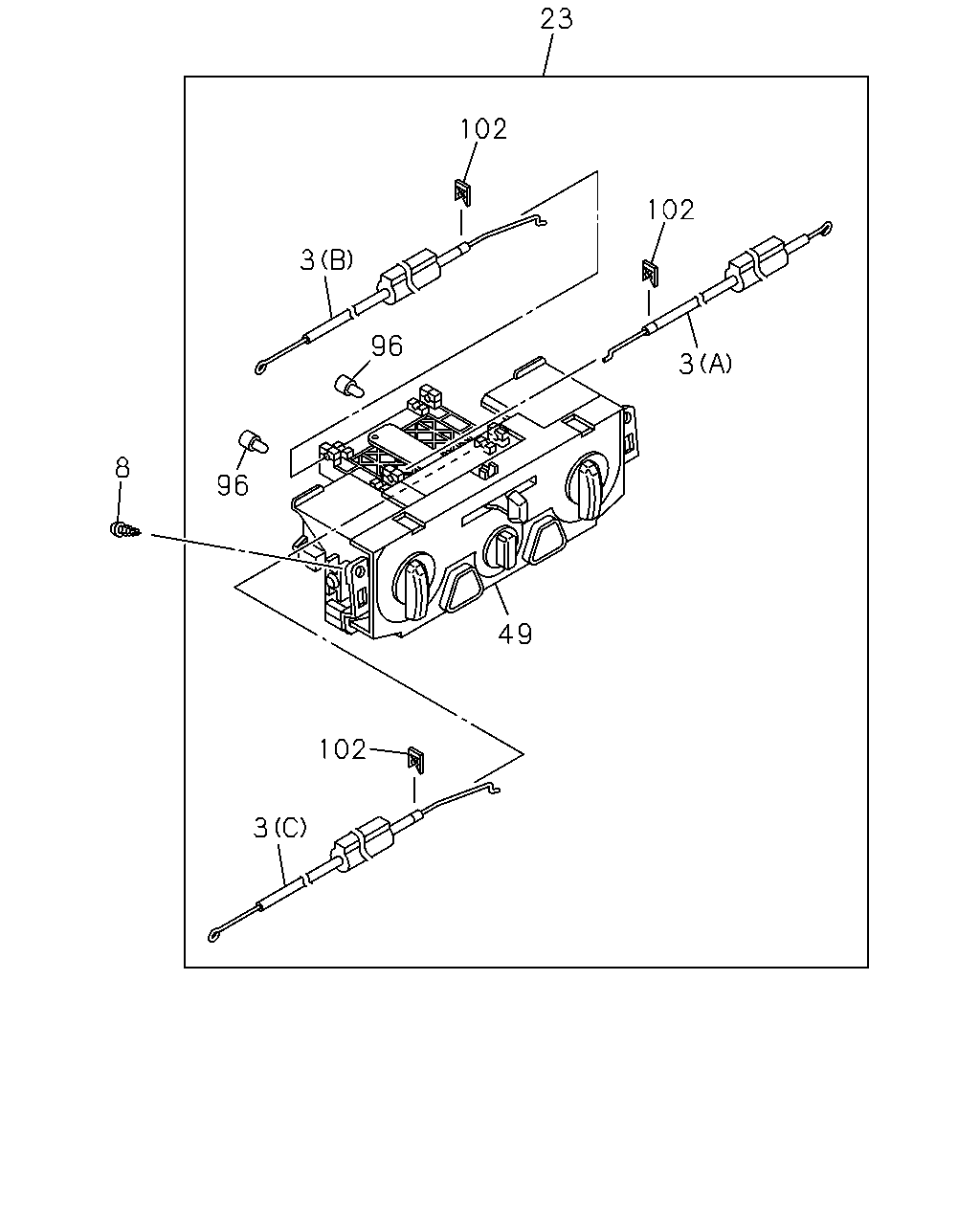

çizim 50569
23 102 102 3 96 3 8 96 49 102 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 09.787 CABLE; HTR CONT LVR
(A) MODE 		8-97321-478-0 01 1 0211- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) INTAKE 		8-97321-479-0 01 1 0211- ● ● ● ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) TEMP 		8-97350-293-0 01 1 0211- ● ● ● ● ● ● ● ●
8 08.852 SCREW; CONT LVR TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 02 1 0211- ● ● ● ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER 8-97234-567-1 01 1 0211- ● ● ● ● ●
23 08.852 BEZEL; CONT LEVER
REAR DEFOGGER<C49> 		8-97234-567-1 01 1 0211- ●
23 08.852 BEZEL; CONT LEVER 8-97234-568-1 01 1 0211- ● ●
23 08.852 BEZEL; CONT LEVER
EXC. REAR DEFOGGER<C49> 		8-97234-568-1 01 1 0211- ●
49 08.849 PANEL; CONT 8-97350-284-0 01 1 0211- ● ● ● ● ●
49 08.849 PANEL; CONT
REAR DEFOGGER<C49> 		8-97350-284-0 01 1 0211- ●
49 08.849 PANEL; CONT 8-97350-285-0 01 1 0211- ● ●
49 08.849 PANEL; CONT
EXC. REAR DEFOGGER<C49> 		8-97350-285-0 01 1 0211- ●
96 08.852 BULB ASM; BEZEL 8-97332-276-0 02 1 0211- ● ● ● ● ● ● ● ●
102 08.852 RING; SNAP,CABLE 8-97321-480-0 03 1 0211- ● ● ● ● ● ● ● ●
