Isuzu WW
▶
TRUCKS
▶
CXH
▶
10585 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶

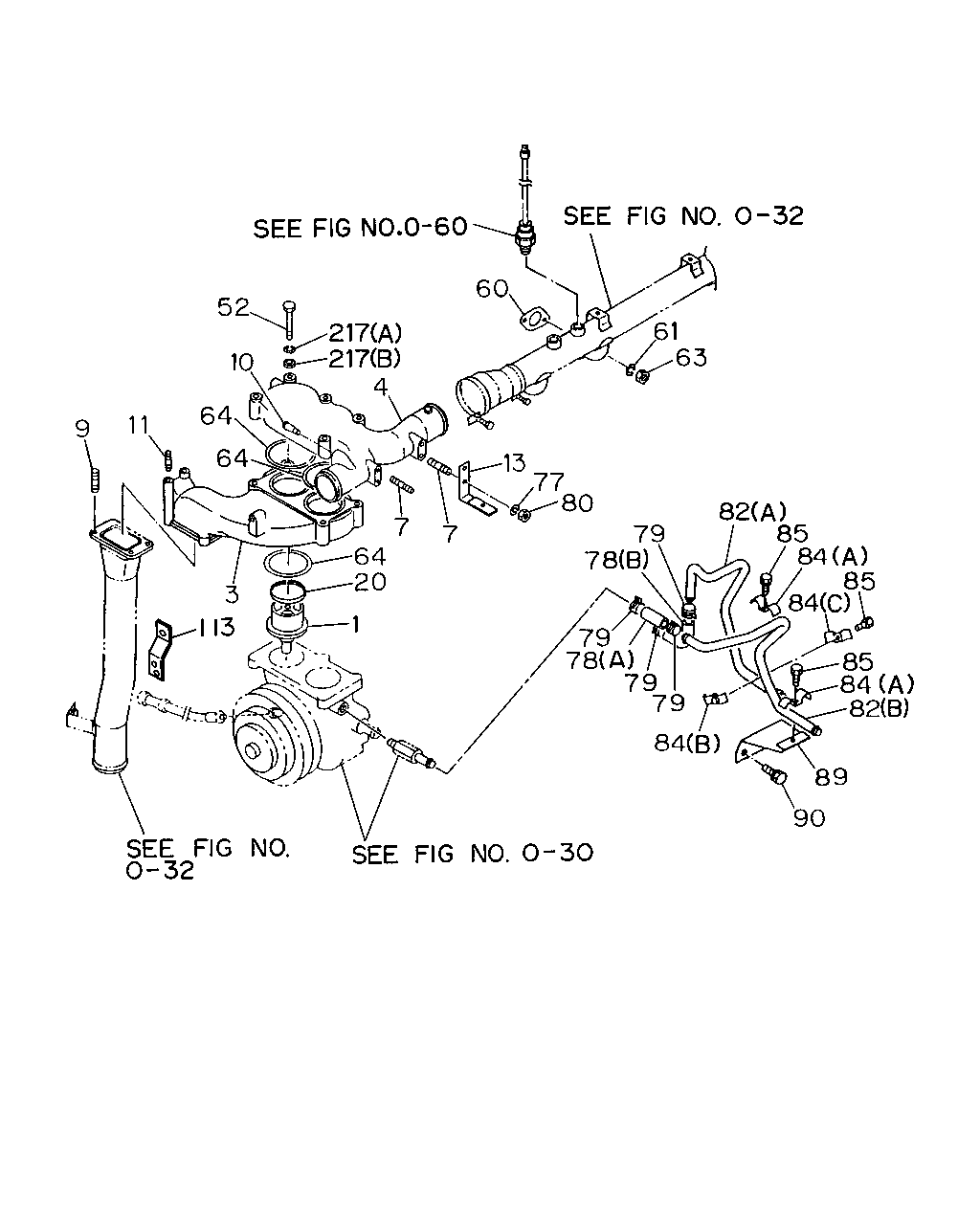

0-31A - THERMOSTAT AND HOUSING
▶
0-31A — THERMOSTAT AND HOUSING
(#424) — 46 parça
Tümü
A - 6RA1TC ENG
B - 6RB1 TURBO ENG
C - 6RB1TC ENG
61
63
60
13
217
52
217
10
4
64
11
9
64
64
3
113
20
1
7
7
77
80
79
82
85
78
79
78
79
79
84
90
89
82
84
85
85
84
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
THERMOSTAT
79?C
1-13770-041-0
02
1
8712-9001
●
●
1
THERMOSTAT
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 79?C
1-13770-041-0
02
1
8712-9001
●
1
THERMOSTAT
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 71?C
1-13770-042-0
02
1
8712-9001
●
1
THERMOSTAT
79?C
1-13770-041-1
02
1
9002-
●
●
3
HOUSING; THERMOSTAT LWR
1-13716-123-1
01
1
8712-
●
●
●
4
HOUSING; THERMOSTAT UPR
1-13716-124-0
01
1
8712-9001
●
4
HOUSING; THERMOSTAT UPR
1-13716-138-0
01
1
8712-
●
●
7
STUD; HTR BRKT
M8X18 L=30
9-04110-818-0
04
1
8712-
●
●
9
STUD; WATER PIPE
M8X28 L=40
9-04110-828-0
04
1
8712-
●
●
●
10
NIPPLE; JOINT
M8X18 L=30
9-04110-818-0
02
1
8712-
●
●
11
STUD; BRKT
M8X16 L=28
9-04110-816-0
02
1
8712-
●
●
●
13
STAY; HTR HOSE TO HSG
1-13719-035-2
01
1
8712-9001
●
●
●
13
STAY; HTR HOSE TO HSG
1-13719-070-0
01
1
9002-
●
●
20
RING; SEAL
1-13779-005-0
02
1
8712-9306
●
●
●
20
RING; SEAL
1-13779-005-0
02
1
9307-
●
52
BOLT; JOINT,THERMOSTAT
M10X100
9-01656-000-0
05
1
8712-9004
●
●
●
52
BOLT; JOINT,THERMOSTAT
M10X100
0-16806-000-0
05
1
9005-
●
●
52
BOLT; JOINT,THERMOSTAT
M10X20 W/LK WASHER
9-01911-020-0
01
1
8712-9002
●
52
BOLT; JOINT,THERMOSTAT
M10X20 W/LK WASHER
0-50041-020-0
01
1
9003-
●
60
GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-13741-005-0
04
1
8712-8908
●
●
●
60
GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-13741-016-0
04
1
8909-9603
●
●
●
60
GASKET; OUTLET PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-13741-012-0
04
1
9604-
●
61
WASHER; LK,OUTLET PIPE
ID=8.2
9-09150-508-0
08
1
8712-
●
●
●
63
NUT; BRKT
M8
9-09110-408-0
08
1
8712-
●
●
●
64
GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-09623-217-0
04
1
8712-
●
●
●
77
WASHER; LK
ID=8.2
9-09150-508-0
02
1
8712-
●
●
●
78
HOSE; RUBBER,WATER PIPE
(A)
1-09360-626-0
01
1
8712-
●
●
●
78
HOSE; RUBBER,WATER PIPE
(B)
1-09360-802-0
01
1
8712-
●
●
●
79
CLIP; RUBBER HOSE
ID=20
1-09707-084-1
04
1
8712-
●
●
●
80
NUT; BRKT TO HSG
M8
9-09110-408-0
02
1
8712-
●
●
●
82
PIPE; WATER,HTR
(A)
1-13711-432-0
01
1
8712-
●
●
82
PIPE; WATER,HTR
(B)
1-13711-344-1
01
1
8712-
●
●
●
82
PIPE; WATER,HTR
(A)
1-13711-370-1
01
1
8712-9306
●
84
CLIP; WATER PIPE
(A)
1-09700-174-0
02
1
8712-
●
●
●
84
CLIP; WATER PIPE
(B) W/NUT
1-09700-204-1
01
1
8712-
●
●
●
84
CLIP; WATER PIPE
(C) ID=18 & 18
1-09700-205-1
01
1
8712-
●
●
●
85
BOLT; CLIP
M6X20
9-01910-620-0
02
1
8712-9005
●
●
●
85
BOLT; CLIP
M6X20 W/LK WASHER
0-50040-620-0
02
1
9006-
●
●
85
BOLT; CLIP
M6X30
9-01910-630-0
01
1
8712-9005
●
●
●
85
BOLT; CLIP
M6X30 W/LK WASHER
0-50040-630-0
01
1
9006-
●
●
89
BRACKET
1-13719-038-0
01
1
8712-
●
●
●
90
BOLT; BRKT
M12X20 W/LK WASHER
9-01931-220-0
02
1
8712-9005
●
●
●
90
BOLT; BRKT
M12X20 W/LK WASHER
0-50051-220-0
02
1
9006-
●
●
113
BRACKET; INL PIPE
1-14119-229-0
01
1
8712-
●
●
217
WASHER; LK,JOINT
(A) ID=10.2
9-09150-510-0
05
1
8712-
●
●
●
217
WASHER; LK,JOINT
(B) ID=10.5 OD=18
9-09160-510-0
02
1
8712-
●
●
●
