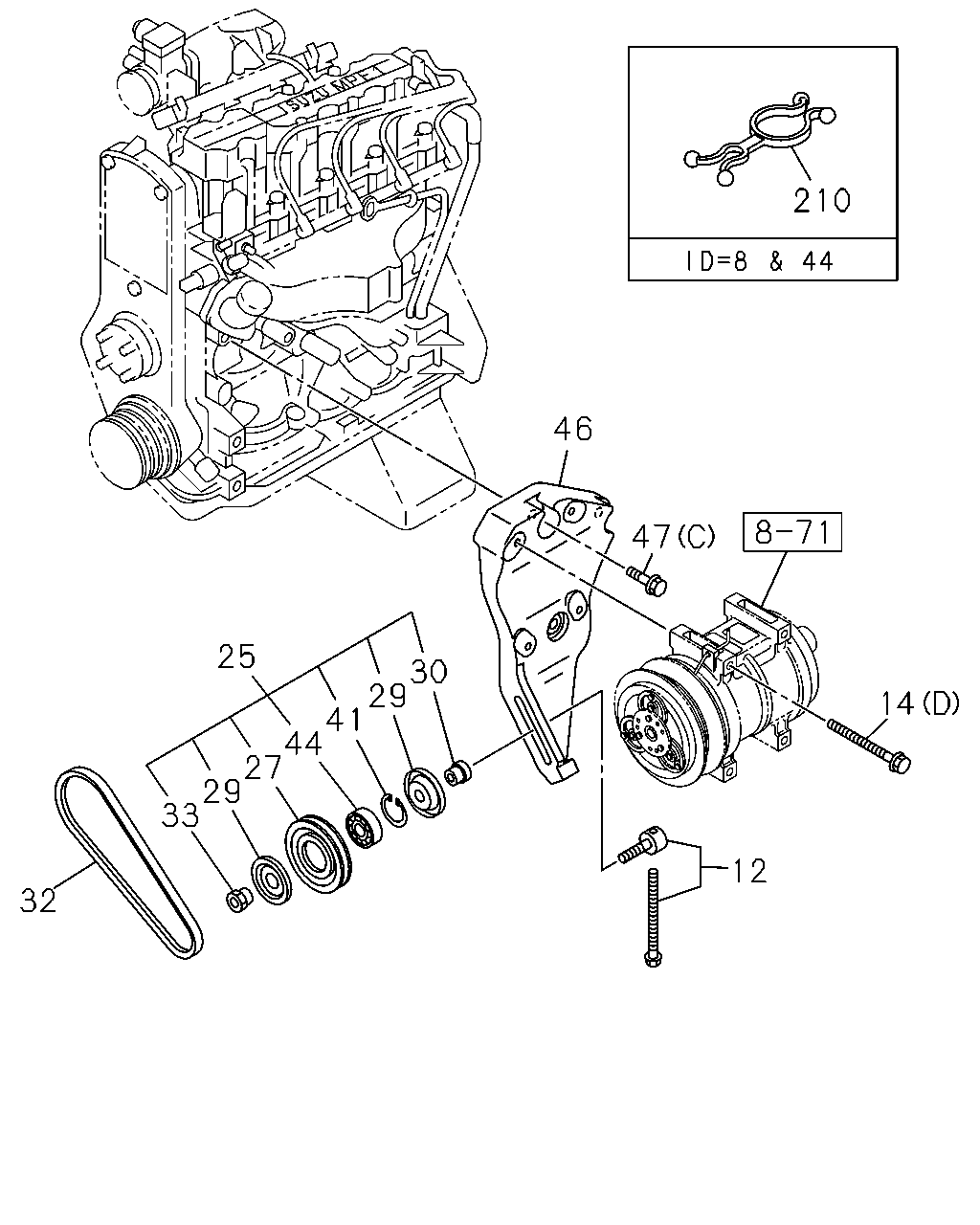

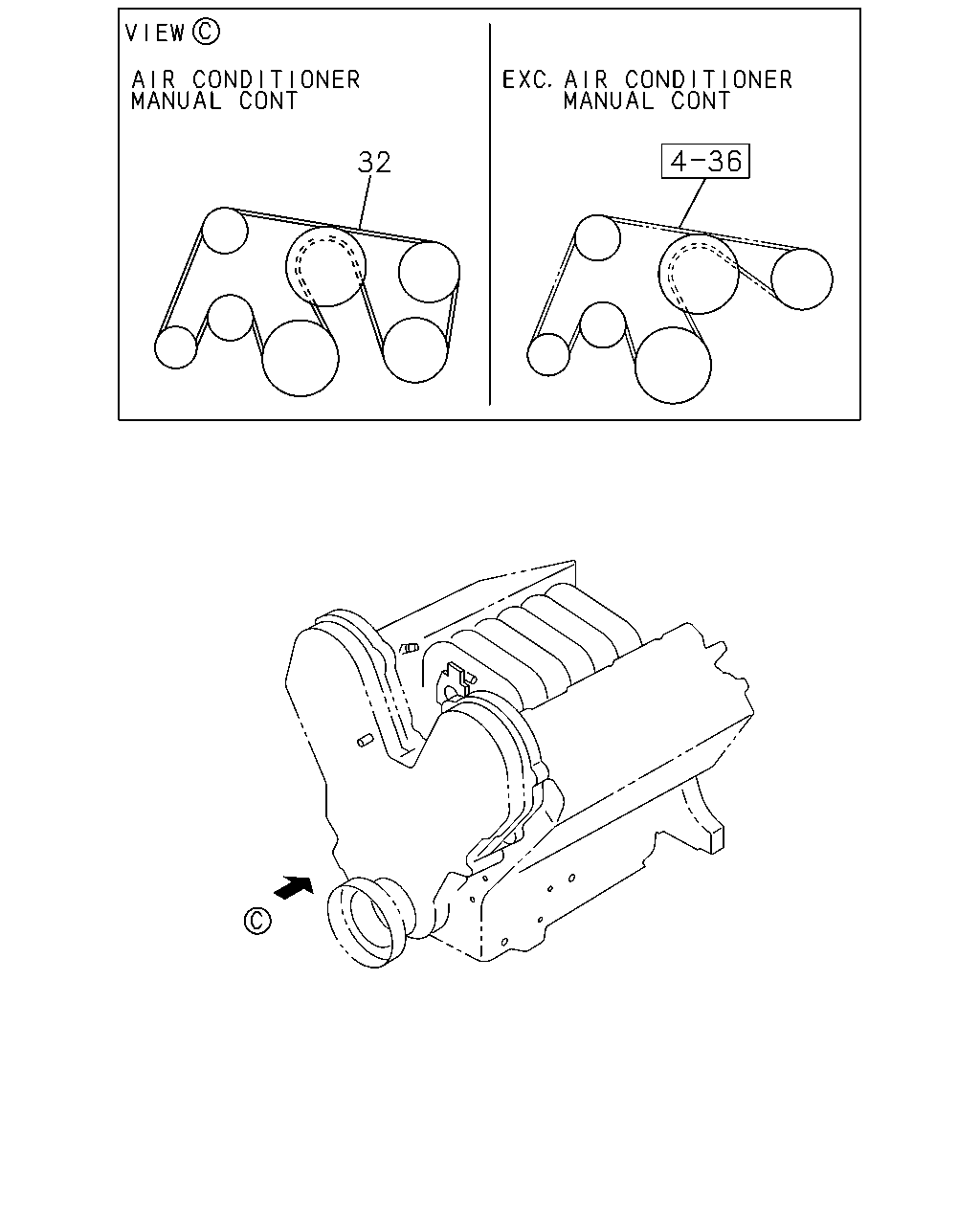

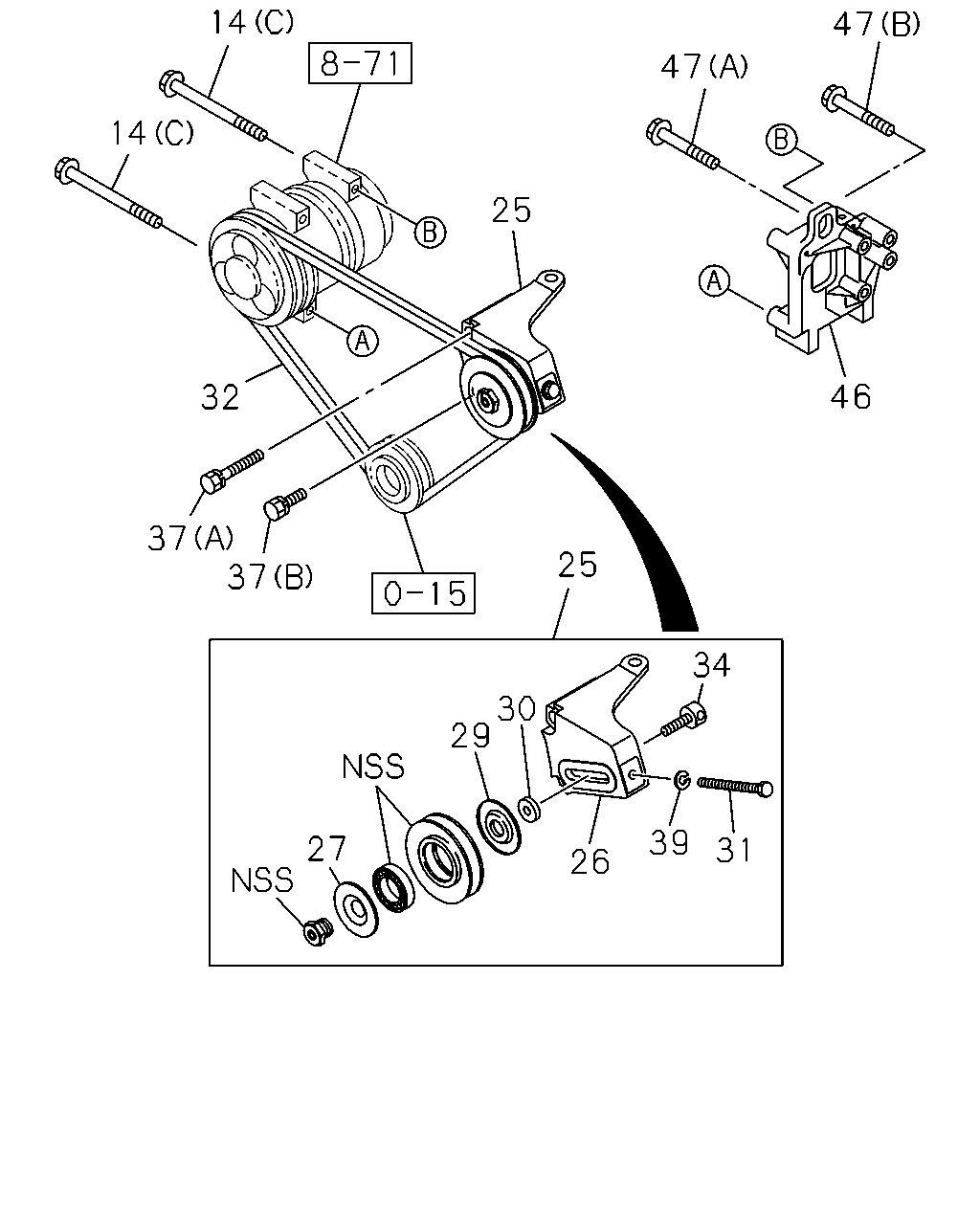

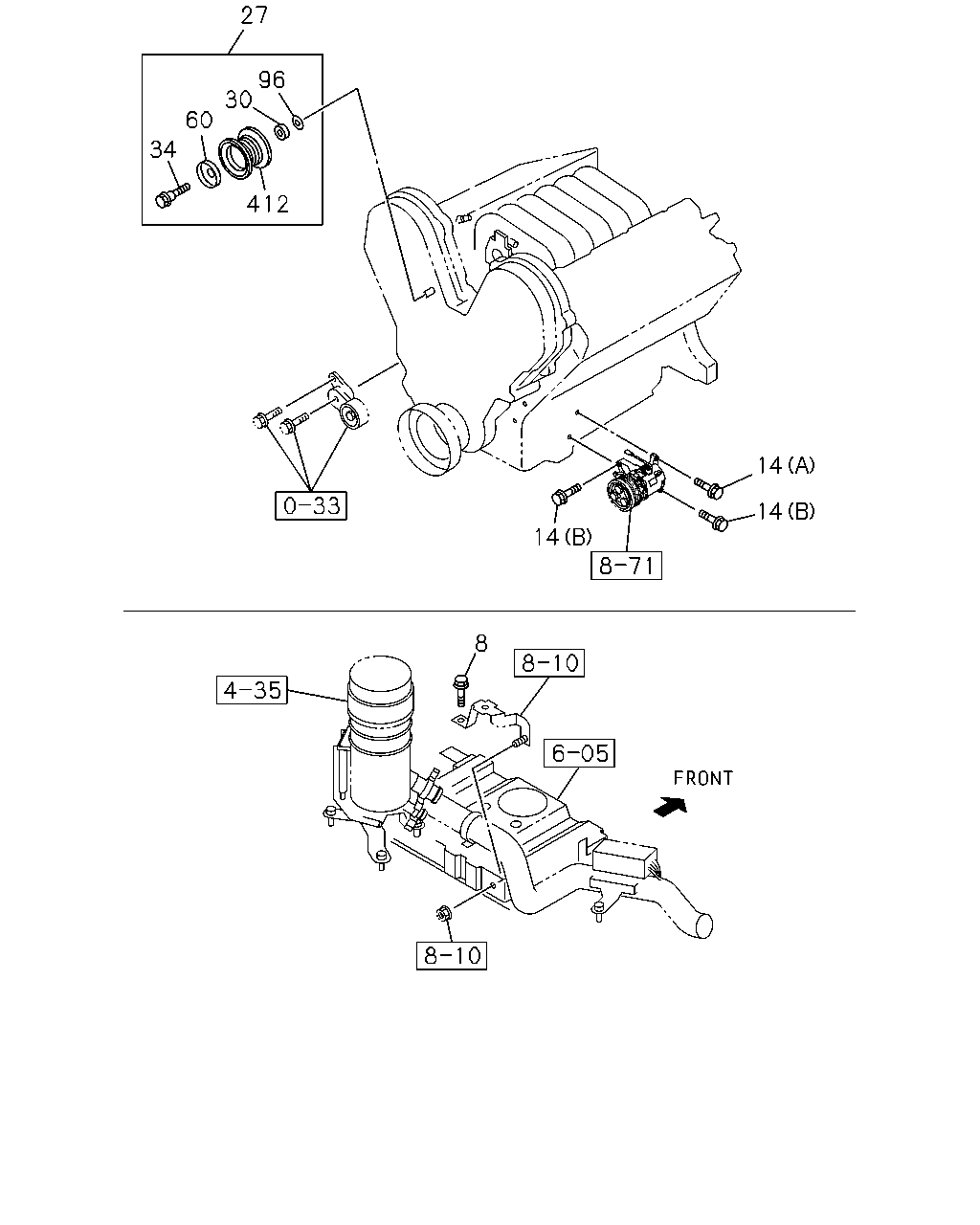

8-50 — AIR CONDITIONING SYSTEM; FRONT (#42399) — 81 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=1537 B=12.5 L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0211-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSH I	8-97942-729-0	01	1	0211-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) L=2288	8-97130-560-0	01	1	0211-	●	●	●	●	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1441 B=13.3 L=1451 MITSUBOSHI	1-13671-301-0	01	1	0211-			●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) L=918	8-92063-696-0	01	1	0211-			●	●

210 46 47 25 30 29 41 44 27 29 33 14 12 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
12	09.181 BOLT; ADJ,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-139-0	01	1	0211-			●	●
14	09.171 BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) M10X100 FLANGE	0-28151-000-0	04	1	0211-	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0211-	●	●	●	●	●		●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0211-	●	●	●	●	●		●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (D) M10X100 FLANGE	0-28181-000-0	04	1	0211-			●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97942-989-0	01	1	0211-			●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-142-0	01	1	0211-			●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(RJQ)	8-97178-354-0	01	1	0211-	●	●	●	●	●		●	●
27	09.180 PULLEY; IDLE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> SCAL	8-97920-463-0	01	1	0211-			●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-145-0	01	1	0211-			●	●
29	09.181 COVER; DUST,IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-462-0	01	1	0211-			●
29	09.181 COVER; DUST,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92064-070-0	02	1	0211-			●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(RJQ)	8-97185-854-0	01	1	0211-	●	●	●	●	●		●	●
30	09.181 COLLAR; IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-412-0	01	1	0211-			●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-143-0	01	1	0211-			●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=1537 B=12.5 L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0211-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSH I	8-97942-729-0	01	1	0211-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) L=2288	8-97130-560-0	01	1	0211-	●	●	●	●	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1441 B=13.3 L=1451 MITSUBOSHI	1-13671-301-0	01	1	0211-			●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) L=918	8-92063-696-0	01	1	0211-			●	●
33	09.181 NUT; IDLER PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-146-0	01	1	0211-			●	●
41	09.181 RING; SNAP,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97354-234-0	01	1	0211-			●	●
44	09.180 BEARING; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-97354-233-0	01	1	0211-			●	●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97920-583-1	01	1	0211-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 09.180	8-92065-518-0	01	1	0211-			●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 FLANGE	0-28050-845-0	02	1	0211-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10X50 FLANGE	0-28051-050-0	02	1	0211-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0211-			●	●
210	09.242 CLIP; HARNESS C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 02.559	8-94109-862-0	01	1	0211-			●	●

14 47 47 14 25 46 32 37 37 25 34 30 29 39 27 31 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	09.171 BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) M10X100 FLANGE	0-28151-000-0	04	1	0211-	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0211-	●	●	●	●	●		●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0211-	●	●	●	●	●		●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (D) M10X100 FLANGE	0-28181-000-0	04	1	0211-			●	●
25	09.180 PULLEY ASM; IDLER,CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97942-989-0	01	1	0211-			●
25	09.180 PULLEY ASM; IDLER,CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-142-0	01	1	0211-			●	●
26	09.180 BRACKET; IDLE PULLEY,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97943-100-0	01	1	0211-			●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(RJQ)	8-97178-354-0	01	1	0211-	●	●	●	●	●		●	●
27	09.180 PULLEY; IDLE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> SCAL	8-97920-463-0	01	1	0211-			●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-145-0	01	1	0211-			●	●
29	09.181 COVER; DUST,IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-462-0	01	1	0211-			●
29	09.181 COVER; DUST,IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92064-070-0	02	1	0211-			●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(RJQ)	8-97185-854-0	01	1	0211-	●	●	●	●	●		●	●
30	09.181 COLLAR; IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-412-0	01	1	0211-			●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-143-0	01	1	0211-			●	●
31	09.181 BOLT; ADJ,IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-413-0	01	1	0211-			●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=1537 B=12.5 L=1537 1 SET=2 PIECE BANDO	8-97942-725-0	01	1	0211-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> L=1537 B=13.3 1 SET=2 PIECE(8979427240) MITSUBOSH I	8-97942-729-0	01	1	0211-	●	●	●	●	●	●	●	●
32	01.066 BELT; A/C CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) L=2288	8-97130-560-0	01	1	0211-	●	●	●	●	●		●	●
32	01.066 BELT; A/C CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> L=1441 B=13.3 L=1451 MITSUBOSHI	1-13671-301-0	01	1	0211-			●
32	01.066 BELT; A/C CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) L=918	8-92063-696-0	01	1	0211-			●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(RJQ)	8-97185-858-0	01	1	0211-	●	●	●	●	●		●	●
34	09.181 SHAFT; IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-414-0	01	1	0211-			●
37	09.173 BOLT; PULLEY BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> (A) M10X80 FLANGE	0-28051-080-0	01	1	0211-			●
37	09.173 BOLT; PULLEY BRKT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> (B)	8-97919-730-1	01	1	0211-			●
39	09.181 WASHER; LK,ADJ BOLT 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97919-999-0	01	1	0211-			●
46	09.171 BRACKET; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60)	8-97920-583-1	01	1	0211-	●	●	●	●	●	●	●	●
46	09.171 BRACKET; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 09.180	8-92065-518-0	01	1	0211-			●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 FLANGE	0-28050-845-0	02	1	0211-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (A) M10X50 FLANGE	0-28051-050-0	02	1	0211-	●	●	●	●	●	●	●	●
47	09.173 BOLT; BRKT TO BODY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) 00.029 (C) M10X35 FLANGE	0-28751-035-0	03	1	0211-			●	●

27 96 30 60 34 412 14 14 14 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	09.171 BOLT; BRKT 6VE1 ENG(RJQ) M6X16 FLANGE	0-28450-616-0	01	1	0211-	●	●	●	●	●		●	●
14	09.171 BOLT; CMPR 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) (C) M10X100 FLANGE	0-28151-000-0	04	1	0211-	●	●	●	●	●	●	●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) (A) M10X100 FLANGE	0-28151-000-0	01	1	0211-	●	●	●	●	●		●	●
14	09.171 BOLT; CMPR 6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) 09.181 (B) M10X45 FLANGE	0-28151-045-0	02	1	0211-	●	●	●	●	●		●	●
14	09.171 BOLT; CMPR C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60) (D) M10X100 FLANGE	0-28181-000-0	04	1	0211-			●	●
27	09.180 PULLEY; IDLE,A/C 6VE1 ENG(RJQ)	8-97178-354-0	01	1	0211-	●	●	●	●	●		●	●
27	09.180 PULLEY; IDLE,A/C 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40> SCAL	8-97920-463-0	01	1	0211-			●
27	09.180 PULLEY; IDLE,A/C C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-145-0	01	1	0211-			●	●
30	09.181 COLLAR; IDLE PULLEY 6VE1 ENG(RJQ)	8-97185-854-0	01	1	0211-	●	●	●	●	●		●	●
30	09.181 COLLAR; IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-412-0	01	1	0211-			●
30	09.181 COLLAR; IDLE PULLEY C24SE ENG(LG1) AIR CONDITIONER MANUAL CONT(C60)	8-92066-143-0	01	1	0211-			●	●
34	09.181 SHAFT; IDLE PULLEY 6VE1 ENG(RJQ)	8-97185-858-0	01	1	0211-	●	●	●	●	●		●	●
34	09.181 SHAFT; IDLE PULLEY 4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER STEERING<N40>	8-97920-414-0	01	1	0211-			●
60	09.181 COVER; IDLER PULLEY 6VE1 ENG(RJQ)	8-97185-857-0	01	1	0211-	●	●	●	●	●		●	●
96	08.929 WASHER; LK 6VE1 ENG(RJQ)	8-97185-853-0	01	1	0211-	●	●	●	●	●		●	●
412	09.180 PULLEY; IDLER WITH BRG 6VE1 ENG(RJQ)	8-97185-859-0	01	1	0211-	●	●	●	●	●		●	●
