8-40 — HEATER SYSTEM (#42397) — 32 parça

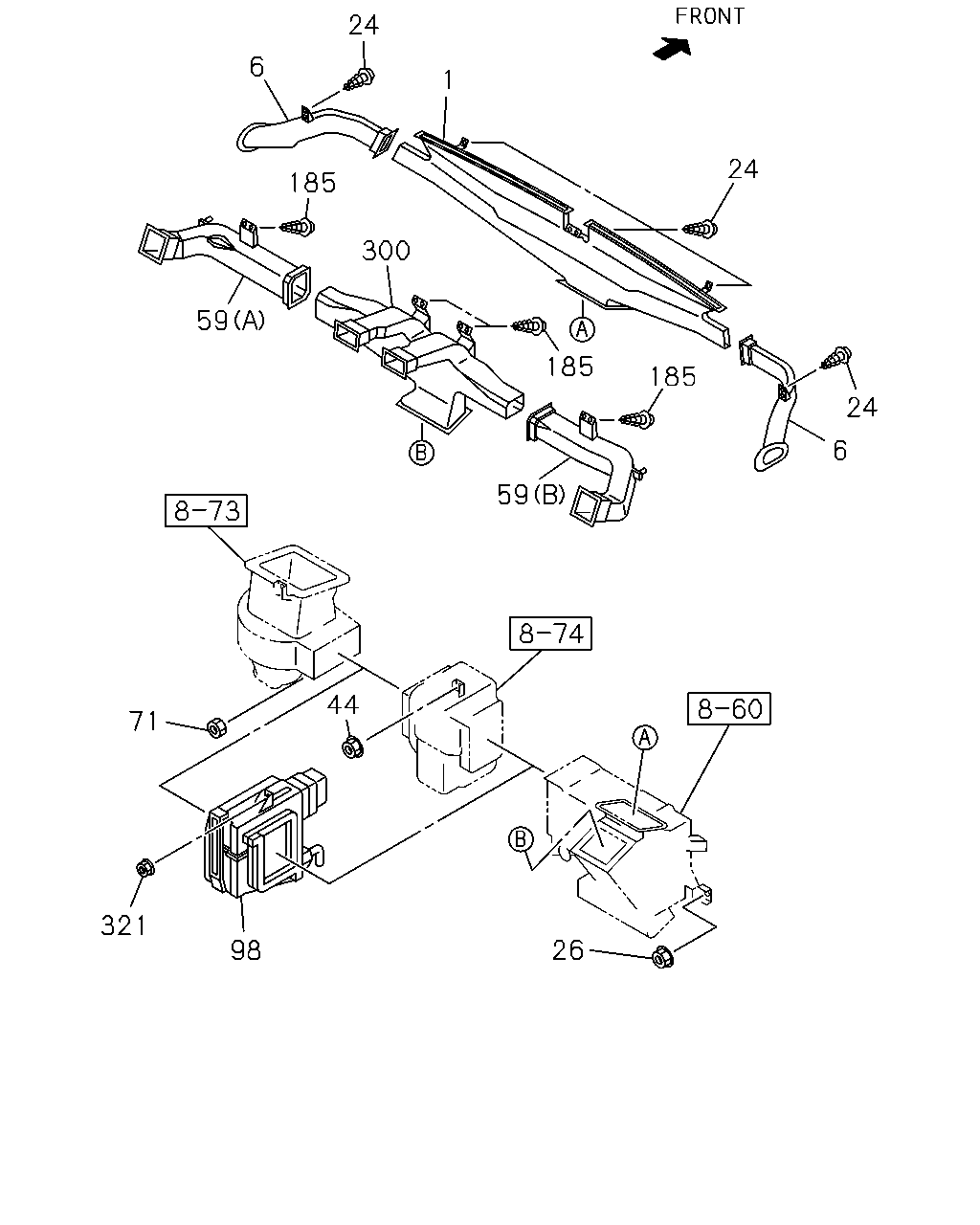

çizim 49946
24 6 1 24 185 300 59 185 185 24 6 59 44 71 321 26 98
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.779 NOZZLE; DEFROSTER,INST PNL 8-97235-773-1 01 1 0211- ● ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-878-0 01 1 0211- ● ● ● ● ● ● ● ●
6 09.779 DUCT; SIDE DEFROSTER 8-97235-874-0 01 1 0211- ● ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 06 1 0211-0304 ● ● ● ● ● ● ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
16.085 M5X16 TAPPING 		9-09829-323-1 05 1 0305- ● ● ● ● ● ● ● ●
26 08.845 NUT; HTR
07.833 M6 FLANGE 		8-97063-399-0 04 1 0211- ● ● ● ● ● ● ● ●
44 09.222 NUT; EVAP
AIR CONDITIONER MANUAL CONT(C60) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0211- ● ● ● ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-97235-884-1 01 1 0211- ● ● ● ● ● ● ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-97235-886-1 01 1 0211- ● ● ● ● ● ● ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
07.833 M6 FLANGE 		8-97063-399-0 03 1 0211- ● ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41) 		8-97234-557-2 01 1 0211- ● ● ● ● ● ● ● ●
185 09.262 SCREW; VENT DUCT
16.085 M5X16 TAPPING 		9-09829-323-1 04 1 0211- ● ● ● ● ● ● ● ●
300 09.264 DUCT; VENT,CENTER 8-97235-881-0 01 1 0211- ● ● ● ● ● ● ● ●
321 08.845 NUT; DUCT FIX
HEATER & DEFROSTER(C41) 07.833 M6 FLANGE 		8-97063-399-0 02 1 0211- ● ● ● ● ● ● ● ●

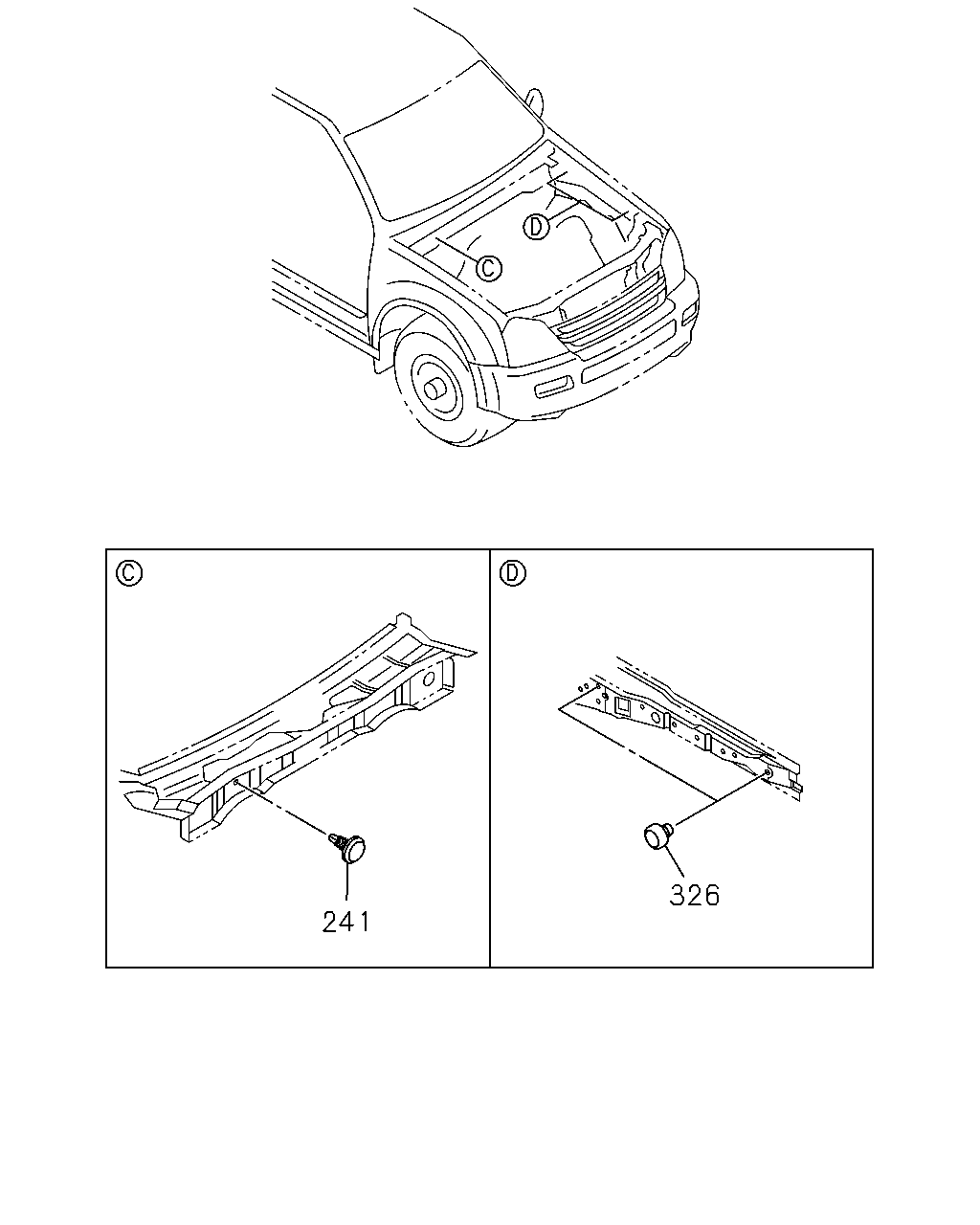

çizim 50822
326 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 16.067 		8-94279-922-0 01 1 0211- ● ● ● ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 16.067 		8-94279-922-0 02 1 0211- ● ● ● ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
6VE1 ENG(RJQ) 16.067 		8-94279-922-0 02 1 0211- ● ● ● ● ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
C24SE ENG(LG1),6VE1 ENG(RJQ) 16.067 		8-94279-922-0 02 1 0211- ● ●
326 08.845 GROMMET; DRAIN HOSE
4JH1-TC ENG(RDM) 16.550 OD=12 		9-09956-122-0 02 1 0211- ● ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
C24SE ENG(LG1),6VE1 ENG(RJQ) HEATER & DEFROSTER(C41) 16.550 OD=12 		9-09956-122-0 02 1 0211- ● ● ● ● ● ● ●
326 08.845 GROMMET; DRAIN HOSE
16.550 OD=12 		9-09956-122-0 02 1 0211- ●

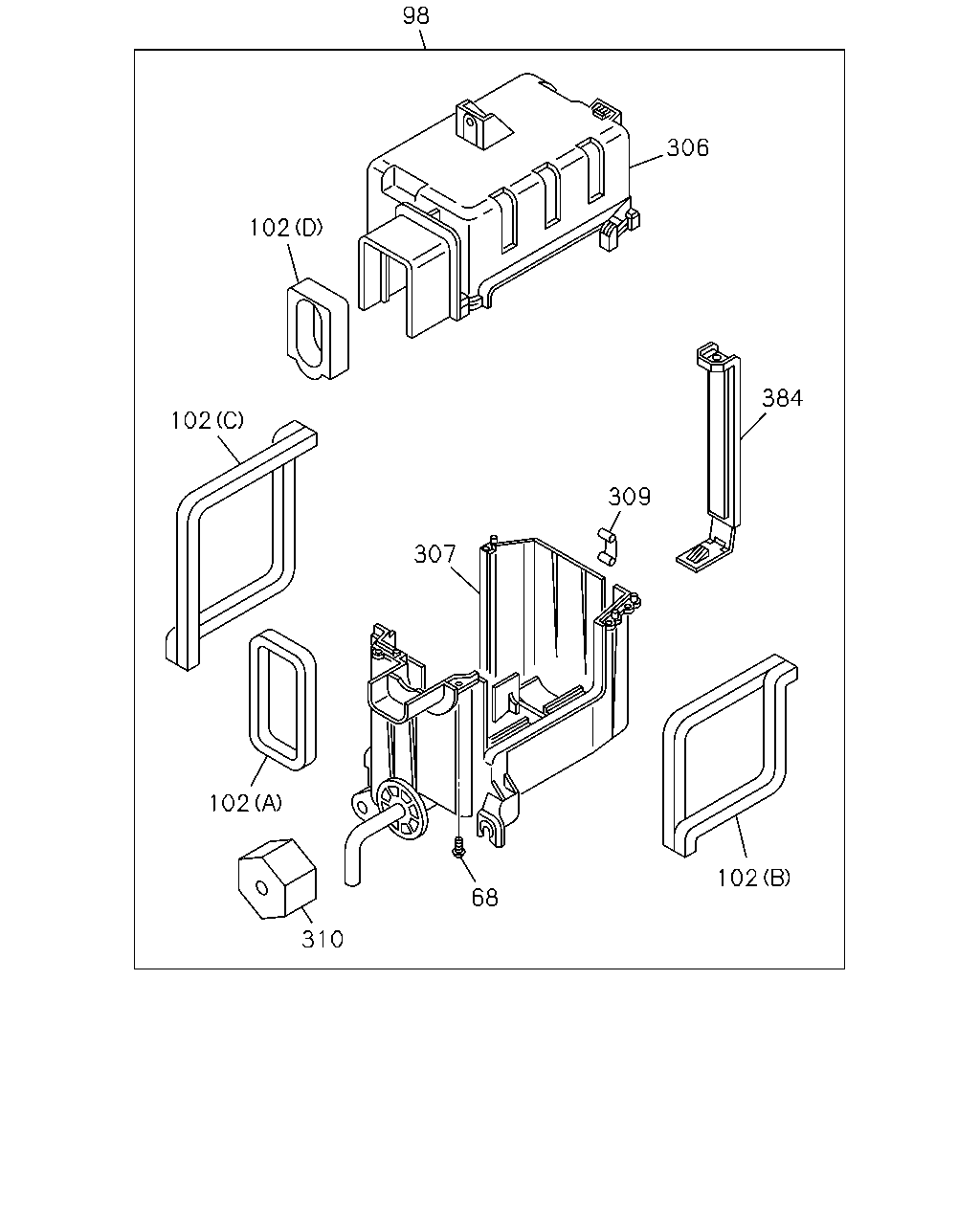

çizim 53358
98 306 102 384 102 309 307 102 102 68 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
68 09.786 SCREW; HTR DUCT
HEATER & DEFROSTER(C41) 09.211 		8-97321-165-0 05 1 0211- ● ● ● ● ● ● ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C41) 		8-97234-557-2 01 1 0211- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) 09.211 (A) 		8-97321-158-1 01 1 0211- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) 09.211 (B) 		8-97321-159-0 01 1 0211- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) 09.211 (C) 		8-97321-160-0 01 1 0211- ● ● ● ● ● ● ● ●
102 09.262 LINING; HTR DUCT
HEATER & DEFROSTER(C41) (D) 		8-97355-831-0 01 1 0211- ● ● ● ● ● ● ● ●
306 08.845 CASE; UPR,HTR DUCT
HEATER & DEFROSTER(C41) 09.211 		8-97321-144-0 01 1 0211- ● ● ● ● ● ● ● ●
307 08.845 CASE; LWR,HTR DUCT
HEATER & DEFROSTER(C41) 09.211 		8-97321-145-0 01 1 0211- ● ● ● ● ● ● ● ●
309 09.262 CLIP; CASE,HTR DUCT
HEATER & DEFROSTER(C41) 09.211 		8-97321-166-0 01 1 0211- ● ● ● ● ● ● ● ●
310 08.845 GROMMET; HTR DUCT
HEATER & DEFROSTER(C41) 09.211 		8-97321-157-0 01 1 0211- ● ● ● ● ● ● ● ●
384 08.845 COVER; DUCT
HEATER & DEFROSTER(C41) 09.211 		8-97321-156-0 01 1 0211- ● ● ● ● ● ● ● ●
