◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#42395) — 6 parça

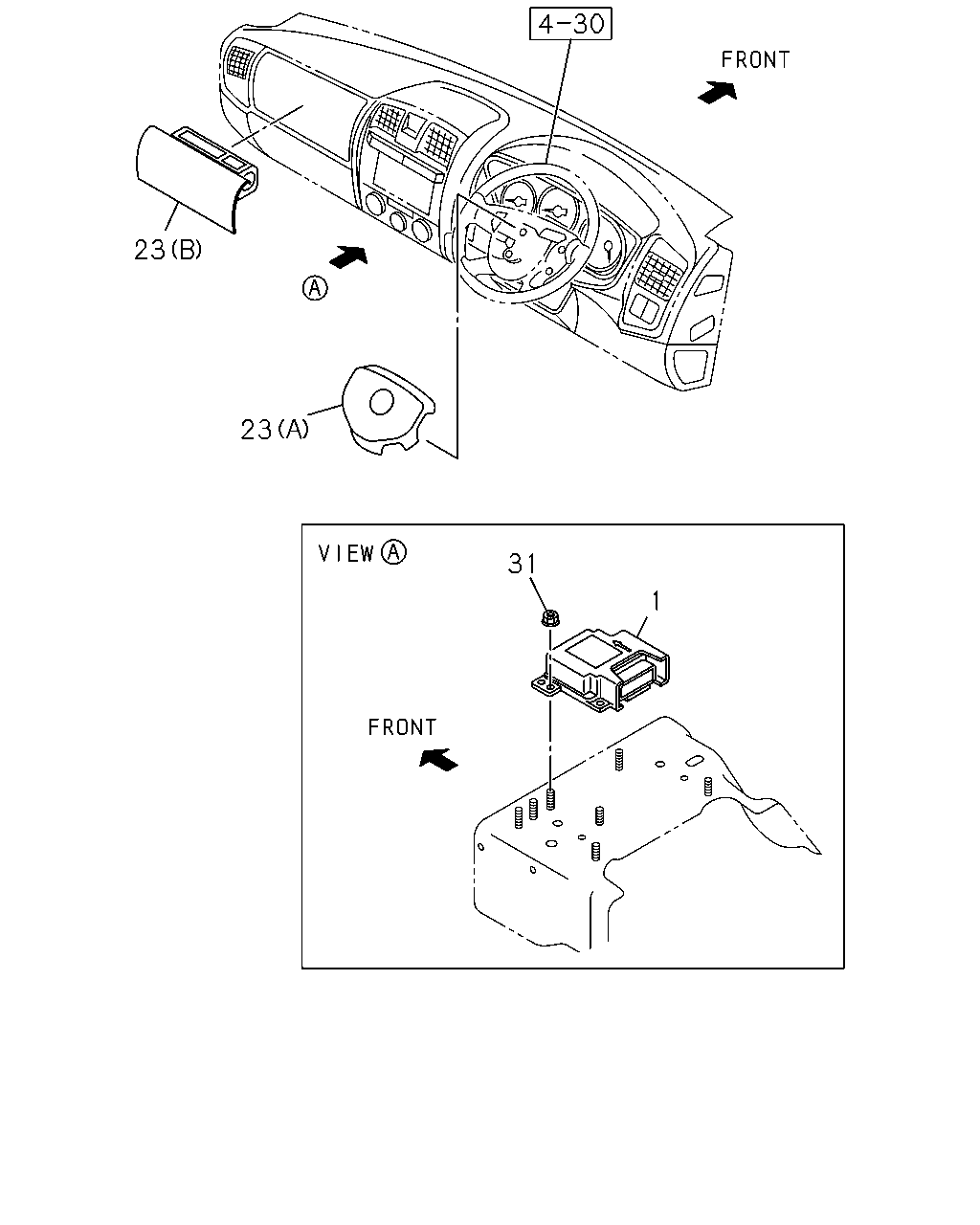

çizim 52519
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97352-916-0 01 1 0211-0305 ● ● ● ● ● ● ● ●
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97360-407-0 01 1 0306- ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97294-766-3 01 1 0211- ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97395-749-0 01 1 0211-0305 ● ● ● ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97396-840-0 01 1 0306- ● ● ● ● ● ● ● ●
31 14.865 NUT
AIR BAG DRIVER & PASSENGER(AK5) 01.062 M6 FLANGE 		0-91150-206-0 03 1 0211- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
