Isuzu WW
▶
PICKUP
▶
TFR
▶
50936 - TFR/TFS(AUSTRALIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#42394) — 28 parça
Tümü
A - TFB5WF
B - TFS5CF
C - TFS5W
D - TFS5CK
E - TFS5SK
F - TFB5CF
G - TFB5CK
H - TFB5S
◀
[826A] NO.3 (7 parça)
[826A] NO.2 (7 parça)
[826A] NO.1 (14 parça)
▶
263
494
33
11
691
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H

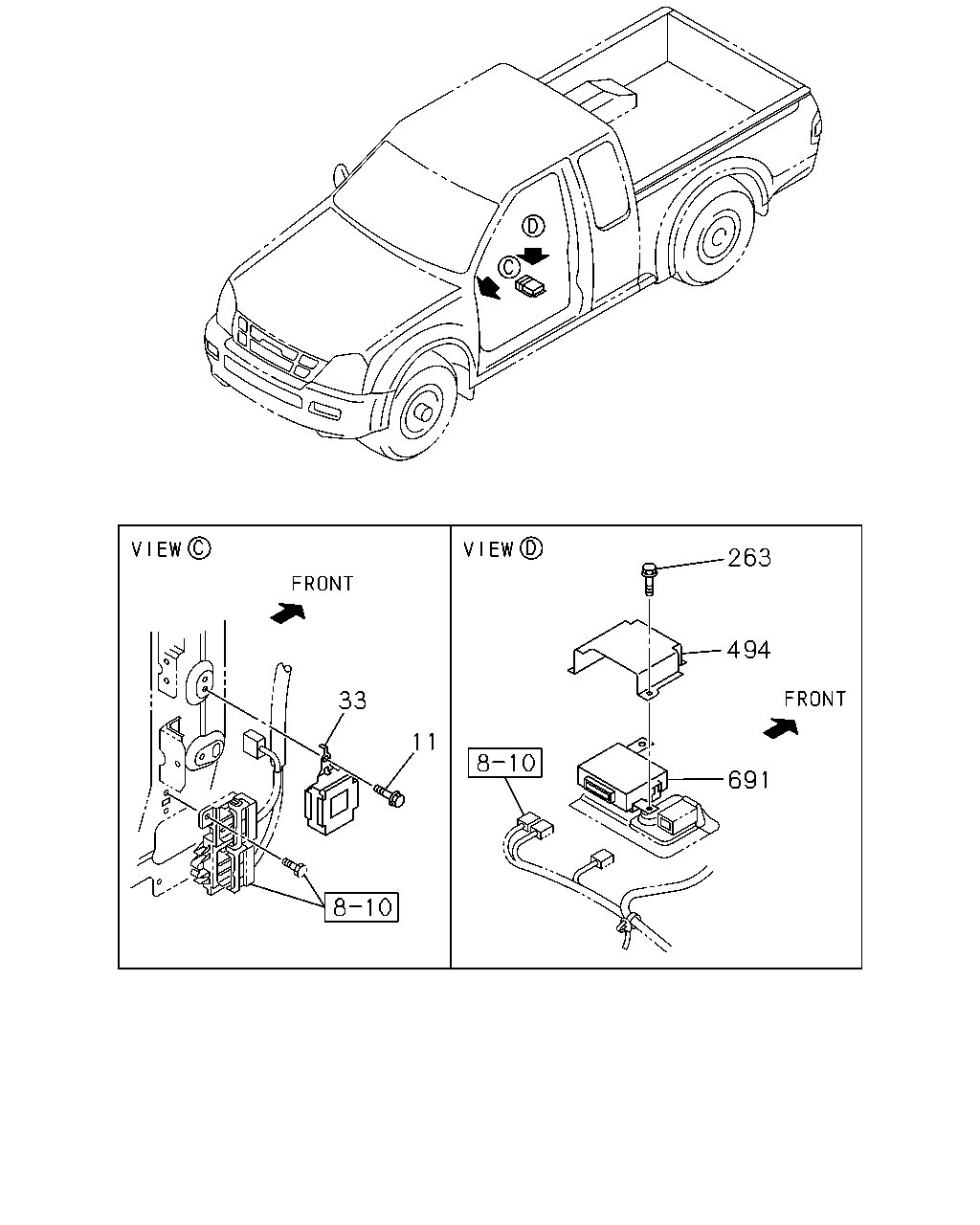

11
03.880 BOLT; CONTROLLER,CRUISE
AUTO CRUISE CONT<K30> 03.162 M6X20 FLANGE
0-28650-620-0
01
1
0211-
●
●
●
33
02.510 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30>
8-97300-153-0
01
1
0211-
●
●
●
263
04.115 BOLT; CONT UNIT
04.439 M6X16 FLANGE
0-28680-616-0
02
1
0211-
●
●
●
●
494
04.115 COVER; ELEC BOX
8-97328-613-0
01
1
0211-
●
●
●
●
691
04.115 CONTROLLER; TRANSFER
8-97351-960-1
02
1
0211-0305
●
●
●
●
691
04.115 CONTROLLER; TRANSFER
8-97351-960-1
01
1
0306-
●
●
●
●
691
04.115 CONTROLLER; TRANSFER
8-97368-449-0
01
1
0306-
●
●
●
●
107
101
305
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H

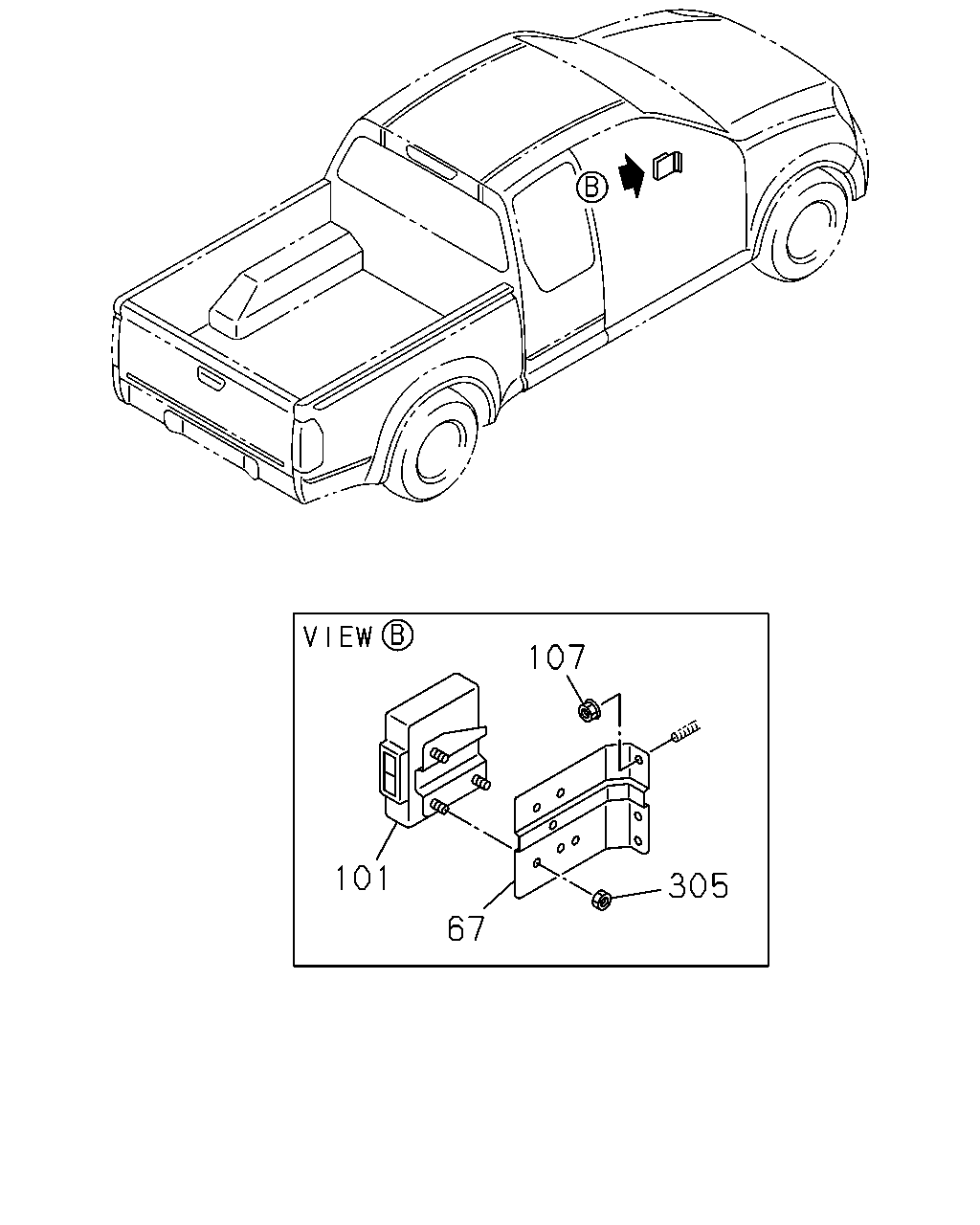

67
03.887 BRACKET; CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)
8-97306-829-0
01
1
0211-
●
●
●
●
●
101
04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK)
8-97357-145-0
01
1
0211-0211
●
●
●
●
●
●
●
●
101
04.115 CONTROL UNIT; ELEC,A/T
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK)
8-97358-557-0
01
1
0212-
●
●
●
●
●
●
●
●
101
04.115 CONTROL UNIT; ELEC,A/T
6VE1 ENG(RJQ) A/T AISIN(RMD)
8-97355-189-0
01
1
0211-
●
●
●
●
●
107
04.115 NUT; BRKT,ELEC CONT UNIT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M8 FLANGE
0-91180-108-0
02
1
0211-
●
●
●
●
●
305
08.915 NUT; CONT UNIT
A/T AISIN(RMD) 01.062 M6 FLANGE
0-91180-106-0
02
1
0211-
●
●
●
●
●
305
08.915 NUT; CONT UNIT
A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE
0-91180-106-0
03
1
0211-
●
●
279
153
1
1
3
234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H

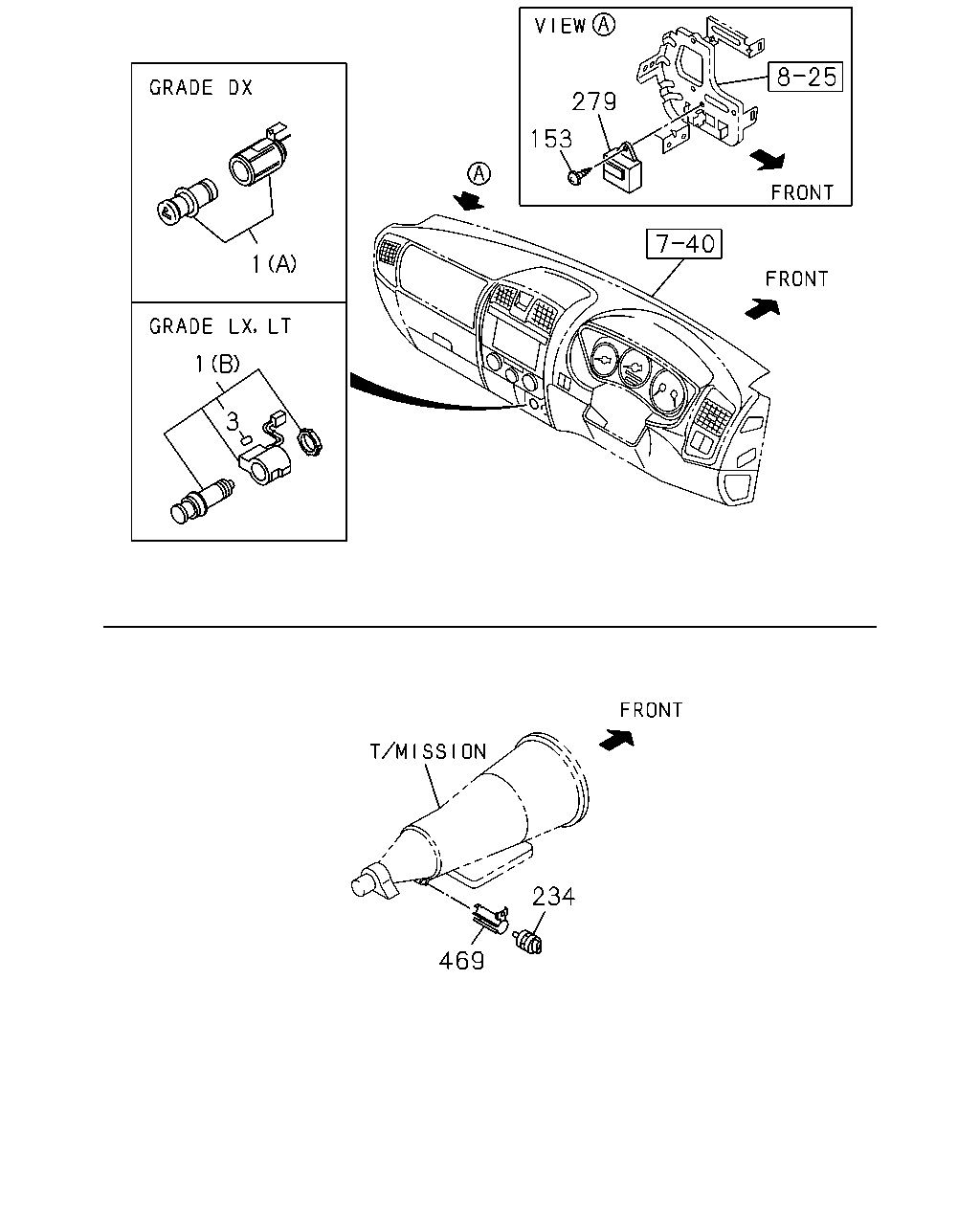

1
09.709 LIGHTER; CIGAR
(B)
8-97329-641-0
01
1
0211-
●
●
●
●
●
1
09.709 LIGHTER; CIGAR
GRADE LX(RBB),GRADE LT(RBD) (B)
8-97329-641-0
01
1
0211-
●
●
●
1
09.709 LIGHTER; CIGAR
GRADE DX(RBA) (A)
8-97314-003-0
01
1
0211-
●
●
●
3
08.991 BULB; CIGAR LIGHTER
14V 1.4W
8-97173-160-0
01
1
0211-
●
●
●
●
●
3
08.991 BULB; CIGAR LIGHTER
GRADE LX(RBB),GRADE LT(RBD) 14V 1.4W
8-97173-160-0
01
1
0211-
●
●
●
153
16.085 BOLT; BUZZER FIX
M5X16 TAPPING
9-09829-323-1
01
1
0211-
●
●
●
153
16.085 BOLT; BUZZER FIX
HEAD LAMP REMINDER<T63> M5X16 TAPPING
9-09829-323-1
01
1
0211-
●
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
A/T AISIN(RMD)
8-97129-705-0
01
1
0211-
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
0211-
●
●
●
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
0211-
●
●
●
●
279
16.081 BUZZER ASM; SEAT BELT WARNING
8-97135-562-0
01
1
0211-
●
●
●
279
16.081 BUZZER ASM; SEAT BELT WARNING
HEAD LAMP REMINDER<T63>
8-97135-562-0
01
1
0211-
●
●
●
●
●
469
03.682 PROTECTOR; SPEED SENSOR
A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)
8-97168-308-0
01
1
0211-
●
●
●
●
469
03.682 PROTECTOR; SPEED SENSOR
6VE1 ENG(RJQ) 02.559
8-97350-141-0
01
1
0211-
●
●
●
