8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#42393) — 82 parça
çizim 49272
99 45 208 154 164 85 490 277
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
45 02.252 RELAY; HORN
02.485 12V YAZAKI 		8-97309-292-0 01 1 0211- ● ● ● ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
12V YAZAKI 		8-97309-294-0 01 1 0211- ● ● ● ● ● ● ● ●
99 02.485 RELAY; FOG LAMP
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) 12V YAZAKI 		8-97309-292-0 01 1 0211- ● ● ● ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
09.778 12V YAZAKI 		8-97309-293-0 01 1 0211- ● ● ● ● ● ● ● ●
164 02.510 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 0211- ● ● ● ● ● ● ● ●
208 02.485 RELAY; DIMMER & PASSING
12V YAZAKI 		8-97309-292-0 01 1 0211- ● ● ● ● ● ● ● ●
277 03.900 RELAY; FUEL PUMP
C24SE ENG(LG1),6VE1 ENG(RJQ) 02.485 12V YAZAKI 		8-97309-292-0 01 1 0211- ● ● ● ● ● ● ●
490 09.277 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 0211- ● ● ● ● ● ● ● ●

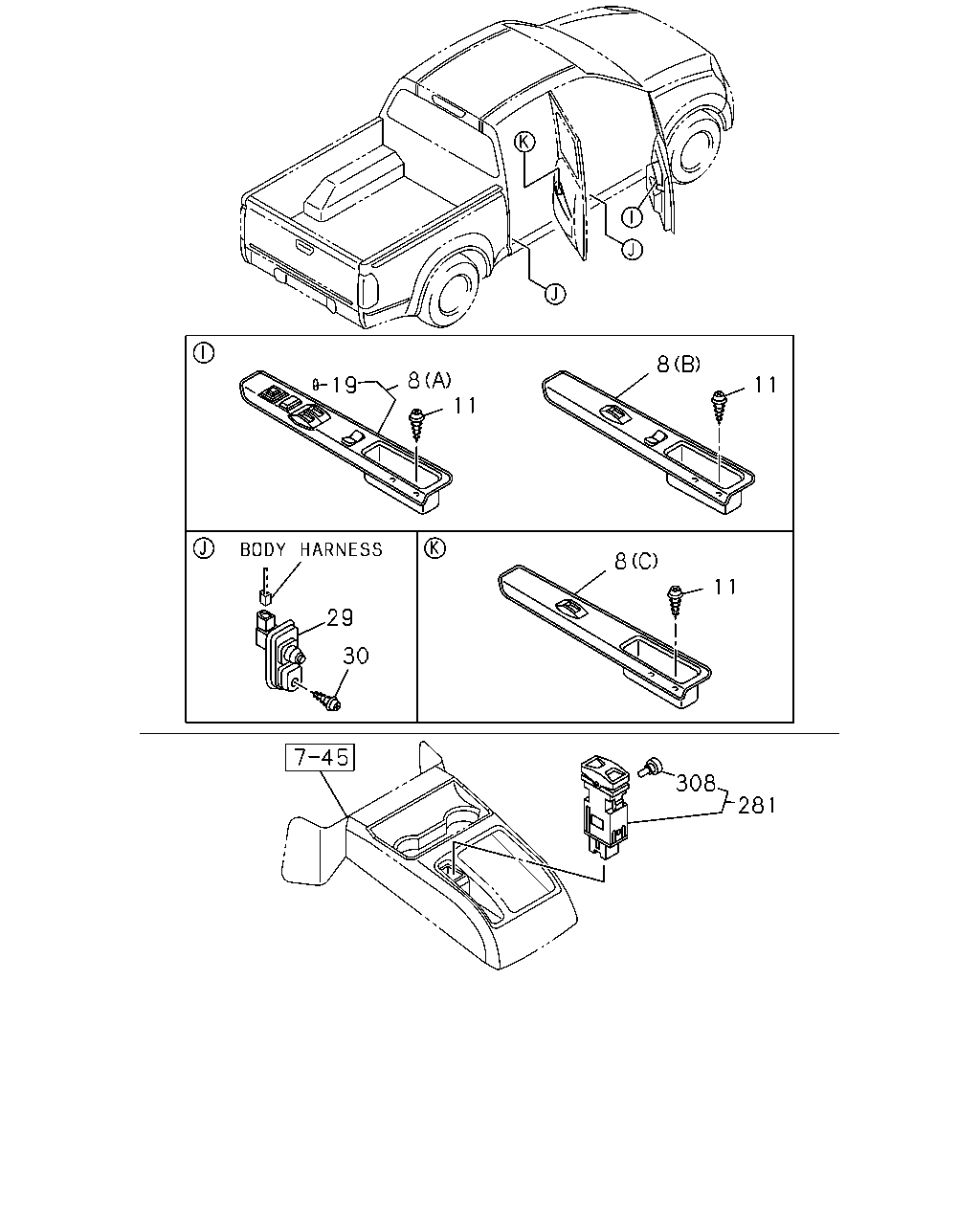

çizim 50504
8 8 11 11 19 8 11 29 30 308 281
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (B) LIGHT GRAY 		8-97298-472-1 01 1 0211-0302 ● ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (B) LIGHT GRAY 		8-97396-102-0 01 1 0303- ● ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (C) LIGHT GRAY 		8-97298-473-0 01 1 0211- ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (A) LIGHT GRAY 		8-97298-471-1 01 1 0211-0302 ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (A) LIGHT GRAY 		8-97396-103-0 01 1 0303- ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (C) LIGHT GRAY 		8-97298-474-0 01 1 0211- ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LX(RBB) POWER WINDOW<A30> (B) DARK GRAY 		8-97392-409-0 01 1 0211-0302 ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LX(RBB) POWER WINDOW<A30> (B) DARK GRAY 		8-97396-105-0 01 1 0303- ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LX(RBB) POWER WINDOW<A30> (C) DARK GRAY 		8-97392-410-0 01 1 0211- ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LX(RBB) POWER WINDOW<A30> (A) DARK GRAY 		8-97392-408-0 01 1 0211-0302 ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LX(RBB) POWER WINDOW<A30> (A) DARK GRAY 		8-97396-104-0 01 1 0303- ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LX(RBB) POWER WINDOW<A30> (C) DARK GRAY 		8-97392-411-0 01 1 0211- ● ●
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (A) LIGHT GRAY 		8-97298-470-1 01 1 0211-0302 ●
8 16.263 SWITCH; POWER WINDOW
GRADE LT(RBD) (A) LIGHT GRAY 		8-97396-101-0 01 1 0303- ●
11 03.885 BOLT; POWER WINDOW
POWER WINDOW<A30> 12.182 M5X14 		8-94152-495-0 04 1 0211- ● ● ●
11 03.885 BOLT; POWER WINDOW
POWER WINDOW<A30> 12.182 M5X14 		8-94152-495-0 04 1 0211- ● ●
19 08.991 BULB; POWER WINDOW SW
GRADE LT(RBD) POWER WINDOW<A30> DOOR MIRROR ELECTRIC CONT BRIGHT(7HX) 		8-97327-881-0 02 1 0211- ● ● ●
19 08.991 BULB; POWER WINDOW SW
GRADE LX(RBB) POWER WINDOW<A30> 		8-97327-881-0 01 1 0211- ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 02 1 0211- ● ● ● ● ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 04 1 0211- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 0211- ● ● ● ● ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 0211- ● ●
281 04.057 SWITCH; SELECT,TRANS CONT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 16.283 DARK GRAY 		8-97300-364-0 01 1 0211- ● ● ● ● ●
308 08.991 BULB; SELECT SW
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 14V 0.84W 		8-97329-092-0 01 1 0211- ● ● ● ● ●

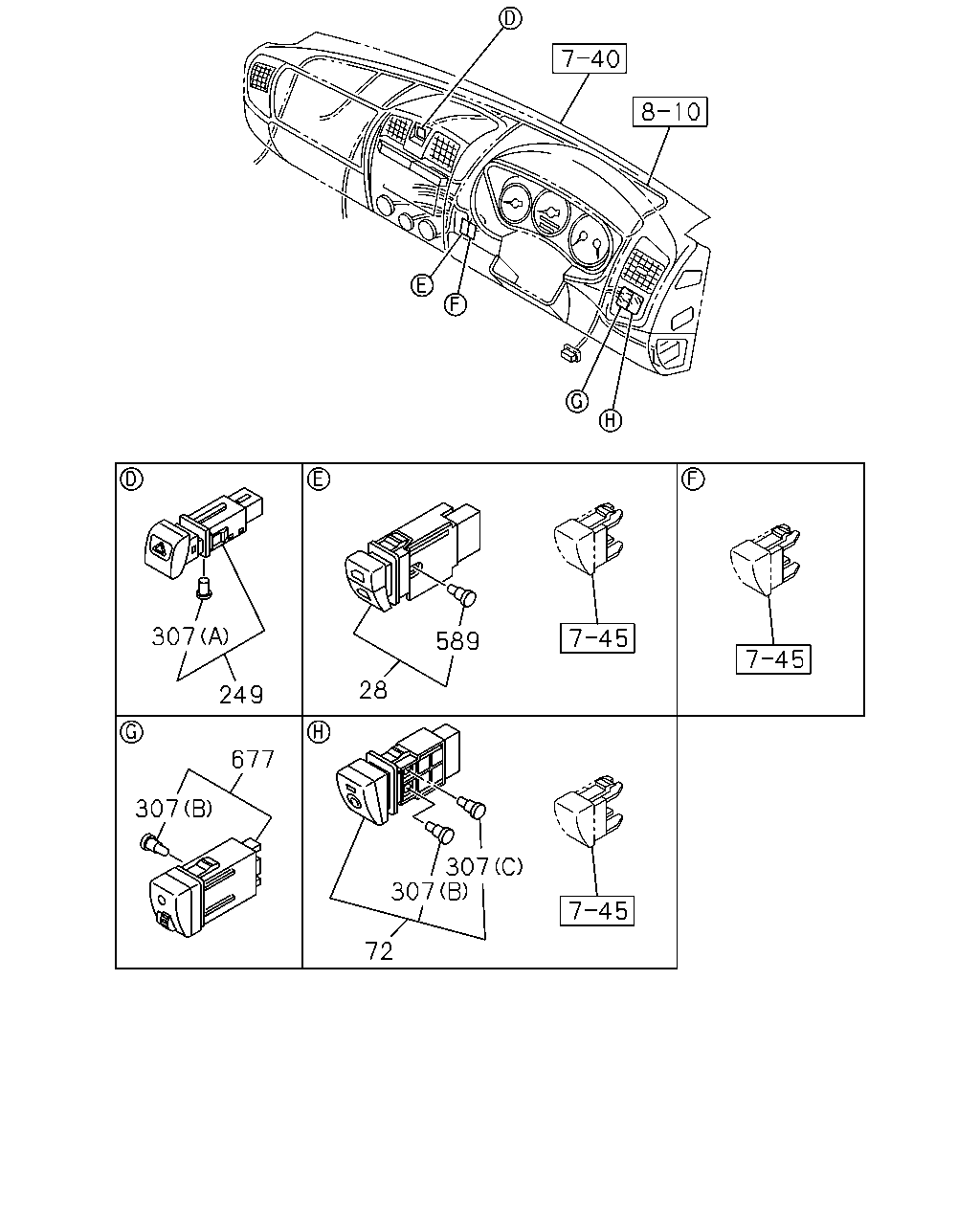

çizim 52518
1 307 589 28 249 677 307 307 307 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97353-696-0 01 1 0211-0211 ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97360-681-0 01 1 0211- ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97304-889-1 01 1 0211-0211 ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97360-680-0 01 1 0211- ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,FRT WIPE R W/VARIABLE INTERMITTENT<6WH> 		8-97304-888-1 01 1 0211-0211 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,FRT WIPE R W/VARIABLE INTERMITTENT<6WH> 		8-97360-679-0 01 1 0211- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> FOG LAMP<T96> 		8-97353-695-0 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> FOG LAMP<T96> 		8-97360-689-0 01 1 0211- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. AUTO CRUISE CONT<K30> 		8-97353-670-0 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. AUTO CRUISE CONT<K30> 		8-97360-687-0 01 1 0211- ● ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97316-110-0 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97360-688-0 01 1 0211- ● ● ●
1 02.895 SWITCH; COMB
FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30> 		8-97300-786-1 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30> 		8-97360-686-0 01 1 0211- ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK 8-97321-870-0 01 1 0211- ● ● ●
28 16.341 SWITCH ASM; DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> EXC. POWER WINDOW<A30> 		8-97321-870-0 01 1 0211- ● ● ● ● ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-97238-509-0 01 1 0211- ● ● ●
249 02.485 SWITCH; HAZARD
DARK GRAY 		8-97238-511-0 01 1 0211- ● ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
(B) 14V 0.84W 		8-97327-317-0 01 1 0211- ● ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (B) 14V 0.84W 		8-97327-317-0 01 1 0211- ● ● ●
307 08.991 BULB ASM; SW
(A) 14V 0.91W 		8-97327-526-0 01 1 0211- ● ● ● ● ● ● ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (C) 14V 0.91W 		8-97355-451-0 01 1 0211- ● ● ●
589 08.991 BULB; DOOR LOCK
14V 0.84W 		8-97327-317-0 01 1 0211- ● ● ●
589 08.991 BULB; DOOR LOCK
AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK<6NF> EXC. POWER WINDOW<A30> 14V 0.84W 		8-97327-317-0 01 1 0211- ● ● ● ● ●
677 02.485 SWITCH; ILLUMINATION 8-97238-512-0 01 1 0211- ● ● ● ● ● ● ● ●
çizim 52960
1 620 600 3 12 140 573 140
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97353-696-0 01 1 0211-0211 ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97360-681-0 01 1 0211- ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97304-889-1 01 1 0211-0211 ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30>,FOG LAMP<T96> 		8-97360-680-0 01 1 0211- ● ● ● ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,FRT WIPE R W/VARIABLE INTERMITTENT<6WH> 		8-97304-888-1 01 1 0211-0211 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER & PASSENGER(AK5),INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,FOG LAMP<T96>,FRT WIPE R W/VARIABLE INTERMITTENT<6WH> 		8-97360-679-0 01 1 0211- ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> FOG LAMP<T96> 		8-97353-695-0 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE CONT<K30> FOG LAMP<T96> 		8-97360-689-0 01 1 0211- ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. AUTO CRUISE CONT<K30> 		8-97353-670-0 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. AUTO CRUISE CONT<K30> 		8-97360-687-0 01 1 0211- ● ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97316-110-0 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97360-688-0 01 1 0211- ● ● ●
1 02.895 SWITCH; COMB
FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30> 		8-97300-786-1 01 1 0211-0211 ● ● ●
1 02.895 SWITCH; COMB
FOG LAMP<T96> EXC. AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE CONT<K30> 		8-97360-686-0 01 1 0211- ● ● ●
3 02.897 SCREW; COMB SW
03.483 M5X14 W/LK&PL WASHER 		9-03920-514-0 02 1 0211- ● ● ● ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW<A30> 09.778 12V YAZAKI 		8-97309-293-0 01 1 0211- ● ● ●
140 09.778 RELAY; RR DEFOGGER
(B) 12V 		8-97301-600-0 01 1 0211- ● ● ● ● ●
140 09.778 RELAY; RR DEFOGGER
REAR DEFOGGER<C49> (B) 12V 		8-97301-600-0 01 1 0211- ●
140 09.778 RELAY; RR DEFOGGER
(A) 12V YAZAKI 		8-97309-293-0 01 1 0211- ● ● ● ● ●
140 09.778 RELAY; RR DEFOGGER
GRADE LX(RBB),GRADE LT(RBD) (A) 12V YAZAKI 		8-97309-293-0 01 1 0211- ● ● ●
573 09.755 SWITCH; 4WD
GRADE DX(RBA),GRADE LX(RBB) DARK GRAY 		8-97298-476-0 01 1 0211- ● ●
573 09.755 SWITCH; 4WD
DARK GRAY 		8-97298-476-0 01 1 0211- ● ●
573 09.755 SWITCH; 4WD
GRADE LT(RBD) LIGHT GRAY 		8-97298-475-0 01 1 0211- ● ●
600 02.895 COIL ASM; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97308-028-1 01 1 0211- ● ● ● ● ● ● ● ●
620 02.895 SCREW; COIL,COMB SW
AIR BAG DRIVER & PASSENGER(AK5) 		8-97166-506-0 06 1 0211- ● ● ● ● ● ● ● ●
