8-21 — METER ASM (#42392) — 45 parça

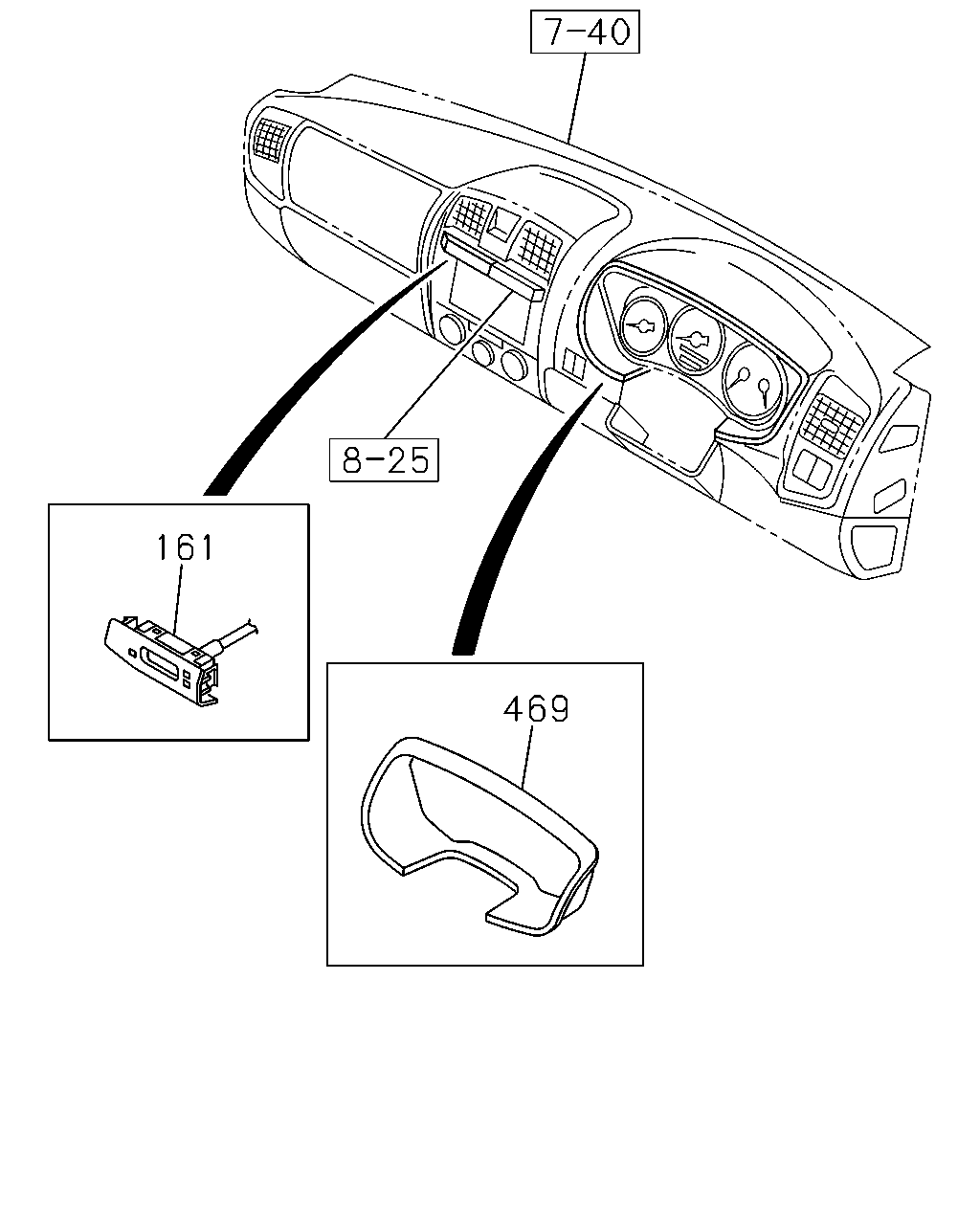

161 469

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
161	09.772 CLOCK; CLUSTER METER GRADE DX(RBA),GRADE LX(RBB) DARK GRAY	8-97396-394-0	01	1	0212-0304	●	●	●	●
161	09.772 CLOCK; CLUSTER METER DARK GRAY	8-97396-394-0	01	1	0305-		●	●		●	●
161	09.772 CLOCK; CLUSTER METER GRADE LX(RBB) DARK GRAY	8-97396-394-0	01	1	0305-	●			●			●	●
161	09.772 CLOCK; CLUSTER METER GRADE DX(RBA) DIGITAL CLOCK<UE8> DARK GRAY	8-97396-394-0	01	1	0305-							●	●
161	09.772 CLOCK; CLUSTER METER DARK GRAY	8-97298-478-0	01	1	0211-0211		●	●		●	●
161	09.772 CLOCK; CLUSTER METER GRADE LX(RBB) DARK GRAY	8-97298-478-0	01	1	0211-0211	●			●			●	●
161	09.772 CLOCK; CLUSTER METER GRADE DX(RBA) DIGITAL CLOCK<UE8> DARK GRAY	8-97298-478-0	01	1	0211-0211							●	●
161	09.772 CLOCK; CLUSTER METER GRADE DX(RBA),GRADE LX(RBB) DIGITAL CLOCK<UE8>	8-97361-636-0	01	1	0212-0304					●	●	●	●
161	09.772 CLOCK; CLUSTER METER GRADE LT(RBD) LIGHT GRAY	8-97298-477-0	01	1	0211-0302	●			●				●
161	09.772 CLOCK; CLUSTER METER GRADE LT(RBD) LIGHT GRAY	8-97396-393-0	01	1	0303-	●			●				●
469	16.080 PLATE; INSTRUMENT PANEL 16.081 DARK GRAY	8-97294-069-0	01	1	0211-	●	●	●	●	●	●	●	●

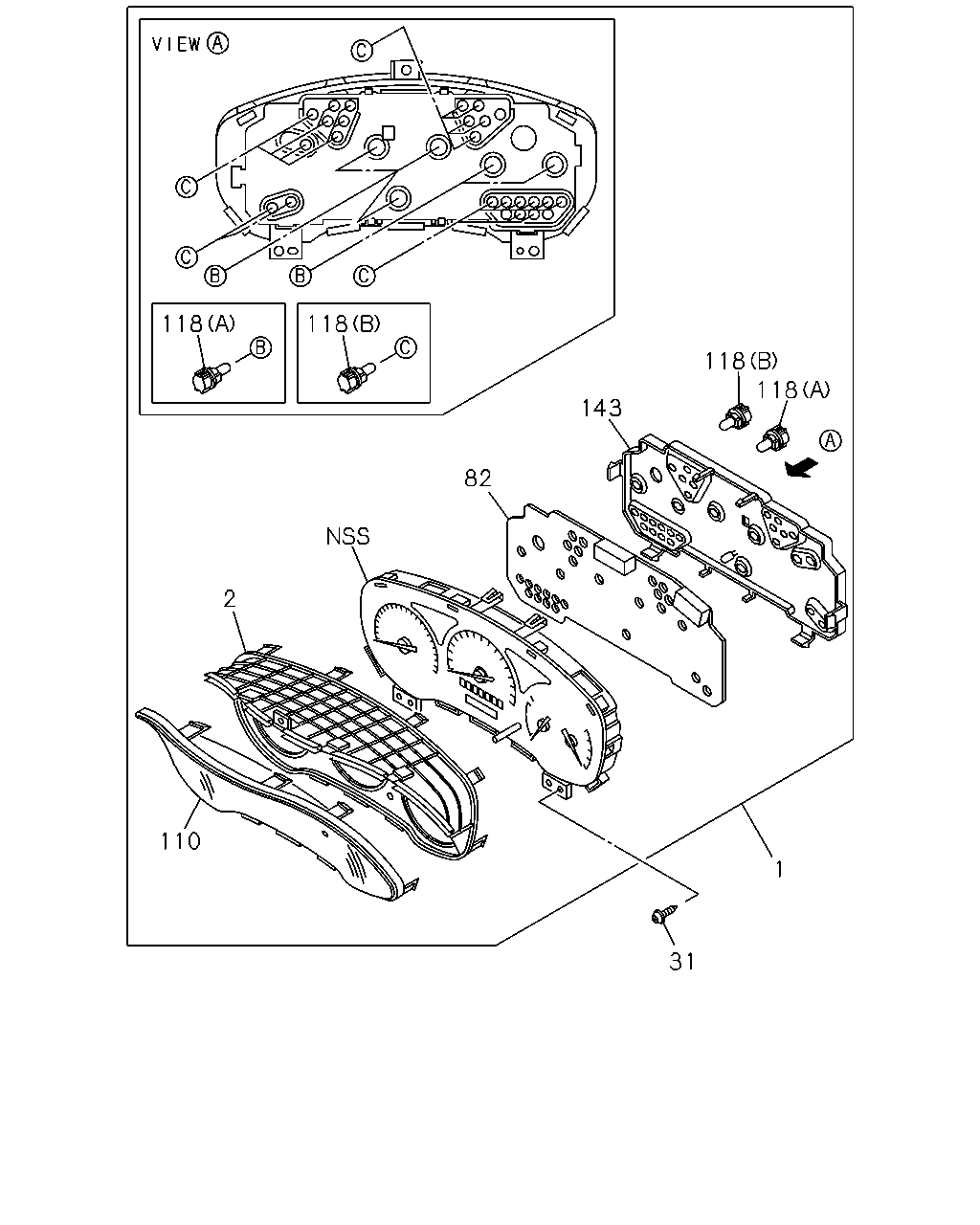

118 118 118 118 143 82 2 110 1 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA),GRADE LX(RBB)	8-97322-763-1	01	1	0211-0303	●		●	●	●	●	●	●
1	09.735 METER COMPL; CLUSTER	8-97322-763-1	01	1	0211-0303		●
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) GRADE DX(RBA),GRADE LX(RBB)	8-97363-740-0	01	1	0304-	●		●	●	●	●	●	●
1	09.735 METER COMPL; CLUSTER	8-97363-740-0	01	1	0304-		●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) GRADE LX(RBB)	8-97322-759-1	01	1	0211-0303	●		●	●	●	●	●	●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) GRADE LX(RBB)	8-97363-736-0	01	1	0304-	●		●	●	●	●	●	●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) A/T AISIN(RMD) GRADE LX(RBB)	8-97322-760-1	01	1	0211-0303				●	●	●	●	●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) A/T AISIN(RMD) GRADE LX(RBB)	8-97363-738-0	01	1	0304-				●	●	●	●	●
1	09.735 METER COMPL; CLUSTER C24SE ENG(LG1)	8-97322-758-1	01	1	0211-0303							●	●
1	09.735 METER COMPL; CLUSTER C24SE ENG(LG1)	8-97363-735-0	01	1	0304-							●	●
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD)	8-97322-765-1	01	1	0211-0303	●			●				●
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD)	8-97363-741-0	01	1	0304-	●			●				●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD)	8-97322-761-1	01	1	0211-0303	●			●				●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) GRADE LT(RBD)	8-97363-737-0	01	1	0304-	●			●				●
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD)	8-97322-766-1	01	1	0211-0303				●				●
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD)	8-97363-743-0	01	1	0304-				●				●
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB)	8-97322-764-1	01	1	0211-0303				●				●
1	09.735 METER COMPL; CLUSTER 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB)	8-97363-742-0	01	1	0304-				●				●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) A/T AISIN(RMD) GRADE LT(RBD)	8-97322-762-1	01	1	0211-0303				●				●
1	09.735 METER COMPL; CLUSTER 6VE1 ENG(RJQ) A/T AISIN(RMD) GRADE LT(RBD)	8-97363-739-0	01	1	0304-				●				●
2	09.735 PANEL; CLUSTER	8-97305-574-0	01	1	0211-		●	●		●	●	●
2	09.735 PANEL; CLUSTER GRADE DX(RBA),GRADE LX(RBB)	8-97305-574-0	01	1	0211-	●			●				●
2	09.735 PANEL; CLUSTER GRADE LT(RBD)	8-97305-575-0	01	1	0211-	●			●				●
31	09.761 SCREW; METER,INST PANEL 16.085 M5X16 TAPPING	9-09829-323-1	03	1	0211-	●	●	●	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP)	8-97354-882-0	01	1	0211-	●		●	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER	8-97354-882-0	01	1	0211-		●
82	09.743 CASE ASM; CLUSTER METER 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP)	8-97354-879-0	01	1	0211-	●		●	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER 6VE1 ENG(RJQ) A/T AISIN(RMD)	8-97354-880-0	01	1	0211-				●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER C24SE ENG(LG1)	8-97354-878-0	01	1	0211-							●	●
82	09.743 CASE ASM; CLUSTER METER 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK)	8-97354-881-0	01	1	0211-				●				●
110	09.748 GLASS; CLUSTER METER	8-97305-572-0	01	1	0211-	●	●	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (A) 14V 2W	8-97305-590-0	AR	1	0211-	●	●	●	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (B) 14V 1.12W	8-97305-600-0	AR	1	0211-	●	●	●	●	●	●	●	●
143	09.715 COVER; CLUSTER METER	8-97305-577-0	01	1	0211-	●	●	●	●	●	●	●	●
