8-15 — FIXING PARTS; WIRING HARNESS (#42390) — 104 parça

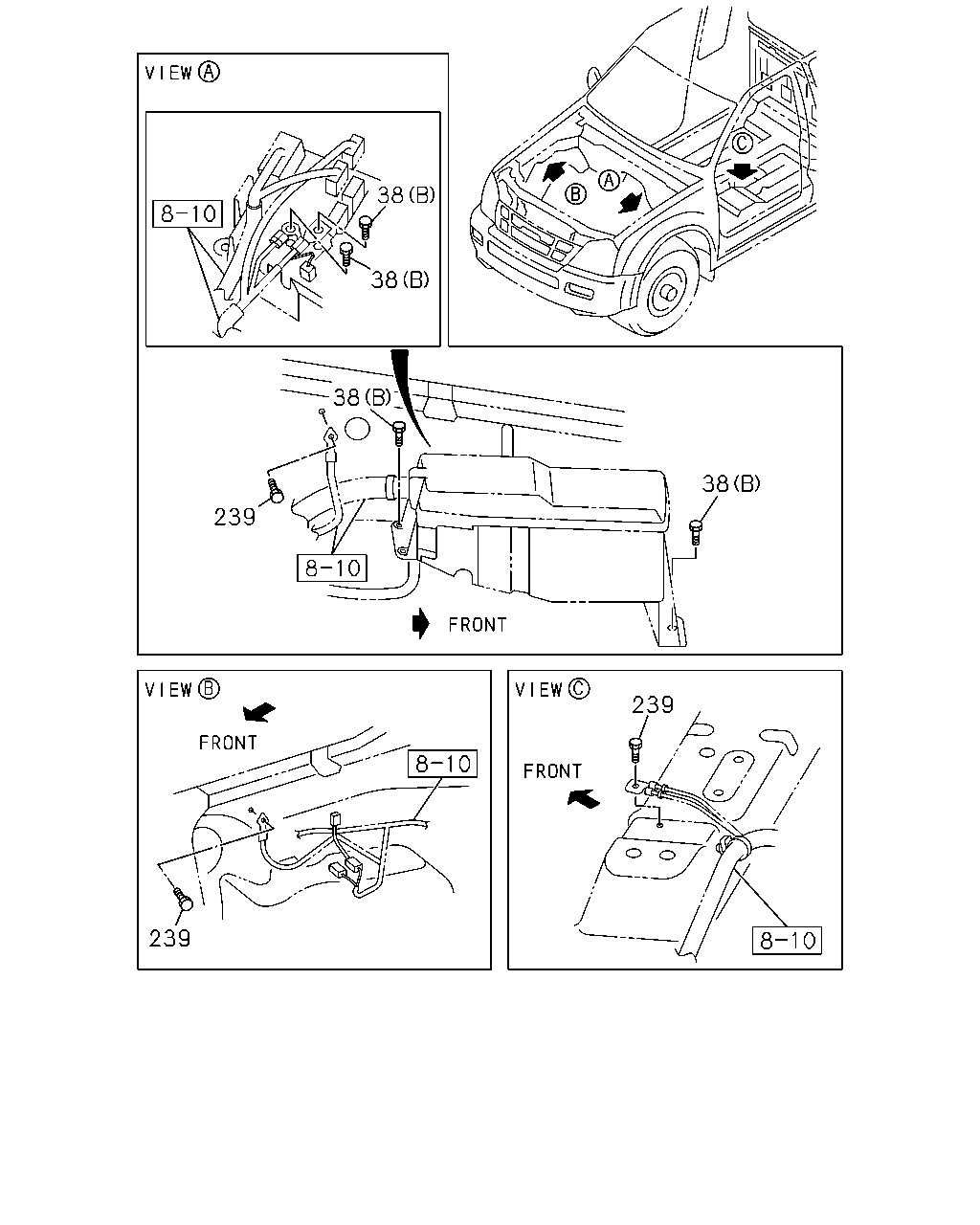

çizim 9428
38 38 38 38 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.029 (C) M10X16 FLANGE 		0-28151-016-0 01 1 0211- ● ● ● ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0211- ● ● ● ● ● ● ● ●

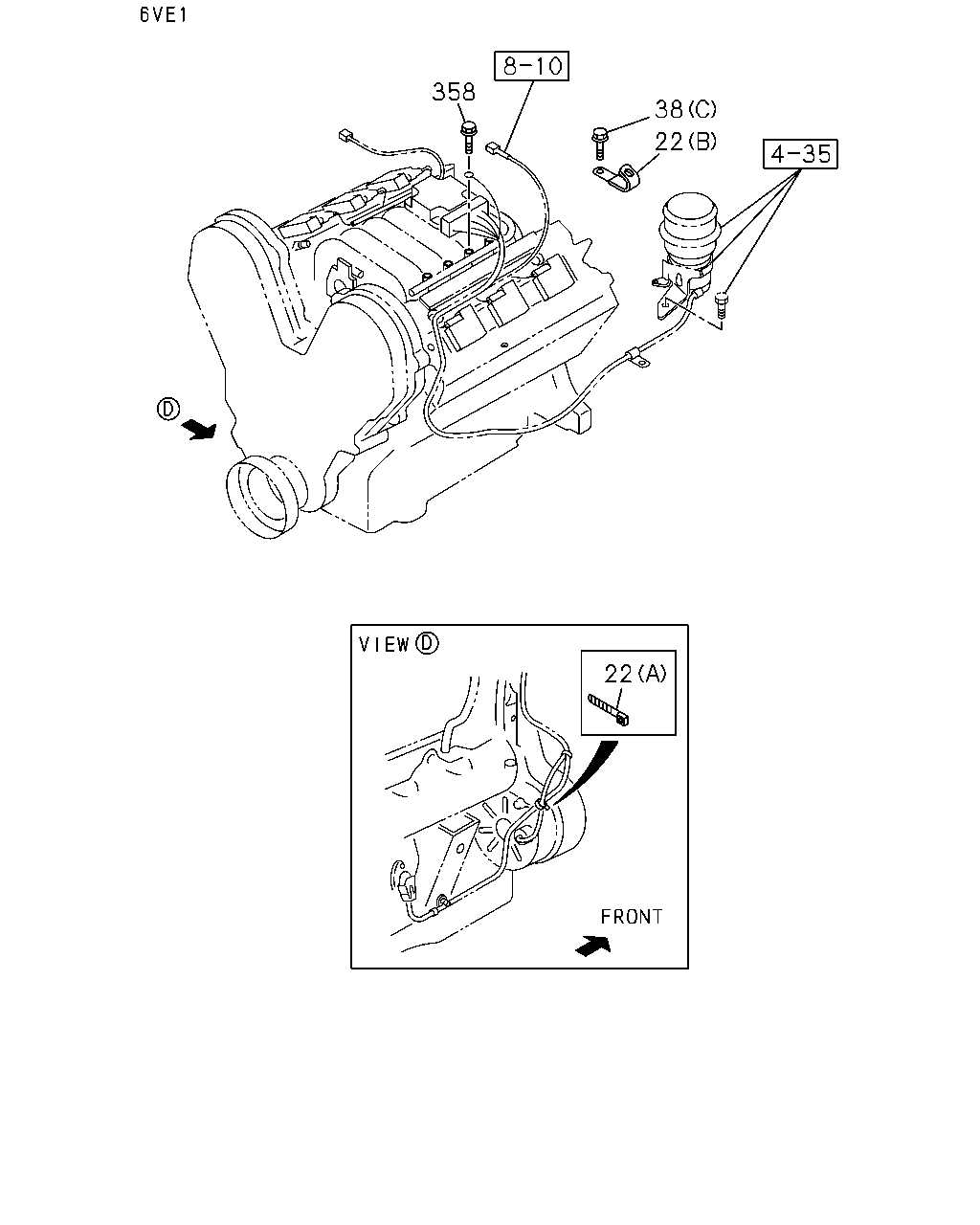

çizim 10997
358 38 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(RJQ) 04.594 (A) L=100 		5-09707-036-1 01 1 0211- ● ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) (B) L=22 ID=10.5 		8-94327-574-0 01 1 0211- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.029 (C) M10X16 FLANGE 		0-28151-016-0 01 1 0211- ● ● ● ● ● ● ●
358 02.480 BOLT; EARTH
6VE1 ENG(RJQ) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211- ● ● ● ● ● ● ●

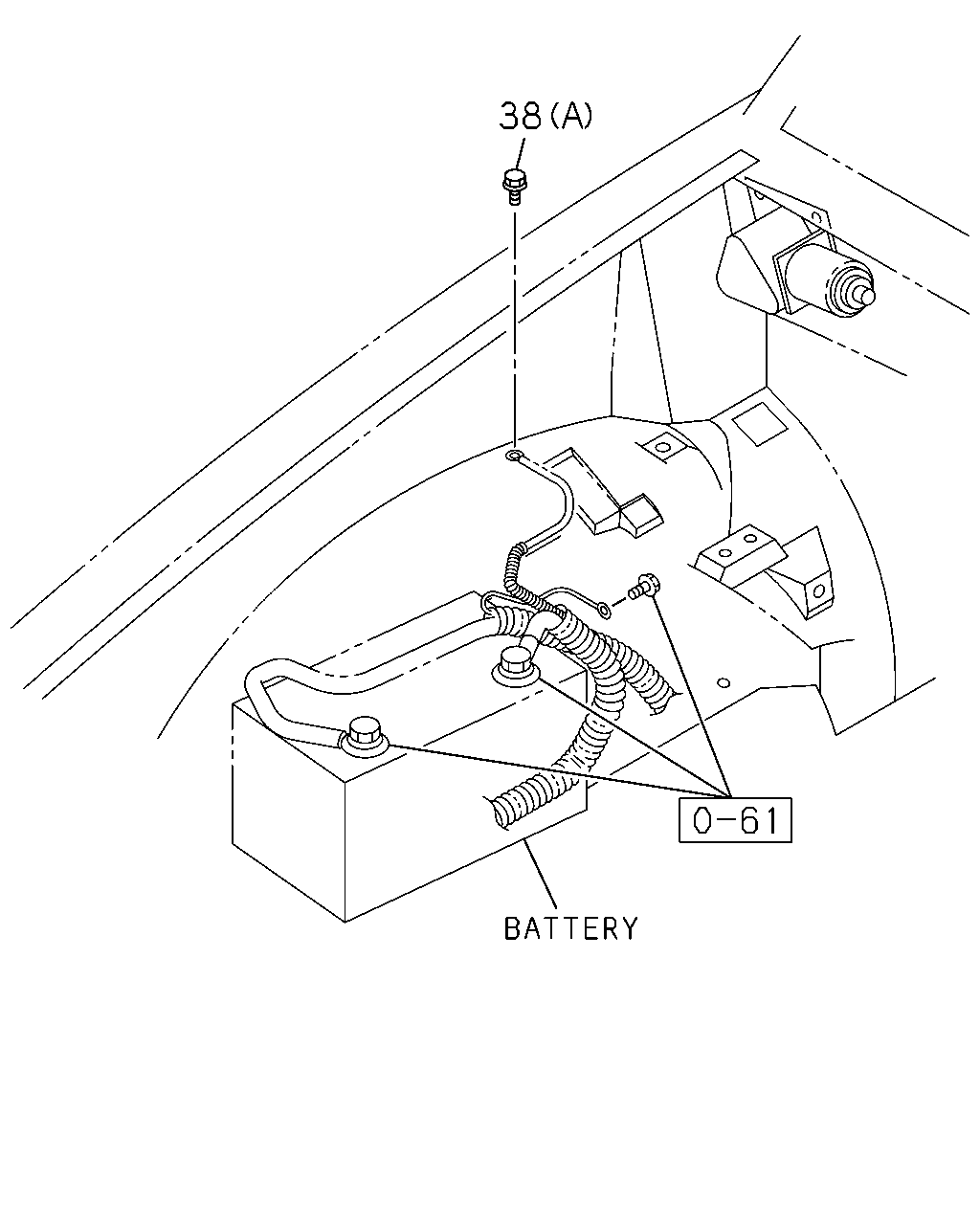

çizim 49821
38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.029 (C) M10X16 FLANGE 		0-28151-016-0 01 1 0211- ● ● ● ● ● ● ●
çizim 49907
399 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4> 16.165 (A) OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0211- ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4> (B) D=58 BLACK 		8-97302-191-0 02 1 0211- ● ●

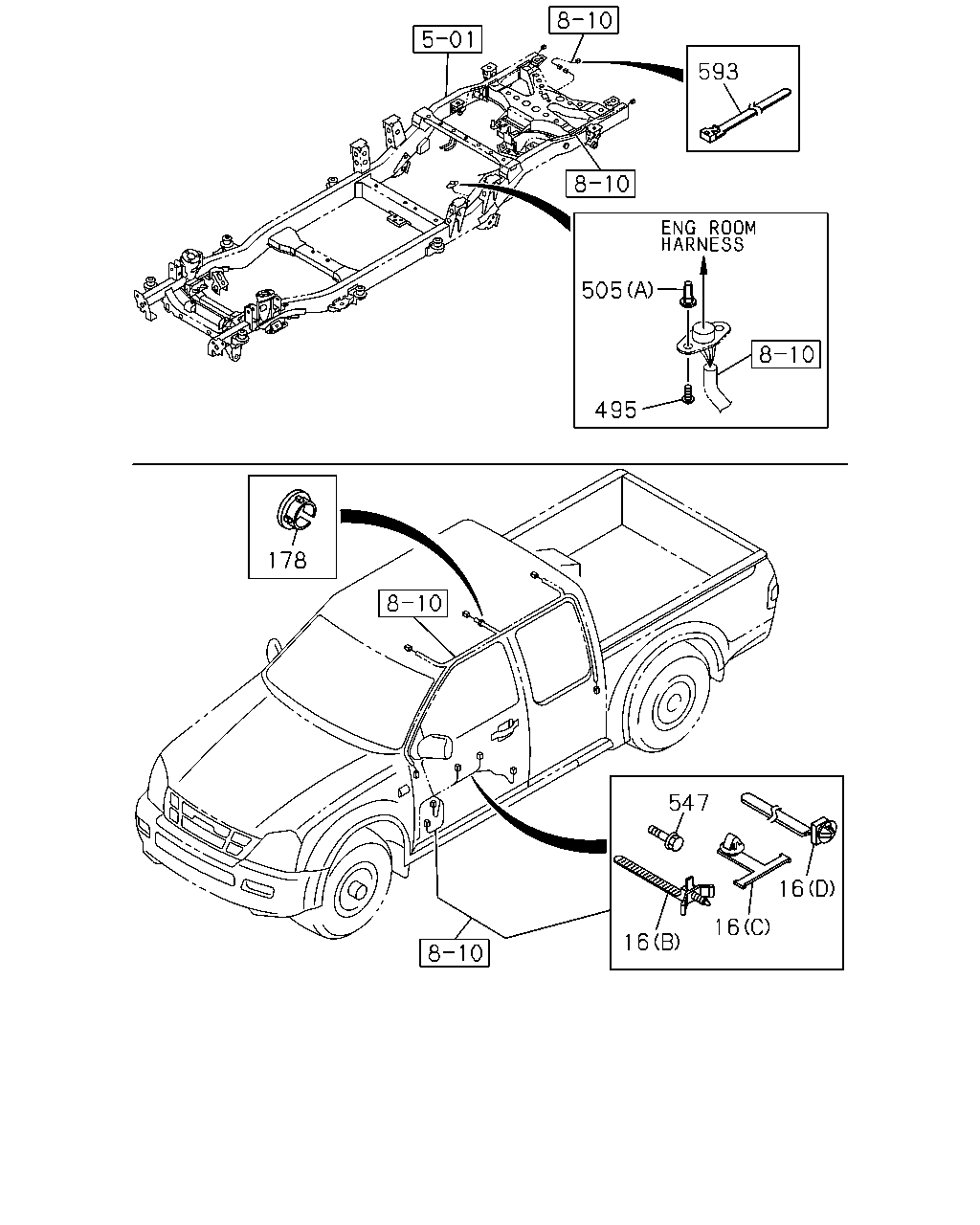

çizim 50946
593 505 495 178 547 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 01.152 (A) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ●
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0303- ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (B) L=135 		8-94473-399-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (B) L=135 		8-94473-399-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 03 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 03 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (D) L=155 		8-97173-307-0 03 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (D) L=155 		8-97173-307-0 03 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> (B) L=135 		8-94473-399-0 02 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> (B) L=135 		8-94473-399-0 02 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> (C) L=60 H=10.9 		8-97128-114-0 02 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> (C) L=60 H=10.9 		8-97128-114-0 02 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> (D) L=155 		8-97173-307-0 06 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> (D) L=155 		8-97173-307-0 06 1 0211- ● ● ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 0211- ● ● ● ● ● ●
495 00.685 BOLT; CABLE TO BODY
10.240 M5X14 		8-94120-095-0 02 1 0211- ● ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 (A) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0211- ● ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
4JH1-TC ENG(RDM) (B) ID=13 & 21 		8-94417-626-0 01 1 0211- ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
(B) ID=13 & 21 		8-94417-626-0 01 1 0211- ●
505 02.559 RETAINER; HARNESS
4JH1-TC ENG(RDM) 06.672 (C) ID=20.2X2 		8-94480-371-0 01 1 0211- ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
06.672 (C) ID=20.2X2 		8-94480-371-0 01 1 0211- ●
547 02.559 BOLT
AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0211- ● ● ● ● ● ● ● ●
593 02.559 CLIP
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) L=250 		5-09707-030-1 01 1 0211- ● ● ● ●
593 02.559 CLIP
L=250 		5-09707-030-1 01 1 0211- ● ● ●
593 02.559 CLIP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) L=250 		5-09707-030-1 01 1 0211- ●

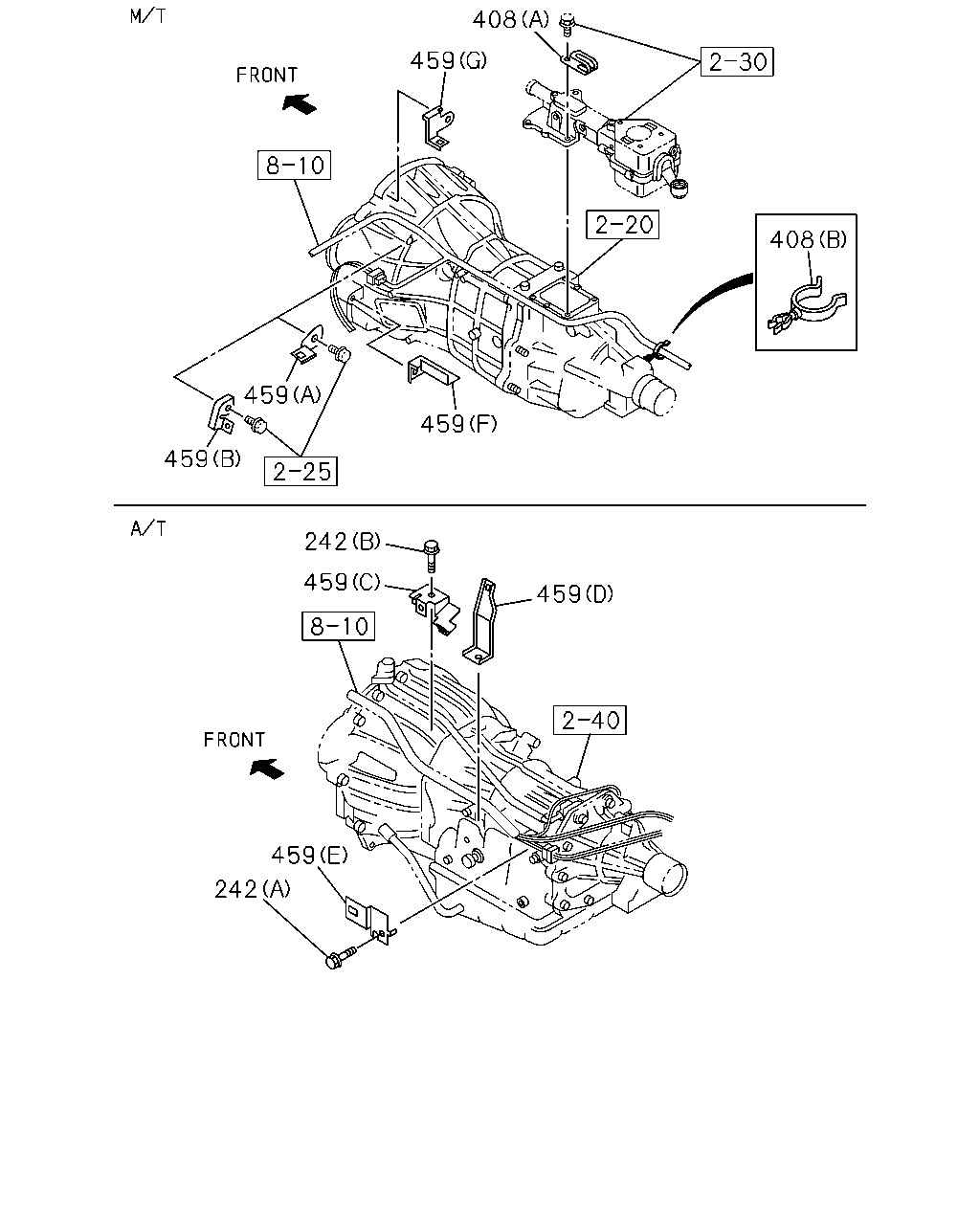

çizim 52962
408 459 408 459 459 459 242 459 459 459 242
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(RJQ) A/T AISIN(RMD) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0211- ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
6VE1 ENG(RJQ) A/T AISIN(RMD) 03.162 (B) M6X12 FLANGE 		0-28050-612-0 01 1 0211- ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0211- ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0211- ● ● ●
408 02.559 CLIP; TRANS HARNESS
C24SE ENG(LG1) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 0211- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0211- ● ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
(A) 		8-94315-284-0 01 1 0211- ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (B) 		8-97237-379-0 01 1 0211- ● ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(RJQ) A/T AISIN(RMD) (C) 		8-97249-919-1 01 1 0211- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(RJQ) A/T AISIN(RMD) (D) 		8-97249-920-0 01 1 0211- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
6VE1 ENG(RJQ) A/T AISIN(RMD) (E) 		8-97317-620-0 01 1 0211- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (F) 		8-97237-168-0 01 1 0211- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
C24SE ENG(LG1) (G) 		8-97323-436-0 01 1 0211- ● ●

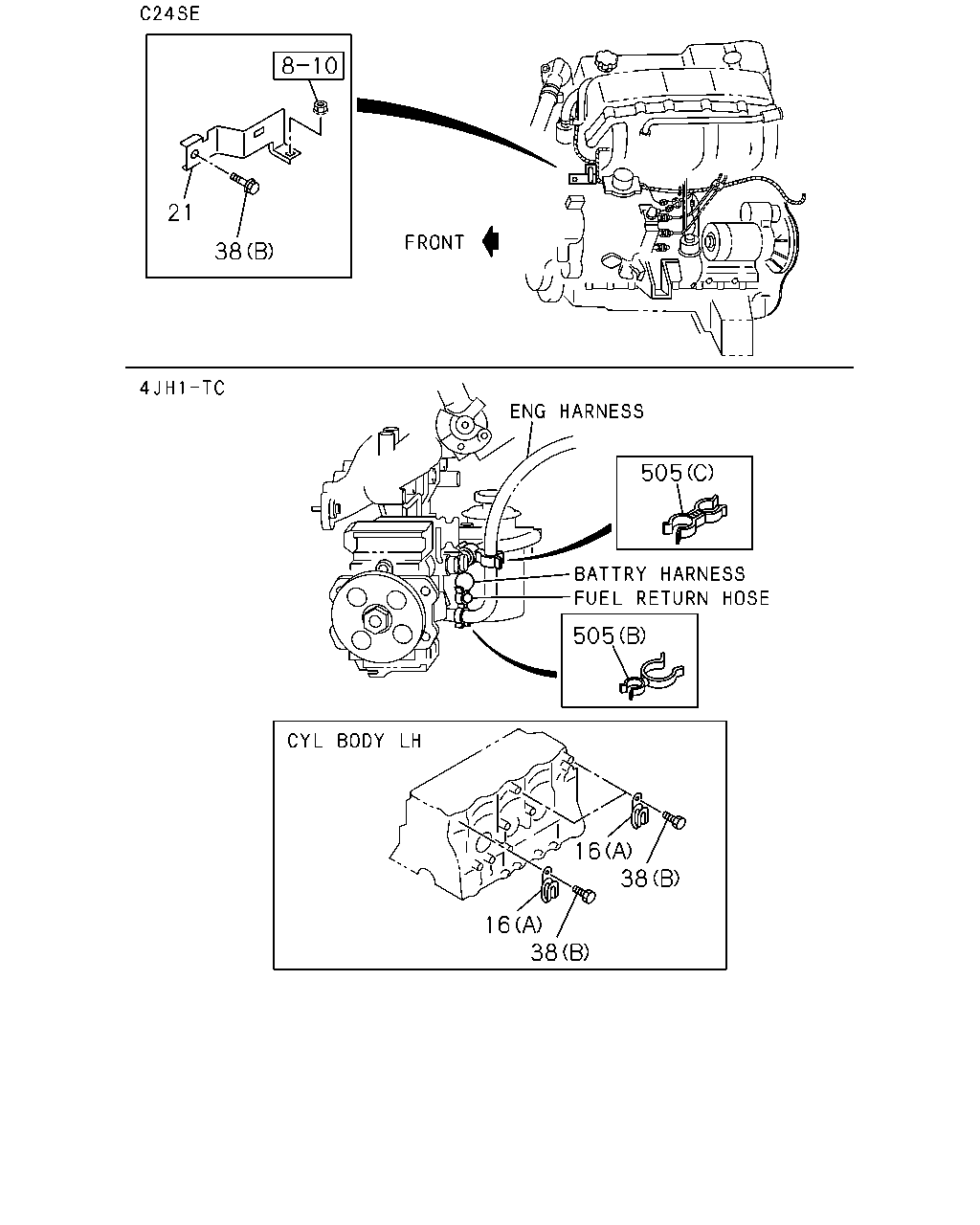

çizim 53435
21 38 505 505 16 38 16 38
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 01.152 (A) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
01.152 (A) ID=18 L=44 		8-94225-185-0 03 1 0211-0302 ●
16 02.559 CLIP; HARNESS
4JH1-TC ENG(RDM) 02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0303- ● ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0303- ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
(B) L=135 		8-94473-399-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (B) L=135 		8-94473-399-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (B) L=135 		8-94473-399-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
(C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (C) L=60 H=10.9 		8-97128-114-0 01 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 03 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
(D) L=155 		8-97173-307-0 03 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (D) L=155 		8-97173-307-0 03 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> (D) L=155 		8-97173-307-0 03 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> (B) L=135 		8-94473-399-0 02 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> (B) L=135 		8-94473-399-0 02 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> (C) L=60 H=10.9 		8-97128-114-0 02 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> (C) L=60 H=10.9 		8-97128-114-0 02 1 0211- ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> (D) L=155 		8-97173-307-0 06 1 0211- ● ● ● ● ●
16 02.559 CLIP; HARNESS
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> (D) L=155 		8-97173-307-0 06 1 0211- ● ● ●
21 02.483 BRACKET; ENG HARNESS
C24SE ENG(LG1) 		8-97307-432-2 01 1 0211- ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 03 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
4JH1-TC ENG(RDM) 08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ● ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0211- ●
38 02.559 BOLT; CLIP,HARNESS
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) 00.029 (C) M10X16 FLANGE 		0-28151-016-0 01 1 0211- ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 (A) D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0211- ● ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
4JH1-TC ENG(RDM) (B) ID=13 & 21 		8-94417-626-0 01 1 0211- ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
(B) ID=13 & 21 		8-94417-626-0 01 1 0211- ●
505 02.559 RETAINER; HARNESS
4JH1-TC ENG(RDM) 06.672 (C) ID=20.2X2 		8-94480-371-0 01 1 0211- ● ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
06.672 (C) ID=20.2X2 		8-94480-371-0 01 1 0211- ●
