0-32A — WATER PIPING; ENGINE (#4239) — 152 parça

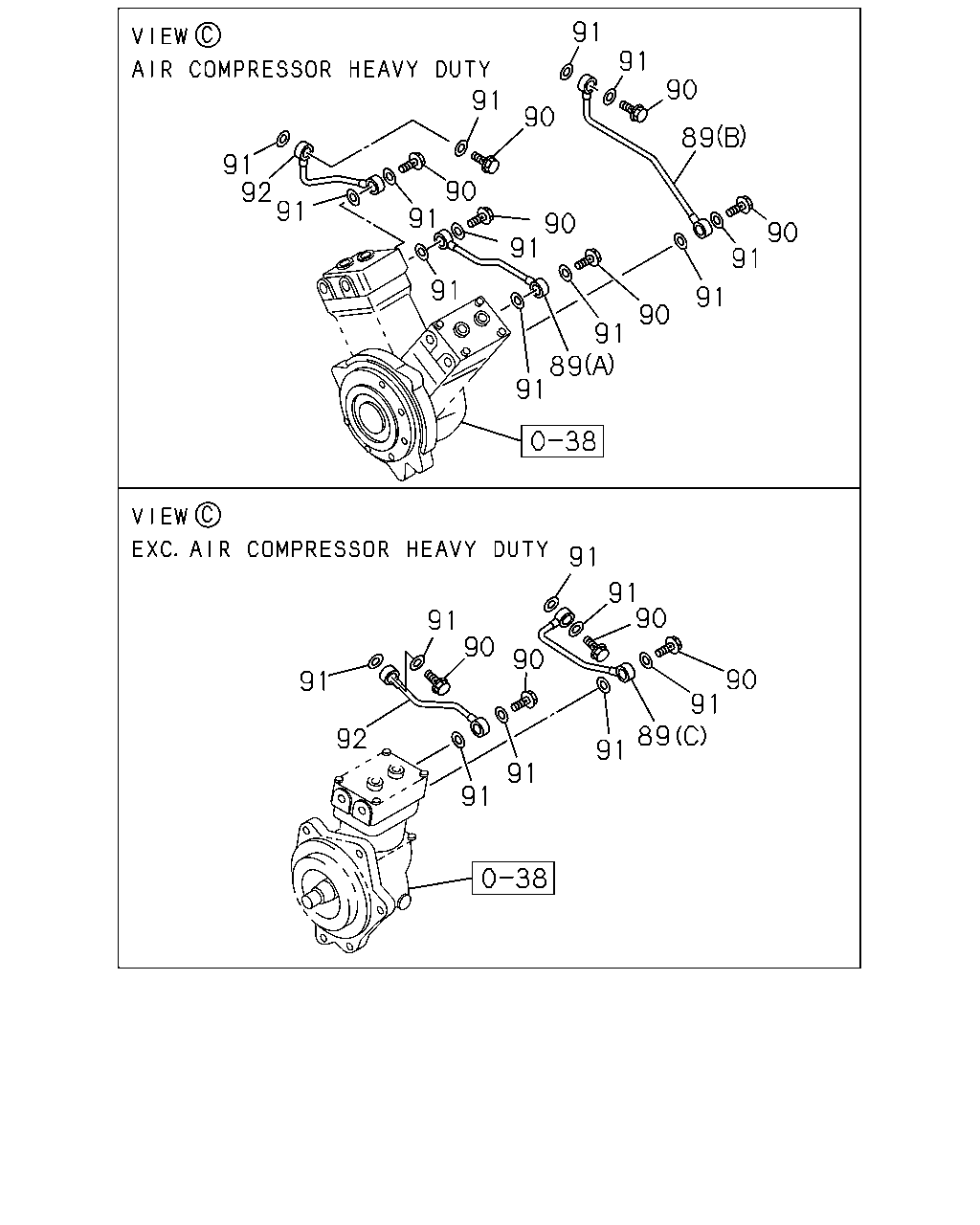

91 91 91 90 90 89 91 92 91 90 91 90 91 90 91 91 91 90 91 89 91 91 91 90 91 90 90 90 91 89 91 92 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-575-0	01	1	9603-9609	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-575-0	01	1	9610-9706	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-575-0	01	1	9707-9904	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-575-0	01	1	9707-9904		●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-575-0	01	1	9905-0011	●		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-575-0	01	1	9905-0011				●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0012-	●		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0012-				●	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-595-0	01	1	9603-9609	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-595-0	01	1	9610-9706	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-595-0	01	1	9707-9904	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-595-0	01	1	9707-9904		●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-595-0	01	1	9905-0011	●		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-595-0	01	1	9905-0011				●	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0012-	●		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0012-				●	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13711-722-0	01	1	9610-9904	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13711-722-0	01	1	9905-9905					●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13711-722-0	01	1	9906-0011				●	●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13711-594-1	01	1	0012-				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	06	1	9603-9609	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	02	1	9610-9706	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9610-9706	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	02	1	9707-9904	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9707-9904	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	04	1	9905-0004	●		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	04	1	9905-0004				●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	04	1	9610-9706	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	04	1	9707-9904	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	04	1	9707-9904		●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 FLANGE	1-09675-086-0	02	1	9905-0004	●		●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	02	1	9905-0004					●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-	●		●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	12	1	9603-9609	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9610-9706	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9610-9706	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9904	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9707-9904	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-0011	●		●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-0011					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	04	1	0012-	●		●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0012-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0012-	●		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	08	1	0012-				●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	08	1	9610-9706	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9707-9904	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9707-9904		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	08	1	9905-0003	●		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	08	1	9905-0003					●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-596-1	01	1	9603-9609	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-596-1	01	1	9610-9706	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-596-1	01	1	9707-9904	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-596-1	01	1	9707-9904		●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-596-1	01	1	9905-0011	●		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-596-1	01	1	9905-0011				●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0012-	●		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0012-				●	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-723-0	01	1	9610-9904	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-723-0	01	1	9905-0011				●	●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-593-1	01	1	0012-				●	●

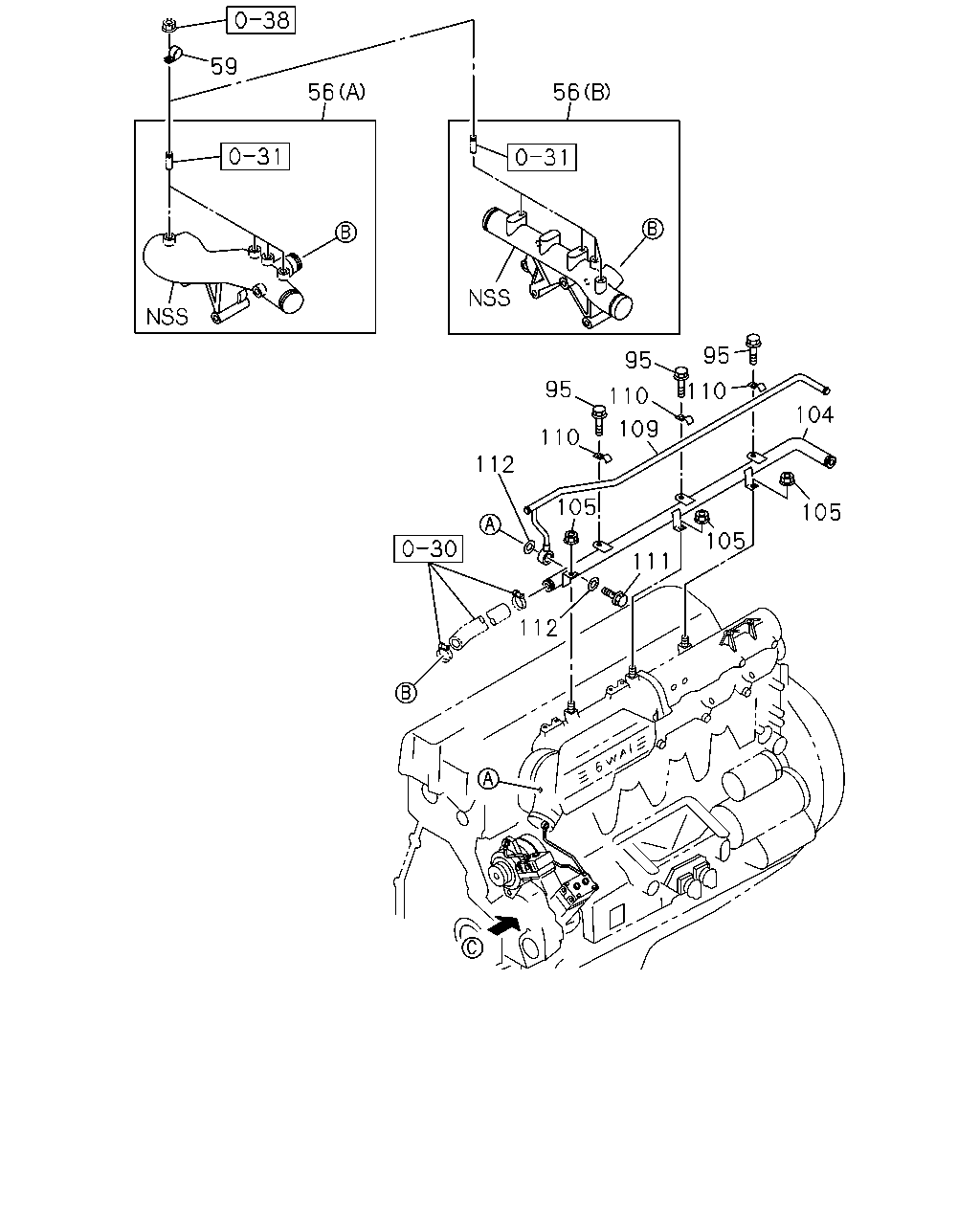

59 56 56 95 95 95 110 109 110 110 104 112 105 105 105 111 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
56	PIPE; WATER OUTLET (A)	1-13721-650-0	01	1	9603-9904	●
56	PIPE; WATER OUTLET (A)	1-13721-650-0	01	1	9905-	●			●
56	PIPE; WATER OUTLET EXC. CAB UP +110MM<TGG> (A)	1-13721-650-0	01	1	9905-					●
56	PIPE; WATER OUTLET (B)	1-13721-763-0	01	1	9707-9904		●
56	PIPE; WATER OUTLET CAB UP +110MM<TGG> (B)	1-13721-763-0	01	1	9905-					●
56	PIPE; WATER OUTLET (B)	1-13721-763-0	01	1	9905-			●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	9603-9706	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	9707-9904	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	9905-	●		●	●	●
95	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	03	1	9603-9706	●
95	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	03	1	9707-9904	●	●
95	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	03	1	9905-	●		●	●	●
104	PIPE; WATER CHARGE	1-13721-617-0	01	1	9603-9904	●
104	PIPE; WATER CHARGE	1-13721-617-0	01	1	9905-	●			●	●
104	PIPE; WATER CHARGE	1-13721-647-0	01	1	9707-9904		●
104	PIPE; WATER CHARGE	1-13721-647-0	01	1	9905-			●
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	9603-9706	●
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	9707-9904	●	●
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	9905-	●		●	●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-616-0	01	1	9603-9904	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-616-0	01	1	9905-0012	●			●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-971-0	01	1	0101-	●			●	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-764-0	01	1	9707-9904		●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-764-0	01	1	9905-0011			●
109	PIPE; AIR,LEAK,THERMOSTAT HSG	1-13721-648-0	01	1	0012-			●
110	CLIP; AIR PIPE ID=9.7 L=20	1-09700-878-1	03	1	9603-9706	●
110	CLIP; AIR PIPE ID=9.7 L=20	1-09700-878-1	03	1	9707-9904	●	●
110	CLIP; AIR PIPE ID=9.7 L=20	1-09700-878-1	03	1	9905-	●		●	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 FLANGE	1-09675-086-0	01	1	9603-9706	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 FLANGE	1-09675-086-0	01	1	9707-9904	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 FLANGE	1-09675-086-0	01	1	9905-0004	●		●	●	●
111	BOLT; EYE,LEAK,THERMOSTAT HSG M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-0101	●		●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9706	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9707-9904	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-0011	●		●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	02	1	0012-	●		●	●	●

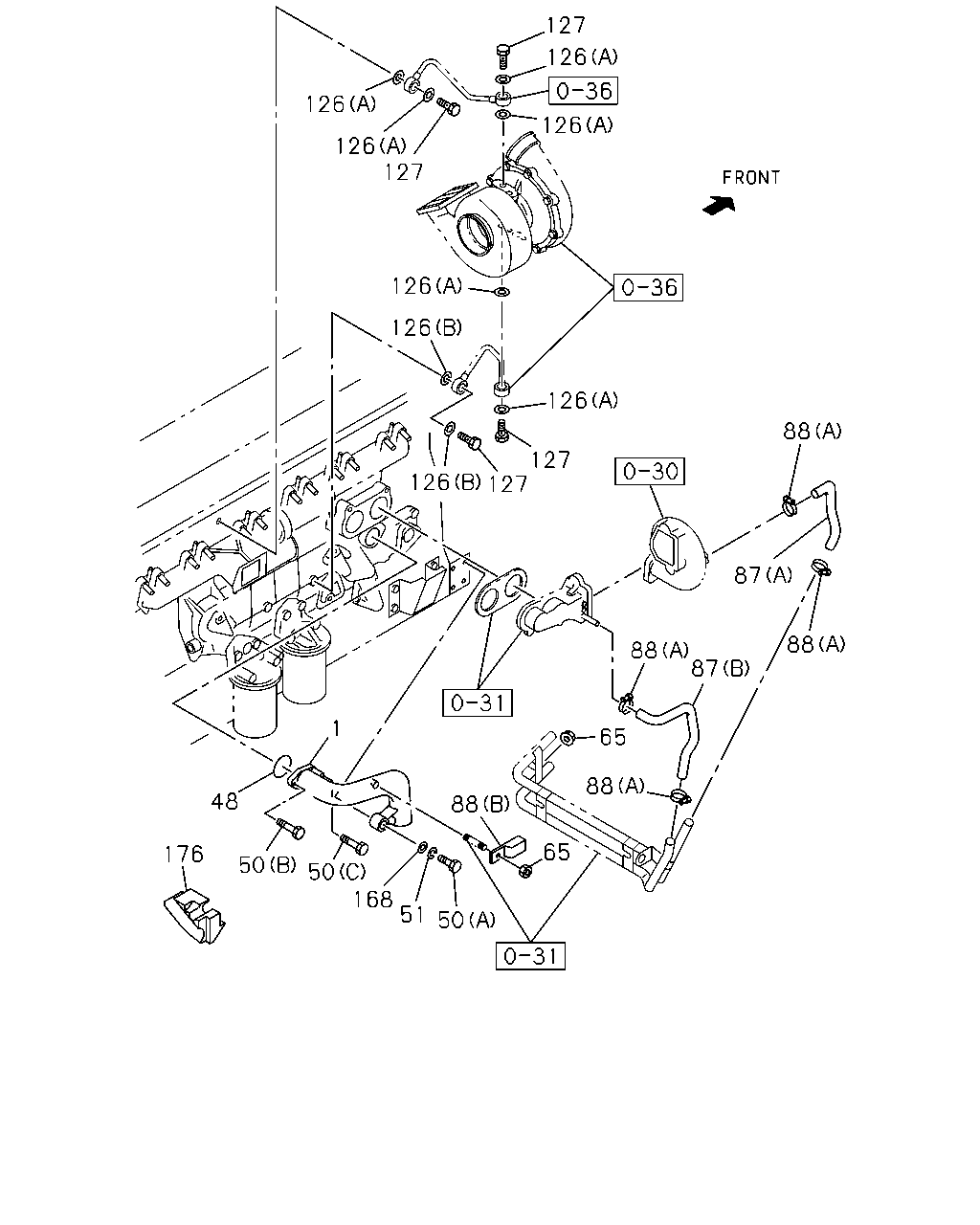

127 126 126 126 126 127 126 126 126 88 127 126 127 87 88 88 87 1 65 88 48 88 65 176 50 50 168 51 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; WATER PUMP,INL	1-13711-718-0	01	1	9603-9706	●
1	PIPE; WATER PUMP,INL	1-13711-718-0	01	1	9707-9904	●	●
1	PIPE; WATER PUMP,INL	1-13711-718-0	01	1	9905-	●		●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9603-9706	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9707-9904	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	9905-	●		●	●	●
50	BOLT; WATER PIPE INL (A) M14X55	0-16806-455-0	01	1	9603-9604	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	9605-9706	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	9707-9904	●	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	9905-	●		●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	9603-9706	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	9707-9904	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	9905-	●		●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	9603-9706	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	9707-9904	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	9905-	●		●	●	●
51	WASHER; LK,PIPE ID=14.2	9-09150-514-0	01	1	9603-9604	●
65	NUT HEATER & DEFROSTER(C41) M10 FLANGE	0-91150-110-0	02	1	9603-9706	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91150-110-0	02	1	9707-9904	●
65	NUT M10 FLANGE	0-91150-110-0	02	1	9707-9904		●
65	NUT M10 FLANGE	0-91150-110-0	02	1	9905-	●		●	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91150-110-0	02	1	9905-					●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41) (A)	1-83565-572-0	01	1	9603-9706	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83565-572-0	01	1	9707-9904	●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	9707-9904		●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	9905-	●		●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83565-572-0	01	1	9905-					●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41) (B)	1-83565-577-0	01	1	9603-9706	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-577-0	01	1	9707-9904	●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	9707-9904		●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	9905-	●		●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-577-0	01	1	9905-					●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41) (A) ID=20	1-09707-084-1	04	1	9603-9706	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	04	1	9707-9904	●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	9707-9904		●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	9905-	●		●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	04	1	9905-					●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41) (B)	9-09915-663-0	01	1	9603-9706	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09915-663-0	01	1	9707-9904	●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	9707-9904		●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	9905-	●		●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09915-663-0	01	1	9905-					●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A),(B) ID=14.2 OD=19.2	1-09630-085-0	08	1	9603-9706	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A),(B) ID=14.2 OD=19.2	1-09630-085-0	08	1	9707-9807	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9808-9904	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A),(B) ID=14.2 OD=19.2	1-09630-085-0	08	1	9905-0011	●		●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A),(B) ID=14.2 OD=25	1-09630-141-0	08	1	0012-	●		●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=25	1-09630-141-0	02	1	9808-9904	●	●
127	BOLT; EYE M14X27 FLANGE	1-09675-086-0	04	1	9603-9706	●
127	BOLT; EYE M14X27 FLANGE	1-09675-086-0	04	1	9707-9904	●	●
127	BOLT; EYE M14X27 FLANGE	1-09675-086-0	04	1	9905-0004	●		●	●	●
127	BOLT; EYE M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-	●		●	●	●
168	WASHER; PL,PIPE ID=15	9-09160-514-0	01	1	9603-9604	●
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	9707-9904		●
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	9905-			●
