8-10 — WIRING HARNESS AND FUSE (#42389) — 212 parça

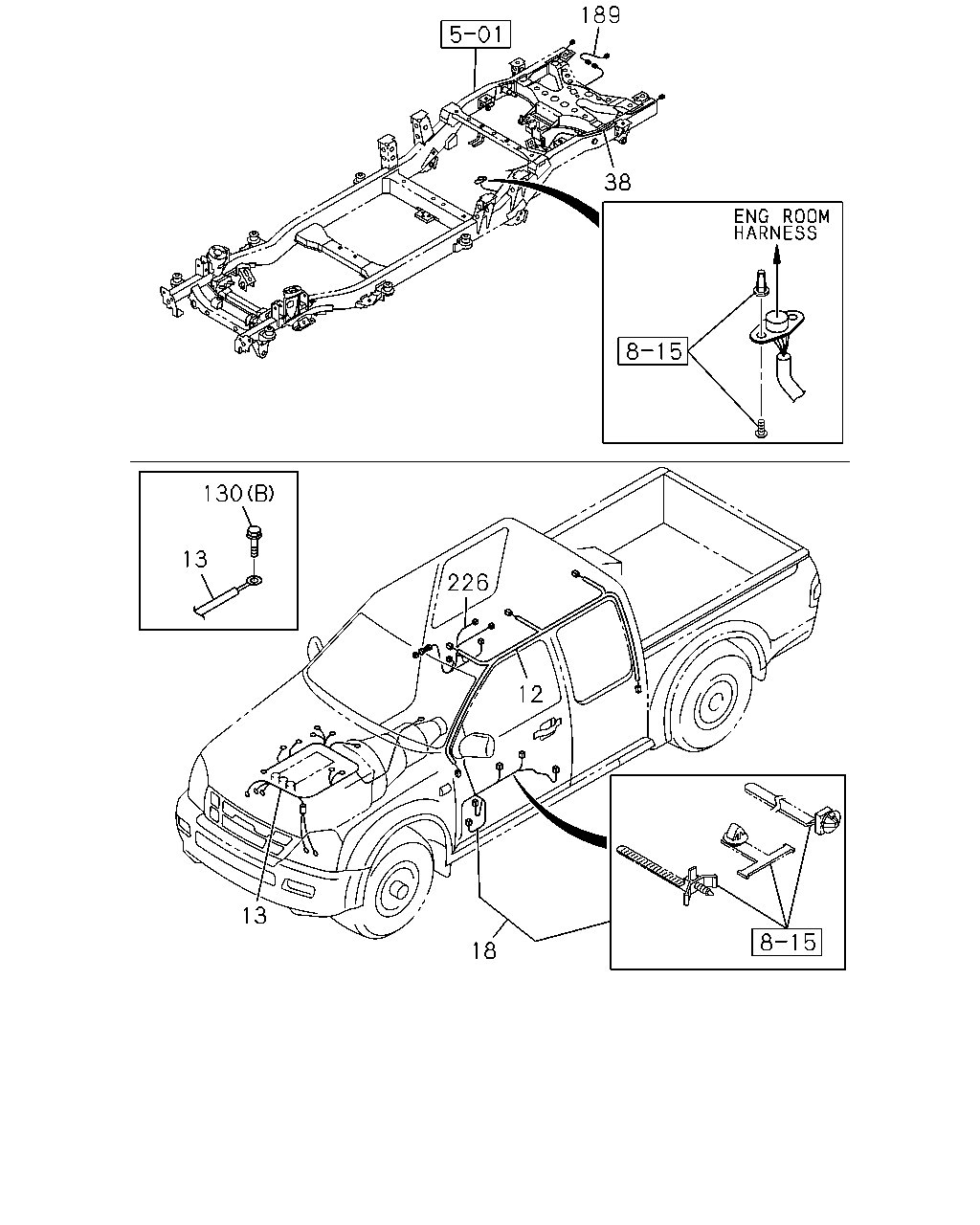

çizim 49991
189 38 130 13 226 12 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
12 02.480 HARNESS; ROOF 8-97237-025-4 01 1 0211- ● ● ● ●
12 02.480 HARNESS; ROOF 8-97237-022-4 01 1 0211- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-97237-029-3 01 1 0211- ●
12 02.480 HARNESS; ROOF 8-97237-029-3 01 1 0211- ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49> 		8-97237-030-3 01 1 0211- ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97312-257-4 01 1 0211-0303 ● ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-403-1 01 1 0304- ● ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97312-258-4 01 1 0211-0303 ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97361-404-1 01 1 0304- ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97310-950-4 01 1 0211-0303 ● ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-401-2 01 1 0304- ● ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97310-951-4 01 1 0211-0303 ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97361-402-1 01 1 0304- ●
18 02.480 HARNESS; DOOR 8-97317-525-0 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> 		8-97317-525-0 01 1 0211- ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-97317-524-0 01 1 0211-0303 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> 		8-97317-524-0 01 1 0211-0303 ● ● ● ● ●
18 02.480 HARNESS; DOOR 8-97368-403-0 01 1 0304- ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> 		8-97368-403-0 01 1 0304- ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> 		8-97254-855-2 01 1 0211- ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW<A30> 		8-97237-042-2 01 1 0211- ● ● ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> 		8-97237-040-3 01 1 0211- ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> 		8-97237-036-3 01 1 0211-0303 ● ● ●
18 02.480 HARNESS; DOOR
POWER WINDOW<A30> REMOTE CONT DOOR LOCK<6NF> 		8-97368-402-0 01 1 0304- ● ● ●
38 02.480 HARNESS; CHAS 8-97307-429-1 01 1 0211- ●
38 02.480 HARNESS; CHAS
SINGLE CAB LONG(TF**SF) 		8-97307-429-1 01 1 0211- ●
38 02.480 HARNESS; CHAS
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97307-429-1 01 1 0211- ● ●
38 02.480 HARNESS; CHAS
4X4 CREW CAB LONG(TFS*WF) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97307-429-1 01 1 0211- ●
38 02.480 HARNESS; CHAS 8-97307-431-1 01 1 0211- ● ● ●
38 02.480 HARNESS; CHAS
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 		8-97307-431-1 01 1 0211- ●
38 02.480 HARNESS; CHAS
CREW CAB EXTRA LONG(TF**WK) 		8-97307-431-1 01 1 0211- ●
38 02.480 HARNESS; CHAS
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97307-428-1 01 1 0211- ● ●
38 02.480 HARNESS; CHAS
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97307-428-1 01 1 0211- ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0211- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) (B) M10X16 FLANGE 		0-28081-016-0 01 1 0211- ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0211- ●
130 02.559 BOLT; HARNESS EARTH
6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (C) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER CHROME(VB3) 		8-97250-356-0 01 1 0211- ● ● ● ● ● ●
189 02.480 HARNESS; EXT 8-97250-356-0 01 1 0211- ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW<A30> 		8-97323-417-2 02 1 0211- ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW<A30> 		8-97302-156-2 02 1 0211- ● ●

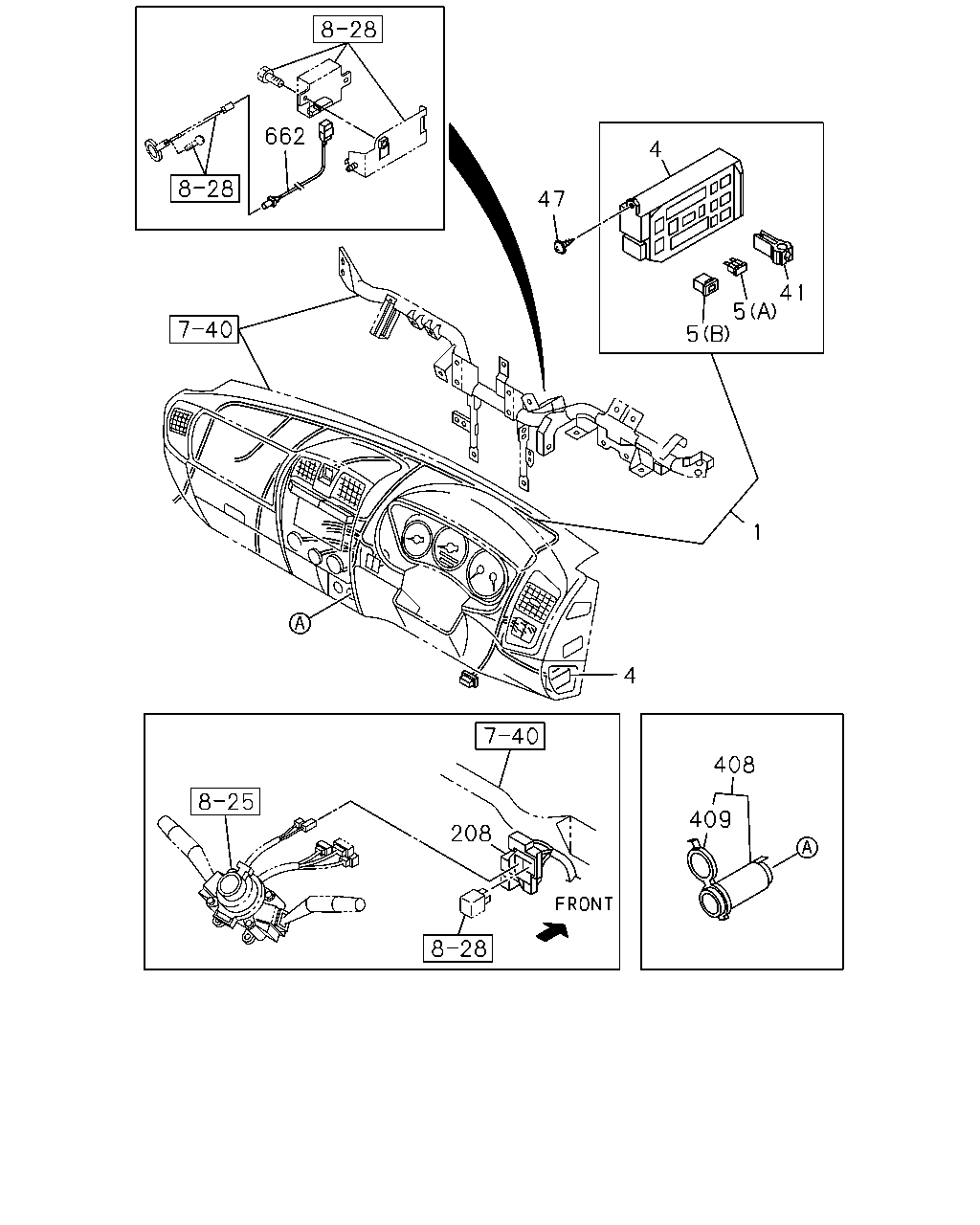

çizim 50955
662 4 47 41 5 5 1 4 408 409 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW<A30> 		8-97317-577-4 01 1 0211- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) EXC. AIR BAG DRIVER & PASSENGER(AK5),POWER WINDOW<A30> 		8-97317-579-4 01 1 0211- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW<A30> 		8-97327-232-4 01 1 0211- ● ● ● ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) EXC. AIR BAG DRIVER & PASSENGER(AK5),POWER WINDOW<A30> 		8-97327-234-4 01 1 0211- ● ● ● ● ●
1 02.480 HARNESS; CAB
GRADE DX(RBA) 		8-97327-230-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-582-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LT(RBD) EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-583-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A30> 		8-97317-576-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) POWER WINDOW<A30> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-578-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-580-4 01 1 0211- ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-581-4 01 1 0211- ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A30> 		8-97327-231-4 01 1 0211- ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) POWER WINDOW<A30> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97327-233-4 01 1 0211- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97245-601-0 01 1 0211- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 10A MINI RED 		8-97062-022-0 AR 1 0211- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 15A MINI BLUE 		8-97062-023-0 AR 1 0211- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0211- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0211- ● ● ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (B) 30A PINK 		8-97183-643-0 AR 1 0211- ● ● ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0211- ● ● ● ● ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 0211- ● ● ● ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97245-597-0 01 1 0211- ● ● ● ● ● ● ● ●
408 02.575 SOCKET ASM; ACCESSORY 8-97288-746-0 01 1 0211- ● ● ● ● ● ● ● ●
409 02.530 CAP; ACCESSORY SOCKET 8-97327-326-0 01 1 0211- ● ● ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
01.150 		8-97303-923-0 01 1 0211- ● ● ● ● ● ● ● ●

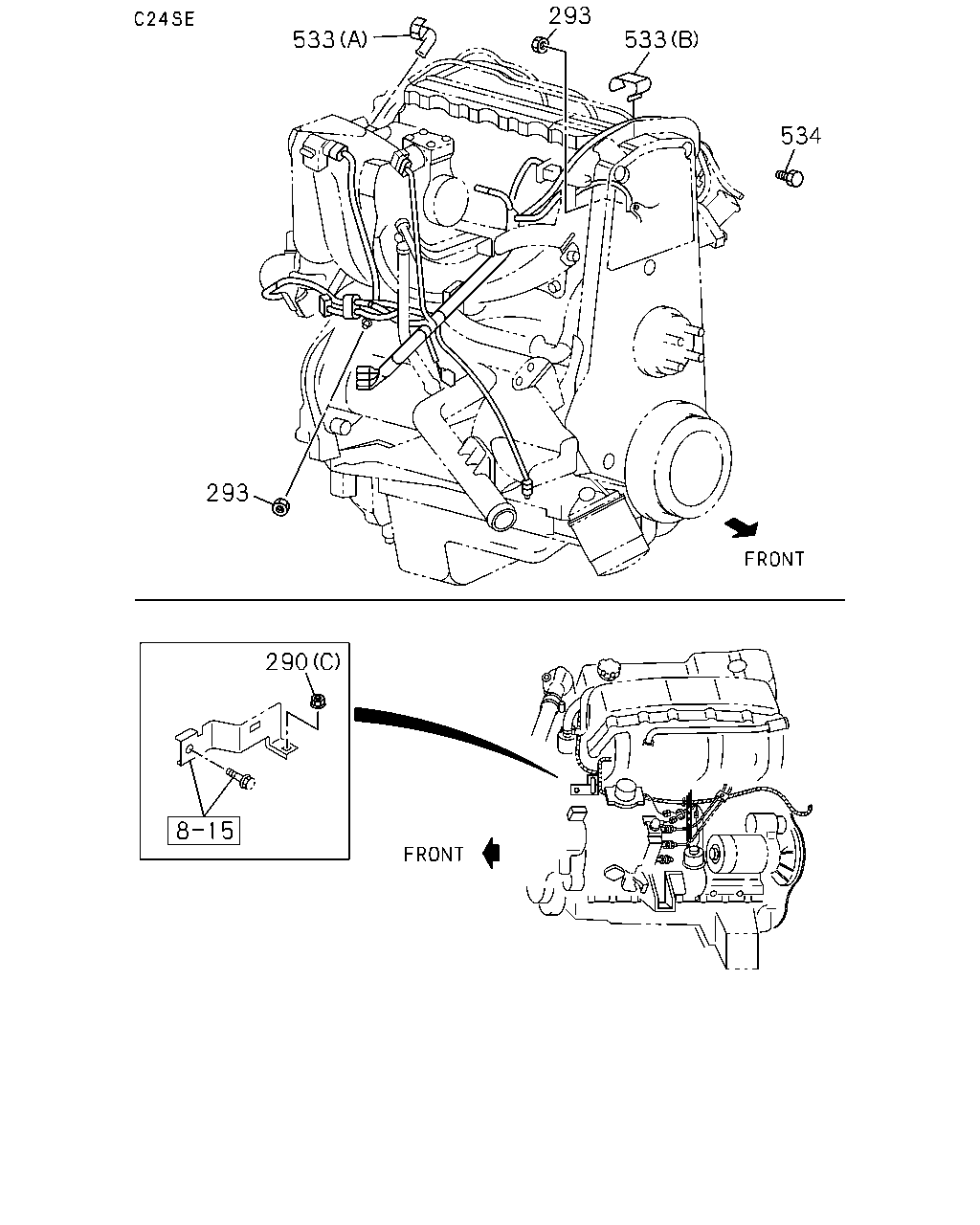

çizim 50956
293 533 533 534 293 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
290 02.483 NUT; BRKT
6VE1 ENG(RJQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ● ● ● ● ● ● ●
290 02.483 NUT; BRKT
4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211- ● ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211- ● ●
290 02.483 NUT; BRKT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211- ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211- ● ●
293 02.559 NUT
C24SE ENG(LG1) 00.004 		8-11014-038-0 02 1 0211- ● ●
533 02.559 CLIP
C24SE ENG(LG1) (A) 		8-92065-418-0 02 1 0211- ● ●
533 02.559 CLIP
C24SE ENG(LG1) (B) 		8-92065-422-0 01 1 0211- ● ●
534 02.483 BOLT
C24SE ENG(LG1) 		8-90412-680-0 01 1 0211- ● ●

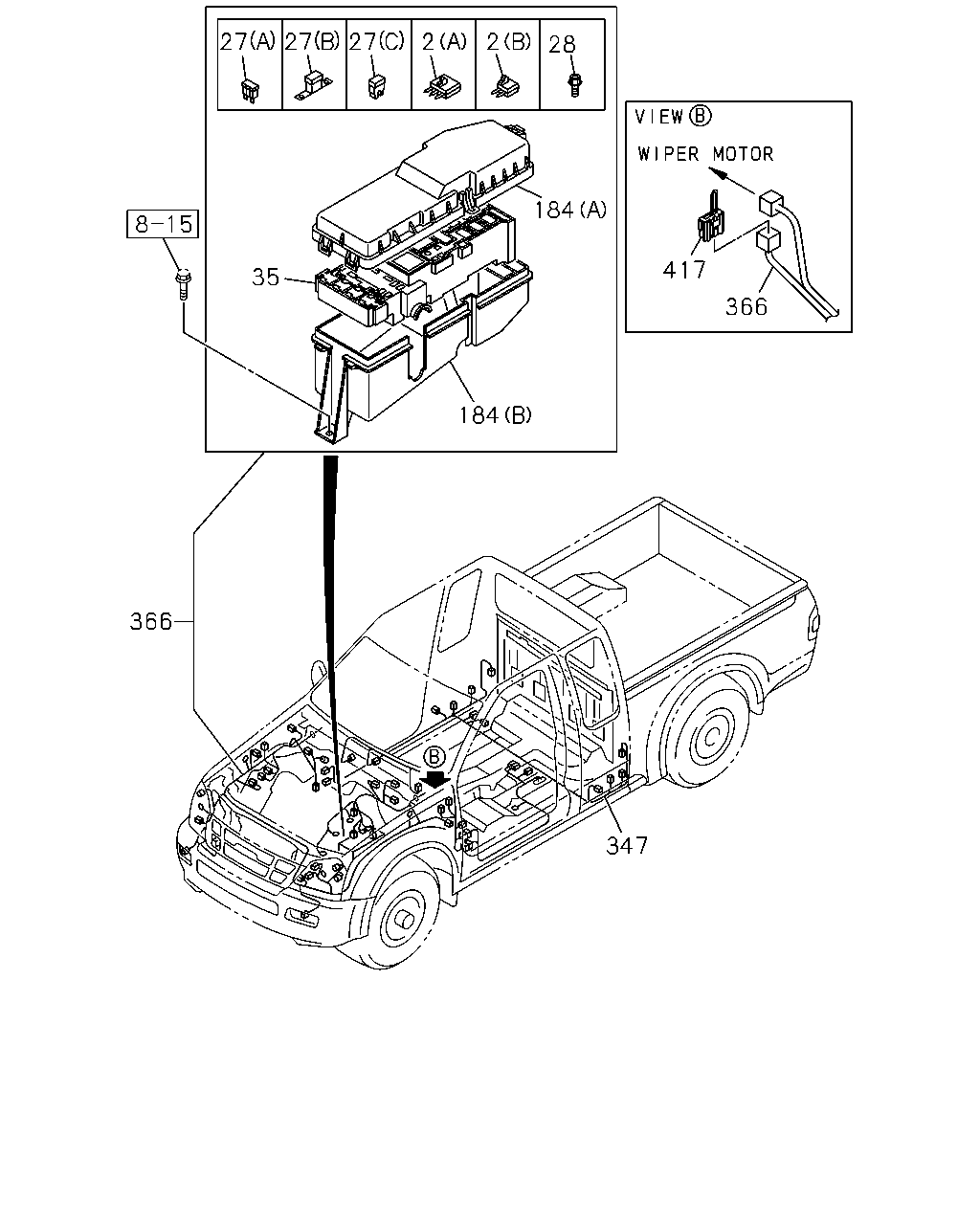

çizim 50990
27 27 27 2 2 28 184 417 35 366 184 366 347
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ● ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 80A BLACK 		8-94388-305-1 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 100A BLUE 		8-94388-306-1 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 0211- ● ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) (C) 60A YELLOW 		8-97219-407-0 01 1 0211- ● ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 60A YELLOW 		8-97219-407-0 01 1 0211- ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 0211- ● ● ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97251-395-0 01 1 0211- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 0211- ● ● ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 0211- ● ● ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-507-4 01 1 0211- ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-506-4 01 1 0211- ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-97323-689-5 01 1 0211- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-97317-509-4 01 1 0211- ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-503-5 01 1 0211- ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-502-5 01 1 0211- ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-97317-504-5 01 1 0211- ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-97317-505-5 01 1 0211- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-492-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-036-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-506-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-032-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) 		8-97359-490-0 01 1 0211-0301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) 		8-97363-026-0 01 1 0302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-495-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-039-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-496-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-040-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-491-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-035-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-505-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-031-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-501-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-027-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-502-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-028-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-493-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-493-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-037-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-037-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-503-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-503-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-029-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-029-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-494-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-038-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-504-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-030-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-497-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-041-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-498-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-042-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-507-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-033-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-508-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-034-0 01 1 0302- ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) EXC. INTERMITTENT WIPER<C13>,FRT WIPER W/VARIABLE INTERMITTENT<6WH> 		8-97327-713-0 01 1 0211- ● ● ● ● ●

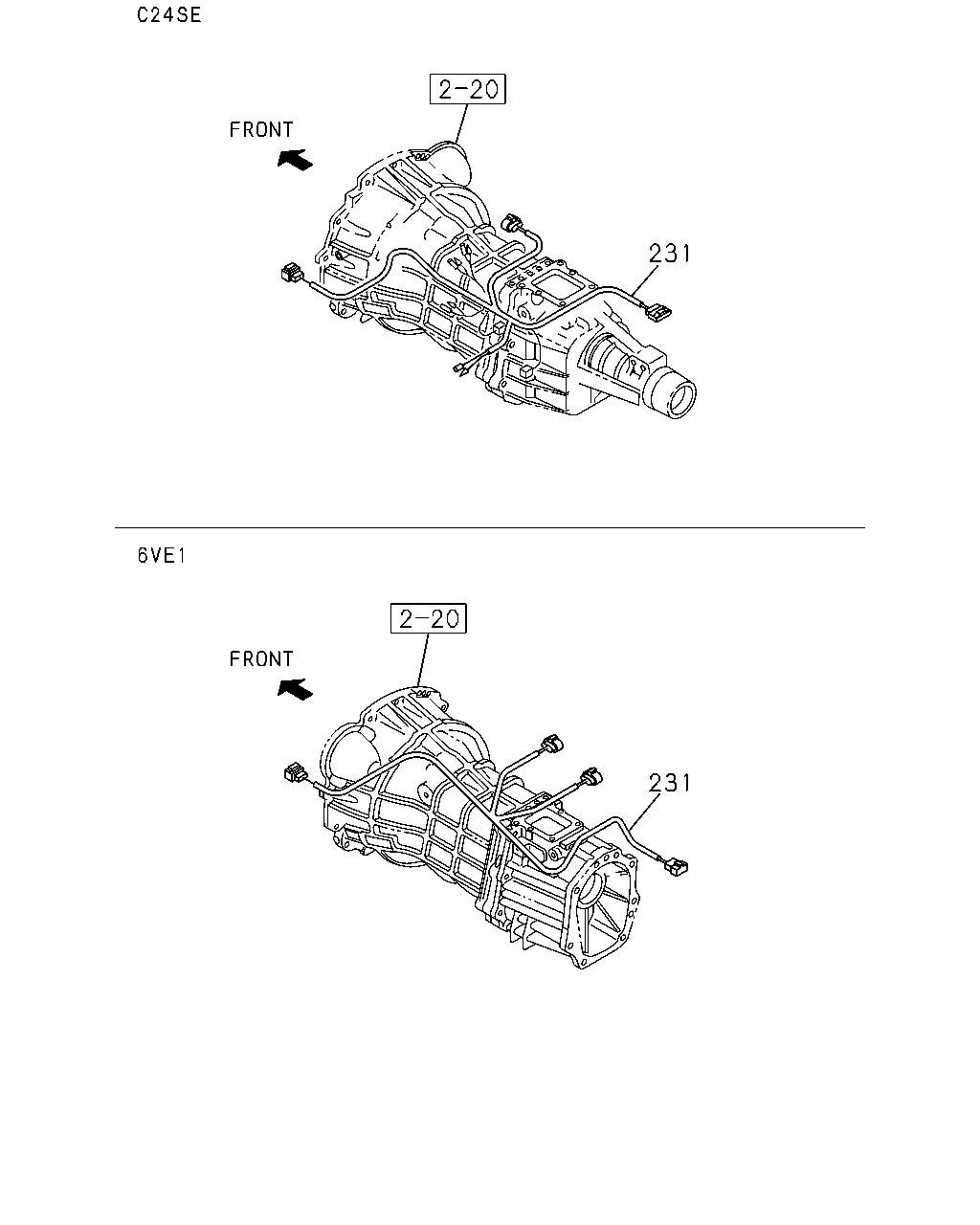

çizim 51066
231 231
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
231 02.480 HARNESS; TRANS
C24SE ENG(LG1) 		8-97357-459-0 01 1 0211- ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) 		8-97317-632-1 01 1 0211-0211 ● ● ●
231 02.480 HARNESS; TRANS
6VE1 ENG(RJQ) 		8-97360-766-0 01 1 0212- ● ● ●

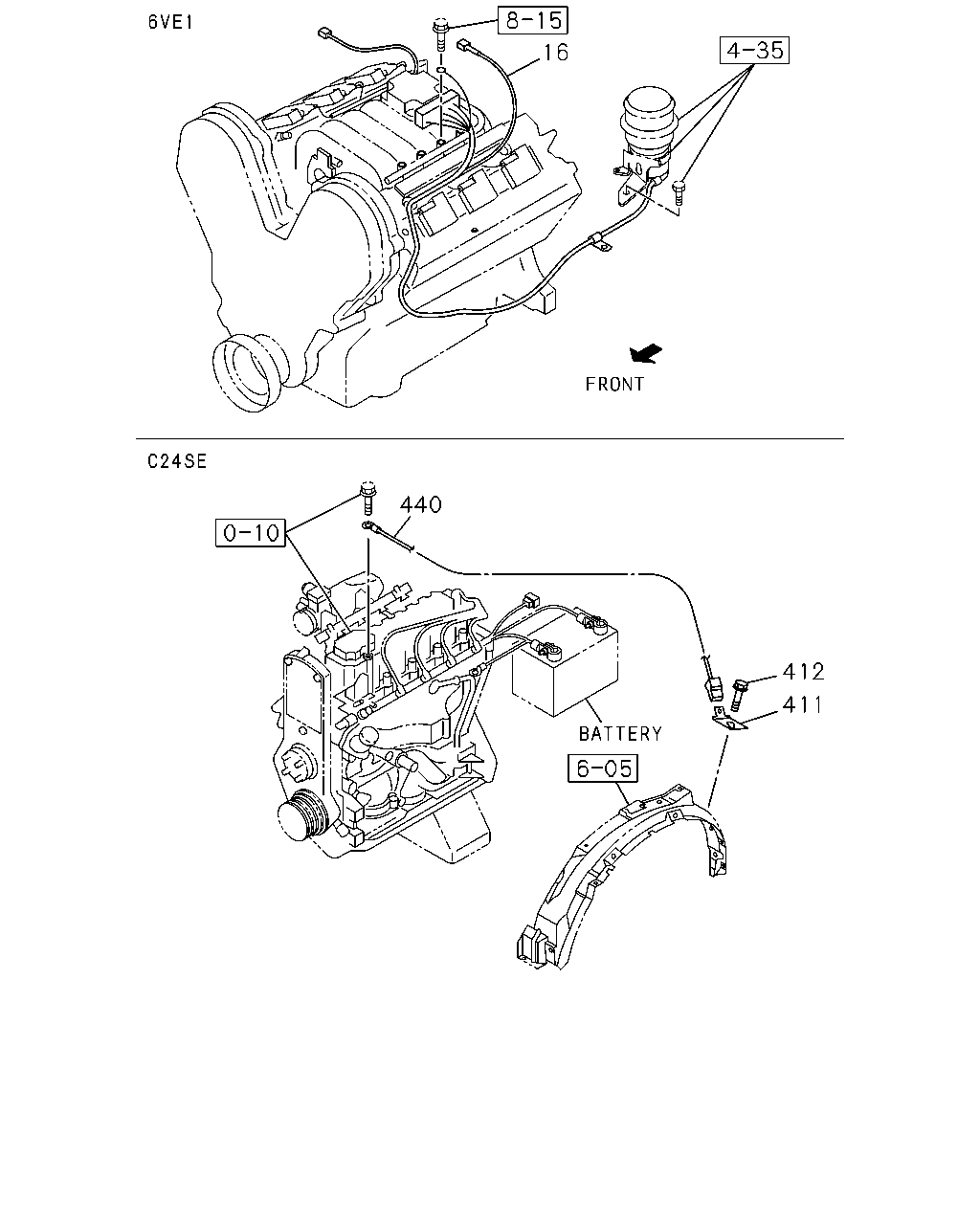

çizim 52963
16 440 412 411
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) 		8-97239-852-4 01 1 0211- ● ● ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
6VE1 ENG(RJQ) A/T AISIN(RMD) 		8-97239-853-6 01 1 0211- ● ● ● ● ●
16 02.525 HARNESS; ENG,ECGI
C24SE ENG(LG1) 		8-92065-291-0 01 1 0211- ● ●
411 02.559 TERMINAL; MALE,EARTH BONDING CAB
C24SE ENG(LG1) 02.530 		8-94102-644-0 01 1 0211- ● ●
412 02.559 BOLT; TERMINAL TO ENG,HANGER RR
C24SE ENG(LG1) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0211- ● ●
440 02.480 CABLE; EARTH
C24SE ENG(LG1) 		8-97317-387-0 01 1 0211- ● ●

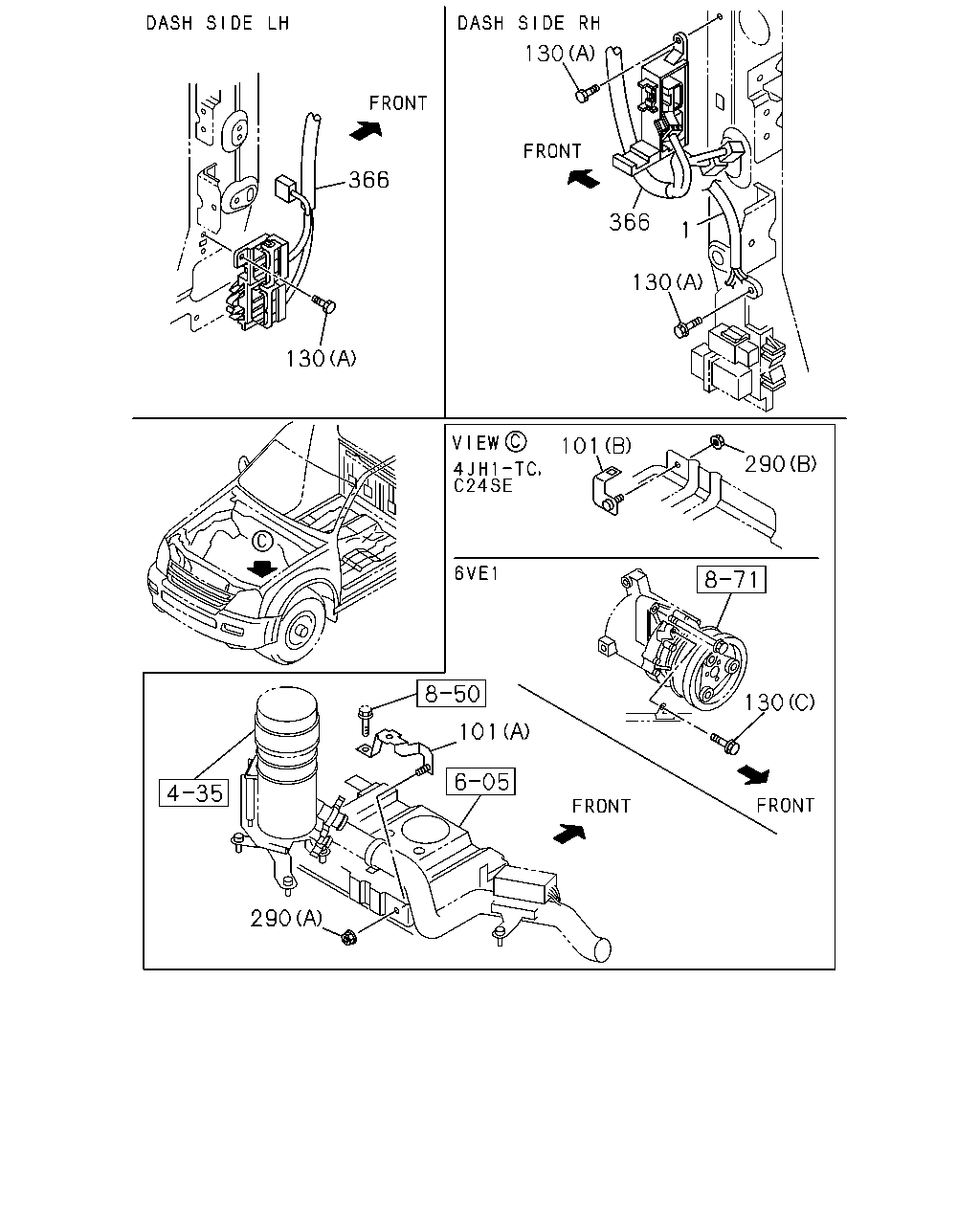

çizim 53871
130 366 366 1 130 130 101 290 130 101 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW<A30> 		8-97317-577-4 01 1 0211- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) EXC. AIR BAG DRIVER & PASSENGER(AK5),POWER WINDOW<A30> 		8-97317-579-4 01 1 0211- ● ● ● ● ● ● ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW<A30> 		8-97327-232-4 01 1 0211- ● ● ● ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) EXC. AIR BAG DRIVER & PASSENGER(AK5),POWER WINDOW<A30> 		8-97327-234-4 01 1 0211- ● ● ● ● ●
1 02.480 HARNESS; CAB
GRADE DX(RBA) 		8-97327-230-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-582-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LT(RBD) EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-583-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A30> 		8-97317-576-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) GRADE LX(RBB) POWER WINDOW<A30> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-578-4 01 1 0211- ● ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-580-4 01 1 0211- ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LT(RBD) EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97317-581-4 01 1 0211- ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW<A30> 		8-97327-231-4 01 1 0211- ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) GRADE LX(RBB) POWER WINDOW<A30> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97327-233-4 01 1 0211- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
6VE1 ENG(RJQ) (A) 		8-97302-833-0 01 1 0211- ● ● ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JH1-TC ENG(RDM) (B) 		8-97250-352-1 01 1 0211- ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
C24SE ENG(LG1),4JH1-TC ENG(RDM) (B) 		8-97250-352-1 01 1 0211- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR
(B) 		8-97250-352-1 01 1 0211- ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0211- ● ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
4JH1-TC ENG(RDM) (B) M10X16 FLANGE 		0-28081-016-0 01 1 0211- ● ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0211- ●
130 02.559 BOLT; HARNESS EARTH
6VE1 ENG(RJQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 (C) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ● ● ●
290 02.483 NUT; BRKT
6VE1 ENG(RJQ) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ● ● ● ● ● ● ●
290 02.483 NUT; BRKT
4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211- ● ● ● ● ●
290 02.483 NUT; BRKT
C24SE ENG(LG1),4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211- ● ●
290 02.483 NUT; BRKT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211- ●
290 02.483 NUT; BRKT
C24SE ENG(LG1) 07.633 (C) M8 FLANGE 		0-91150-108-0 01 1 0211- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-492-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-036-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-506-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-032-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) 		8-97359-490-0 01 1 0211-0301 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
C24SE ENG(LG1) 		8-97363-026-0 01 1 0302- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-495-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-039-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-496-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-040-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-491-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-035-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-505-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-031-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-501-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-027-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-502-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-028-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-493-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-493-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-037-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-037-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-503-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-503-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-029-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-029-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-494-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-038-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-504-0 01 1 0211-0301 ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-030-0 01 1 0302- ● ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-497-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-041-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-498-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-042-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-507-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-033-0 01 1 0302- ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97359-508-0 01 1 0211-0301 ●
366 02.525 HARNESS; CABLE,ENG ROOM
6VE1 ENG(RJQ),A/T AISIN(RMD) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97363-034-0 01 1 0302- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
