8-03 — LAMP; REAR AND REAR SIDE (#42387) — 79 parça

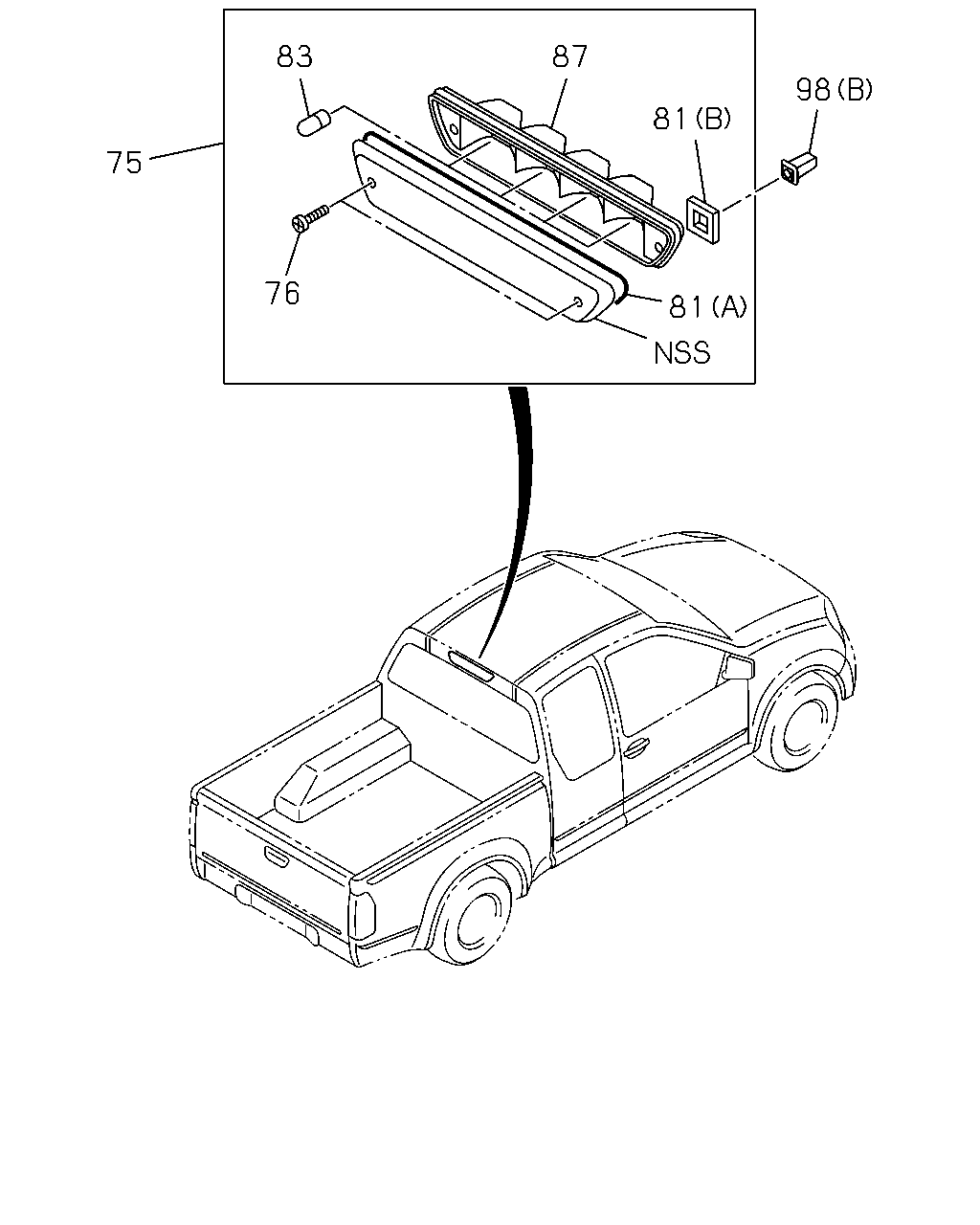

çizim 9427
83 87 98 81 75 76 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-97305-674-1 01 1 0211- ● ● ● ● ● ● ● ●
76 02.688 SCREW; STOP LAMP,HIGHMOUNTED 8-97333-426-0 02 1 0211- ● ● ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP
(A) 		8-97333-427-0 01 1 0211- ● ● ● ● ● ● ● ●
81 02.694 GASKET; STOP LAMP
(B) 		8-97333-428-0 01 1 0211- ● ● ● ● ● ● ● ●
83 08.991 BULB; STOP LAMP,HIGHMOUNTED
12V 5W 		8-97333-424-0 04 1 0211- ● ● ● ● ● ● ● ●
87 02.694 SOCKET; STOP LAMP 8-97333-425-0 01 1 0211- ● ● ● ● ● ● ● ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0211- ● ● ● ● ● ● ● ●
98 02.708 WASHER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 08.054 (A) D=16 		8-94427-941-0 04 1 0211- ● ● ● ●
98 02.708 WASHER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.054 (A) D=16 		8-94427-941-0 04 1 0211- ●

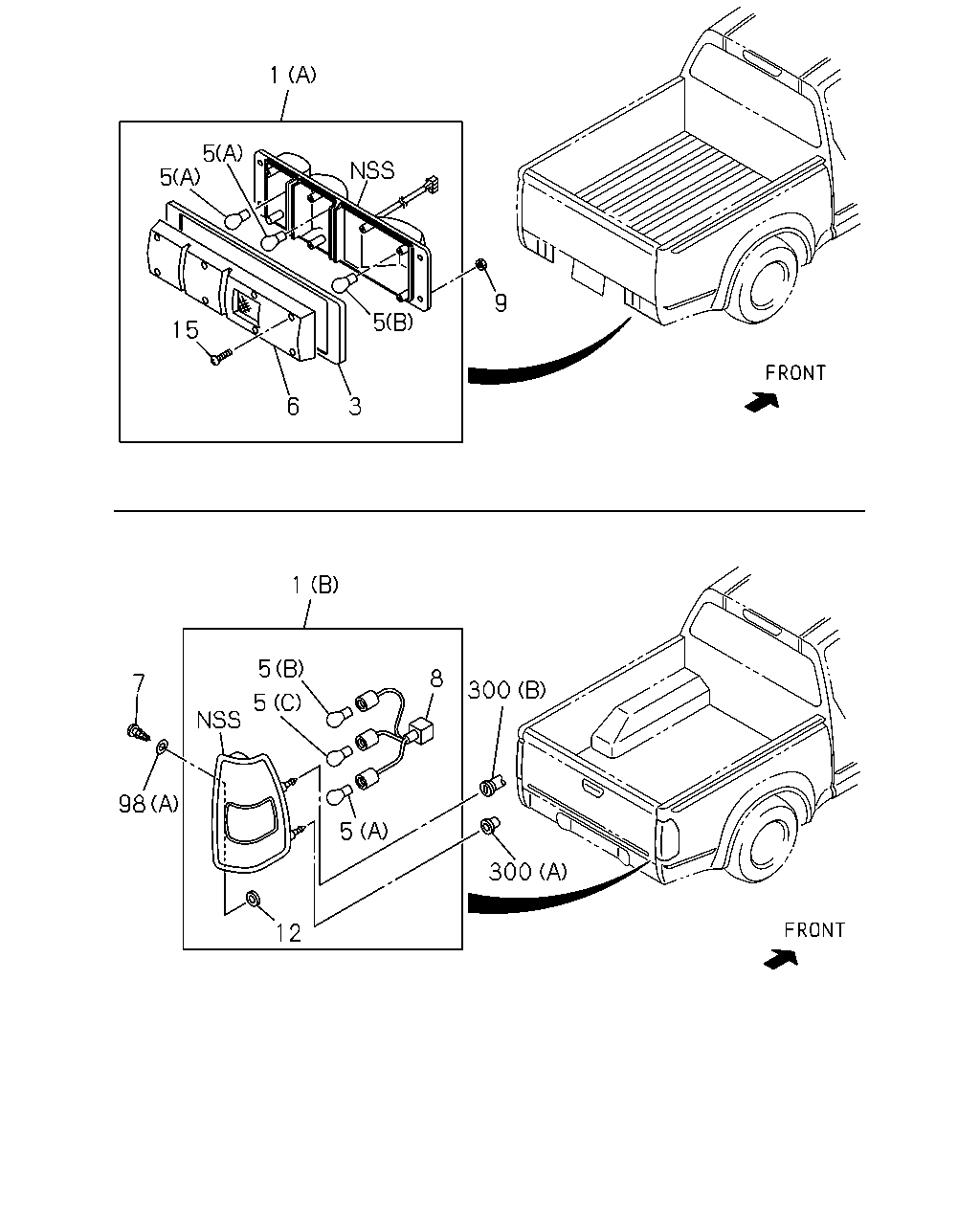

çizim 50947
1 5 5 9 5 15 6 3 1 5 8 7 300 5 98 5 300 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97234-750-2 01 1 0211-0211 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97234-750-2 01 1 0211-0211 ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97360-144-0 01 1 0211-0302 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97360-144-0 01 1 0211-0302 ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97364-115-0 01 1 0303-0306 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97364-115-0 01 1 0303-0306 ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97368-095-0 01 1 0307- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97368-095-0 01 1 0307- ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97234-749-2 01 1 0211-0211 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97234-749-2 01 1 0211-0211 ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97360-143-0 01 1 0211-0302 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97360-143-0 01 1 0211-0302 ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97364-114-0 01 1 0303-0306 ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97364-114-0 01 1 0303-0306 ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97368-094-0 01 1 0307- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97368-094-0 01 1 0307- ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) (A) 		8-97137-732-0 01 1 0211- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) 		8-97137-732-0 01 1 0211- ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97137-732-0 01 1 0211- ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) (A) 		8-97137-731-0 01 1 0211- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
(A) 		8-97137-731-0 01 1 0211- ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97137-731-0 01 1 0211- ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) 02.689 		5-82236-002-0 01 1 0211- ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
02.689 		5-82236-002-0 01 1 0211- ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.689 		5-82236-002-0 01 1 0211- ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) 02.689 		5-82236-001-0 01 1 0211- ● ● ● ●
3 02.684 GASKET; RR COMB LAMP
02.689 		5-82236-001-0 01 1 0211- ● ● ●
3 02.684 GASKET; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.689 		5-82236-001-0 01 1 0211- ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 0211- ● ● ● ● ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 12V 21W 		8-94124-074-0 02 1 0211- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 12V 21W 		8-94124-074-0 02 1 0211- ●
5 08.991 BULB; RR COMB LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C) 12V 21W 		8-97179-967-0 02 1 0211- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (C) 12V 21W 		8-97179-967-0 02 1 0211- ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) (A) 12V 21W 		8-94124-074-0 04 1 0211- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 0211- ● ● ●
5 08.991 BULB; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 12V 21W 		8-94124-074-0 04 1 0211- ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) 		5-82235-002-0 01 1 0211- ● ● ● ●
6 02.682 LENS; RR COMB LAMP 5-82235-002-0 01 1 0211- ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		5-82235-002-0 01 1 0211- ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) 		5-82235-001-0 01 1 0211- ● ● ● ●
6 02.682 LENS; RR COMB LAMP 5-82235-001-0 01 1 0211- ● ● ●
6 02.682 LENS; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		5-82235-001-0 01 1 0211- ●
7 02.664 SCREW; RR COMB LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0211- ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.845 M5X14 TAPPING W/PL WASHER 		0-74110-514-0 04 1 0211- ●
8 02.664 HARNESS; RR COMB LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97333-421-0 02 1 0211- ● ● ● ●
8 02.664 HARNESS; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97333-421-0 02 1 0211- ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) 09.744 M5 FLANGE 		5-09440-003-0 08 1 0211- ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
09.744 M5 FLANGE 		5-09440-003-0 08 1 0211- ● ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 09.744 M5 FLANGE 		5-09440-003-0 08 1 0211- ●
12 02.664 GROMMET; RR COMB LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 		8-97349-413-0 04 1 0211- ● ● ● ●
12 02.664 GROMMET; RR COMB LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 		8-97349-413-0 04 1 0211- ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY DOUBLE WALL CTR PULL H ANDLE(S7R) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0211- ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0211- ● ● ●
15 02.664 SCREW; RR COMB LAMP
EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 02.587 M4X20 TAPPING STAINLESS 		0-71090-420-0 16 1 0211- ●
98 02.708 WASHER
16.588 (B) 		8-94279-039-0 02 1 0211- ● ● ● ● ● ● ● ●
98 02.708 WASHER
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) 08.054 (A) D=16 		8-94427-941-0 04 1 0211- ● ● ● ●
98 02.708 WASHER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) 08.054 (A) D=16 		8-94427-941-0 04 1 0211- ●
300 16.494 HOLDER; LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (A) 		8-97305-675-0 02 1 0211- ● ● ● ●
300 16.494 HOLDER; LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (A) 		8-97305-675-0 02 1 0211- ●
300 16.494 HOLDER; LAMP
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97305-676-0 02 1 0211- ● ● ● ●
300 16.494 HOLDER; LAMP
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (B) 		8-97305-676-0 02 1 0211- ●

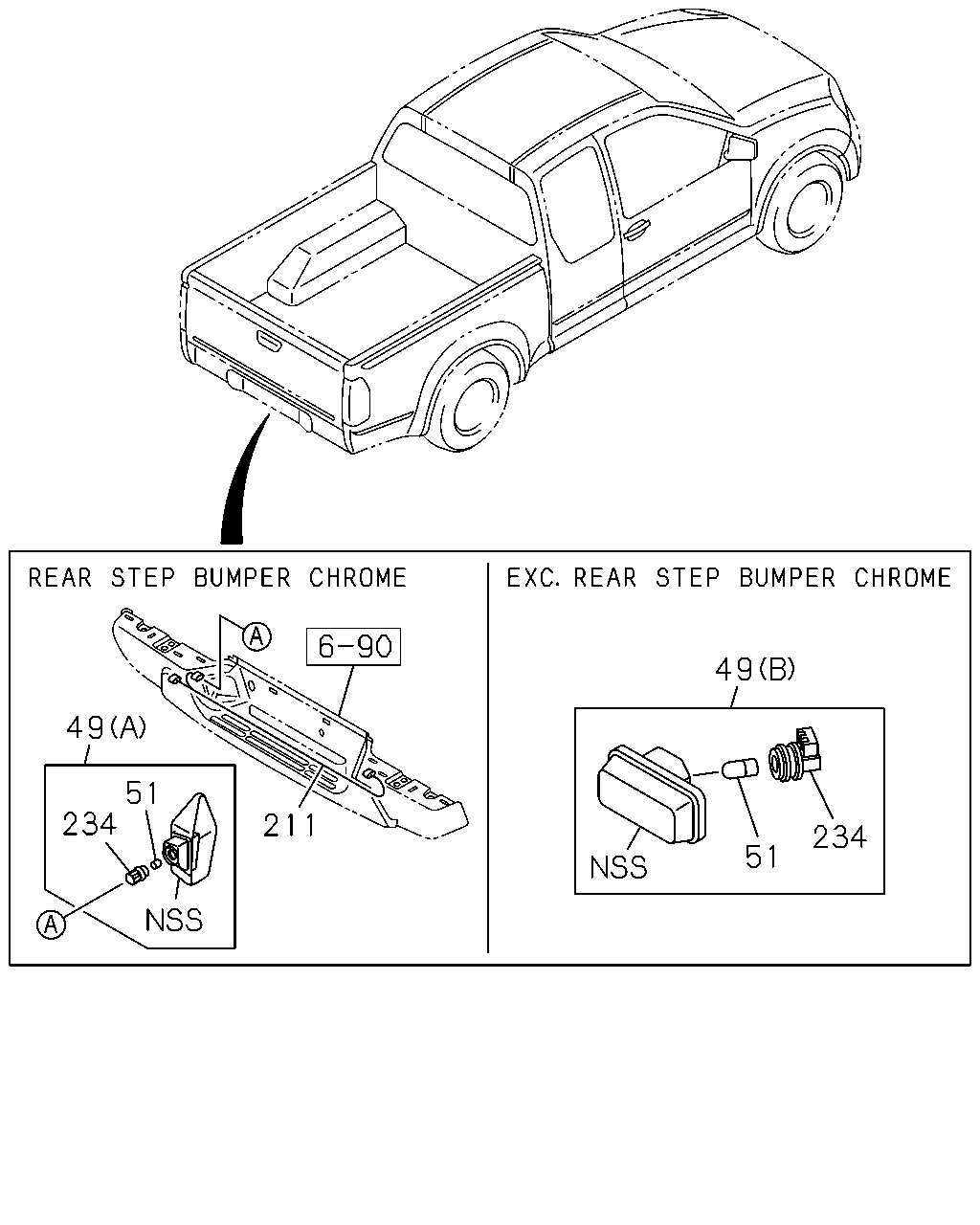

çizim 50992
49 49 51 234 211 234 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER CHROME(VB3) (A) 		8-97357-807-0 01 1 0211- ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
REAR STEP BUMPER CHROME(VB3) (A) 		8-97357-808-0 01 1 0211- ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
EXC. REAR STEP BUMPER CHROME(VB3) (B) 		8-97236-690-1 02 1 0211- ● ● ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
(B) 		8-97236-690-1 02 1 0211- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 0211- ● ● ● ● ● ● ● ●
211 02.708 HARNESS; EXT
REAR STEP BUMPER CHROME(VB3) 		8-97253-465-2 01 1 0211- ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
REAR STEP BUMPER CHROME(VB3) 		8-97184-970-0 02 1 0211- ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP
EXC. REAR STEP BUMPER CHROME(VB3) 		1-82119-148-0 02 1 0211- ● ● ● ● ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 1-82119-148-0 02 1 0211- ● ●
