◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#42386) — 28 parça

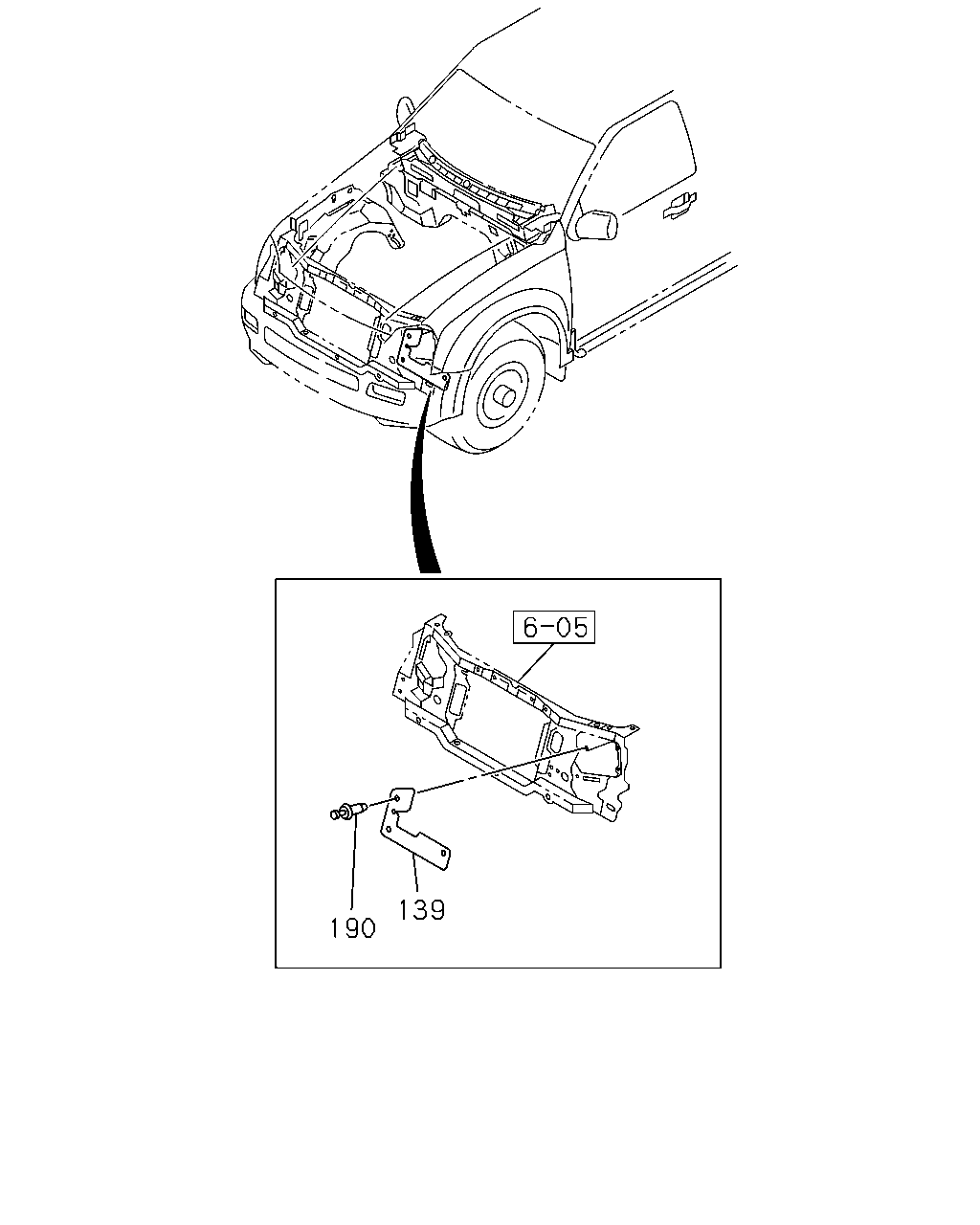

çizim 49474
139 190
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-394-0 02 1 0211- ● ● ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 16.150 		8-94279-954-0 06 1 0211- ● ● ● ● ● ● ● ●

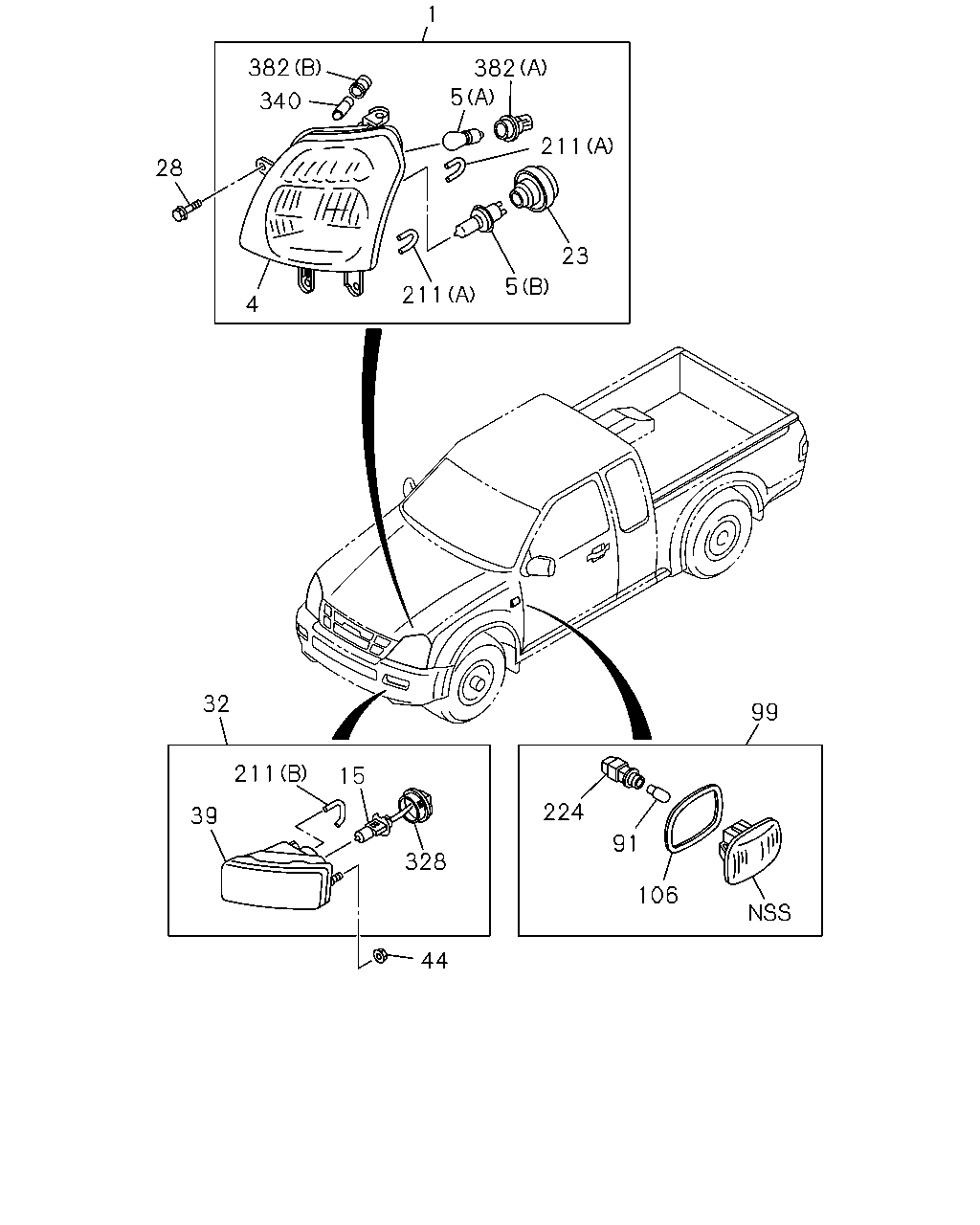

çizim 50376
1 382 382 5 340 211 28 23 5 211 4 32 99 211 15 224 39 91 328 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.725 LAMP ASM; HEAD 8-97237-500-3 01 1 0211- ● ● ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-499-3 01 1 0211- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-439-0 01 1 0211- ● ● ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-438-0 01 1 0211- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0211- ● ● ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0211- ● ● ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0211- ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97332-448-0 02 1 0211- ● ● ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0211- ● ● ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97237-590-1 01 1 0211-0212 ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0301- ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97237-589-1 01 1 0211-0212 ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0301- ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-415-0 01 1 0211- ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-414-0 01 1 0211- ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0211- ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0211- ● ● ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0211- ● ● ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0211- ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0211- ● ● ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0211- ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0211- ● ● ● ● ● ● ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> 		8-97333-417-0 02 1 0211- ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0211- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0211- ● ● ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0211- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
