◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-55 - REAR SEAT ▶
7-55 — REAR SEAT (#42384) — 70 parça

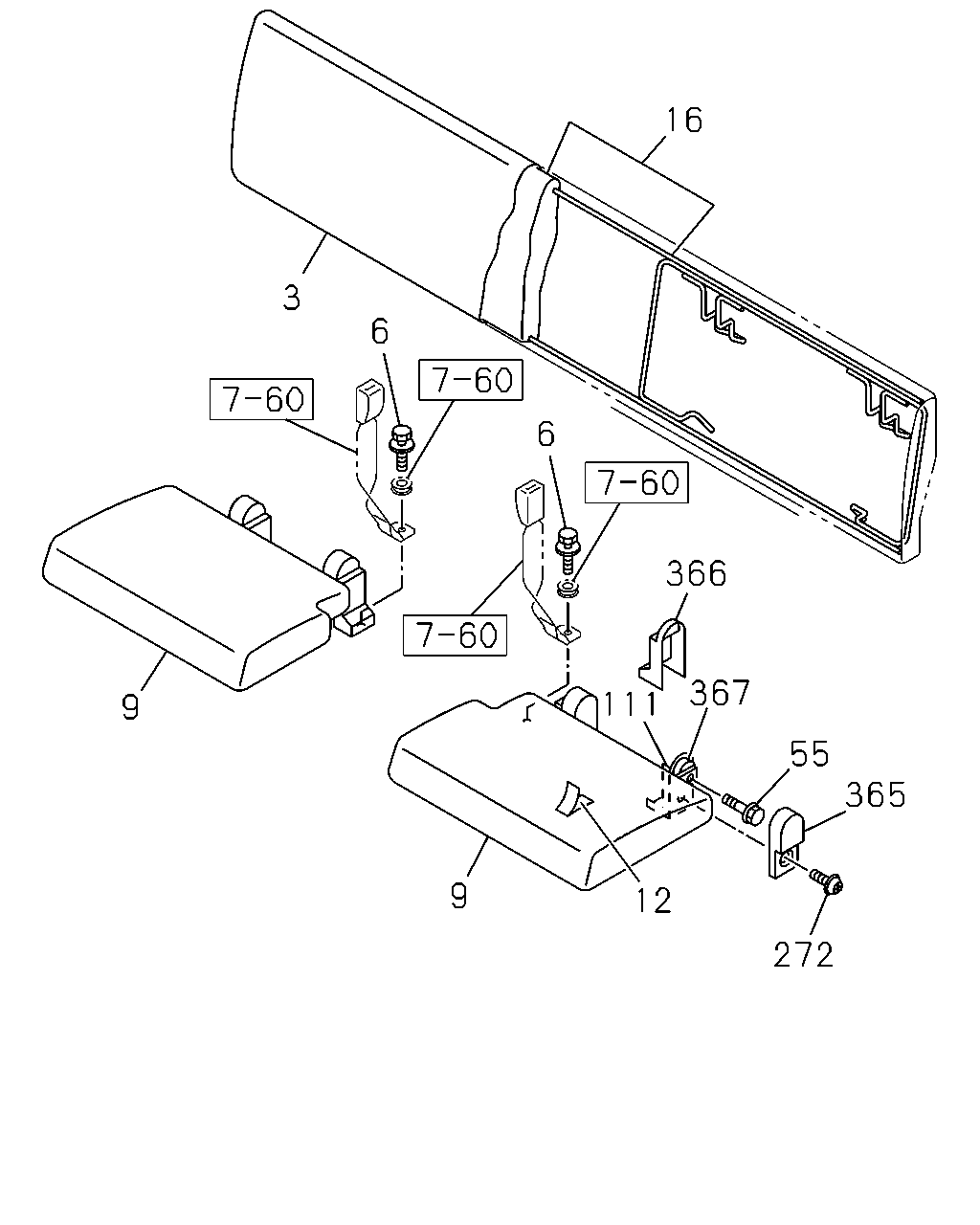

çizim 50259
16 3 6 6 366 367 111 9 55 365 9 12 272
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.714 COVER; TRIM,RR SEAT BACK
4X2 CREW CAB(TFB*W*) 		8-97332-796-0 01 1 0303- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) 		8-97332-797-0 01 1 0303- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB LONG(TF**WF) 		8-97332-798-0 01 1 0303- ●
3 16.714 COVER; TRIM,RR SEAT BACK
4X2 CREW CAB(TFB*W*) 		8-97332-796-0 01 1 0211-0211 ●
3 16.714 COVER; TRIM,RR SEAT BACK
SPACE CAB(TF**C*) 		8-97332-782-0 01 1 0211- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) 		8-97332-797-0 01 1 0211-0211 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB LONG(TF**WF) 		8-97332-798-0 01 1 0211-0211 ●
3 16.714 COVER; TRIM,RR SEAT BACK
4X4 SPACE CAB LONG(TFS*CF) 		8-97332-783-0 01 1 0211- ●
6 16.679 BOLT; RR SEAT
SPACE CAB(TF**C*) 16.714 		8-97248-987-0 04 1 0211- ● ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-251-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-254-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X2 CREW CAB(TFB*W*) 		8-97332-867-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB(TF**W*) 		8-97332-868-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB LONG(TF**WF) 		8-97332-869-0 01 1 0211- ●
12 16.717 PAD & FRAME ASM; RR CUSHION
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-255-0 01 1 0211- ●
12 16.717 PAD & FRAME ASM; RR CUSHION
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-256-0 01 1 0211- ●
16 16.720 PAD & FRAME ASM; RR BACK SIDE
SPACE CAB(TF**C*) 		8-97332-775-0 01 1 0211- ● ●
55 16.716 BOLT; HINGE,RR SEAT
CREW CAB(TF**W*) 		8-97332-881-0 02 1 0211- ● ● ●
55 16.716 BOLT; HINGE,RR SEAT
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-257-0 04 1 0211- ●
111 16.716 BRACKET; HINGE,JUMP SEAT
4X4 SPACE CAB LONG(TFS*CF) 		8-97355-210-0 02 1 0211- ●
111 16.716 BRACKET; HINGE,JUMP SEAT
4X4 SPACE CAB LONG(TFS*CF) 		8-97355-211-0 02 1 0211- ●
272 16.720 SCREW; COVER
4X4 SPACE CAB LONG(TFS*CF) 		8-97354-993-0 04 1 0211- ●
365 16.717 COVER; PIVOT
4X4 SPACE CAB LONG(TFS*CF) INNER DARK GRAY 		8-97395-352-0 01 1 0211- ●
365 16.717 COVER; PIVOT
4X4 SPACE CAB LONG(TFS*CF) INNER DARK GRAY 		8-97395-353-0 01 1 0211- ●
365 16.717 COVER; PIVOT
4X4 SPACE CAB LONG(TFS*CF) OUTER DARK GRAY 		8-97395-354-0 01 1 0211- ●
365 16.717 COVER; PIVOT
4X4 SPACE CAB LONG(TFS*CF) OUTER DARK GRAY 		8-97395-355-0 01 1 0211- ●
366 16.717 LID; PIVOT
4X4 SPACE CAB LONG(TFS*CF) DARK GRAY 		8-97395-356-0 04 1 0211- ●
367 16.717 DETENT; RR JUMP PIVOT
4X4 SPACE CAB LONG(TFS*CF) 		8-97355-208-0 02 1 0211- ●
367 16.717 DETENT; RR JUMP PIVOT
4X4 SPACE CAB LONG(TFS*CF) 		8-97355-209-0 02 1 0211- ●
çizim 50338
17 17 3 55 108 368 4 239 302 363 361 5 213 108 11 9 364 10 55 352
BalonParca AdiParca NoAdetTipApplied Date A B C
3 16.714 COVER; TRIM,RR SEAT BACK
4X2 CREW CAB(TFB*W*) 		8-97332-796-0 01 1 0303- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) 		8-97332-797-0 01 1 0303- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB LONG(TF**WF) 		8-97332-798-0 01 1 0303- ●
3 16.714 COVER; TRIM,RR SEAT BACK
4X2 CREW CAB(TFB*W*) 		8-97332-796-0 01 1 0211-0211 ●
3 16.714 COVER; TRIM,RR SEAT BACK
SPACE CAB(TF**C*) 		8-97332-782-0 01 1 0211- ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB(TF**W*) 		8-97332-797-0 01 1 0211-0211 ●
3 16.714 COVER; TRIM,RR SEAT BACK
CREW CAB LONG(TF**WF) 		8-97332-798-0 01 1 0211-0211 ●
3 16.714 COVER; TRIM,RR SEAT BACK
4X4 SPACE CAB LONG(TFS*CF) 		8-97332-783-0 01 1 0211- ●
4 16.720 PAD; RR,SEAT BACK
CREW CAB(TF**W*) 		8-97332-784-0 01 1 0303- ● ● ●
4 16.720 PAD; RR,SEAT BACK
CREW CAB(TF**W*) 		8-97332-784-0 01 1 0211-0211 ● ● ●
5 16.720 FRAME ASM; RR SEAT BACK
CREW CAB(TF**W*) 		8-97332-834-0 01 1 0303- ● ● ●
5 16.720 FRAME ASM; RR SEAT BACK
CREW CAB(TF**W*) 		8-97332-834-0 01 1 0211-0211 ● ● ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-251-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-254-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
4X2 CREW CAB(TFB*W*) 		8-97332-867-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB(TF**W*) 		8-97332-868-0 01 1 0211- ●
9 16.717 COVER ASM; TRIM,RR,CUSHION
CREW CAB LONG(TF**WF) 		8-97332-869-0 01 1 0211- ●
10 16.716 PAD; CUSHION,RR SEAT
CREW CAB(TF**W*) 		8-97332-862-0 01 1 0211- ● ● ●
11 16.716 FRAME ASM; CUSHION,RR SEAT
CREW CAB(TF**W*) 		8-97332-856-0 01 1 0211- ● ● ●
17 16.718 REST; HD,RR SEAT
4X2 CREW CAB(TFB*W*) 		8-97332-840-0 02 1 0303- ●
17 16.718 REST; HD,RR SEAT
CREW CAB(TF**W*) 		8-97332-841-0 02 1 0303- ●
17 16.718 REST; HD,RR SEAT
CREW CAB LONG(TF**WF) 		8-97332-842-0 02 1 0303- ●
17 16.718 REST; HD,RR SEAT
4X2 CREW CAB(TFB*W*) 		8-97332-840-0 02 1 0211-0211 ●
17 16.718 REST; HD,RR SEAT
CREW CAB(TF**W*) 		8-97332-841-0 02 1 0211-0211 ●
17 16.718 REST; HD,RR SEAT
CREW CAB LONG(TF**WF) 		8-97332-842-0 02 1 0211-0211 ●
55 16.716 BOLT; HINGE,RR SEAT
CREW CAB(TF**W*) 		8-97332-881-0 02 1 0211- ● ● ●
55 16.716 BOLT; HINGE,RR SEAT
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-257-0 04 1 0211- ●
108 16.714 COVER; HINGE BRKT
CREW CAB(TF**W*) DARK GRAY 		8-97394-207-0 01 1 0211- ● ● ●
108 16.714 COVER; HINGE BRKT
CREW CAB(TF**W*) DARK GRAY 		8-97394-208-0 01 1 0211- ● ● ●
213 16.716 BUSHING; RR SEAT HINGE
CREW CAB(TF**W*) 		8-97354-675-0 02 1 0303- ● ● ●
213 16.716 BUSHING; RR SEAT HINGE
CREW CAB(TF**W*) 		8-97354-675-0 02 1 0211-0211 ● ● ●
239 16.682 CABLE; CONT,LEVER
CREW CAB(TF**W*) 		8-97332-828-0 01 1 0303- ● ● ●
239 16.682 CABLE; CONT,LEVER
CREW CAB(TF**W*) 		8-97332-828-0 01 1 0211-0211 ● ● ●
302 16.715 NUT; RR SEAT
CREW CAB(TF**W*) 07.243 M12 FLANGE 		0-91150-212-0 04 1 0211- ● ● ●
352 16.717 SPRING; RR CUSHION
CREW CAB(TF**W*) 		8-97332-877-0 11 1 0211- ● ● ●
361 16.682 LATCH; REAR SEAT
CREW CAB(TF**W*) 		8-97332-811-0 02 1 0303- ● ● ●
361 16.682 LATCH; REAR SEAT
CREW CAB(TF**W*) 		8-97332-811-0 02 1 0211-0211 ● ● ●
363 16.682 BOLT; REAR SEAT LATCH
CREW CAB(TF**W*) 		8-97332-815-0 04 1 0303- ● ● ●
363 16.682 BOLT; REAR SEAT LATCH
CREW CAB(TF**W*) 		8-97332-815-0 04 1 0211-0211 ● ● ●
364 16.682 MAT; SUSPENSION,REAR SEAT
CREW CAB(TF**W*) 		8-97332-874-0 01 1 0211- ● ● ●
368 16.720 PAD; BACK FORM
CREW CAB(TF**W*) 		8-97369-254-0 02 1 0303- ● ● ●
