◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#42383) — 270 parça

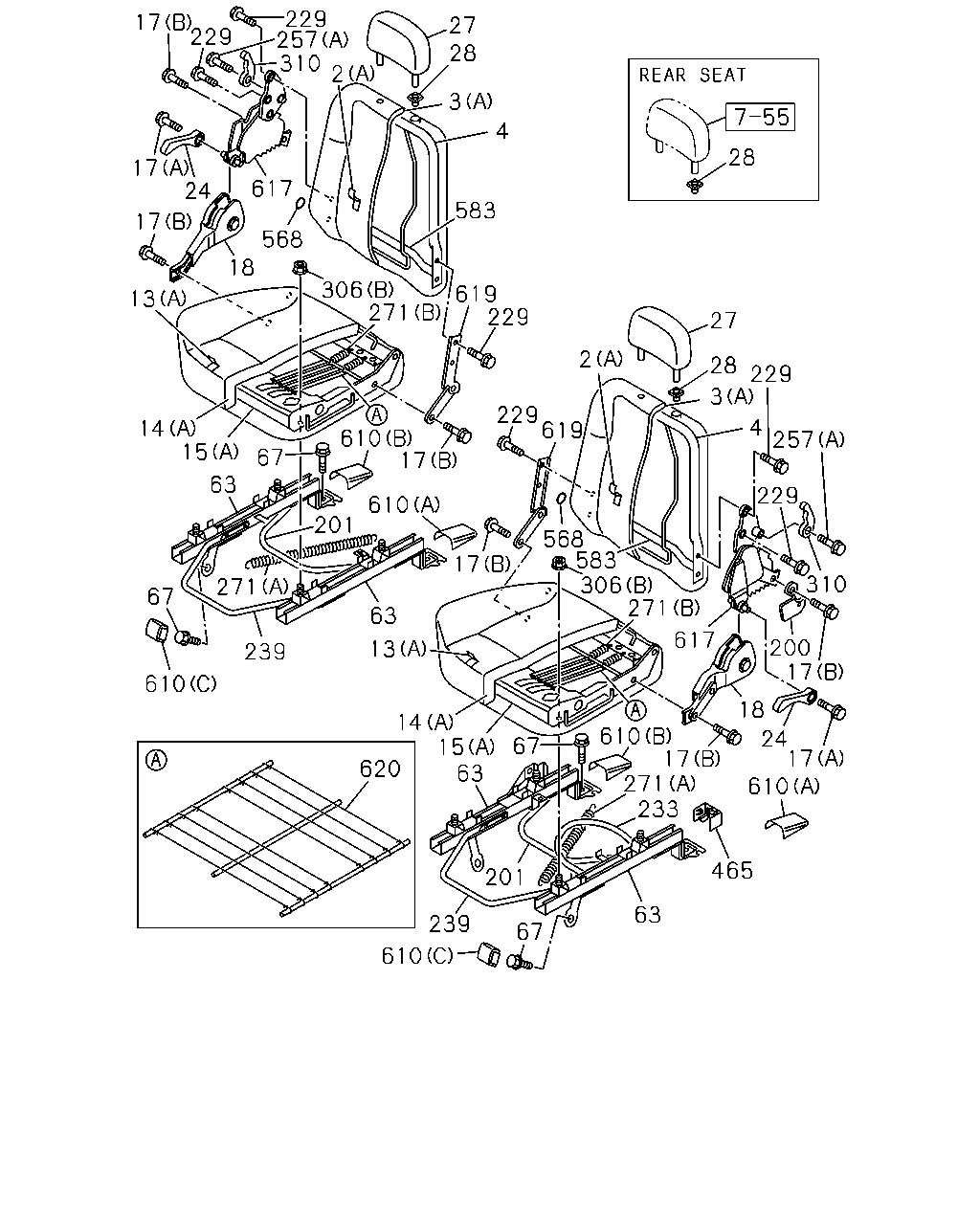

çizim 10437
229 257 310 17 229 27 28 2 3 4 28 17 24 617 583 17 568 18 306 271 619 229 13 27 2 28 229 3 229 619 610 17 4 14 15 257 67 63 229 610 201 568 583 306 271 271 17 310 67 63 617 200 17 13 239 610 18 610 17 271 233 14 15 63 24 17 610 67 620 201 465 63 239 67 610
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.724 COVER; TRIM,FRT SEAT,BACK
(B) 		8-97332-749-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BENCH SEAT<A52> (B) 		8-97353-231-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97353-175-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97353-173-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(A) 		8-97332-624-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(A) 		8-97332-621-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
(B) 		8-97332-743-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
BENCH SEAT<A52> (B) 		8-97332-743-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-611-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
(A) 		8-97332-611-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-610-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
(A) 		8-97332-610-0 01 1 0211- ●
4 16.720 FRAME ASM; FRT SEAT 8-97353-229-0 01 1 0211- ●
4 16.720 FRAME ASM; FRT SEAT
BENCH SEAT<A52> 		8-97353-229-0 01 1 0211- ●
4 16.720 FRAME ASM; FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-596-0 01 1 0211- ● ●
4 16.720 FRAME ASM; FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-596-0 01 1 0211- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
(B) 		8-97332-764-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BENCH SEAT<A52> (B) 		8-97353-235-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-689-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-686-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-97332-690-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-97332-687-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
(B) 		8-97332-763-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
BENCH SEAT<A52> (B) 		8-97332-763-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-664-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
(A) 		8-97332-664-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-663-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
(A) 		8-97332-663-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
(B) 		8-97353-234-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
BENCH SEAT<A52> (B) 		8-97353-234-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-645-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
(A) 		8-97332-645-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-644-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
(A) 		8-97332-644-0 01 1 0211- ●
17 16.682 BOLT; RECLINING
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-605-0 04 1 0211- ● ●
17 16.682 BOLT; RECLINING
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-605-0 04 1 0211- ● ●
17 16.682 BOLT; RECLINING
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-630-0 01 1 0211- ● ●
17 16.682 BOLT; RECLINING
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-630-0 01 1 0211- ● ●
18 16.682 COVER; RECLINING
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97395-013-0 01 1 0211- ● ●
18 16.682 COVER; RECLINING
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97395-013-0 01 1 0211- ● ●
18 16.682 COVER; RECLINING
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97395-014-0 01 1 0211- ● ●
18 16.682 COVER; RECLINING
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97395-014-0 01 1 0211- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97394-231-0 01 1 0211- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97394-231-0 01 1 0211- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97394-230-0 01 1 0211- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97394-230-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT 8-97332-574-0 02 1 0211- ●
27 16.718 REST; HD,FRT SEAT
BENCH SEAT<A52> 		8-97332-575-0 02 1 0211- ●
27 16.718 REST; HD,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-575-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-575-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT 8-97332-576-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT 8-97332-576-0 01 1 0211- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.714 		8-97332-607-0 04 1 0211-0211 ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
BENCH SEAT<A52> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.714 		8-97332-607-0 04 1 0211-0211 ● ●
28 16.718 HOLDER; GUIDE,HD REST
16.714 		8-97332-607-0 04 1 0212-0302 ●
28 16.718 HOLDER; GUIDE,HD REST
BENCH SEAT<A52> 16.714 		8-97332-607-0 04 1 0212-0302 ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.714 		8-97332-607-0 04 1 0303- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
BENCH SEAT<A52> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.714 		8-97332-607-0 04 1 0303- ● ●
28 16.718 HOLDER; GUIDE,HD REST
FRONT SEAT BUCKET TYPE<A50> 16.714 		8-97332-607-0 02 1 0211- ● ●
28 16.718 HOLDER; GUIDE,HD REST
FRONT SEAT BUCKET TYPE<A50> 16.714 		8-97332-607-0 02 1 0211- ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97332-766-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT<A52> 		8-97332-766-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97332-767-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT<A52> 		8-97332-767-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
FRONT SEAT BUCKET TYPE<A50> PASSENGER SEAT 		8-97332-657-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
PASSENGER SEAT 		8-97332-657-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
FRONT SEAT BUCKET TYPE<A50> DRIVER SEAT 		8-97332-652-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
DRIVER SEAT 		8-97332-652-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
FRONT SEAT BUCKET TYPE<A50> DRIVER SEAT 		8-97332-656-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
DRIVER SEAT 		8-97332-656-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> PASSENGER SEAT 		8-97353-184-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X4 SPACE CAB LONG(TFS*CF) PASSENGER SEAT 		8-97353-184-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) FRONT SEAT BUCKET TYPE<A50> PASSENGER SEAT 		8-97332-653-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
CREW CAB LONG(TF**WF) PASSENGER SEAT 		8-97332-653-0 01 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
16.714 		8-97248-987-0 06 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
BENCH SEAT<A52> 16.714 		8-97248-987-0 06 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
EXC. BENCH SEAT<A52> 16.714 		8-97248-987-0 08 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
16.714 		8-97248-987-0 08 1 0211- ●
200 16.714 BRACKET; SEAT
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> 		8-97332-694-0 01 1 0211- ●
200 16.714 BRACKET; SEAT
4X4 SPACE CAB LONG(TFS*CF) 		8-97332-694-0 01 1 0211- ●
201 16.682 CABLE; ADJ 8-97332-768-0 01 1 0211- ●
201 16.682 CABLE; ADJ
BENCH SEAT<A52> 		8-97332-768-0 01 1 0211- ●
201 16.682 CABLE; ADJ
FRONT SEAT BUCKET TYPE<A50> 		8-97353-225-0 01 1 0211- ● ●
201 16.682 CABLE; ADJ
FRONT SEAT BUCKET TYPE<A50> 		8-97353-225-0 01 1 0211- ● ●
229 16.716 BOLT; HINGE,FRT SEAT
16.682 		8-97332-605-0 04 1 0211- ● ● ●
229 16.716 BOLT; HINGE,FRT SEAT
16.682 		8-97332-605-0 04 1 0211- ● ●
233 16.674 CABLE; WALK-IN
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> 		8-97332-693-0 01 1 0211- ●
233 16.674 CABLE; WALK-IN
4X4 SPACE CAB LONG(TFS*CF) 		8-97332-693-0 01 1 0211- ●
239 16.682 HANDLE; SIDE SUPPORT,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-658-0 01 1 0211- ●
239 16.682 HANDLE; SIDE SUPPORT,FRT SEAT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> 		8-97332-658-0 01 1 0211- ●
239 16.682 HANDLE; SIDE SUPPORT,FRT SEAT 8-97332-658-0 01 1 0211- ●
239 16.682 HANDLE; SIDE SUPPORT,FRT SEAT
CREW CAB LONG(TF**WF) 		8-97332-658-0 01 1 0211- ●
239 16.682 HANDLE; SIDE SUPPORT,FRT SEAT
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> 		8-97332-659-0 01 1 0211- ●
239 16.682 HANDLE; SIDE SUPPORT,FRT SEAT
4X4 SPACE CAB LONG(TFS*CF) 		8-97332-659-0 01 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
(B) 		8-97332-605-0 04 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
BENCH SEAT<A52> (B) 		8-97332-605-0 04 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
(A) 		8-97332-630-0 02 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
BENCH SEAT<A52> (A) 		8-97332-630-0 02 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-630-0 01 1 0211- ● ●
257 16.682 BOLT; RECLINING DEVICE
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-630-0 01 1 0211- ● ●
271 16.682 SPRING; HELPER
(C) 		8-97332-769-0 01 1 0211- ●
271 16.682 SPRING; HELPER
BENCH SEAT<A52> (C) 		8-97332-769-0 01 1 0211- ●
271 16.682 SPRING; HELPER
(D) 		8-97332-770-0 01 1 0211- ●
271 16.682 SPRING; HELPER
BENCH SEAT<A52> (D) 		8-97332-770-0 01 1 0211- ●
271 16.682 SPRING; HELPER
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
4X2 SINGLE CAB LONG(TFB5SF) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
(A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
CREW CAB LONG(TF**WF) (A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-662-0 01 1 0211- ●
271 16.682 SPRING; HELPER
4X4 SPACE CAB LONG(TFS*CF) (A) 		8-97332-662-0 01 1 0211- ●
271 16.682 SPRING; HELPER
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-650-0 04 1 0211- ● ●
271 16.682 SPRING; HELPER
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-650-0 04 1 0211- ● ●
306 16.682 NUT; SEAT ADJ
(A) 		8-97332-771-0 06 1 0211- ●
306 16.682 NUT; SEAT ADJ
BENCH SEAT<A52> (A) 		8-97332-771-0 06 1 0211- ●
306 16.682 NUT; SEAT ADJ
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-666-0 04 1 0211- ● ●
306 16.682 NUT; SEAT ADJ
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-666-0 04 1 0211- ● ●
310 16.682 LEVER ASM; HEIGHT ADJ DRIVER SEA
DARK GRAY 		8-97394-219-0 01 1 0211- ● ● ●
310 16.682 LEVER ASM; HEIGHT ADJ DRIVER SEA
DARK GRAY 		8-97394-220-0 01 1 0211- ● ● ●
465 16.682 COVER; SEAT ADJUSTER
16.717 		8-97331-501-1 02 1 0211- ●
465 16.682 COVER; SEAT ADJUSTER
BENCH SEAT<A52> 16.717 		8-97331-501-1 02 1 0211- ●
465 16.682 COVER; SEAT ADJUSTER
FRONT SEAT BUCKET TYPE<A50> 		8-97328-838-0 02 1 0211- ● ●
465 16.682 COVER; SEAT ADJUSTER
FRONT SEAT BUCKET TYPE<A50> 		8-97328-838-0 02 1 0211- ● ●
568 16.682 RETAINER; DRIVER SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97354-841-0 02 1 0211- ● ●
568 16.682 RETAINER; DRIVER SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97354-841-0 02 1 0211- ● ●
583 16.682 ROD; SEAT 8-97332-758-0 01 1 0211- ●
583 16.682 ROD; SEAT
BENCH SEAT<A52> 		8-97332-758-0 01 1 0211- ●
583 16.682 ROD; SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97354-840-0 01 1 0211- ● ●
583 16.682 ROD; SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97354-840-0 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 CREW CAB(TFB*W*) (D) DARK GRAY 		8-97390-868-1 03 1 0211- ●
610 16.682 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (C) 		8-97328-453-0 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (C) 		8-97312-372-1 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (A) DARK GRAY 		8-97298-463-1 02 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97390-867-1 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97298-464-1 01 1 0211- ● ●
617 16.682 RECLINING DEVICE
FRONT SEAT BUCKET TYPE<A50> 		8-97332-598-0 01 1 0211- ●
617 16.682 RECLINING DEVICE 8-97332-598-0 01 1 0211- ●
617 16.682 RECLINING DEVICE
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> 		8-97353-150-0 01 1 0211- ●
617 16.682 RECLINING DEVICE
4X4 SPACE CAB LONG(TFS*CF) 		8-97353-150-0 01 1 0211- ●
617 16.682 RECLINING DEVICE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) FRONT SEAT BUCKET TYPE<A50> 		8-97332-599-0 01 1 0211- ●
617 16.682 RECLINING DEVICE
CREW CAB LONG(TF**WF) 		8-97332-599-0 01 1 0211- ●
619 16.682 PIVOT BRACKET
FRONT SEAT BUCKET TYPE<A50> 		8-97353-152-0 01 1 0211- ●
619 16.682 PIVOT BRACKET 8-97353-152-0 01 1 0211- ●
619 16.682 PIVOT BRACKET
FRONT SEAT BUCKET TYPE<A50> 		8-97353-151-0 01 1 0211- ●
619 16.682 PIVOT BRACKET 8-97353-151-0 01 1 0211- ●
620 16.682 MAT; SUS
FRONT SEAT BUCKET TYPE<A50> 		8-97332-649-0 01 1 0211- ● ●
620 16.682 MAT; SUS
FRONT SEAT BUCKET TYPE<A50> 		8-97332-649-0 01 1 0211- ● ●

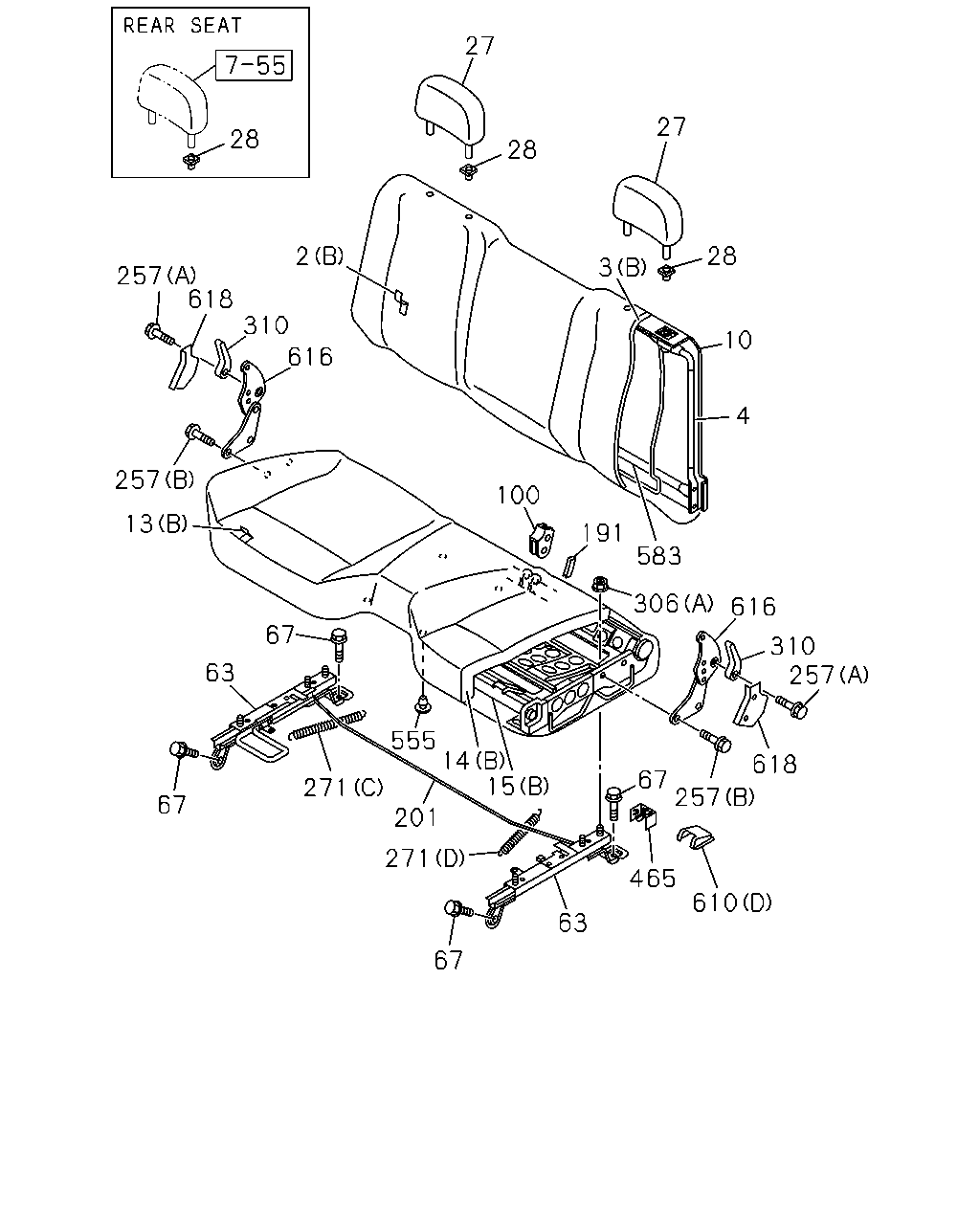

çizim 10801
27 27 28 28 28 2 3 257 618 310 10 616 4 257 100 13 191 583 306 616 67 310 257 63 555 14 15 618 67 257 271 201 67 271 465 610 63 67
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.724 COVER; TRIM,FRT SEAT,BACK
(B) 		8-97332-749-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
BENCH SEAT<A52> (B) 		8-97353-231-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97353-175-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97353-173-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(A) 		8-97332-624-0 01 1 0211- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(A) 		8-97332-621-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
(B) 		8-97332-743-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
BENCH SEAT<A52> (B) 		8-97332-743-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-611-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
(A) 		8-97332-611-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-610-0 01 1 0211- ●
3 16.720 PAD; FRT SEAT BACK
(A) 		8-97332-610-0 01 1 0211- ●
4 16.720 FRAME ASM; FRT SEAT 8-97353-229-0 01 1 0211- ●
4 16.720 FRAME ASM; FRT SEAT
BENCH SEAT<A52> 		8-97353-229-0 01 1 0211- ●
4 16.720 FRAME ASM; FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-596-0 01 1 0211- ● ●
4 16.720 FRAME ASM; FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-596-0 01 1 0211- ● ●
10 16.682 BOARD; SEAT 8-97353-230-0 01 1 0211- ●
10 16.682 BOARD; SEAT
BENCH SEAT<A52> 		8-97353-230-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
(B) 		8-97332-764-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BENCH SEAT<A52> (B) 		8-97353-235-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-689-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-686-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-97332-690-0 01 1 0211- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-97332-687-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
(B) 		8-97332-763-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
BENCH SEAT<A52> (B) 		8-97332-763-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-664-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
(A) 		8-97332-664-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-663-0 01 1 0211- ●
14 16.716 PAD; FRT SEAT CUSHION
(A) 		8-97332-663-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
(B) 		8-97353-234-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
BENCH SEAT<A52> (B) 		8-97353-234-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-645-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
(A) 		8-97332-645-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-644-0 01 1 0211- ●
15 16.716 FRAME; CUSHION,FRT SEAT
(A) 		8-97332-644-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT 8-97332-574-0 02 1 0211- ●
27 16.718 REST; HD,FRT SEAT
BENCH SEAT<A52> 		8-97332-575-0 02 1 0211- ●
27 16.718 REST; HD,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-575-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97332-575-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT 8-97332-576-0 01 1 0211- ●
27 16.718 REST; HD,FRT SEAT 8-97332-576-0 01 1 0211- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.714 		8-97332-607-0 04 1 0211-0211 ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
BENCH SEAT<A52> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.714 		8-97332-607-0 04 1 0211-0211 ● ●
28 16.718 HOLDER; GUIDE,HD REST
16.714 		8-97332-607-0 04 1 0212-0302 ●
28 16.718 HOLDER; GUIDE,HD REST
BENCH SEAT<A52> 16.714 		8-97332-607-0 04 1 0212-0302 ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.714 		8-97332-607-0 04 1 0303- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
BENCH SEAT<A52> VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.714 		8-97332-607-0 04 1 0303- ● ●
28 16.718 HOLDER; GUIDE,HD REST
FRONT SEAT BUCKET TYPE<A50> 16.714 		8-97332-607-0 02 1 0211- ● ●
28 16.718 HOLDER; GUIDE,HD REST
FRONT SEAT BUCKET TYPE<A50> 16.714 		8-97332-607-0 02 1 0211- ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97332-766-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT<A52> 		8-97332-766-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97332-767-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT<A52> 		8-97332-767-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
FRONT SEAT BUCKET TYPE<A50> PASSENGER SEAT 		8-97332-657-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
PASSENGER SEAT 		8-97332-657-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
FRONT SEAT BUCKET TYPE<A50> DRIVER SEAT 		8-97332-652-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
DRIVER SEAT 		8-97332-652-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
FRONT SEAT BUCKET TYPE<A50> DRIVER SEAT 		8-97332-656-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
DRIVER SEAT 		8-97332-656-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> PASSENGER SEAT 		8-97353-184-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X4 SPACE CAB LONG(TFS*CF) PASSENGER SEAT 		8-97353-184-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) FRONT SEAT BUCKET TYPE<A50> PASSENGER SEAT 		8-97332-653-0 01 1 0211- ●
63 16.682 ADJUSTER; SEAT SLIDE
CREW CAB LONG(TF**WF) PASSENGER SEAT 		8-97332-653-0 01 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
16.714 		8-97248-987-0 06 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
BENCH SEAT<A52> 16.714 		8-97248-987-0 06 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
EXC. BENCH SEAT<A52> 16.714 		8-97248-987-0 08 1 0211- ●
67 16.682 BOLT; FRT SEAT TO BODY
16.714 		8-97248-987-0 08 1 0211- ●
100 16.686 COVER; HINGE 8-97332-755-0 02 1 0211- ●
100 16.686 COVER; HINGE
BENCH SEAT<A52> 		8-97332-755-0 02 1 0211- ●
191 16.720 FINISHER; HINGE,CENTER SEAT BACK
FRONT L=115 		8-97332-772-0 02 1 0211- ●
191 16.720 FINISHER; HINGE,CENTER SEAT BACK
BENCH SEAT<A52> FRONT L=115 		8-97332-772-0 02 1 0211- ●
191 16.720 FINISHER; HINGE,CENTER SEAT BACK
REAR L=90 		8-97332-773-0 02 1 0211- ●
191 16.720 FINISHER; HINGE,CENTER SEAT BACK
BENCH SEAT<A52> REAR L=90 		8-97332-773-0 02 1 0211- ●
201 16.682 CABLE; ADJ 8-97332-768-0 01 1 0211- ●
201 16.682 CABLE; ADJ
BENCH SEAT<A52> 		8-97332-768-0 01 1 0211- ●
201 16.682 CABLE; ADJ
FRONT SEAT BUCKET TYPE<A50> 		8-97353-225-0 01 1 0211- ● ●
201 16.682 CABLE; ADJ
FRONT SEAT BUCKET TYPE<A50> 		8-97353-225-0 01 1 0211- ● ●
257 16.682 BOLT; RECLINING DEVICE
(B) 		8-97332-605-0 04 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
BENCH SEAT<A52> (B) 		8-97332-605-0 04 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
(A) 		8-97332-630-0 02 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
BENCH SEAT<A52> (A) 		8-97332-630-0 02 1 0211- ●
257 16.682 BOLT; RECLINING DEVICE
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-630-0 01 1 0211- ● ●
257 16.682 BOLT; RECLINING DEVICE
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-630-0 01 1 0211- ● ●
271 16.682 SPRING; HELPER
(C) 		8-97332-769-0 01 1 0211- ●
271 16.682 SPRING; HELPER
BENCH SEAT<A52> (C) 		8-97332-769-0 01 1 0211- ●
271 16.682 SPRING; HELPER
(D) 		8-97332-770-0 01 1 0211- ●
271 16.682 SPRING; HELPER
BENCH SEAT<A52> (D) 		8-97332-770-0 01 1 0211- ●
271 16.682 SPRING; HELPER
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
4X2 SINGLE CAB LONG(TFB5SF) 4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SINGLE CAB EXTRA LONG(TFS5SK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
(A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
CREW CAB LONG(TF**WF) (A) 		8-97332-661-0 01 1 0211-0211 ●
271 16.682 SPRING; HELPER
SPACE CAB(TF**C*) FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-662-0 01 1 0211- ●
271 16.682 SPRING; HELPER
4X4 SPACE CAB LONG(TFS*CF) (A) 		8-97332-662-0 01 1 0211- ●
271 16.682 SPRING; HELPER
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-650-0 04 1 0211- ● ●
271 16.682 SPRING; HELPER
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-650-0 04 1 0211- ● ●
306 16.682 NUT; SEAT ADJ
(A) 		8-97332-771-0 06 1 0211- ●
306 16.682 NUT; SEAT ADJ
BENCH SEAT<A52> (A) 		8-97332-771-0 06 1 0211- ●
306 16.682 NUT; SEAT ADJ
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-666-0 04 1 0211- ● ●
306 16.682 NUT; SEAT ADJ
FRONT SEAT BUCKET TYPE<A50> (B) 		8-97332-666-0 04 1 0211- ● ●
310 16.682 LEVER ASM; HEIGHT ADJ DRIVER SEA
DARK GRAY 		8-97394-219-0 01 1 0211- ● ● ●
310 16.682 LEVER ASM; HEIGHT ADJ DRIVER SEA
DARK GRAY 		8-97394-220-0 01 1 0211- ● ● ●
465 16.682 COVER; SEAT ADJUSTER
16.717 		8-97331-501-1 02 1 0211- ●
465 16.682 COVER; SEAT ADJUSTER
BENCH SEAT<A52> 16.717 		8-97331-501-1 02 1 0211- ●
465 16.682 COVER; SEAT ADJUSTER
FRONT SEAT BUCKET TYPE<A50> 		8-97328-838-0 02 1 0211- ● ●
465 16.682 COVER; SEAT ADJUSTER
FRONT SEAT BUCKET TYPE<A50> 		8-97328-838-0 02 1 0211- ● ●
555 16.682 CLIP; TRIM 8-97332-774-0 04 1 0211- ●
555 16.682 CLIP; TRIM
BENCH SEAT<A52> 		8-97332-774-0 04 1 0211- ●
583 16.682 ROD; SEAT 8-97332-758-0 01 1 0211- ●
583 16.682 ROD; SEAT
BENCH SEAT<A52> 		8-97332-758-0 01 1 0211- ●
583 16.682 ROD; SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97354-840-0 01 1 0211- ● ●
583 16.682 ROD; SEAT
FRONT SEAT BUCKET TYPE<A50> 		8-97354-840-0 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 CREW CAB(TFB*W*) (D) DARK GRAY 		8-97390-868-1 03 1 0211- ●
610 16.682 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (C) 		8-97328-453-0 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (C) 		8-97312-372-1 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (A) DARK GRAY 		8-97298-463-1 02 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97390-867-1 01 1 0211- ● ●
610 16.682 COVER; LEG,FRT SEAT
4X2 SPACE CAB LONG(TFB5CF) 4X2 SPACE CAB EXTRA LONG(TFB5CK) 4X2 CREW CAB LONG(TFB5WF) 4X4 SPACE CAB LONG(TFS5CF) 4X4 SPACE CAB EXTRA LONG(TFS5CK) 4X4 CREW CAB LONG(TFS5WF) 4X4 CREW CAB EXTRA LONG(TFS5WK) FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97298-464-1 01 1 0211- ● ●
616 16.682 LATCH; OUTBOAD 8-97332-751-0 01 1 0211- ●
616 16.682 LATCH; OUTBOAD
BENCH SEAT<A52> 		8-97332-751-0 01 1 0211- ●
616 16.682 LATCH; OUTBOAD 8-97332-752-0 01 1 0211- ●
616 16.682 LATCH; OUTBOAD
BENCH SEAT<A52> 		8-97332-752-0 01 1 0211- ●
618 16.682 CARPET; HINGE 8-97332-753-0 02 1 0211- ●
618 16.682 CARPET; HINGE
BENCH SEAT<A52> 		8-97332-753-0 02 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
