◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#42382) — 40 parça

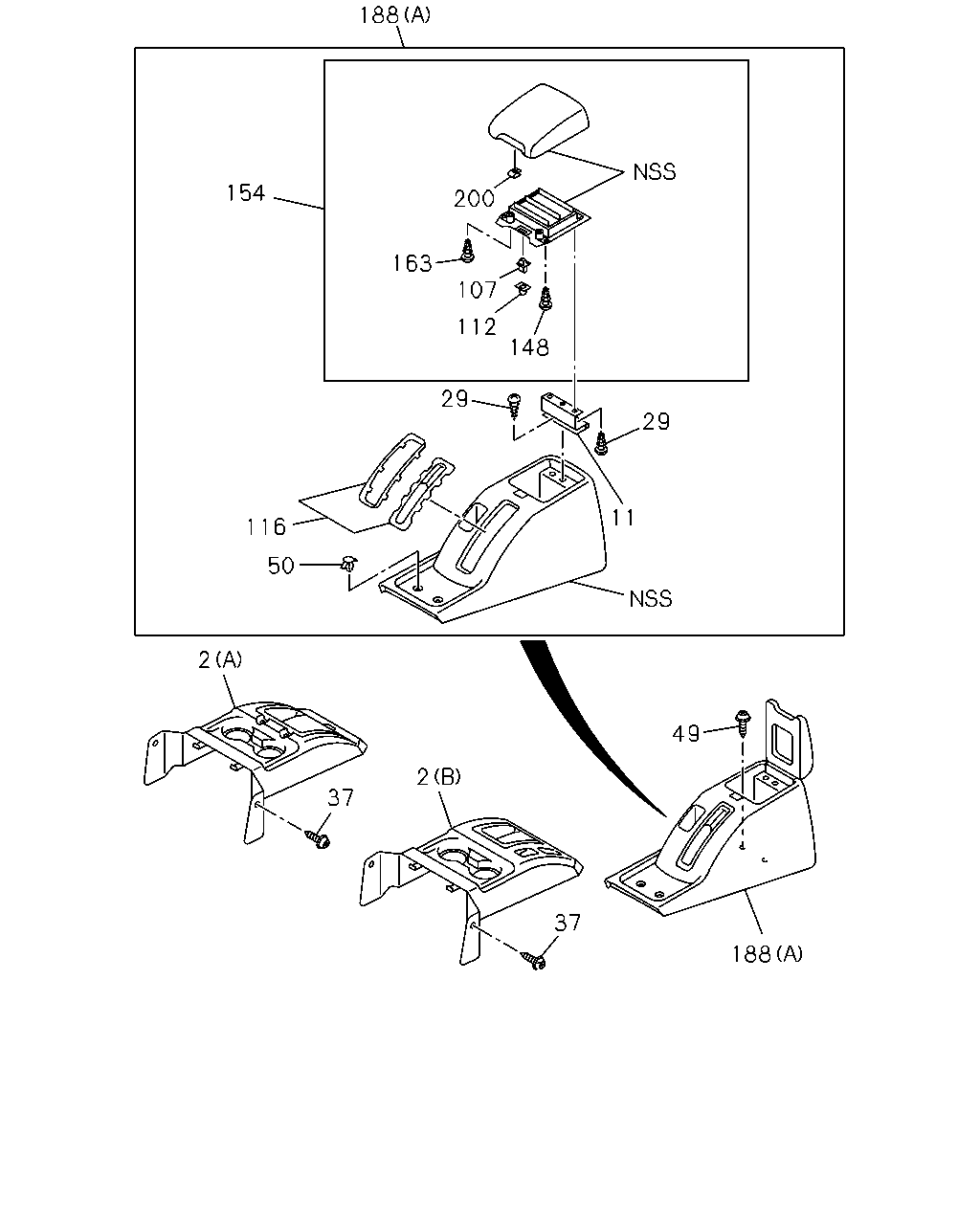

çizim 47960
188 154 200 163 107 112 148 29 29 11 116 50 2 49 2 37 37 188
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (B) DARK GRAY 		8-97293-884-1 01 1 0211- ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) DARK GRAY 		8-97293-887-1 01 1 0211- ● ● ●
11 16.650 HINGE; CONSOLE LID 8-97349-645-0 01 1 0211- ●
29 16.650 SCREW; HINGE
16.115 M5X16 		8-94279-312-0 06 1 0211- ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0211- ● ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> 01.269 M5X16 		8-94358-694-0 02 1 0211- ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0211- ●
50 04.010 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> 		8-97355-734-0 02 1 0211- ●
50 04.010 CLIP; CONSOLE 8-97355-734-0 02 1 0211- ●
107 16.650 LOCK; LID,RR CONSOLE 8-97349-644-0 01 1 0211- ●
112 16.650 LOCK; HOLE,RR CONSOLE 8-97349-643-0 01 1 0211- ●
116 16.650 COVER; HOLE,CONSOLE,RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> DARK GRAY 		8-97394-454-0 01 1 0211- ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0211- ●
148 16.650 SCREW; LID,CONSOLE
M4X14 		8-97349-647-0 08 1 0211- ●
154 16.650 LID ASM; RR CONSOLE
DARK GRAY 		8-97394-455-0 01 1 0211- ●
163 16.650 RUBBER; CUSHION,PARCEL BOX LID 8-97349-682-0 02 1 0211- ●
188 16.650 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> (B) DARK GRAY 		8-97293-890-3 01 1 0211- ●
188 16.650 CONSOLE; RR
(A) DARK GRAY 		8-97395-405-0 01 1 0211- ●
200 16.650 NUT; SPIRE,SPR LID 8-97349-642-0 06 1 0211- ●

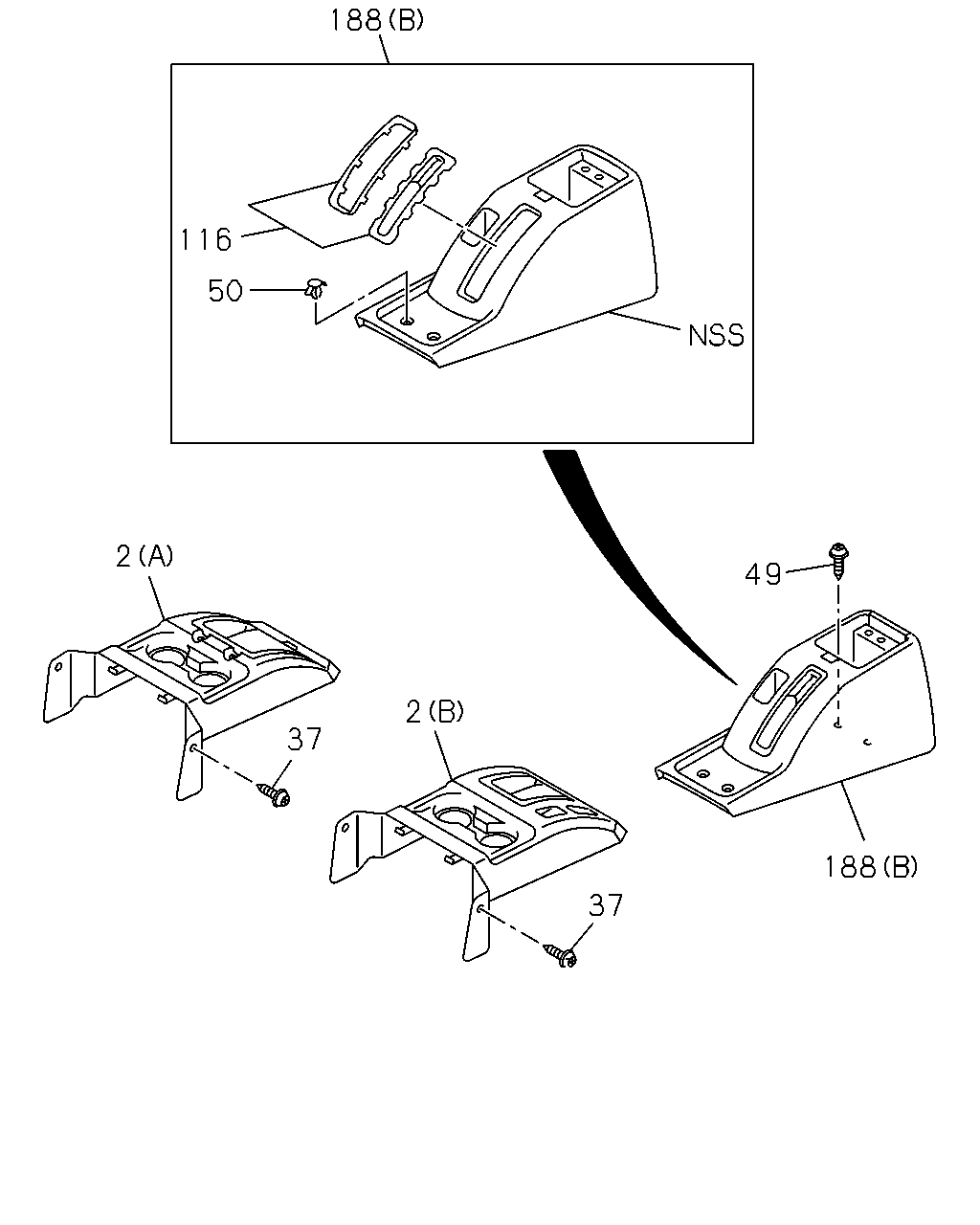

çizim 49693
188 116 50 2 49 2 37 188 37
BalonParca AdiParca NoAdetTipApplied Date A B C
2 16.081 CONSOLE; CENTER
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) (B) DARK GRAY 		8-97293-884-1 01 1 0211- ● ● ●
2 16.081 CONSOLE; CENTER
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A) DARK GRAY 		8-97293-887-1 01 1 0211- ● ● ●
37 16.650 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0211- ● ● ●
49 04.017 SCREW; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> 01.269 M5X16 		8-94358-694-0 02 1 0211- ●
49 04.017 SCREW; CONSOLE
01.269 M5X16 		8-94358-694-0 02 1 0211- ●
50 04.010 CLIP; CONSOLE
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> 		8-97355-734-0 02 1 0211- ●
50 04.010 CLIP; CONSOLE 8-97355-734-0 02 1 0211- ●
116 16.650 COVER; HOLE,CONSOLE,RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> DARK GRAY 		8-97394-454-0 01 1 0211- ●
116 16.650 COVER; HOLE,CONSOLE,RR
DARK GRAY 		8-97394-454-0 01 1 0211- ●
188 16.650 CONSOLE; RR
FLOOR CONSOLE ONE PIECE TYPE W/HAND BRAK E<7WH> (B) DARK GRAY 		8-97293-890-3 01 1 0211- ●
188 16.650 CONSOLE; RR
(A) DARK GRAY 		8-97395-405-0 01 1 0211- ●

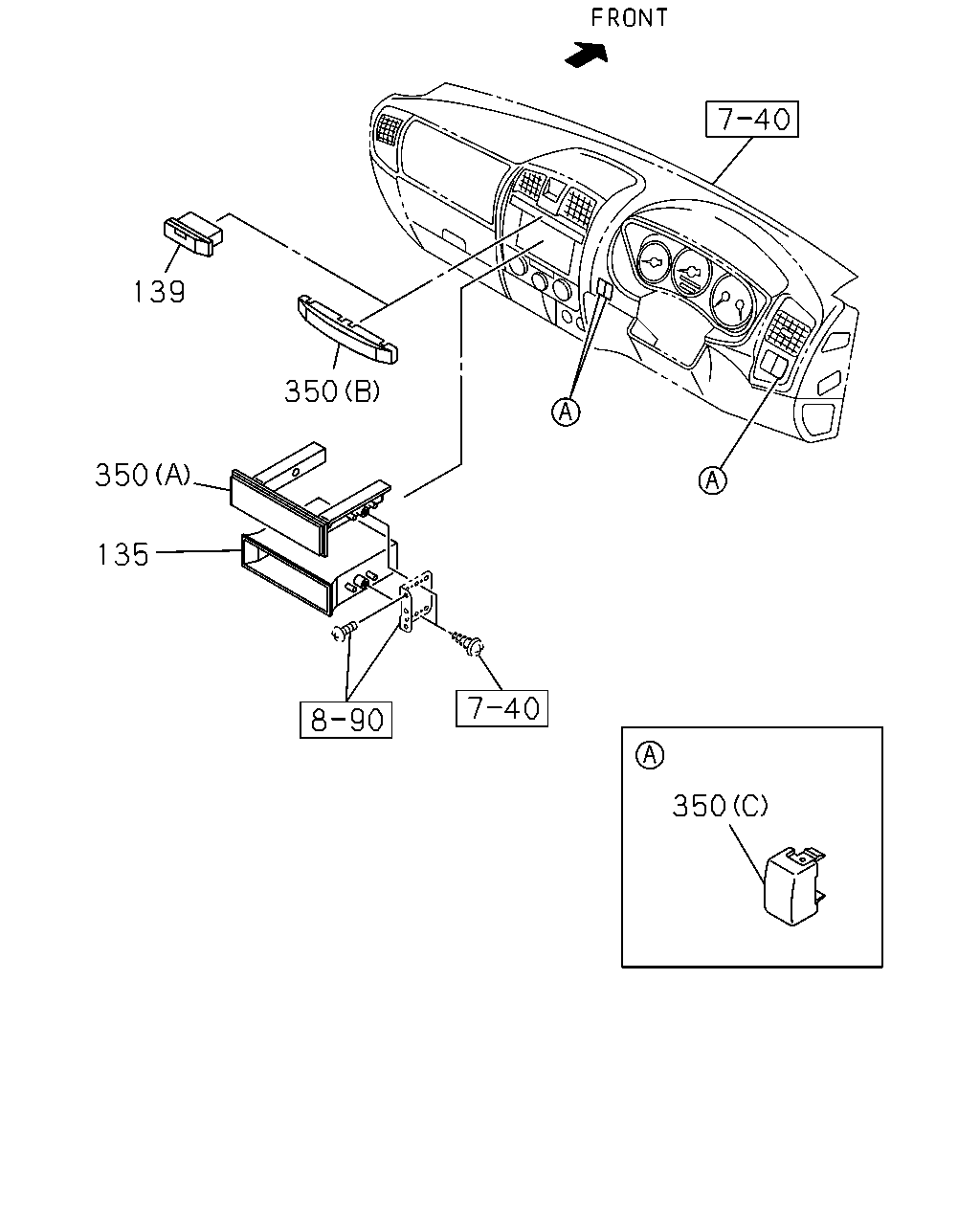

çizim 50627
139 350 350 135 350
BalonParca AdiParca NoAdetTipApplied Date A B C
135 16.650 BOX; CONSOLE,LWR
DARK GRAY 		8-97298-419-0 01 1 0211- ● ● ●
139 16.650 BOX; CONSOLE,UPR
4X2(TFB***) DARK GRAY 		8-97298-417-0 01 1 0211- ●
139 16.650 BOX; CONSOLE,UPR
4X2 CREW CAB(TFB*W*) LIGHT GRAY 		8-97298-418-0 01 1 0211- ●
350 16.650 COVER; CONSOLE
4X2 SINGLE CAB EXTRA LONG(TFB5SK) 4X2 CREW CAB LONG(TFB5WF) (B) DARK GRAY 		8-97298-416-0 01 1 0211- ●
350 16.650 COVER; CONSOLE
(A) DARK GRAY 		8-97298-421-0 01 1 0211- ● ● ●
350 16.650 COVER; CONSOLE
(C) DARK GRAY 		8-97298-962-0 01 1 0211- ● ● ●
350 16.650 COVER; CONSOLE
(C) DARK GRAY 		8-97298-962-0 01 1 0211- ● ● ●
350 16.650 COVER; CONSOLE
(C) DARK GRAY 		8-97298-962-0 01 1 0211- ●
350 16.650 COVER; CONSOLE
POWER WINDOW<A30> (C) DARK GRAY 		8-97298-962-0 01 1 0211- ●
350 16.650 COVER; CONSOLE
EXC. AUTO CRUISE CONT<K30> (C) DARK GRAY 		8-97298-962-0 01 1 0211- ●
