◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#42379) — 67 parça

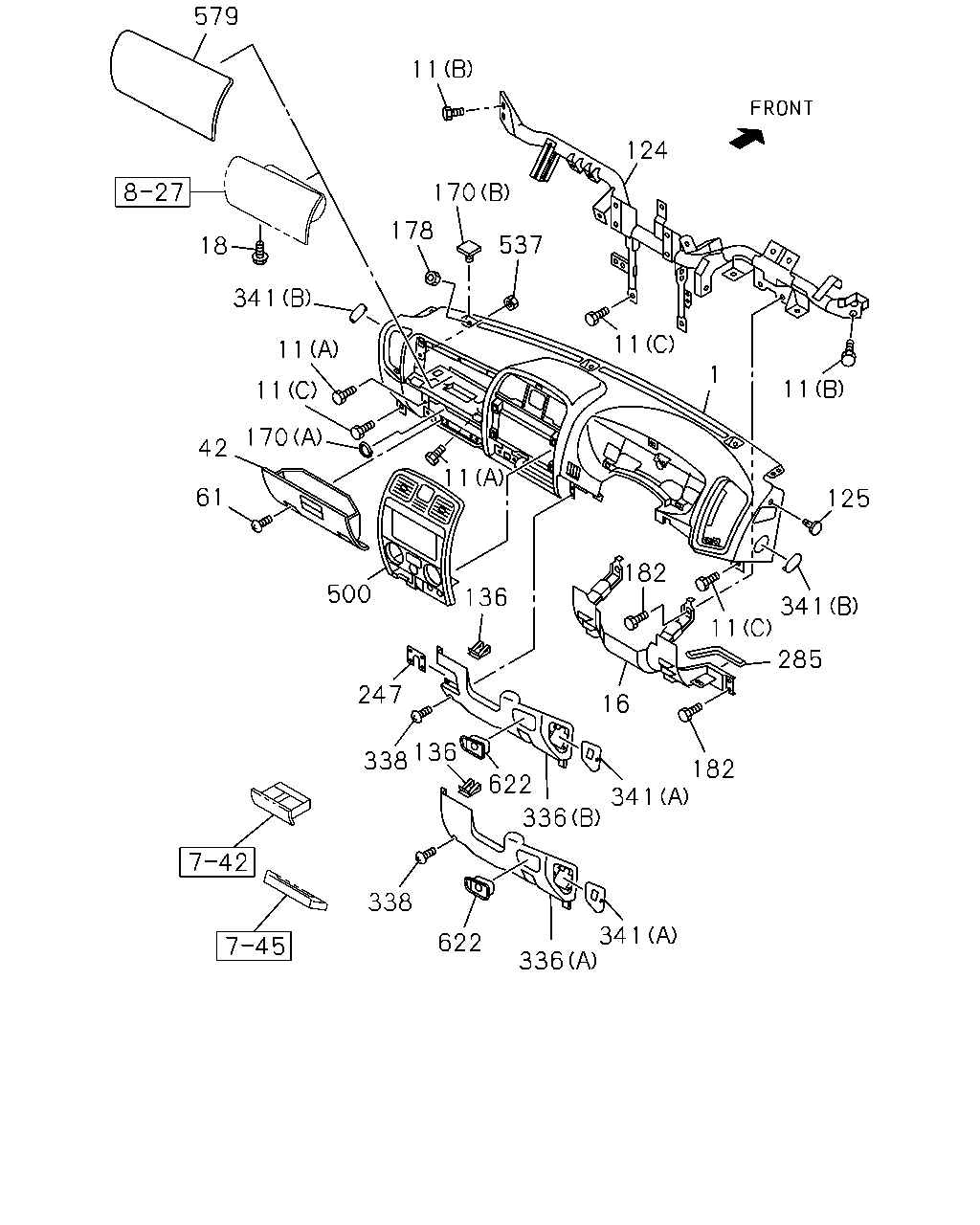

çizim 10307
579 11 124 170 178 537 18 341 11 11 1 11 11 170 42 11 61 125 182 500 136 341 11 285 247 16 136 338 182 622 341 336 338 341 622 336
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
DARK GRAY 		8-97299-326-0 01 1 0211- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 08.015 (A) M6X20 W/WASHER 		8-94112-987-1 04 1 0211- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 06 1 0211-0211 ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER(AK5) 08.015 (A) M6X20 W/WASHER 		8-94112-987-1 06 1 0211- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
04.570 (B) M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 0211- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
01.287 (C) M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 0211- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL 8-97237-376-0 01 1 0211-0212 ● ● ●
16 16.085 BRACKET; INST PNL
PARKING BRAKE FLOOR<7XW> 		8-97237-376-0 01 1 0211-0212 ● ● ● ● ●
16 16.085 BRACKET; INST PNL 8-97302-051-0 01 1 0301- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PARKING BRAKE FLOOR<7XW> 		8-97237-377-0 01 1 0211-0212 ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 16.328 M6X18 W/LK&PL WASHER 		8-97060-719-0 02 1 0211-0211 ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/LK&PL WASHER 		8-97353-832-0 02 1 0211- ● ● ● ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97293-941-2 01 1 0211-0304 ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97293-941-2 01 1 0211-0304 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
DARK GRAY 		8-97396-878-0 01 1 0305- ● ● ●
42 16.100 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> DARK GRAY 		8-97396-878-0 01 1 0305- ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97294-638-2 01 1 0211-0304 ● ● ● ● ●
42 16.100 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> DARK GRAY 		8-97396-879-0 01 1 0305- ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 M5X16 		8-94279-312-0 02 1 0211- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97237-251-3 01 1 0211-0212 ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
PARKING BRAKE FLOOR<7XW> 		8-97237-251-3 01 1 0211-0212 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97362-195-0 01 1 0301- ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
PARKING BRAKE FLOOR<7XW> 		8-97362-195-0 01 1 0301- ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
EXC. PARKING BRAKE FLOOR<7XW> 		8-97317-570-3 01 1 0211-0212 ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
EXC. PARKING BRAKE FLOOR<7XW> 		8-97362-196-0 01 1 0301- ● ● ● ● ●
125 16.085 CLIP; INST PANEL 8-97310-401-0 01 1 0211- ● ● ● ● ● ● ● ●
136 16.085 CLIP; INST COVER
16.100 T=0.5 		8-97137-828-0 04 1 0211- ● ● ● ● ● ● ● ●
170 16.165 COVER; HOLE
EXC. LAMP GLOVE COMPARTMENT<U27> 16.674 (A) 		8-97238-439-0 01 1 0211-0212 ● ● ● ● ●
170 16.165 COVER; HOLE
16.674 (B) DARK GRAY 		8-97293-913-0 01 1 0211- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 0211- ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.015 M6X20 W/WASHER 		8-94112-987-1 06 1 0211-0212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
PARKING BRAKE FLOOR<7XW> 08.015 M6X20 W/WASHER 		8-94112-987-1 06 1 0211-0212 ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.015 M6X20 W/WASHER 		8-94112-987-1 04 1 0301- ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> 08.015 M6X20 W/WASHER 		8-94112-987-1 05 1 0211-0212 ● ● ● ● ●
247 16.080 COVER; HAND BRAKE LEVER,INST PAN
EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97393-916-0 01 1 0211- ● ● ● ● ●
285 16.085 FINISHER; INST PANEL
16.550 L=175 SERVICED BY L=2040 		1-71997-513-1 01 1 0211- ● ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) DARK GRAY 		8-97393-913-0 01 1 0211- ● ● ●
336 16.081 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) DARK GRAY 		8-97393-913-0 01 1 0211- ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) DARK GRAY 		8-97393-912-0 01 1 0211- ● ● ● ● ●
338 16.081 SCREW; COVER
16.115 M5X16 		8-94279-312-0 01 1 0211- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(A) DARK GRAY 		8-97393-914-0 01 1 0211- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97293-915-1 01 1 0211-0303 ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-877-0 01 1 0304- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97293-914-1 01 1 0211-0303 ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
(B) DARK GRAY 		8-97396-876-0 01 1 0304- ● ● ● ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97293-909-2 01 1 0211-0305 ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
GRADE DX(RBA),GRADE LX(RBB) DARK GRAY 		8-97293-909-2 01 1 0211-0305 ● ● ●
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97396-250-0 01 1 0306- ● ● ● ● ●
500 16.081 CLUSTER; INST CENTER
GRADE DX(RBA),GRADE LX(RBB) DARK GRAY 		8-97396-250-0 01 1 0306- ● ● ●
500 16.081 CLUSTER; INST CENTER
GRADE LT(RBD) LIGHT GRAY 		8-97293-910-2 01 1 0211-0305 ● ● ●
500 16.081 CLUSTER; INST CENTER
GRADE LT(RBD) LIGHT GRAY 		8-97398-208-0 01 1 0306- ● ● ●
537 16.085 NUT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) 16.547 M6 W/DISHED WASHER 		8-97018-399-1 02 1 0211- ● ● ● ● ● ● ● ●
579 16.080 COVER; INST PNL
EXC. AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97299-329-0 01 1 0211- ● ● ● ● ● ● ● ●
622 16.100 BOX; IDLE CONT
DARK GRAY 		8-97393-915-0 01 1 0211- ● ● ● ● ● ● ● ●

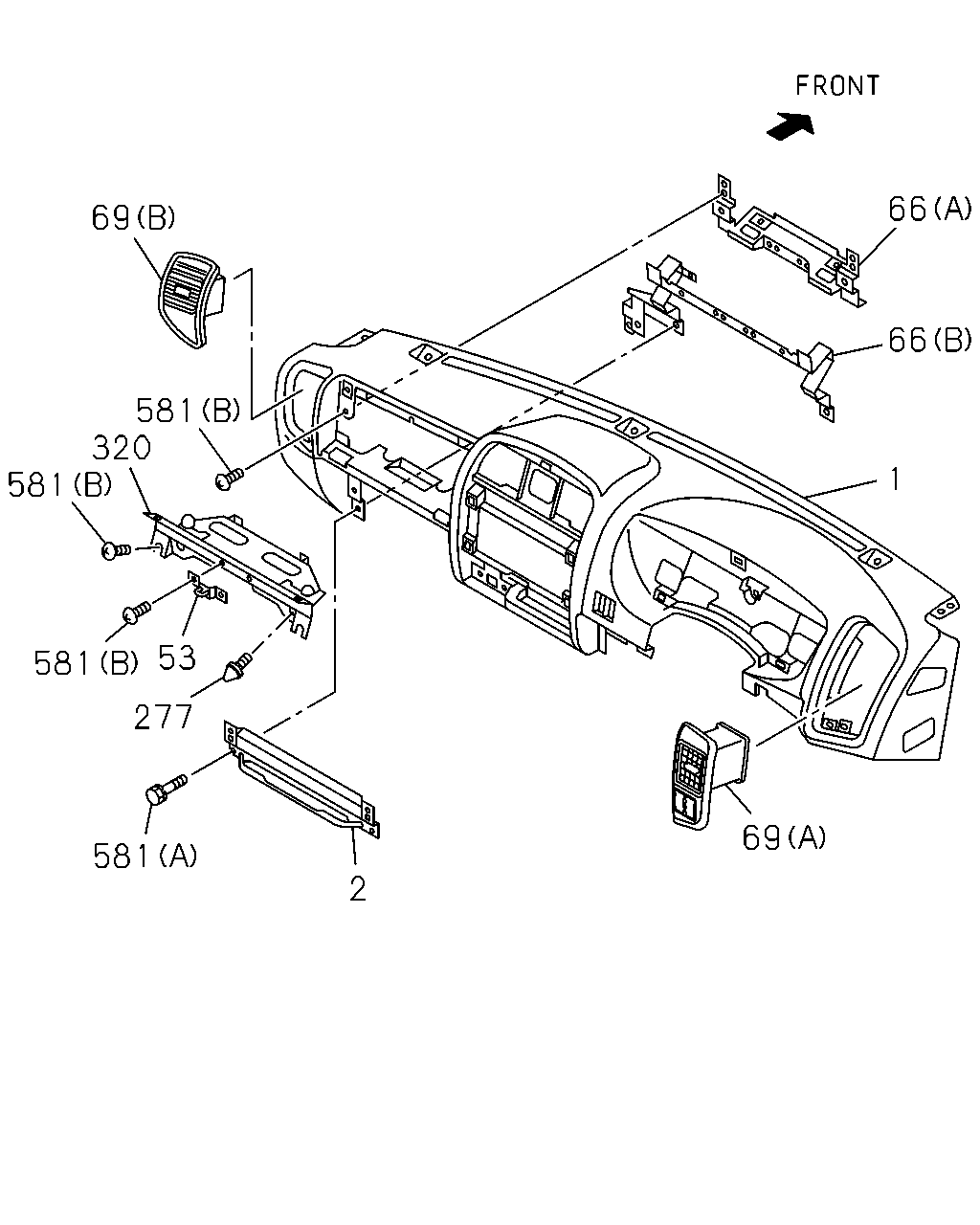

çizim 52157
66 69 66 581 320 581 1 53 581 277 69 581 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
DARK GRAY 		8-97299-326-0 01 1 0211- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 0211- ● ● ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97308-646-0 01 1 0211- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97308-643-0 01 1 0211- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97308-641-0 01 1 0211- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97293-900-1 01 1 0211-0305 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97396-252-0 01 1 0306- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97299-327-1 01 1 0211-0305 ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97396-253-0 01 1 0306- ● ● ● ● ● ● ● ●
277 16.081 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 0211- ● ● ● ● ● ● ● ●
320 16.081 COVER; GLOVE BOX
DARK GRAY 		8-97299-328-1 01 1 0211- ● ● ● ● ● ● ● ●
581 09.744 SCREW
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0211- ● ● ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 13 1 0211- ● ● ● ● ● ● ● ●
