◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#42377) — 10 parça

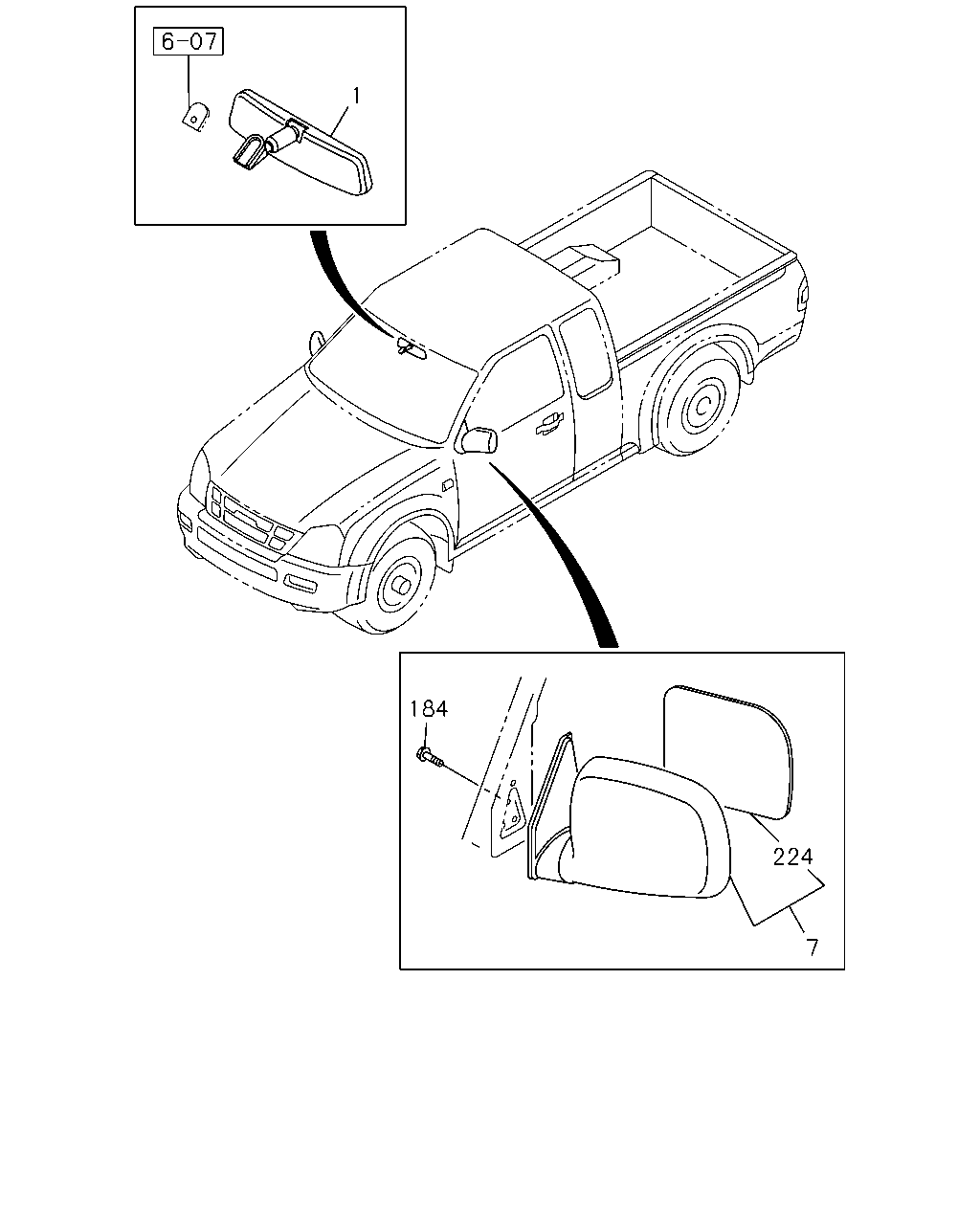

çizim 47912
1 184 224 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.068 MIRROR; ROOM 8-97237-560-0 01 1 0211- ● ● ● ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR 8-97357-859-0 01 1 0211- ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR(RT9) 		8-97357-859-0 01 1 0211- ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR 8-97357-861-0 01 1 0211- ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR(RT9) 		8-97357-861-0 01 1 0211- ● ● ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT(7HX) 		8-97357-870-0 01 1 0211- ● ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT(7HX) 		8-97357-872-0 01 1 0211- ● ● ●
184 16.069 BOLT; MIRROR
16.585 M6X14 FLANGE 		8-94327-380-0 06 1 0211- ● ● ● ● ● ● ● ●
224 16.068 MIRROR; DOOR 8-97349-981-0 01 1 0211- ● ● ● ● ● ● ● ●
224 16.068 MIRROR; DOOR 8-97351-415-0 01 1 0211- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
