◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#42375) — 13 parça

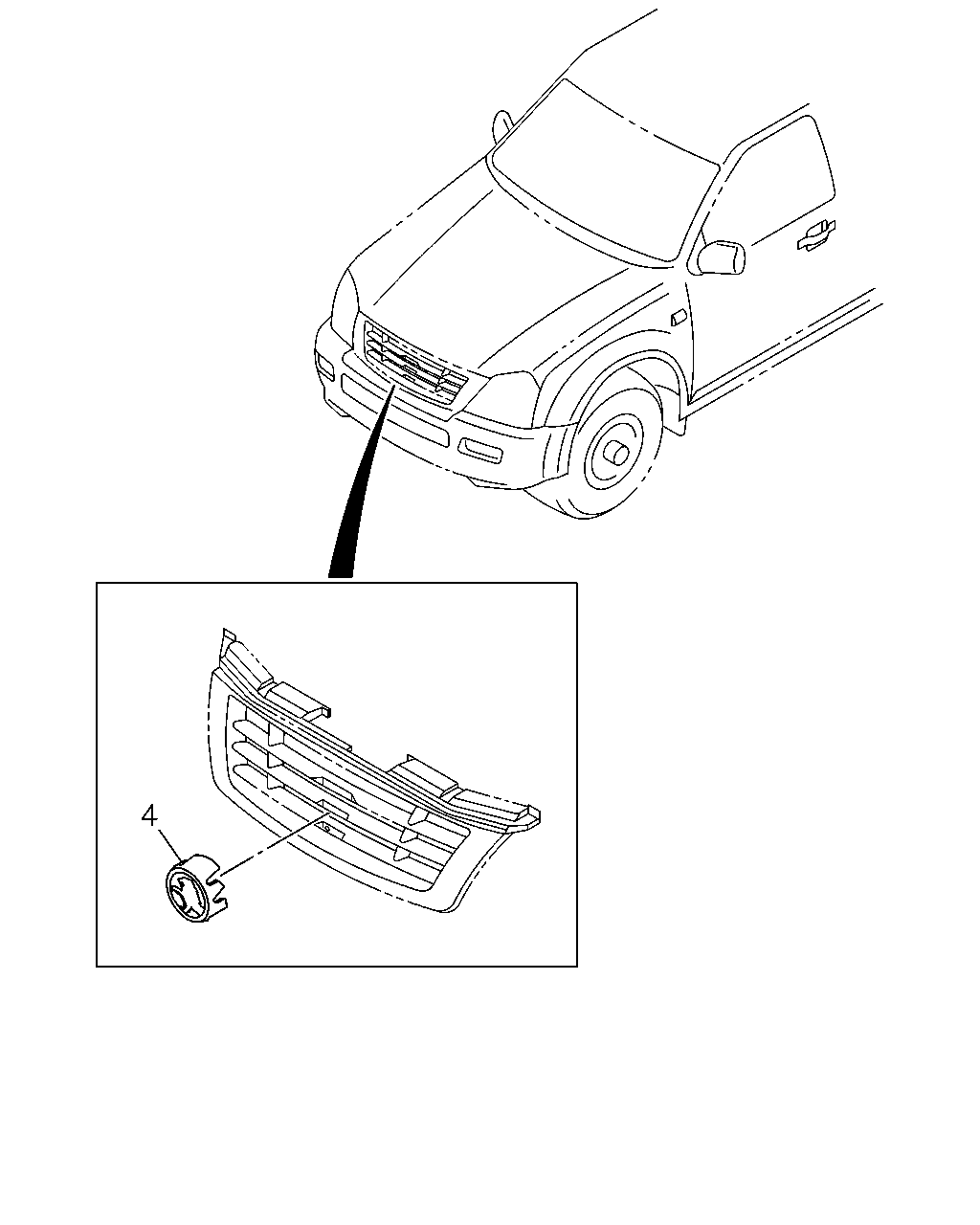

çizim 49786
4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 01.303 EMBLEM; RAD GRILLE 8-97331-857-1 01 1 0211- ● ● ● ● ● ● ● ●

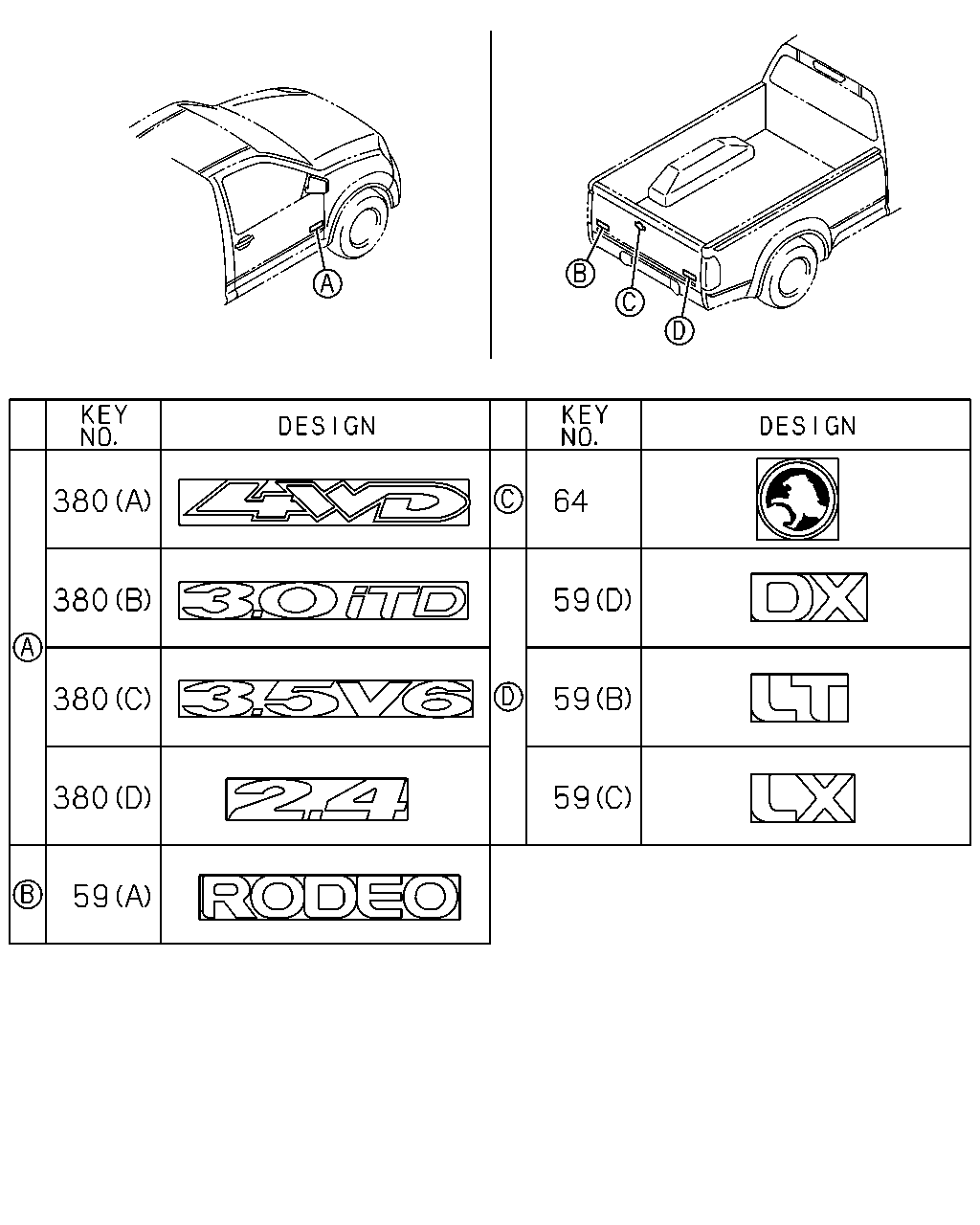

çizim 49827
380 64 380 59 380 59 59 380 59
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
59 01.303 DECAL; TAIL GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C) 		8-97324-676-0 01 1 0211- ●
59 01.303 DECAL; TAIL GATE
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) (C) 		8-97324-676-0 01 1 0211- ●
59 01.303 DECAL; TAIL GATE
GRADE LX(RBB) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (C) 		8-97324-676-0 01 1 0211- ● ● ●
59 01.303 DECAL; TAIL GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) (A) 		8-97324-674-0 01 1 0211- ● ● ● ● ●
59 01.303 DECAL; TAIL GATE
GRADE DX(RBA) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (D) 		8-97324-677-0 01 1 0211- ●
59 01.303 DECAL; TAIL GATE
GRADE LT(RBD) RR BODY DOUBLE WALL CTR PULL HANDLE (S7R) (B) 		8-97324-675-1 01 1 0211- ● ● ●
64 16.507 EMBLEM; TAIL GATE
RR BODY DOUBLE WALL CTR PULL HANDLE (S7R),RR BODY DOUBLE WALL SIDE LOCKOUTER HOOK(S7S) 		8-97324-678-0 01 1 0211- ● ● ● ● ●
380 17.215 PLATE; SIDE
4JH1-TC ENG(RDM) 01.303 (B) 		8-97324-671-1 02 1 0211- ● ● ● ● ● ● ●
380 17.215 PLATE; SIDE
01.303 (B) 		8-97324-671-1 02 1 0211- ●
380 17.215 PLATE; SIDE
6VE1 ENG(RJQ) 01.303 (C) 		8-97324-672-1 02 1 0211- ● ● ● ● ● ● ●
380 17.215 PLATE; SIDE
C24SE ENG(LG1) 01.303 (D) 		8-97324-673-1 02 1 0211- ● ●
380 17.215 PLATE; SIDE
01.303 (A) 		8-97324-670-0 02 1 0211- ● ● ● ●
