◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#42374) — 24 parça

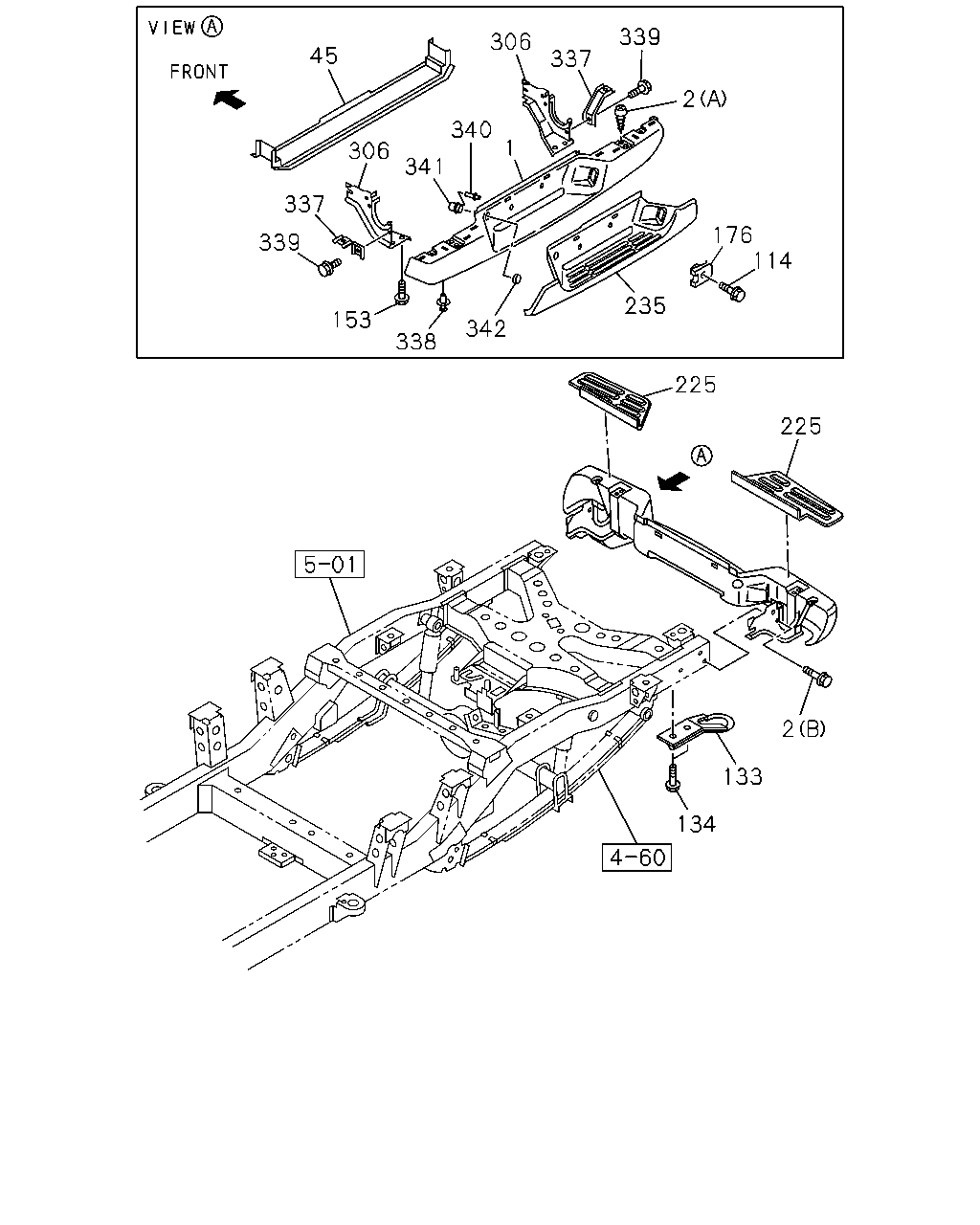

çizim 49499
339 306 45 337 2 340 1 306 341 337 176 114 339 235 153 342 338 225 225 2 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.070 BUMPER; RR
REAR STEP BUMPER CHROME(VB3) 		8-97352-581-0 01 1 0211- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER CHROME(VB3) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0211- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER CHROME(VB3) (A) M10X22 HEX SOCKET 		8-97352-591-0 08 1 0211- ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97244-951-1 01 1 0211- ● ● ● ● ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
REAR STEP BUMPER CHROME(VB3) 00.738 M6X16 FLANGE 		0-28080-616-0 02 1 0301- ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0211- ● ● ●
133 07.112 HOOK 8-97942-766-0 01 1 0211- ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0211- ● ● ●
134 07.068 BOLT; HOOK
M10X30 FLANGE 		0-28661-030-0 02 1 0211- ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER CHROME(VB3) 		8-97352-592-0 04 1 0211- ● ● ● ● ● ●
176 07.068 NUT
REAR STEP BUMPER CHROME(VB3) 07.829 		8-94342-576-1 02 1 0301- ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97240-606-0 01 1 0211-0211 ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97357-924-0 01 1 0211- ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97240-607-0 01 1 0211-0211 ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97357-925-0 01 1 0211- ● ● ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER CHROME(VB3) 		8-97240-604-1 01 1 0211- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER CHROME(VB3) 		8-97240-602-1 01 1 0211- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER CHROME(VB3) 		8-97240-603-1 01 1 0211- ● ● ● ● ● ●
337 07.875 BRACE; RR BUMPER
REAR STEP BUMPER CHROME(VB3) 		8-97352-583-0 02 1 0211- ● ● ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER CHROME(VB3) 		8-97352-595-0 02 1 0211- ● ● ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER CHROME(VB3) 		8-97352-593-0 04 1 0211- ● ● ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER CHROME(VB3) 		8-97352-594-0 03 1 0211- ● ● ● ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER CHROME(VB3) 		8-97352-584-1 01 1 0211- ● ● ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER CHROME(VB3) 		8-97352-585-2 01 1 0211- ● ● ● ● ● ●
