Isuzu WW
▶
PICKUP
▶
TFR
▶
50936 - TFR/TFS(AUSTRALIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-84 - BACK TRIM
▶

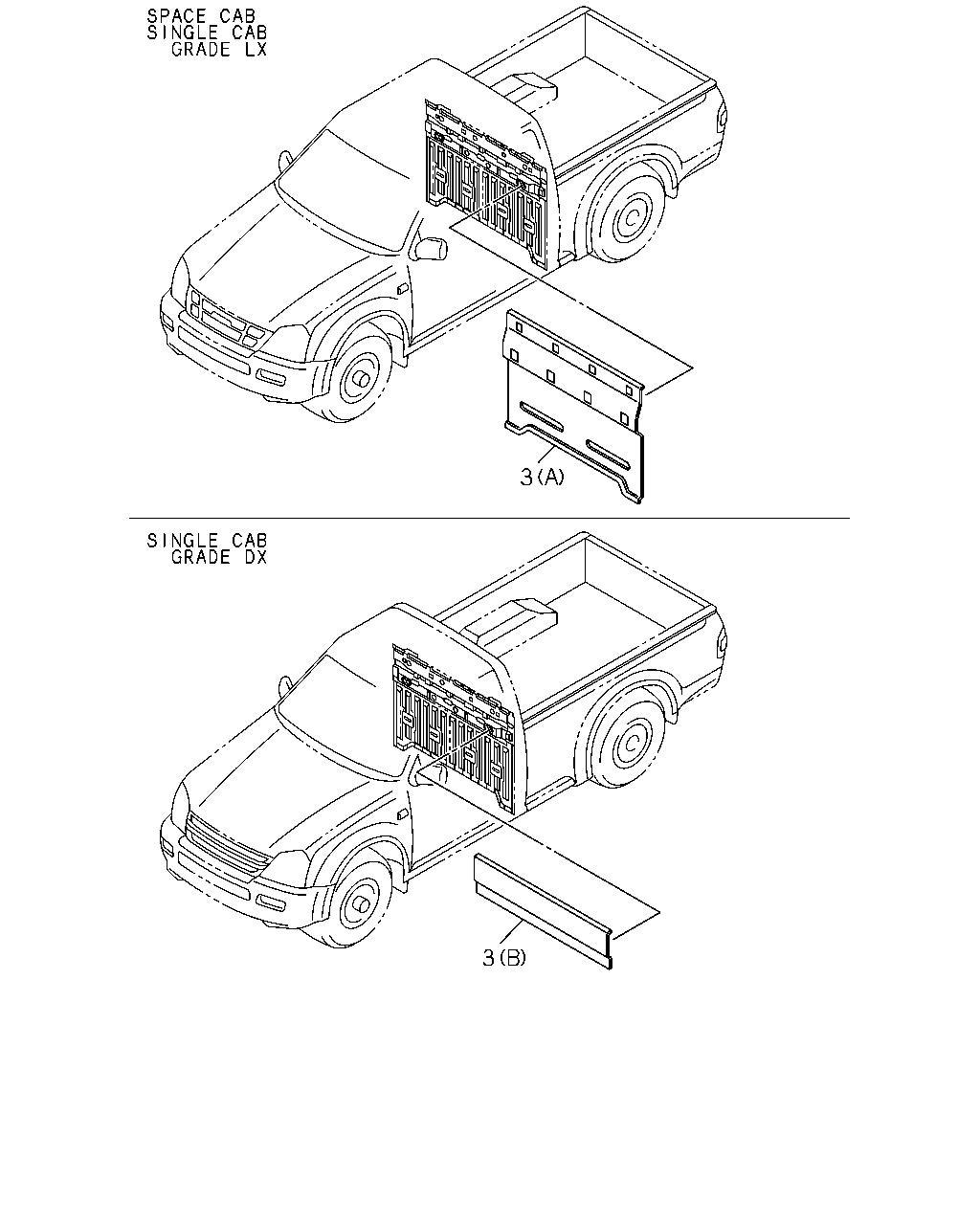

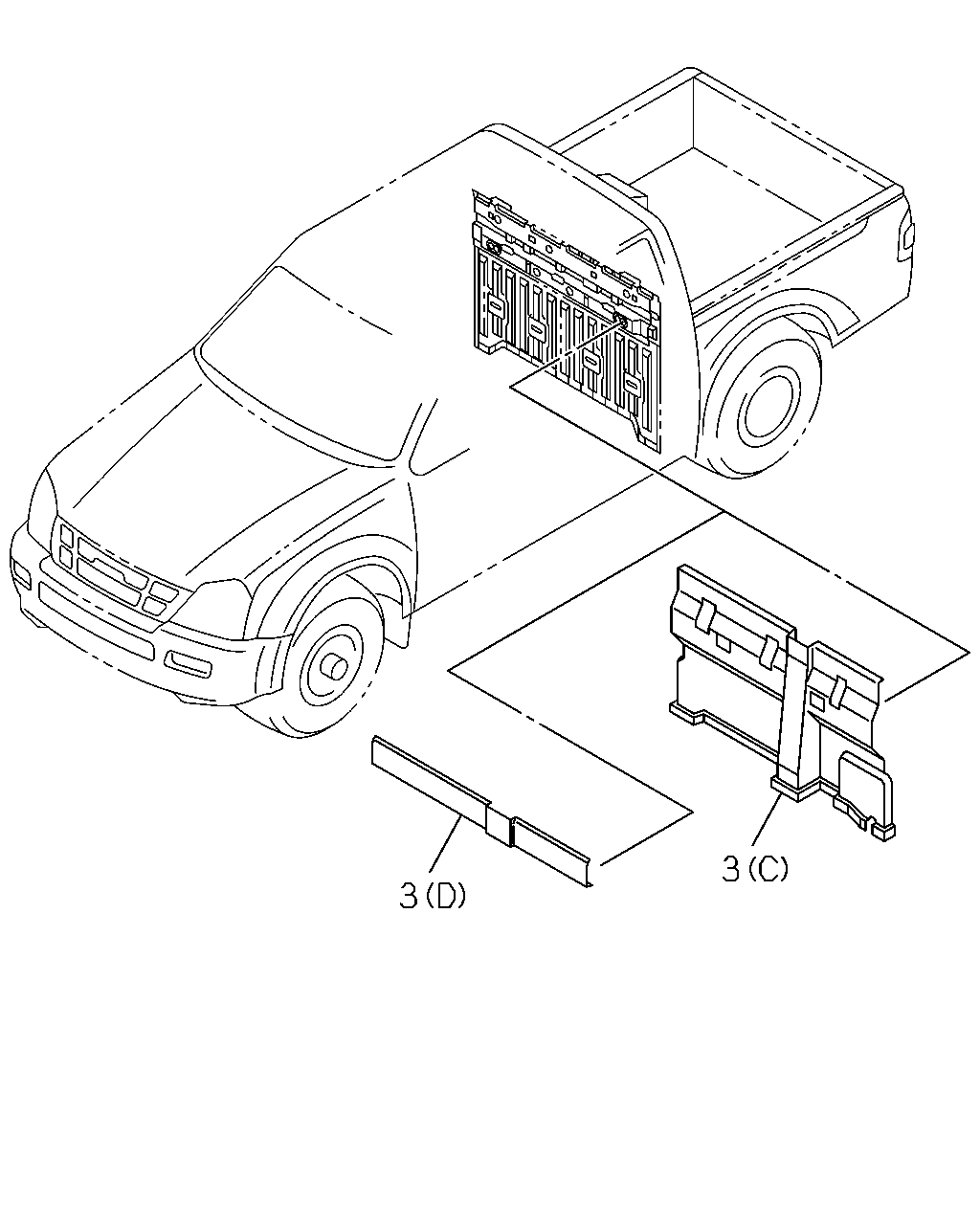

6-84 — BACK TRIM
(#42372) — 12 parça
Tümü
A - TFB5CF
B - TFB5CK
C - TFS5CF
D - TFS5CK
E - TFB5WF
F - TFB5S
G - TFS5SK
H - TFS5W
◀
[684A] CREW CAB (6 parça)
[684A] SPACE,SINGLE CAB (6 parça)
▶
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
3
16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY
8-97396-099-0
01
1
0211-
●
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY
8-97395-685-0
01
1
0211-
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY
8-97395-385-0
01
1
0211-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB) (A) DARK GRAY
8-97293-964-0
01
1
0211-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY
8-97293-963-2
01
1
0211-
●
3
16.578 TRIM; FULL,BACK UPR
(C) DARK GRAY
8-97293-963-2
01
1
0211-
●
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
3
16.578 TRIM; FULL,BACK UPR
(A) DARK GRAY
8-97396-099-0
01
1
0211-
●
●
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (D) DARK GRAY
8-97395-685-0
01
1
0211-
●
3
16.578 TRIM; FULL,BACK UPR
GRADE DX(RBA) (B) DARK GRAY
8-97395-385-0
01
1
0211-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB) (A) DARK GRAY
8-97293-964-0
01
1
0211-
●
●
3
16.578 TRIM; FULL,BACK UPR
GRADE LX(RBB),GRADE LT(RBD) (C) DARK GRAY
8-97293-963-2
01
1
0211-
●
3
16.578 TRIM; FULL,BACK UPR
(C) DARK GRAY
8-97293-963-2
01
1
0211-
●
